Swift L4-1298cc 1.3L SOHC 3 TBI 8V
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
Scan Tool Testing and Procedures
ECM Terminal Identification:

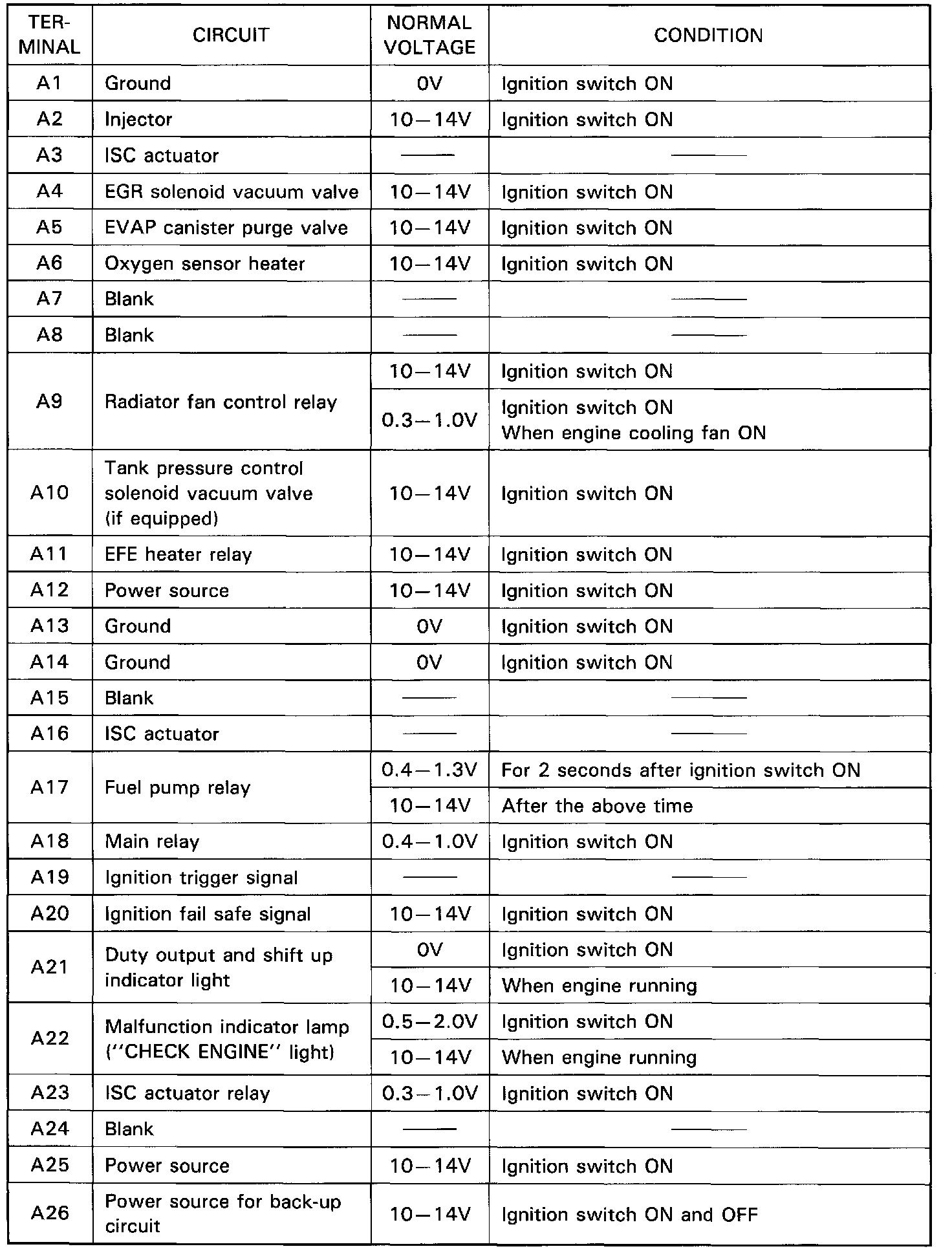

ECM Voltage (Part 1 Of 3):

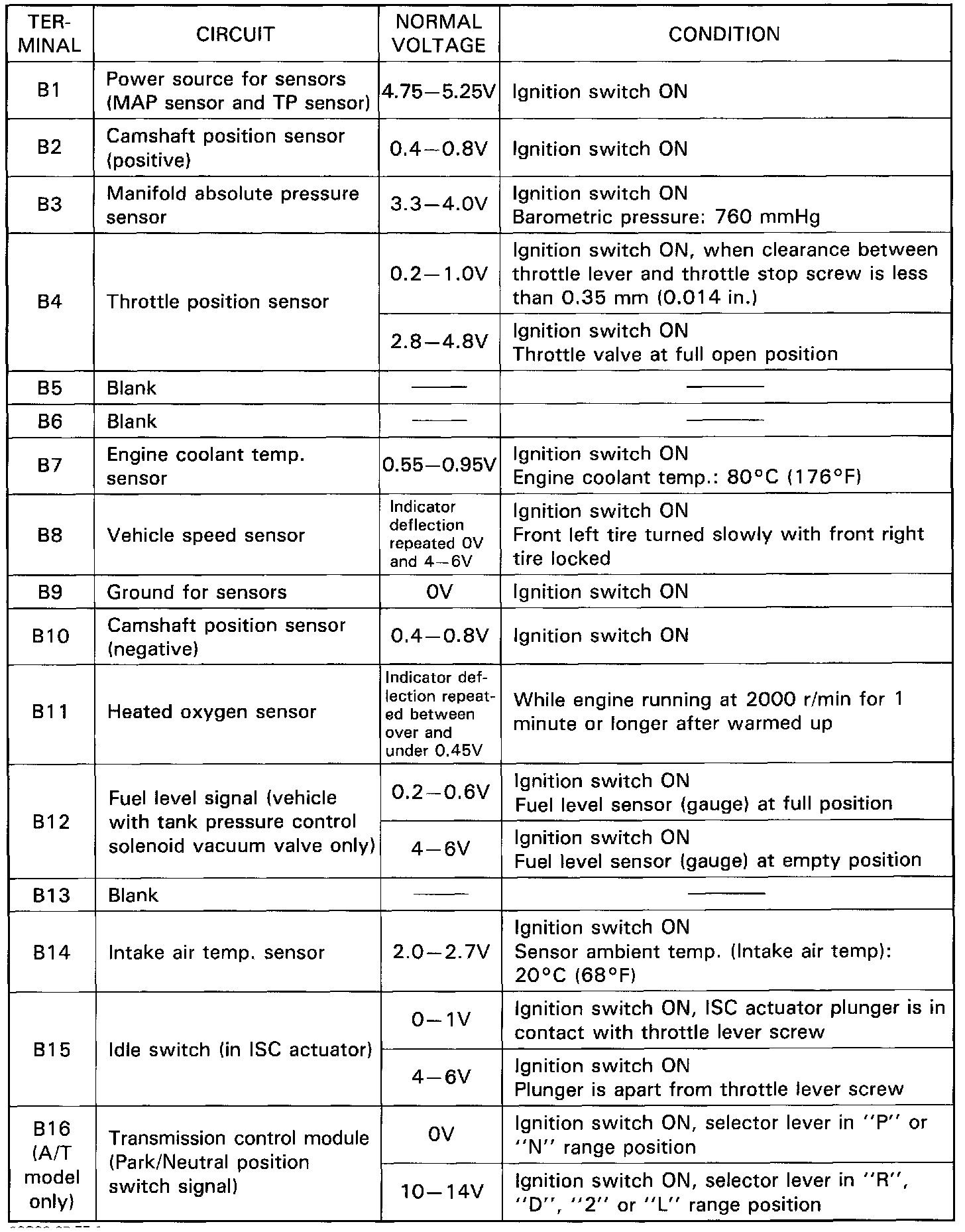

ECM Voltage (Part 2 Of 3):

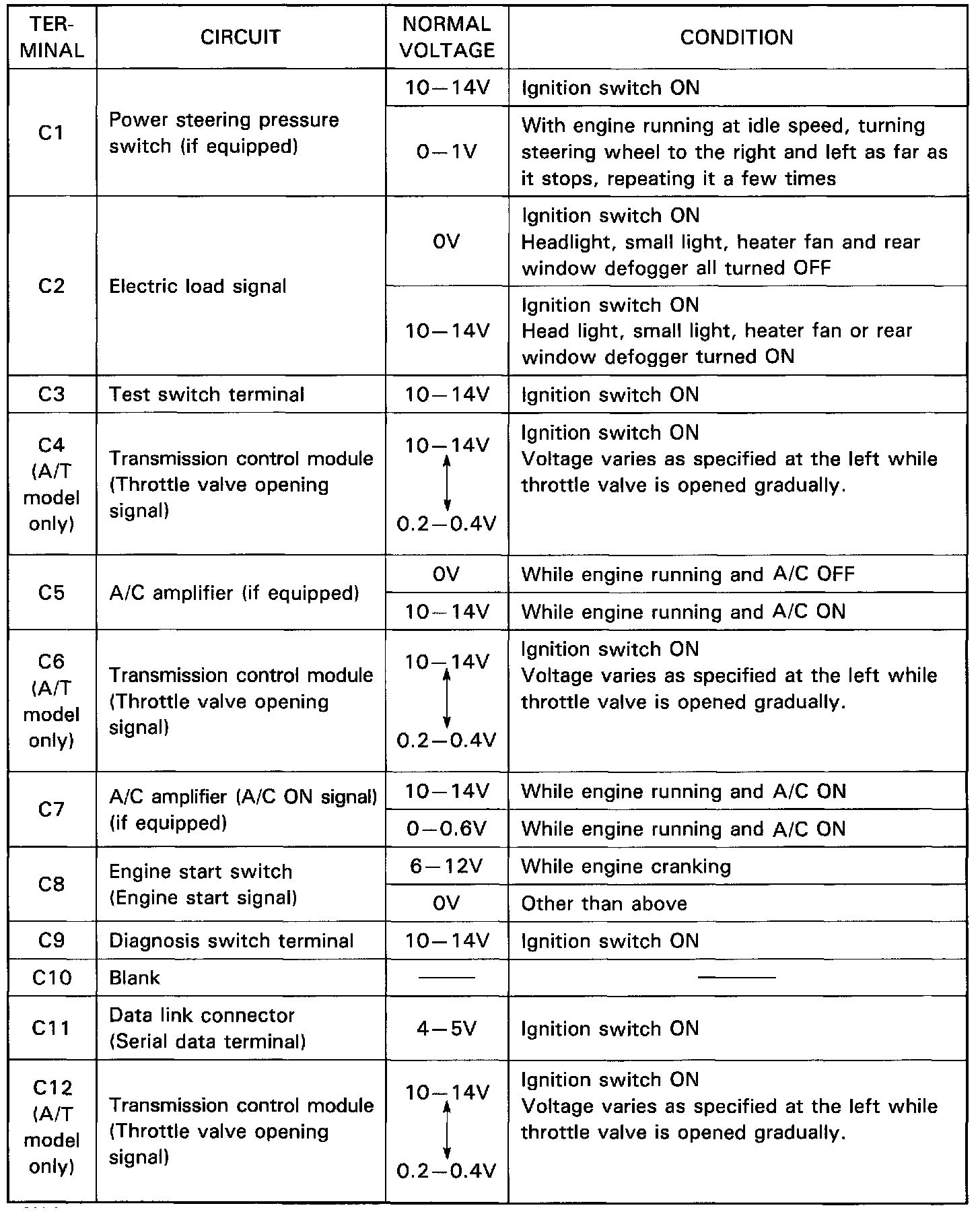

ECM Voltage (Part 3 Of 3):
