Impreza WRX STI F4-2.5L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Rear
Rear

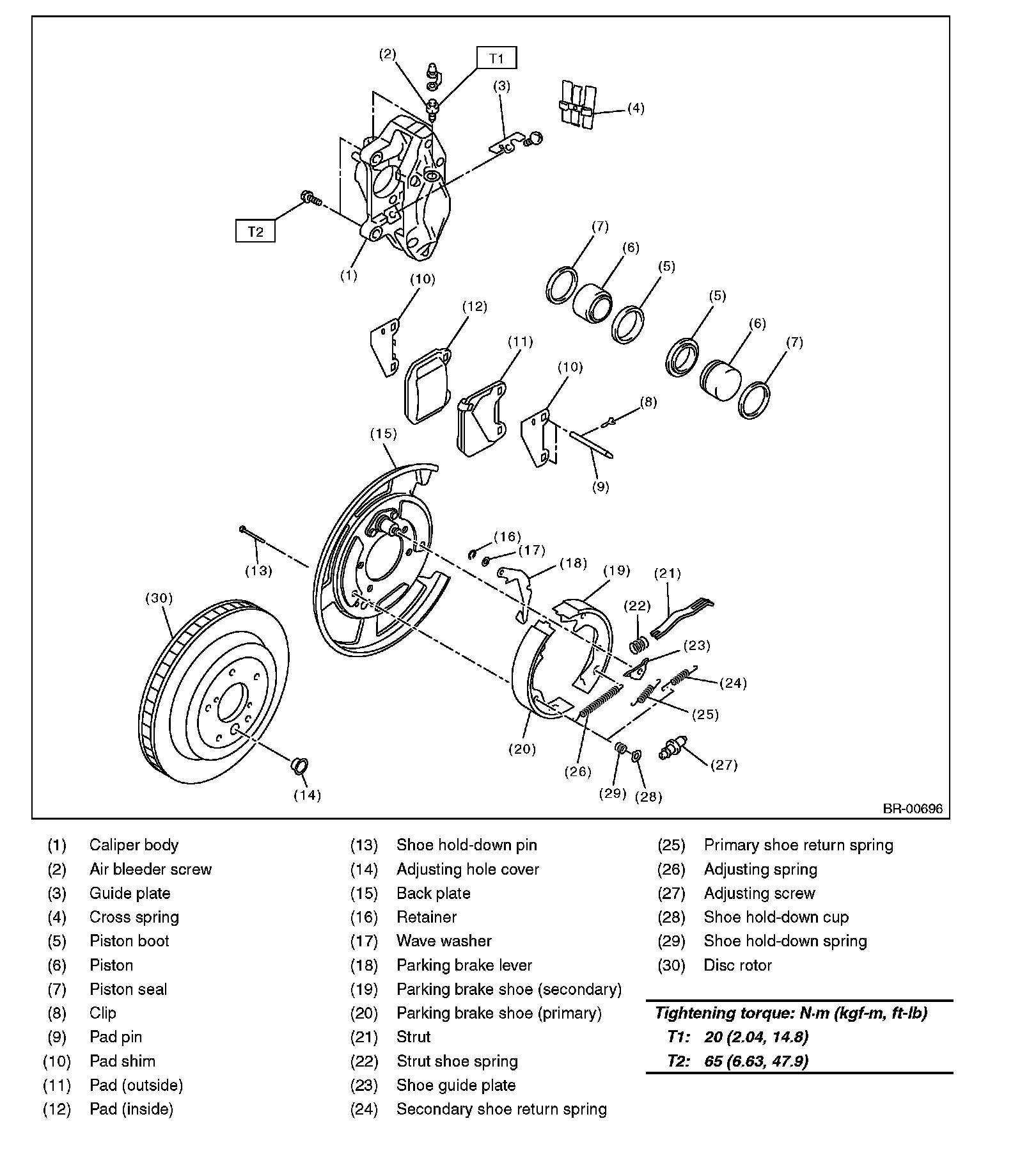

REAR DISC BRAKE (BREMBO-TYPE)

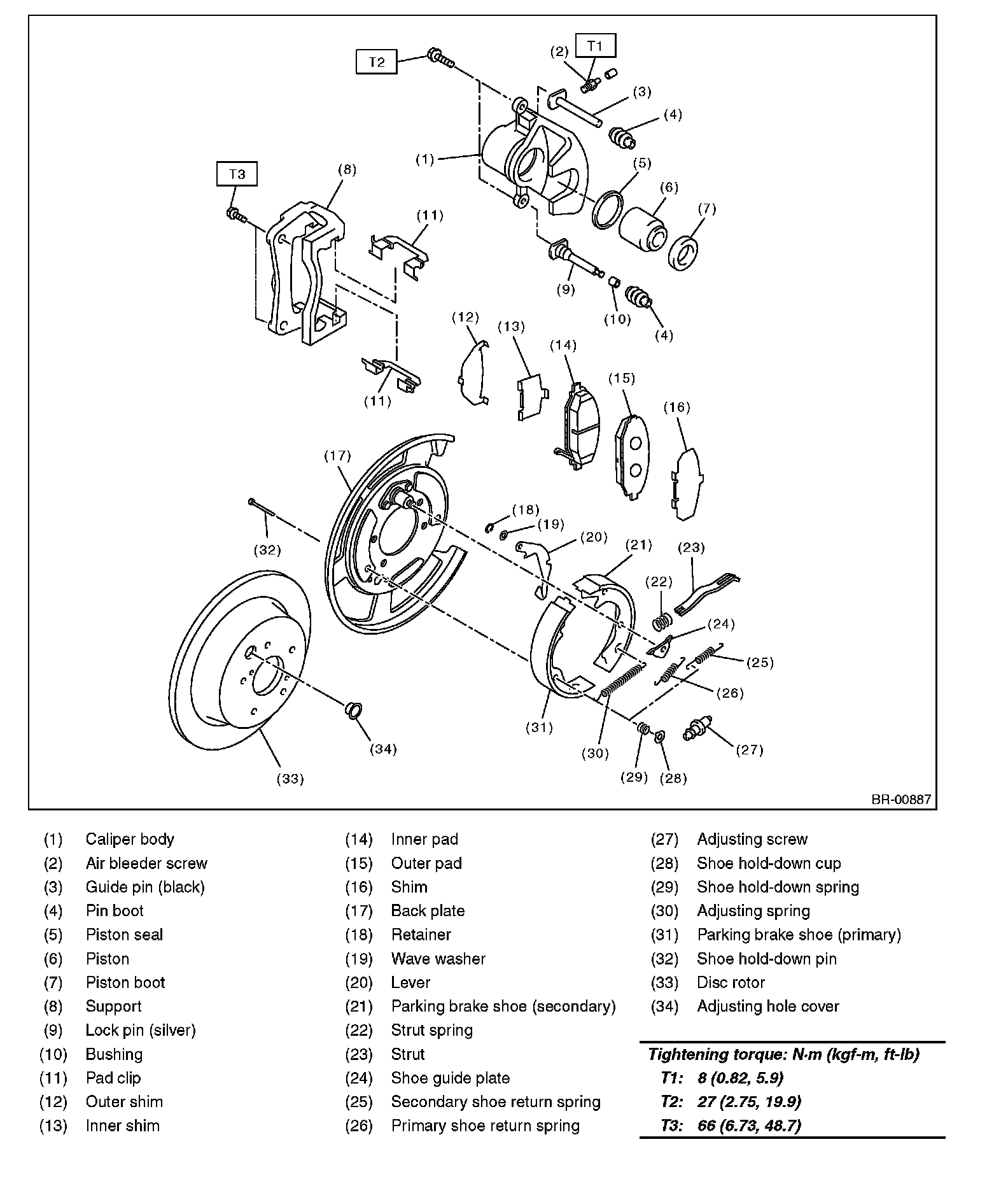

REAR DISC BRAKE (EXCEPT FOR BREMBO-TYPE)
