Impreza WRX STI F4-2.5L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Front
Front

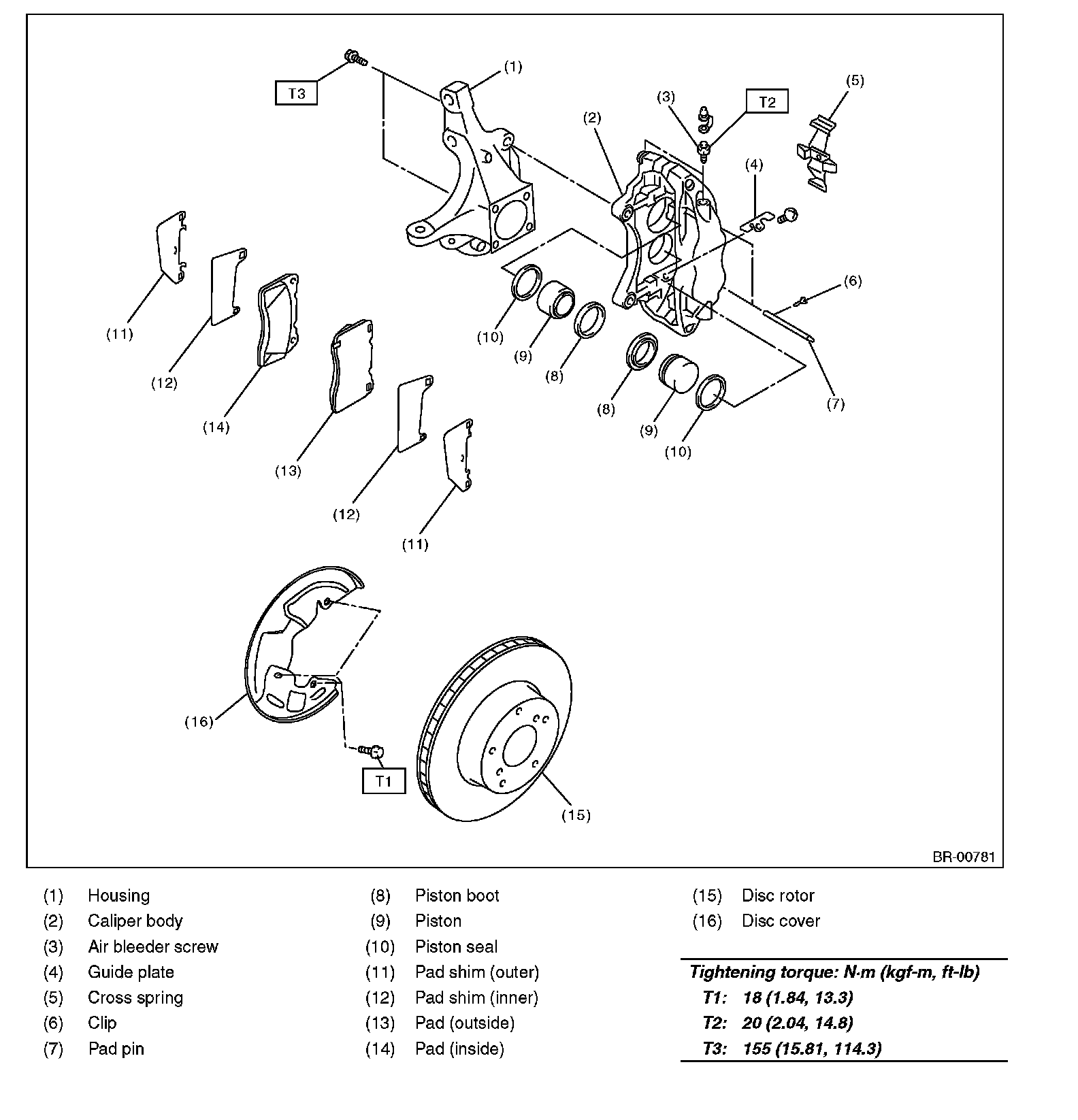

FRONT DISC BRAKE (BREMBO-TYPE)

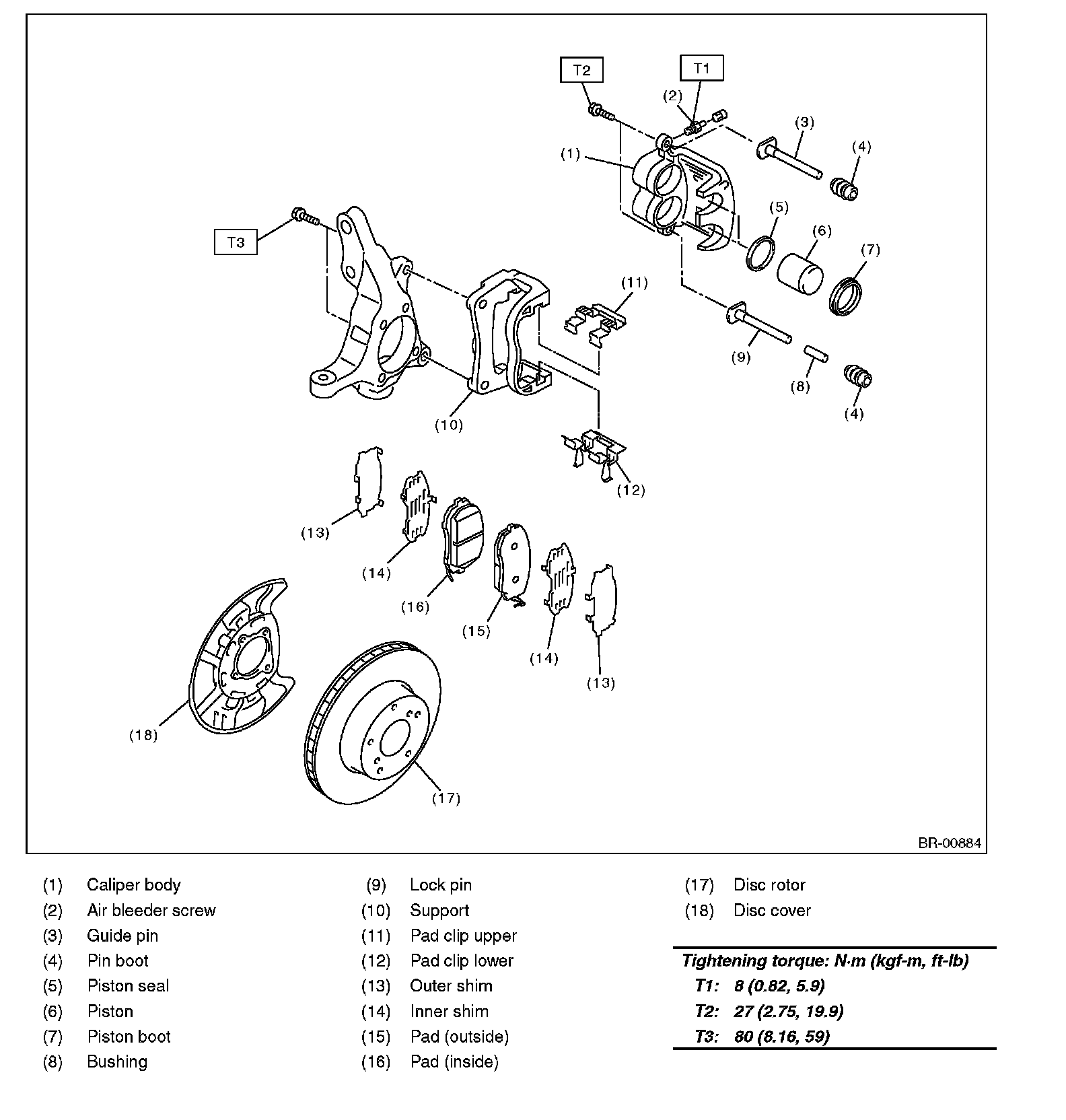

FRONT DISC BRAKE (EXCEPT FOR BREMBO-TYPE)
