Home >> Subaru >> 2013 >> BRZ F4-2.0L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment

Alignment




Wheel Alignment Specifications

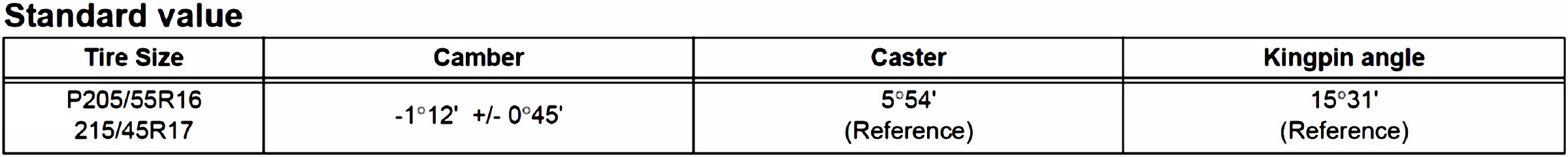

Front Camber, Caster And Kingpin Angle:

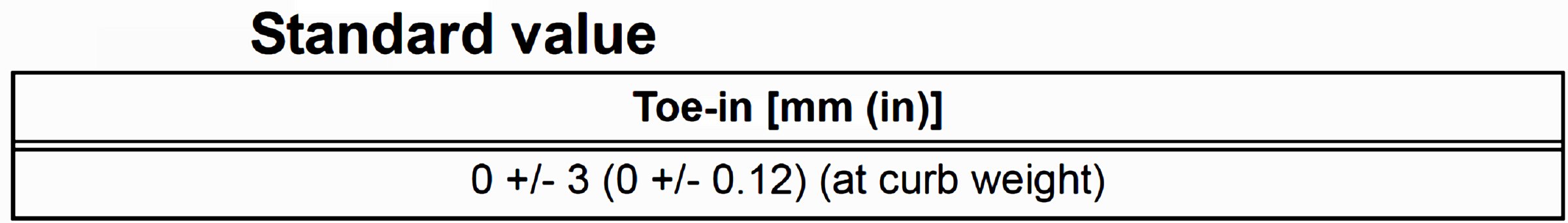

Front Toe-in:

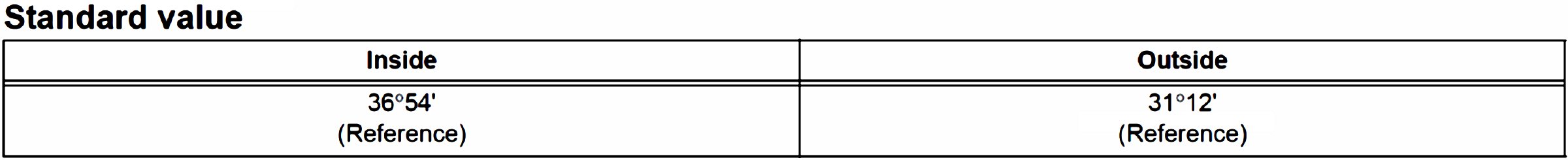

Front Wheel Turning Angle:

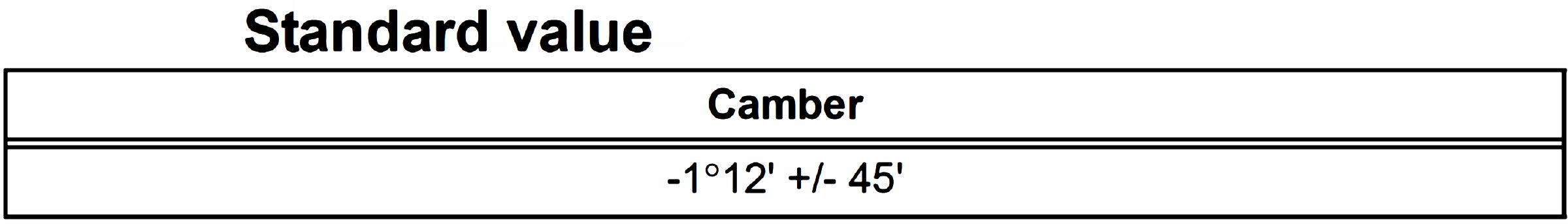

Rear Camber:
