Home >> Subaru >> 2013 >> BRZ F4-2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Control Arm >> Front Suspension Lower Arm

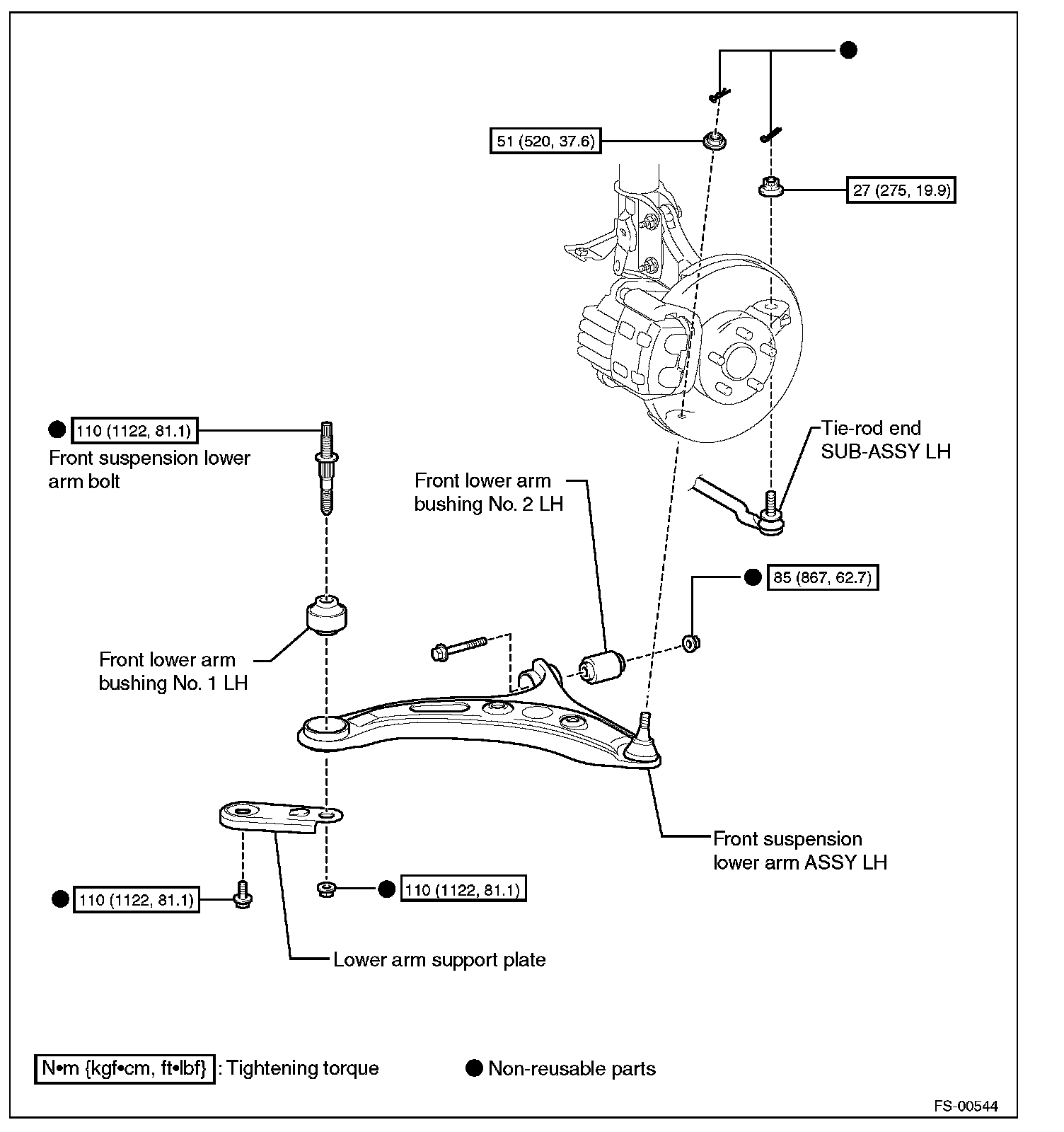

Front Suspension Lower Arm

Front suspension lower arm

Exploded view
