Impreza WRX STI F4-2.5L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Exhaust System
Exhaust System

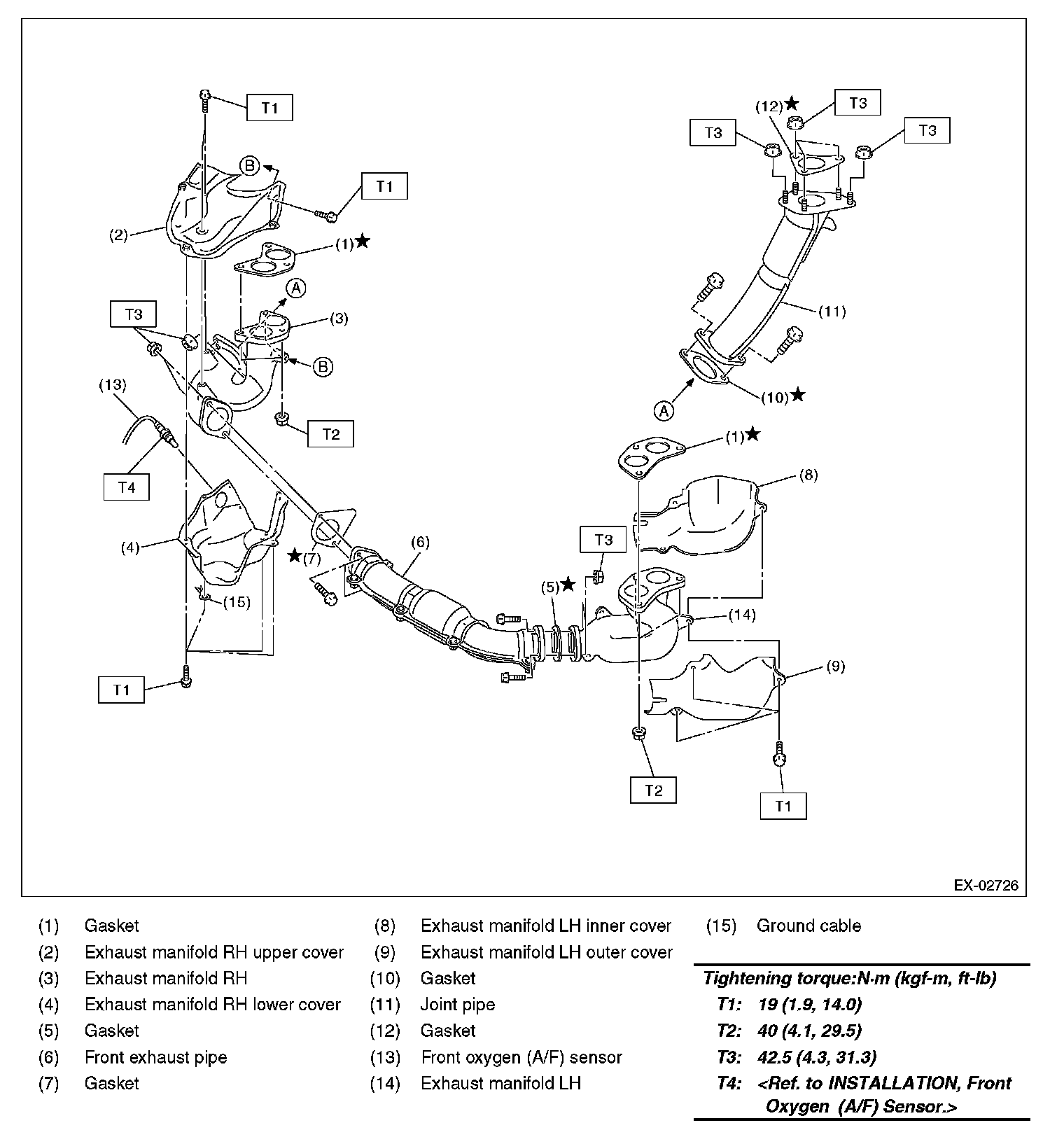

FRONT
EXHAUST PIPE
CENTER AND REAR
EXHAUST PIPE
, AND
MUFFLER
-

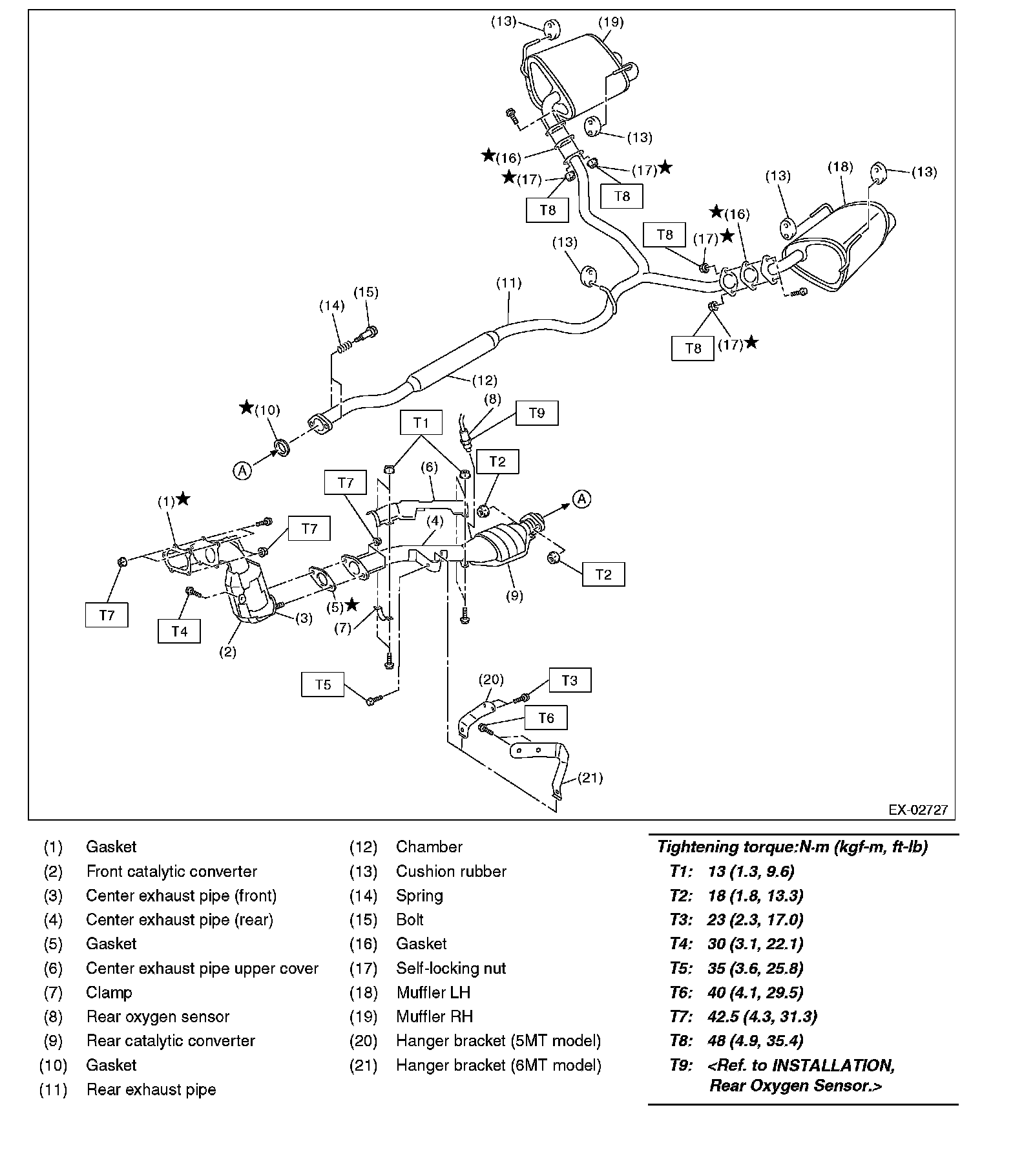

4 door model
-

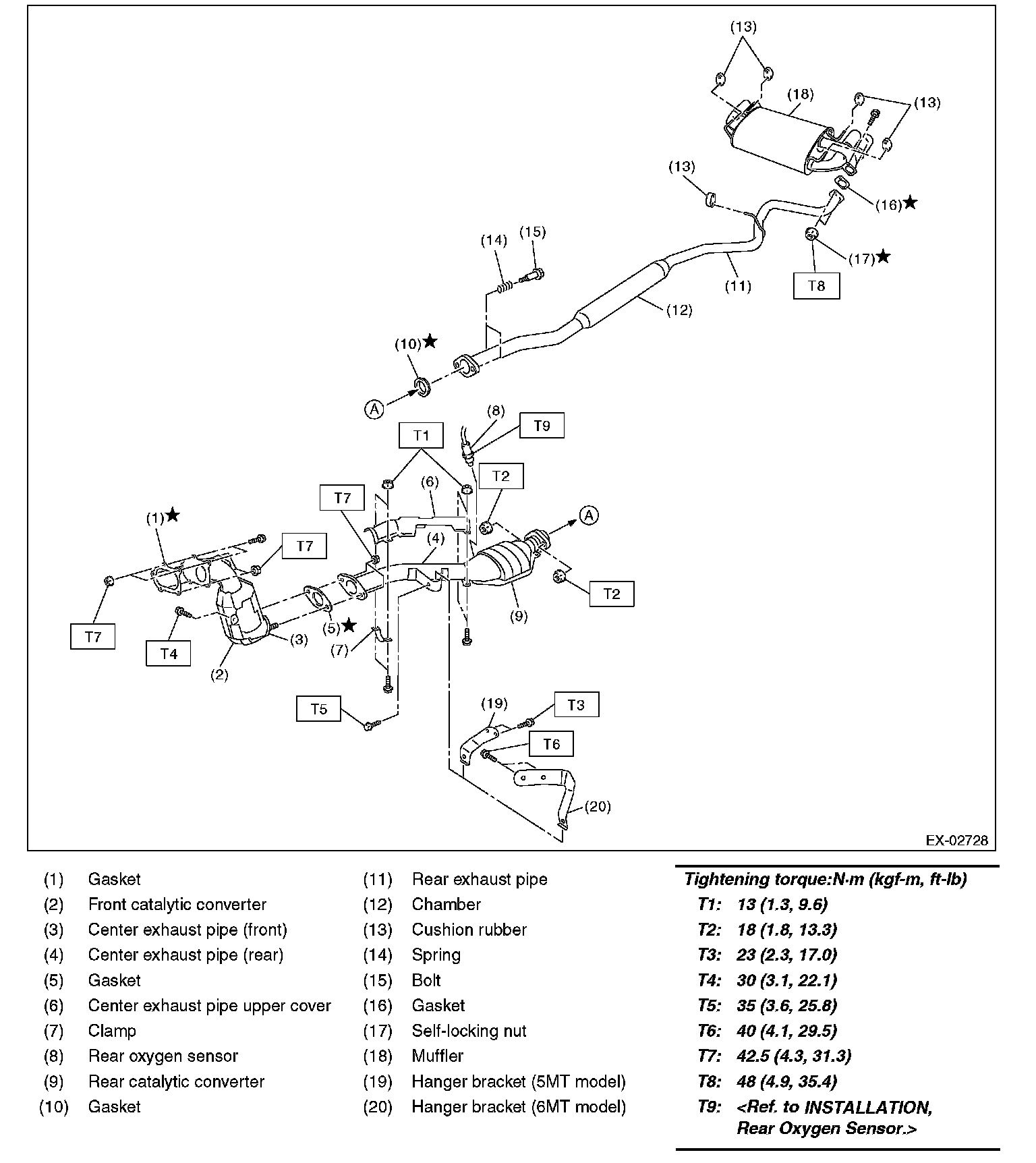

5 door model
