Forester F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
Harness

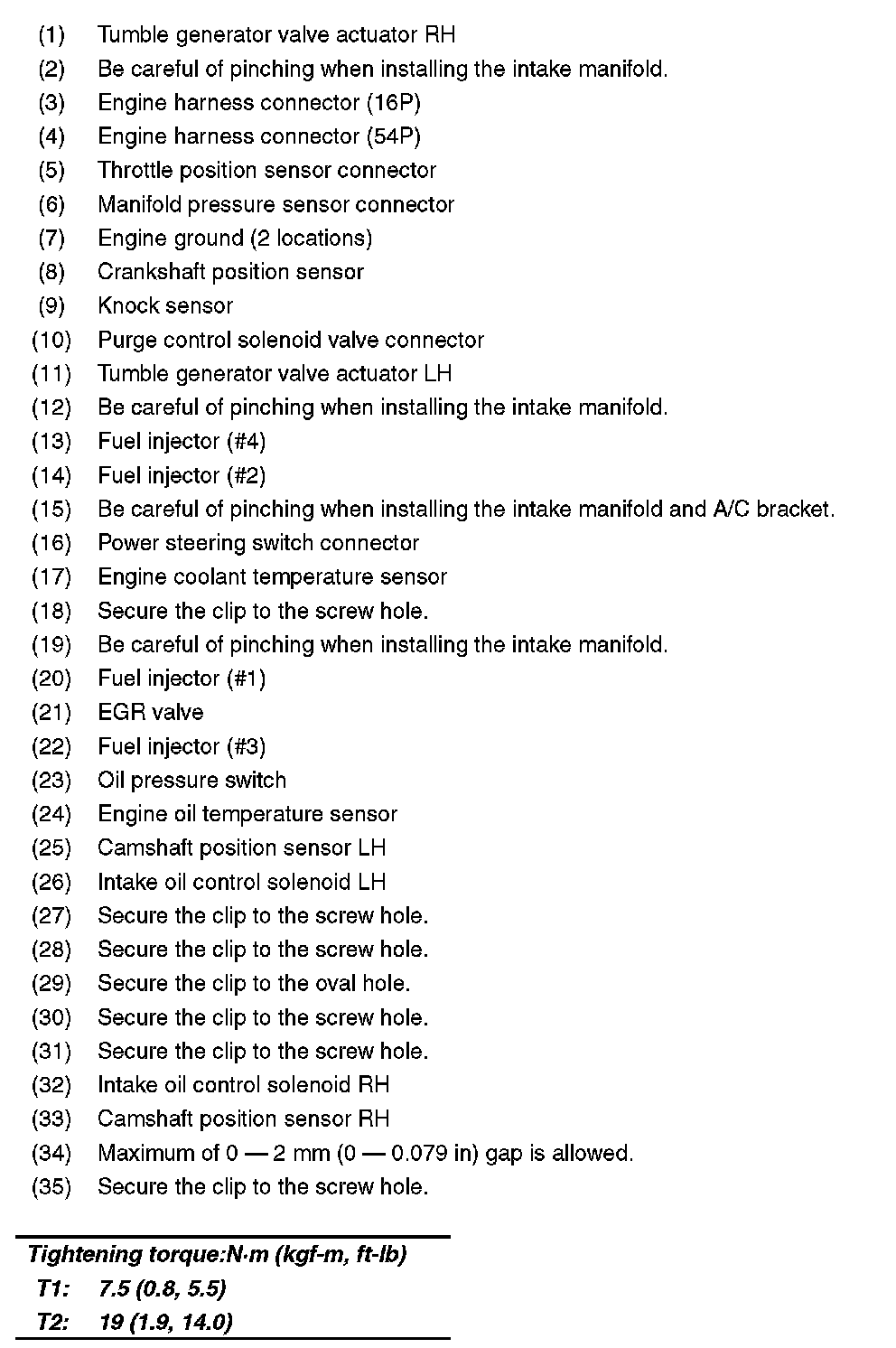

COMPONENT
ENGINE HARNESS
-

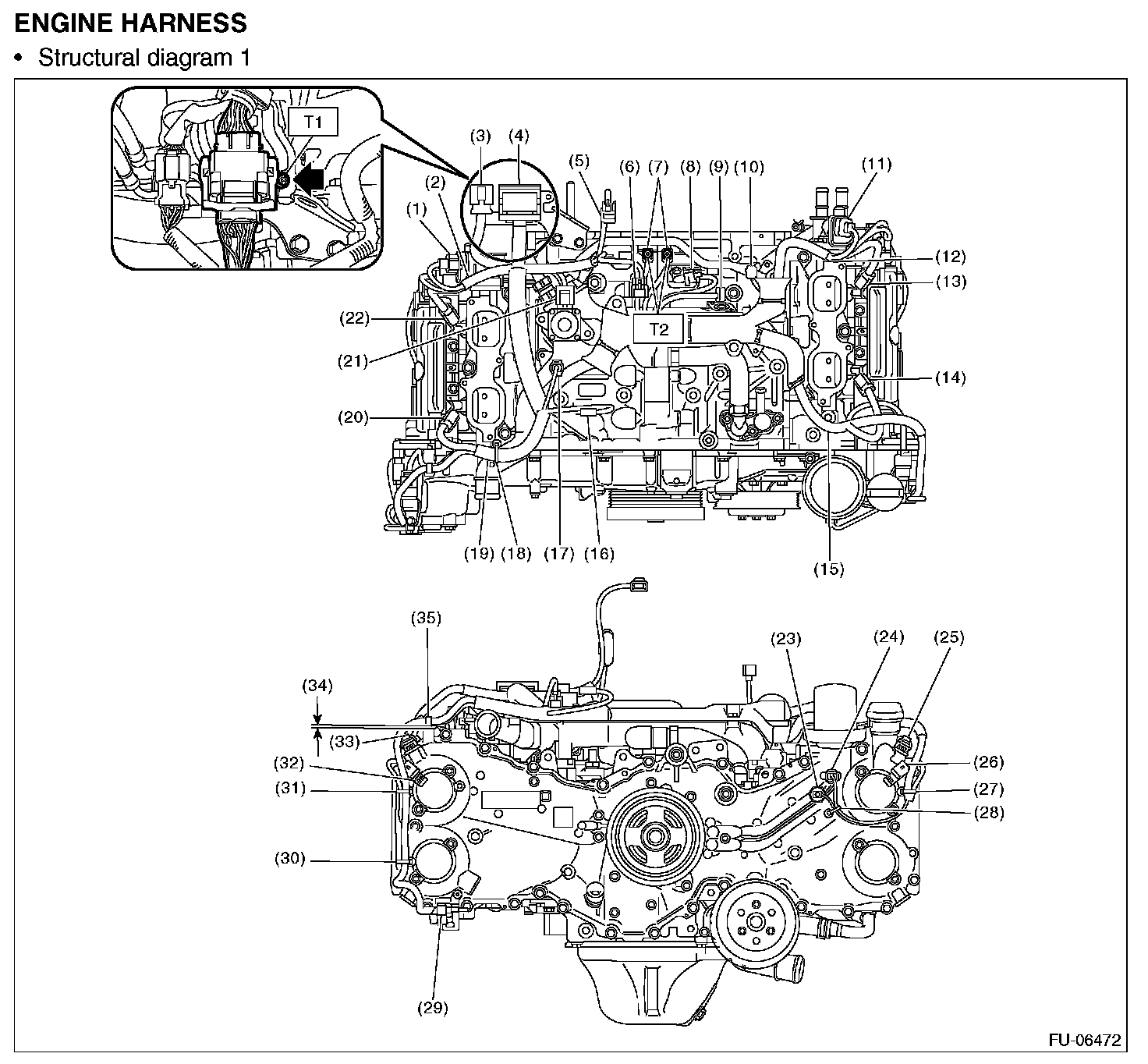

Structural diagram 1
-

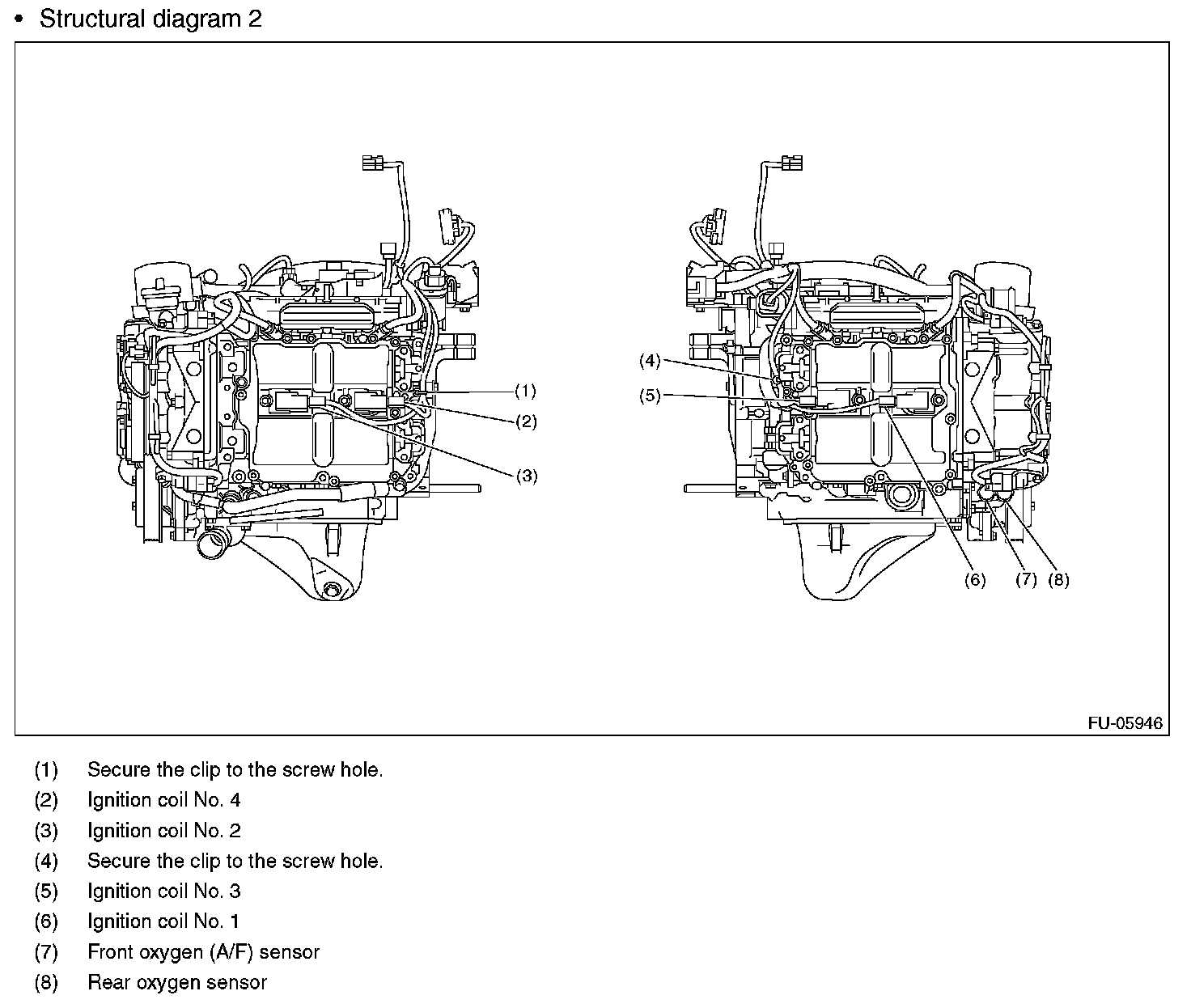

Structural diagram 2
