Subaru
>>
2010
>>
Tribeca F6-3.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Steering Gear
Steering Gear
General Description
POWER ASSISTED SYSTEM (
POWER STEERING
)
POWER ASSISTED SYSTEM
^

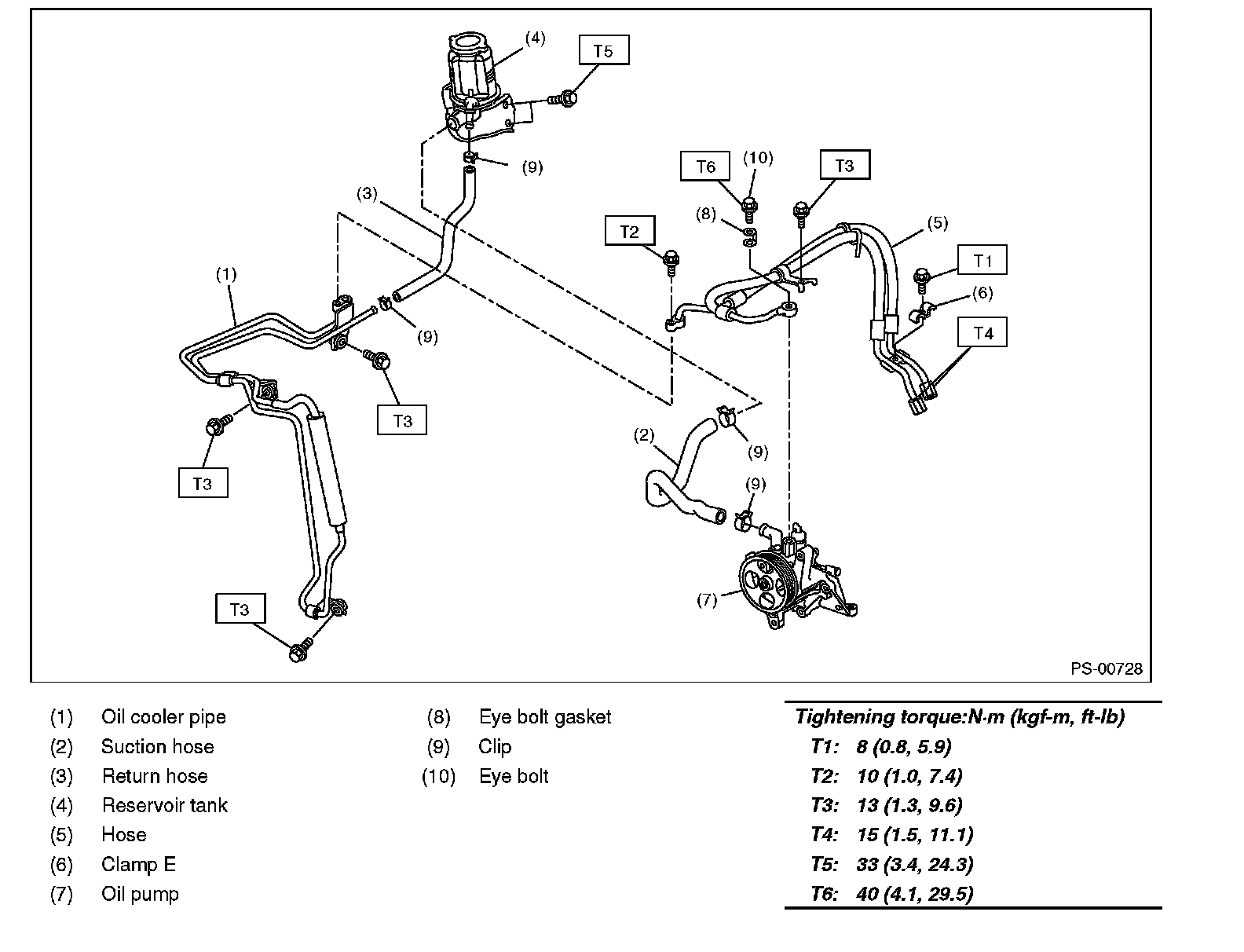

Hose and tank
^

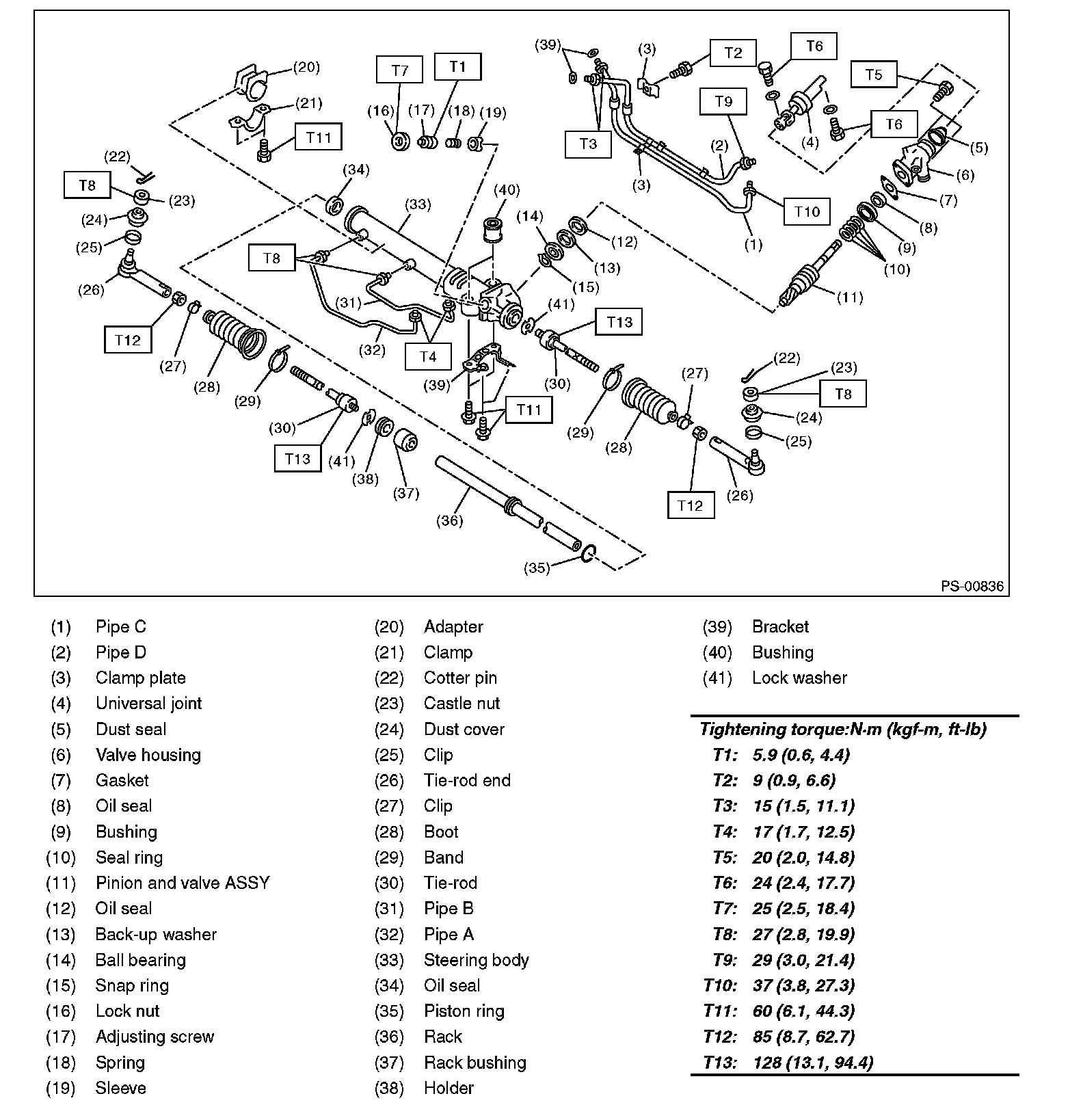

Gearbox
