FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Subaru
>>
2010
>>
Tribeca F6-3.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>

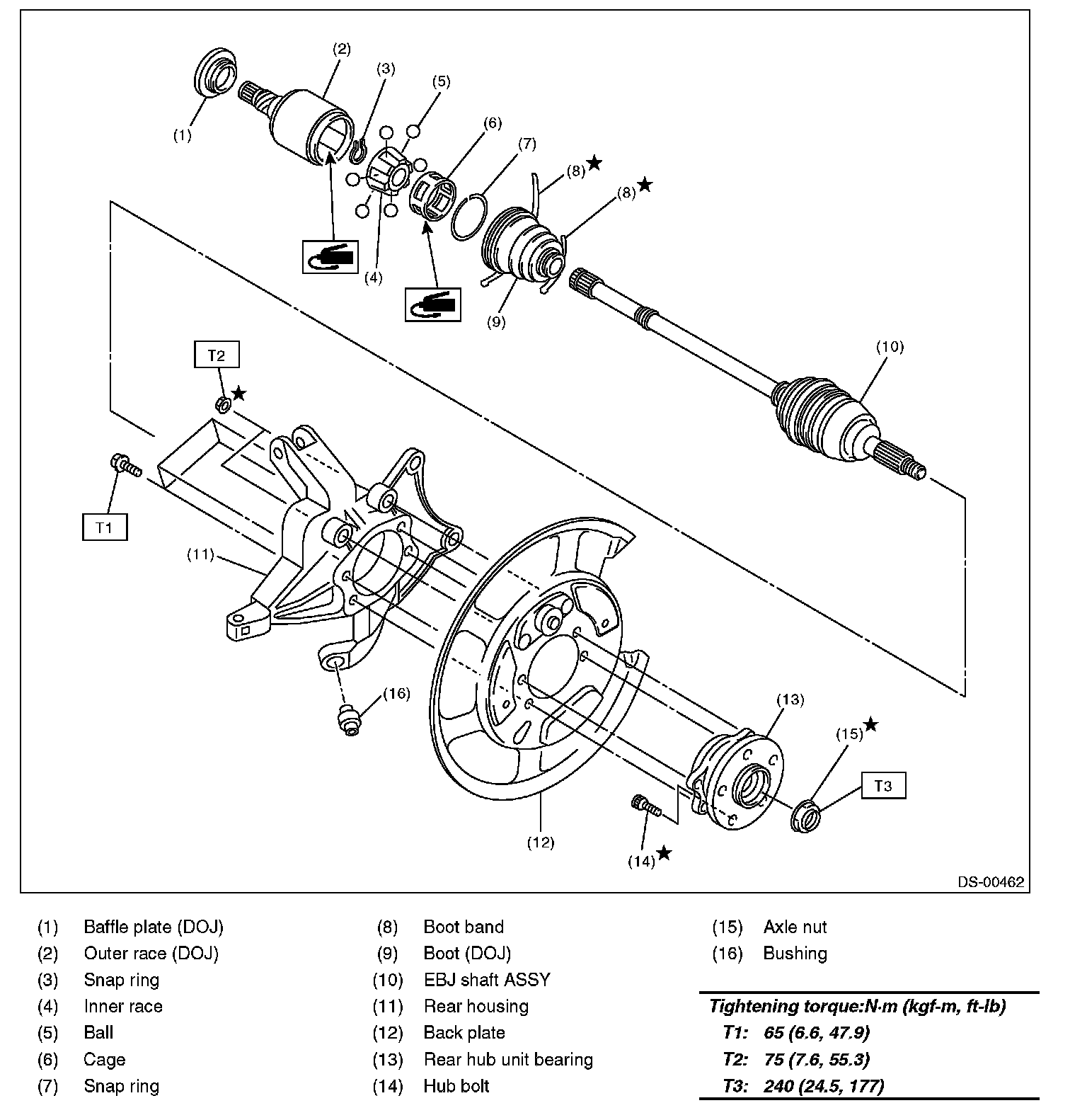

Exploded Views
>>
Axle Shaft Assembly
>>
Rear Axle
Rear Axle
General Description
DRIVE SHAFT SYSTEM
REAR AXLE
