Automatic Transmission/Transaxle
>>
System Diagram
>>
Transmission Control Device & Parking Support
Transmission Control Device & Parking Support
General Description

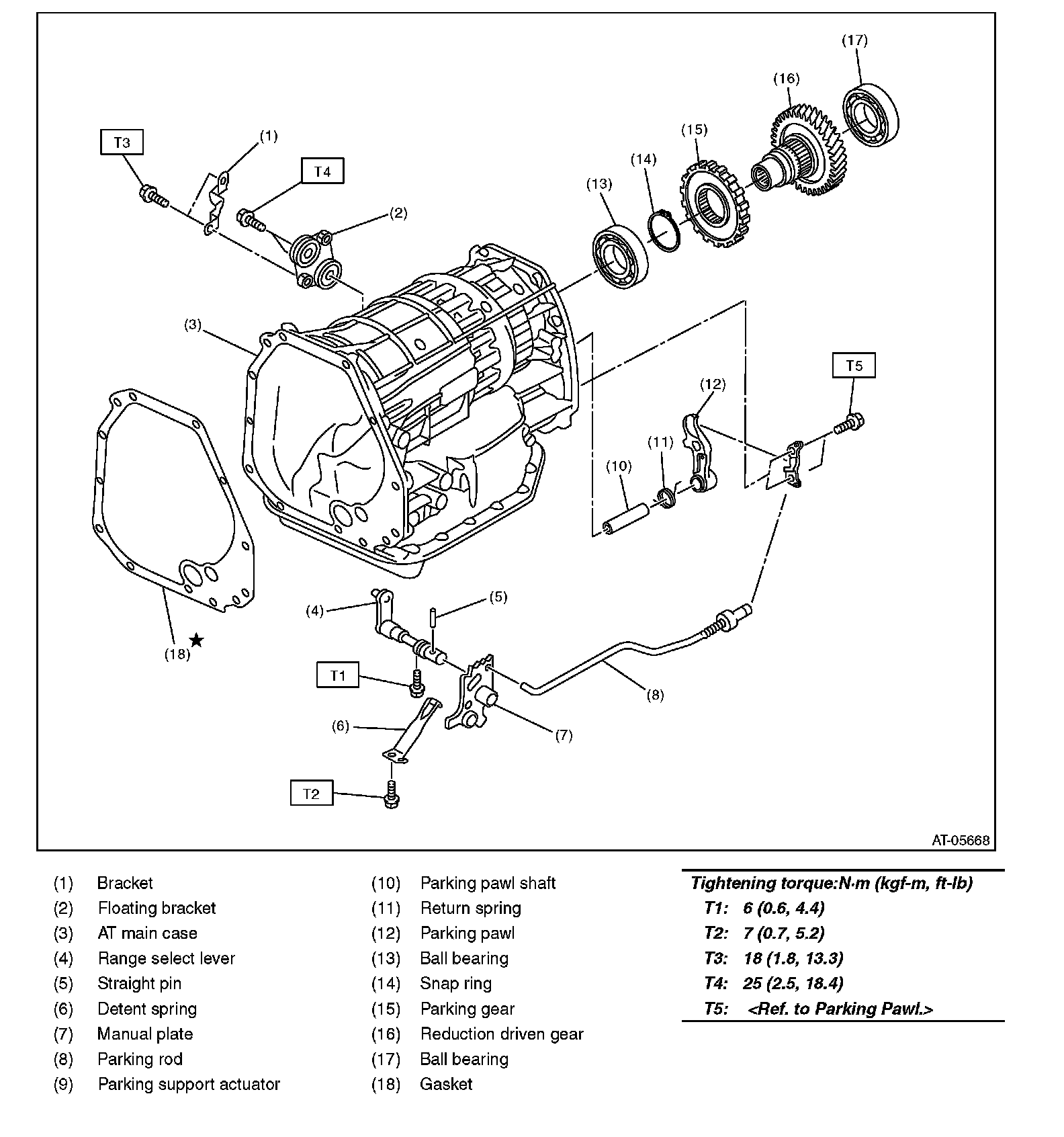

COMPONENT
TRANSMISSION CONTROL DEVICE & PARKING SUPPORT
