Specifications
>>
Capacity Specifications
>>
Heating and Air Conditioning
>>
System Specifications
System Specifications
General Description
SPECIFICATION
1.

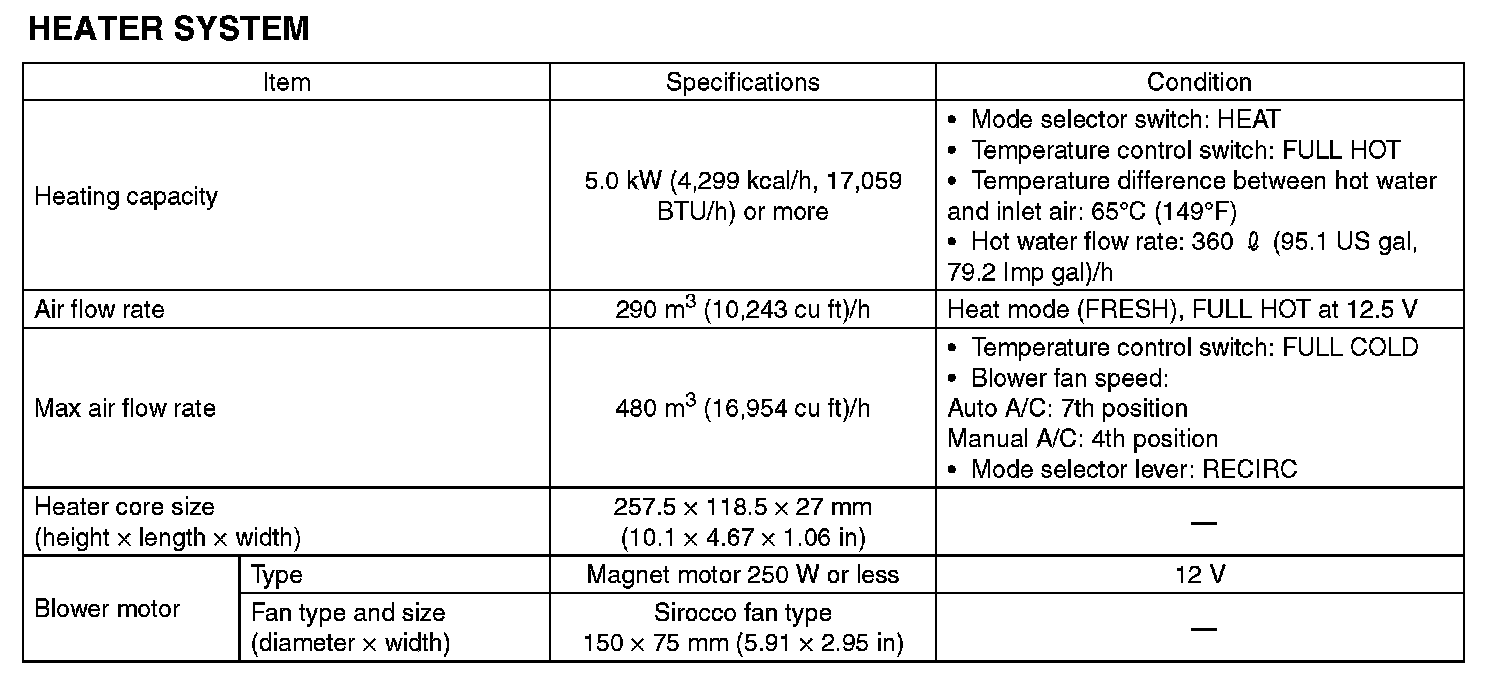

HEATER SYSTEM
2.

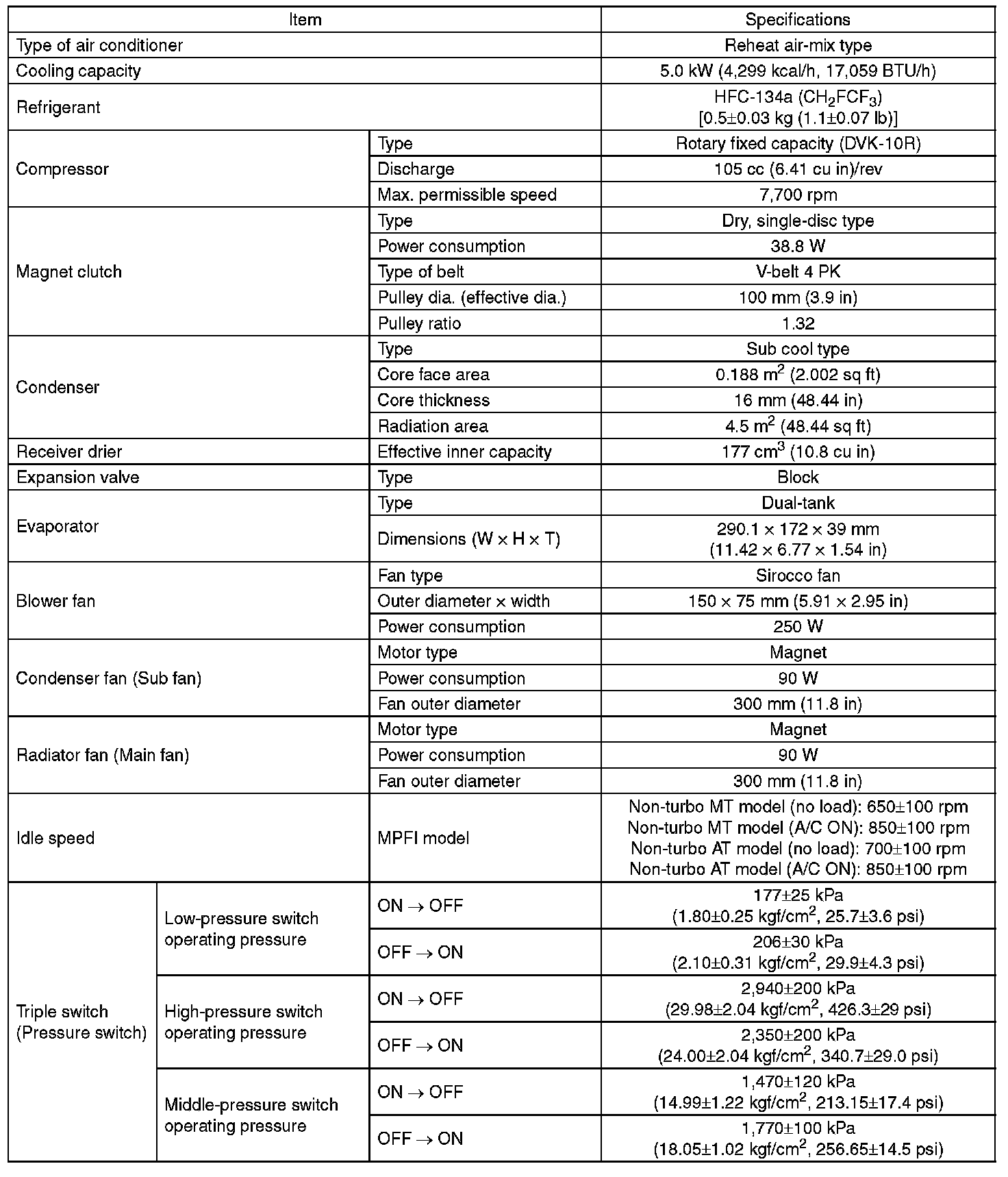

A/C SYSTEM
-

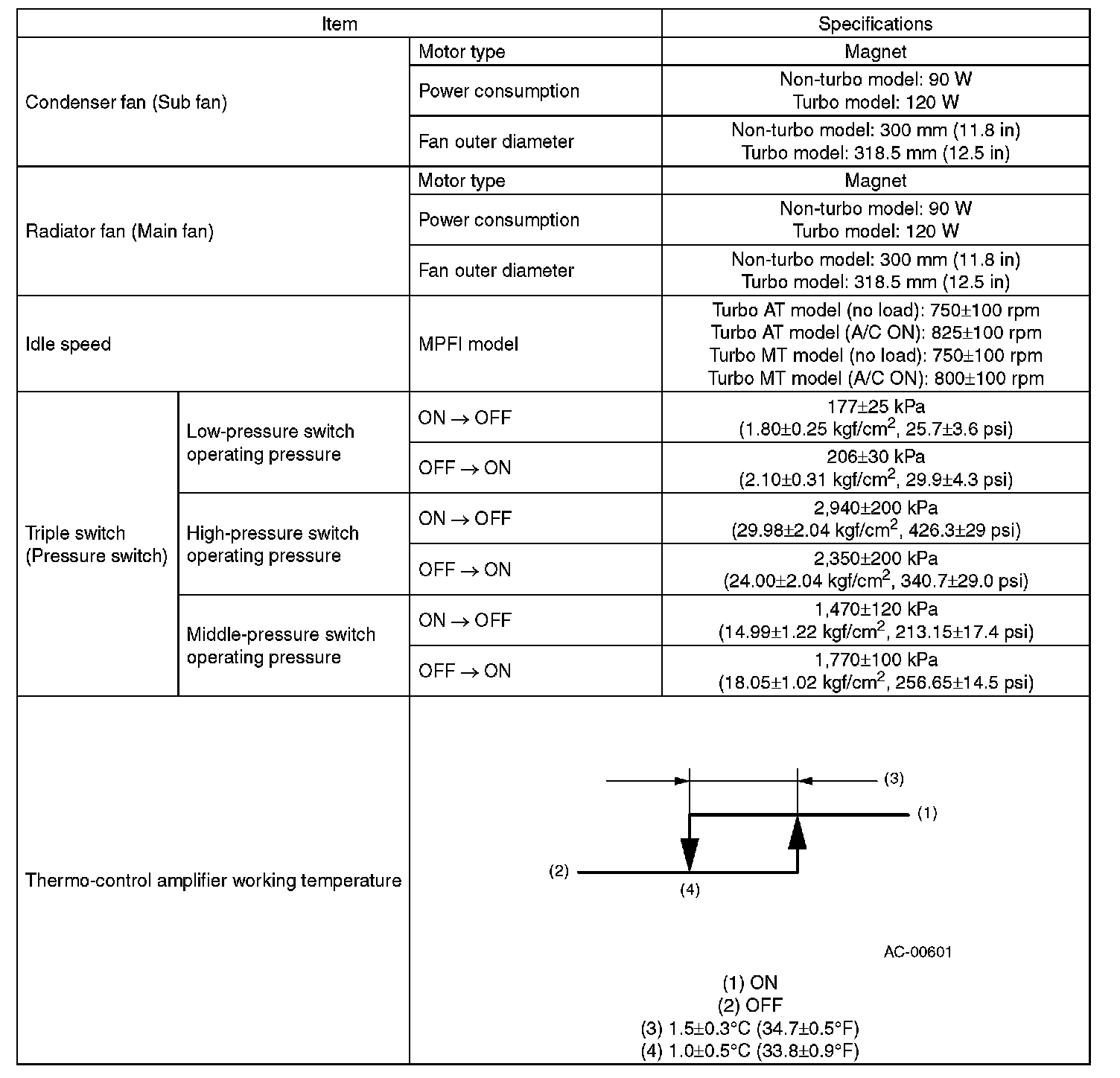

Auto A/C model
-

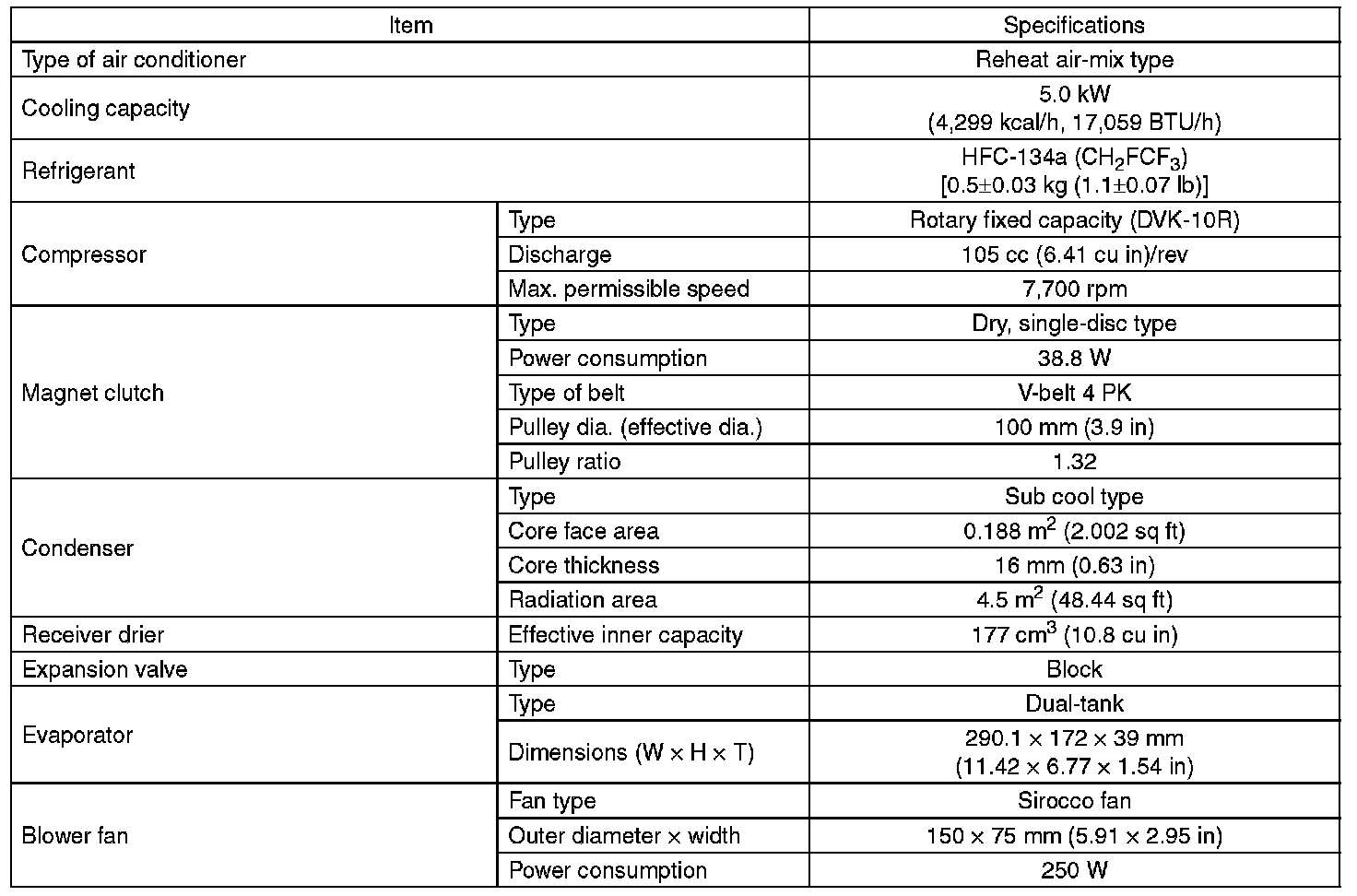

Manual A/C model
