Heating and Air Conditioning

General Description

COMPONENT

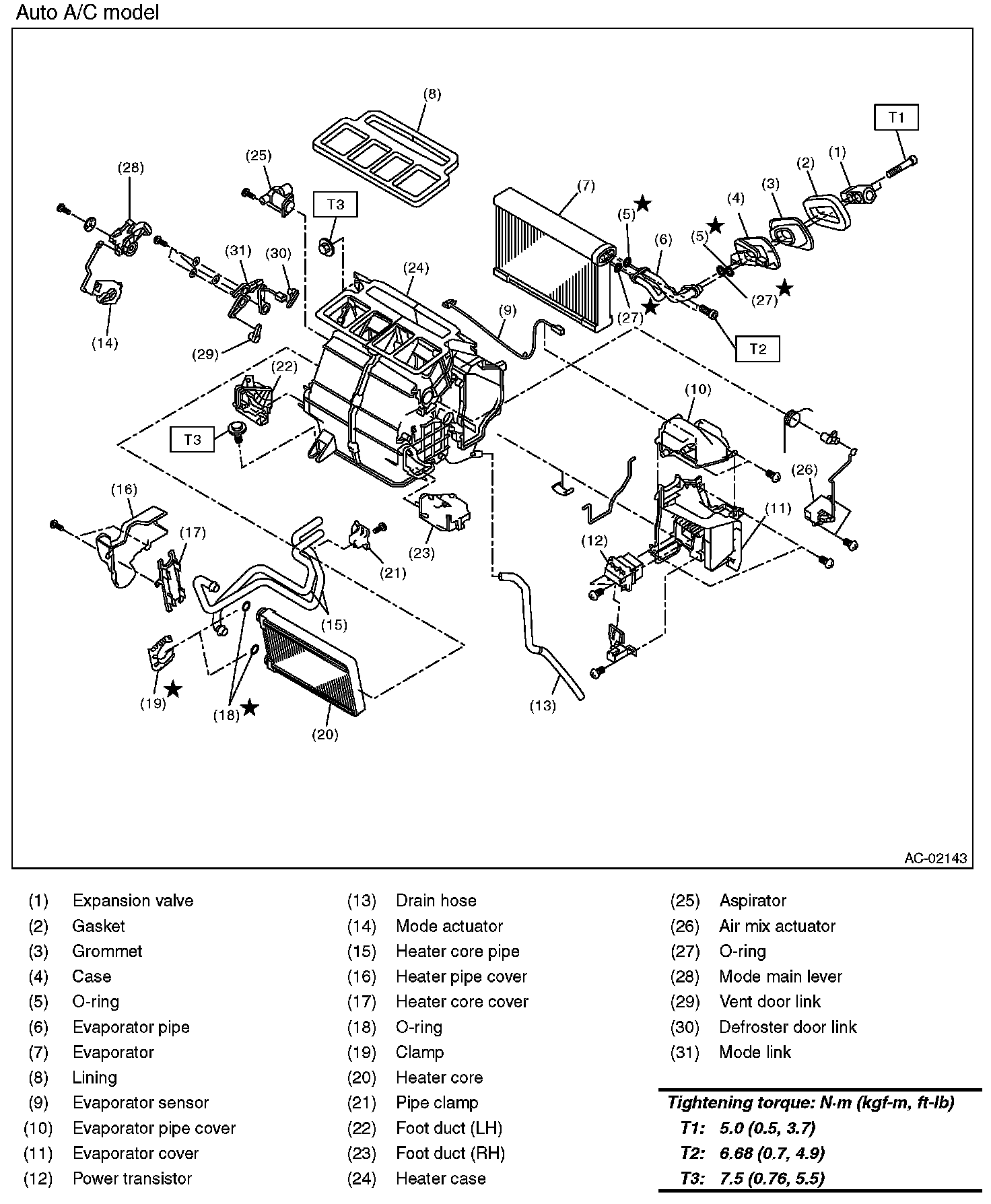

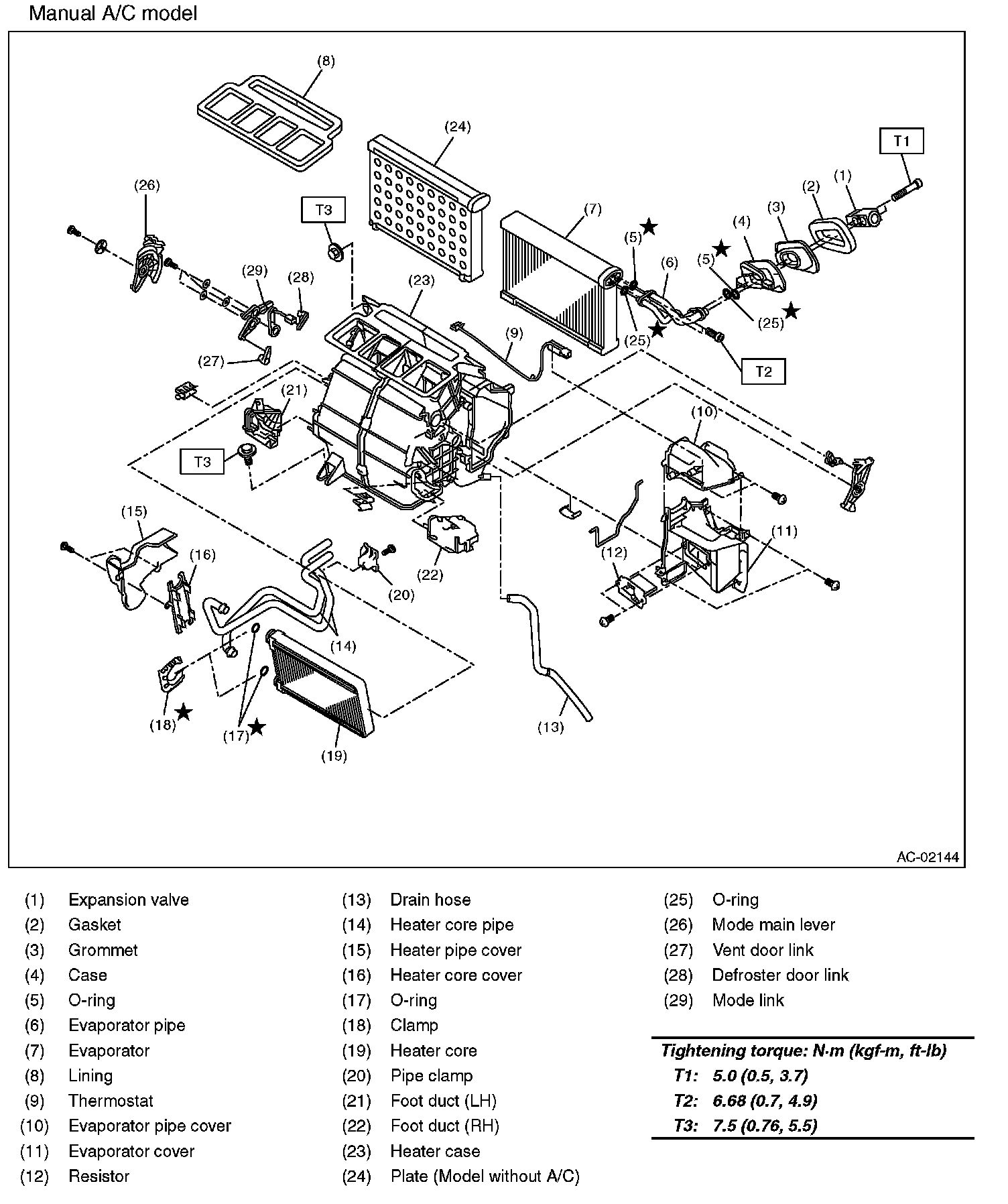

1. HEATER COOLING UNIT

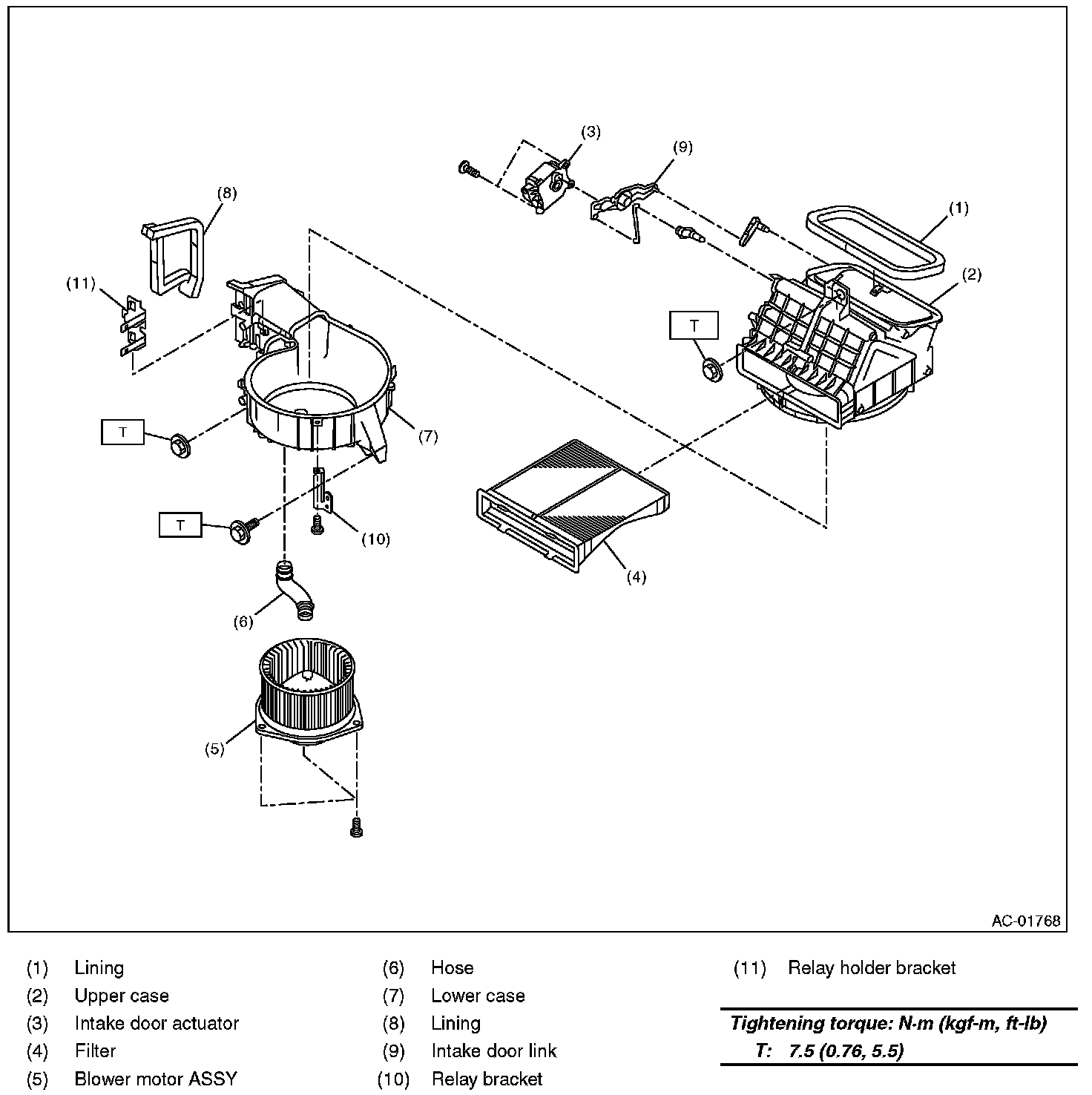

2. BLOWER MOTOR UNIT

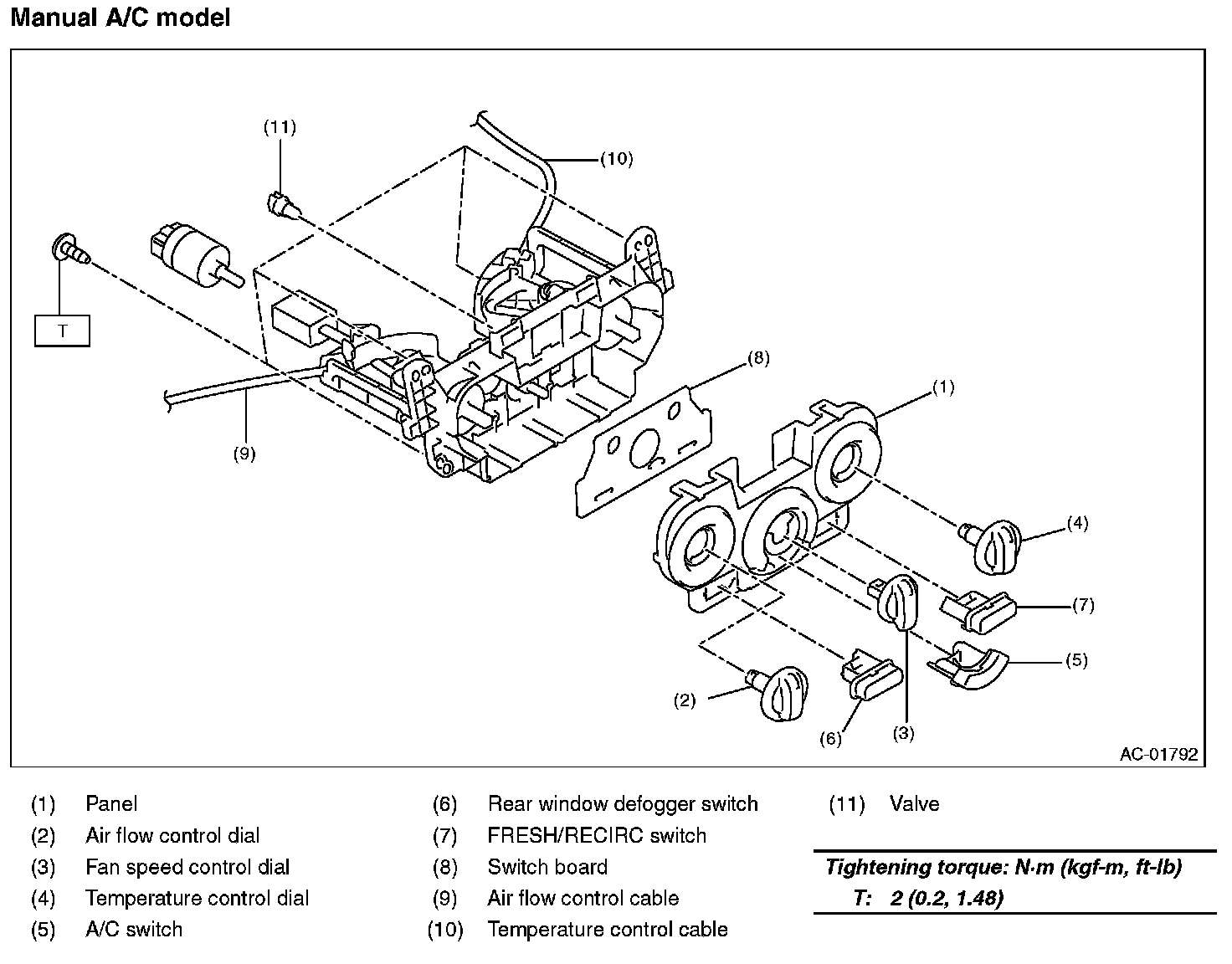

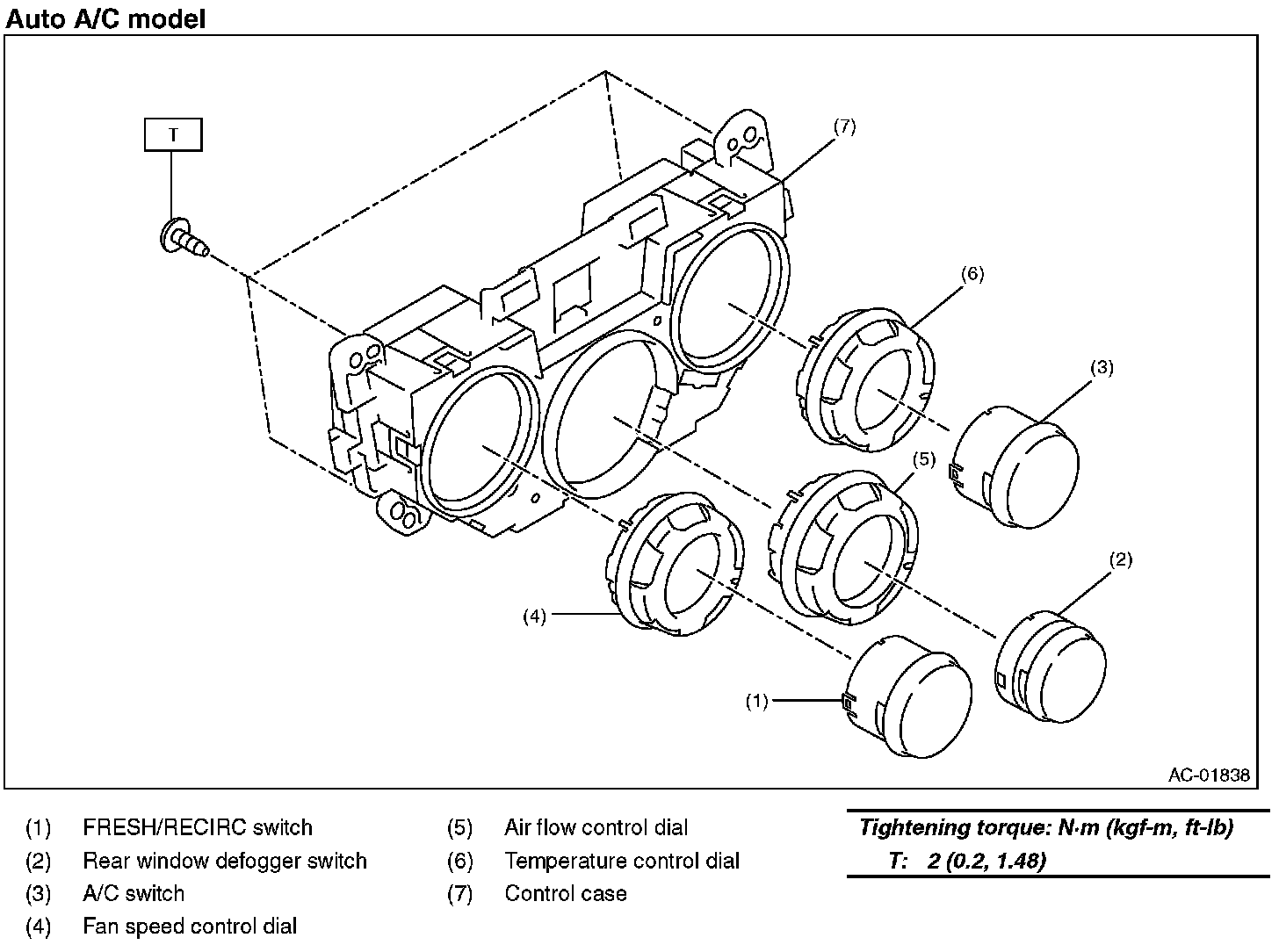

3. CONTROL MODULE

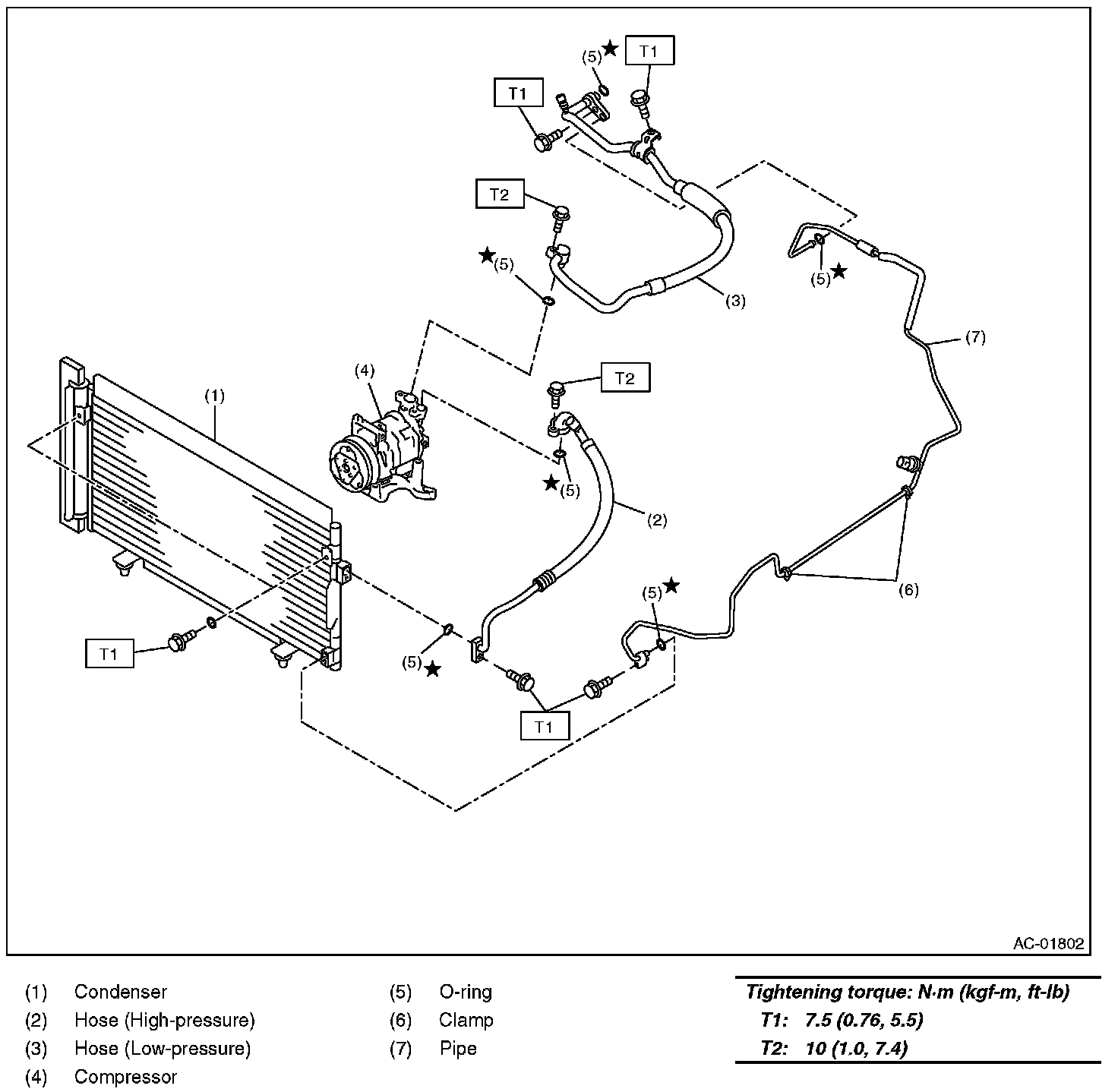

4. AIR CONDITIONING UNIT

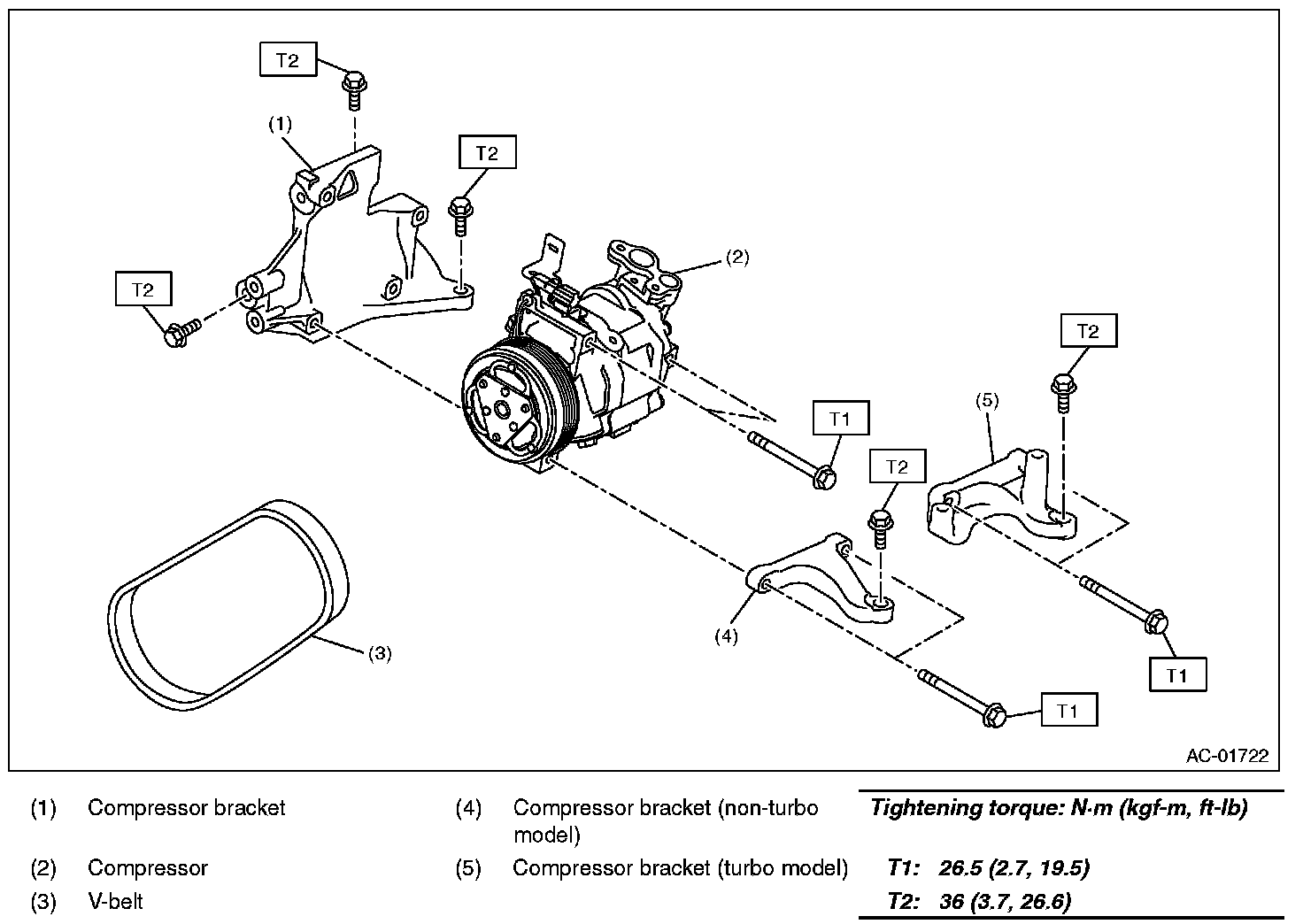

5. COMPRESSOR

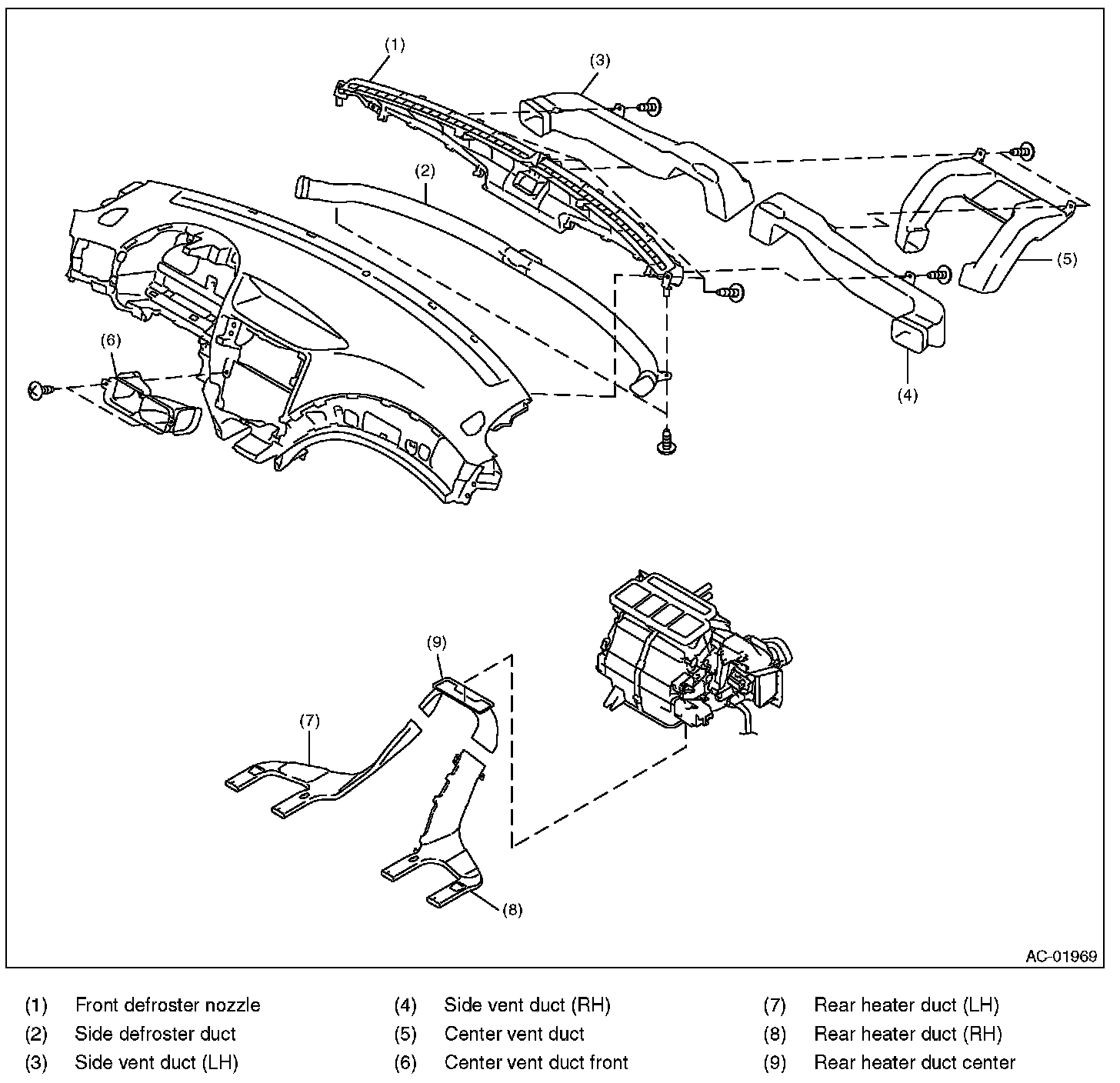

6. HEATER DUCT
