Home >> Subaru >> 2009 >> Tribeca F6-3.6L DOHC >> Repair and Diagnosis >> Locations >> Connector Locations >> R2-R287 & AB17-AB31

R2-R287 & AB17-AB31

Rear Wiring Harness

Driver's Side

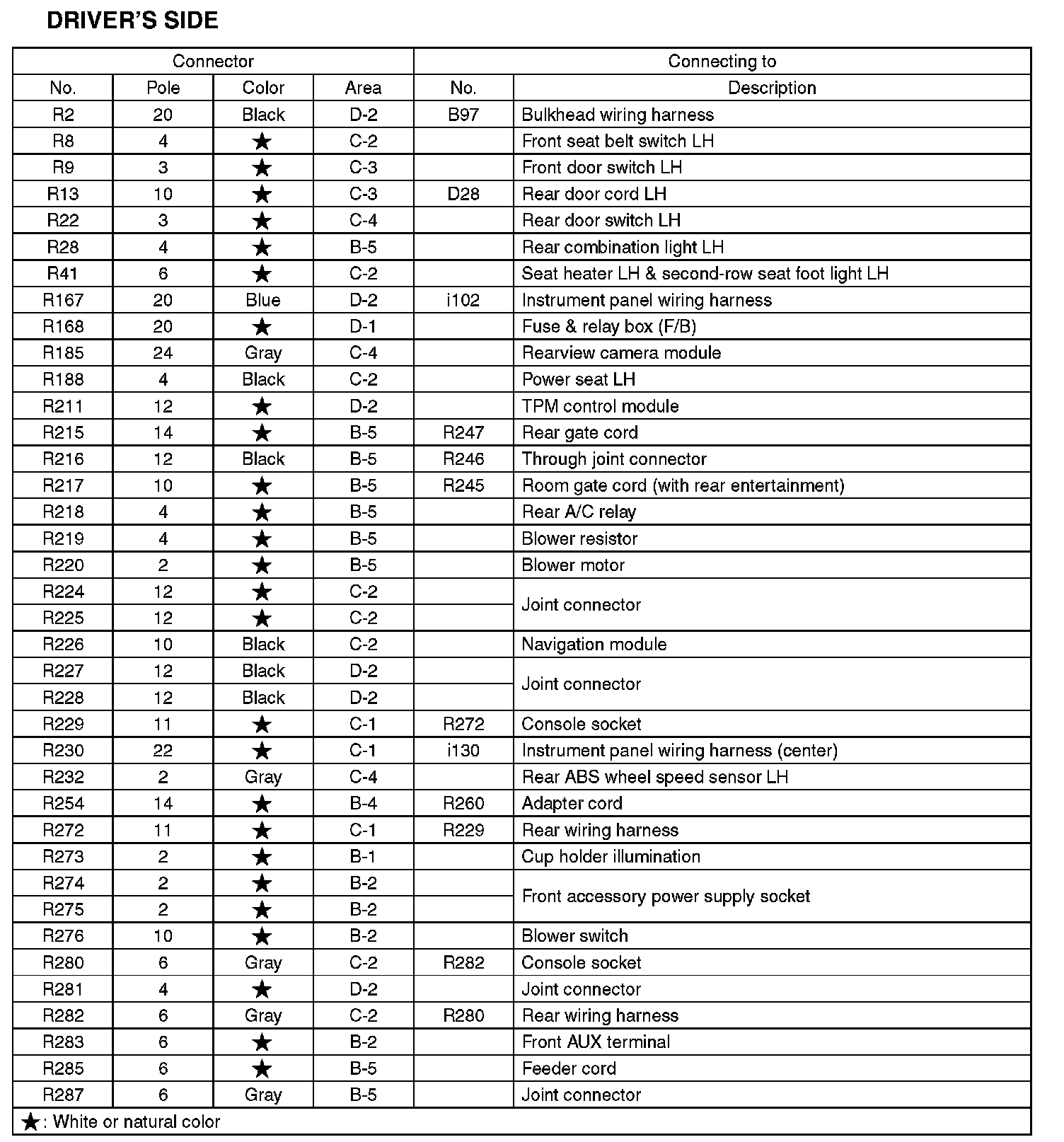

R2-R287:




AB17-AB31:




AB32-AB52:

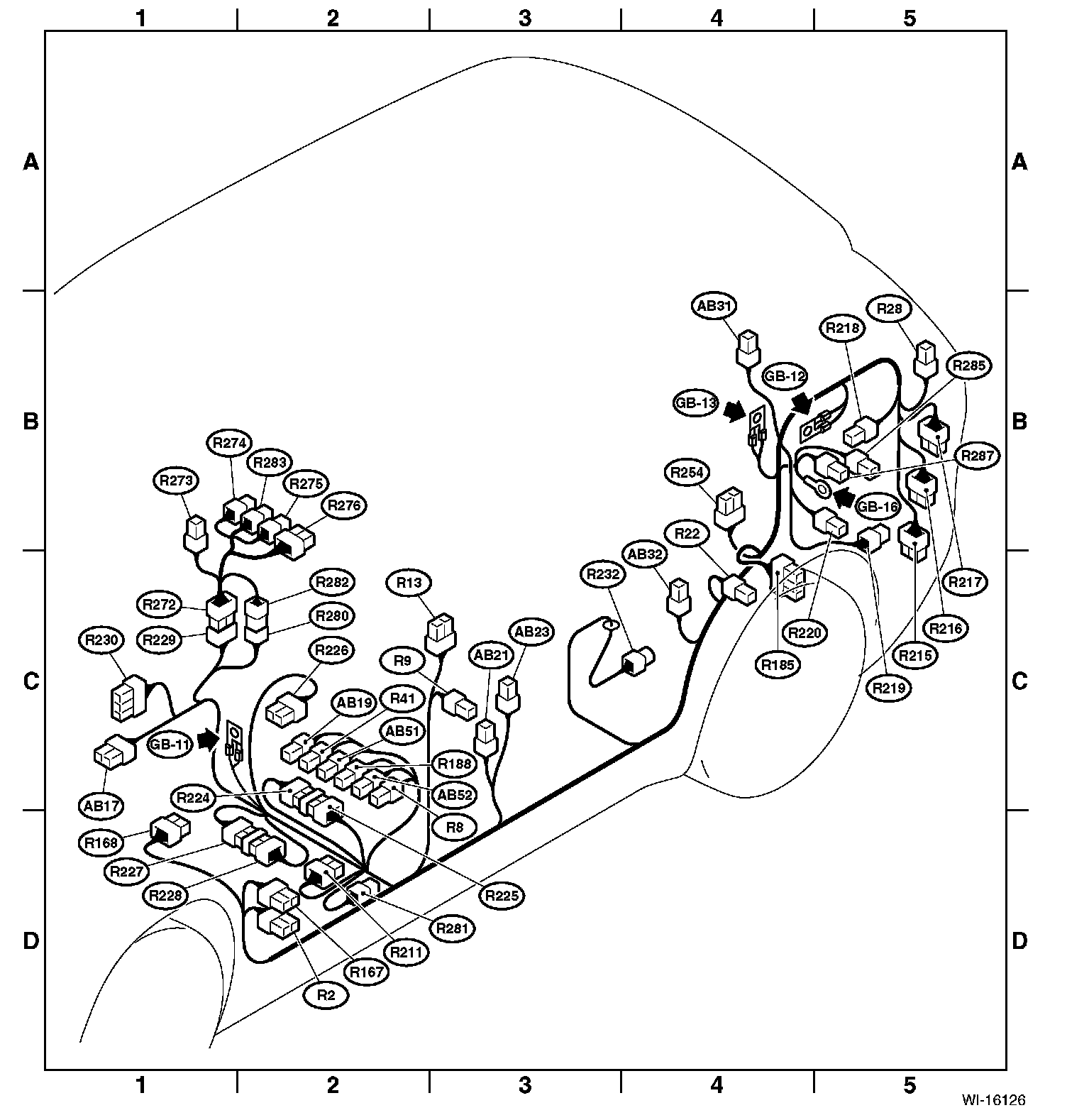

Area View:
