Forester F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
R2-R311 & AB17-AB56
R2-R311 & AB17-AB56
Rear Wiring Harness

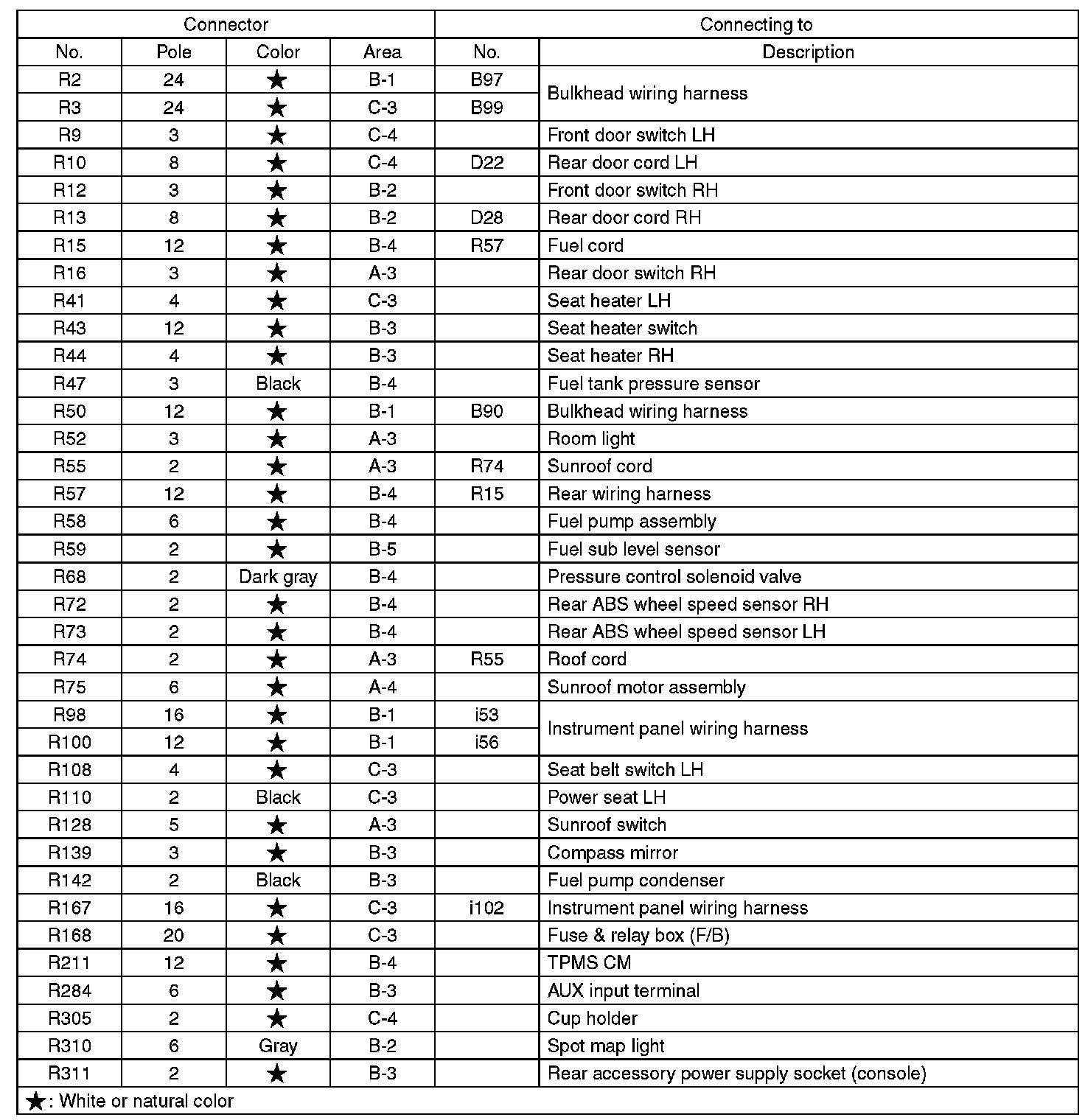

R2-R311:
AB17-AB56:

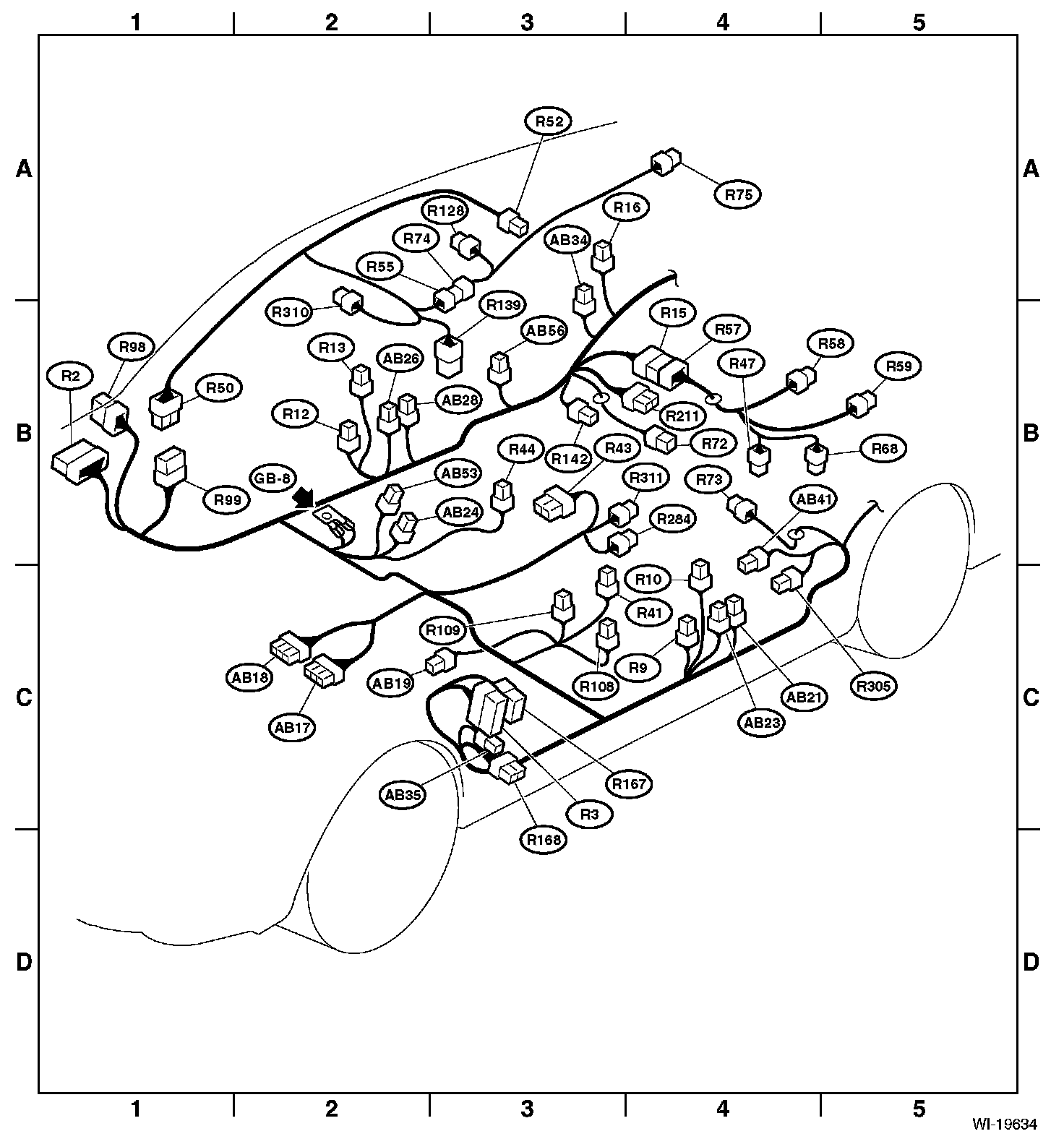

Area View:
