Home >> Subaru >> 2008 >> Impreza F4-2.5L SOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Keyless Entry

Keyless Entry

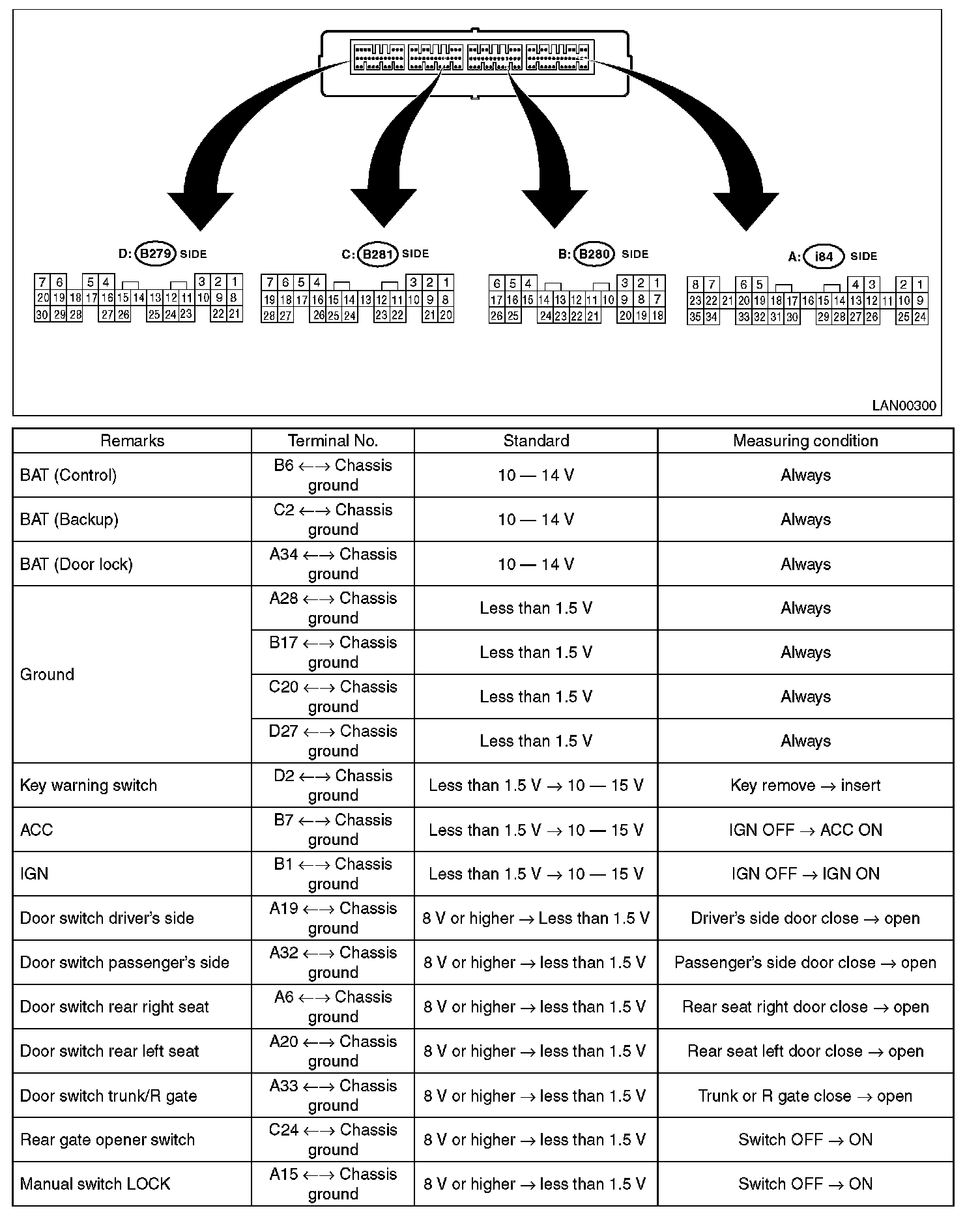

Keyless Entry Control Module:

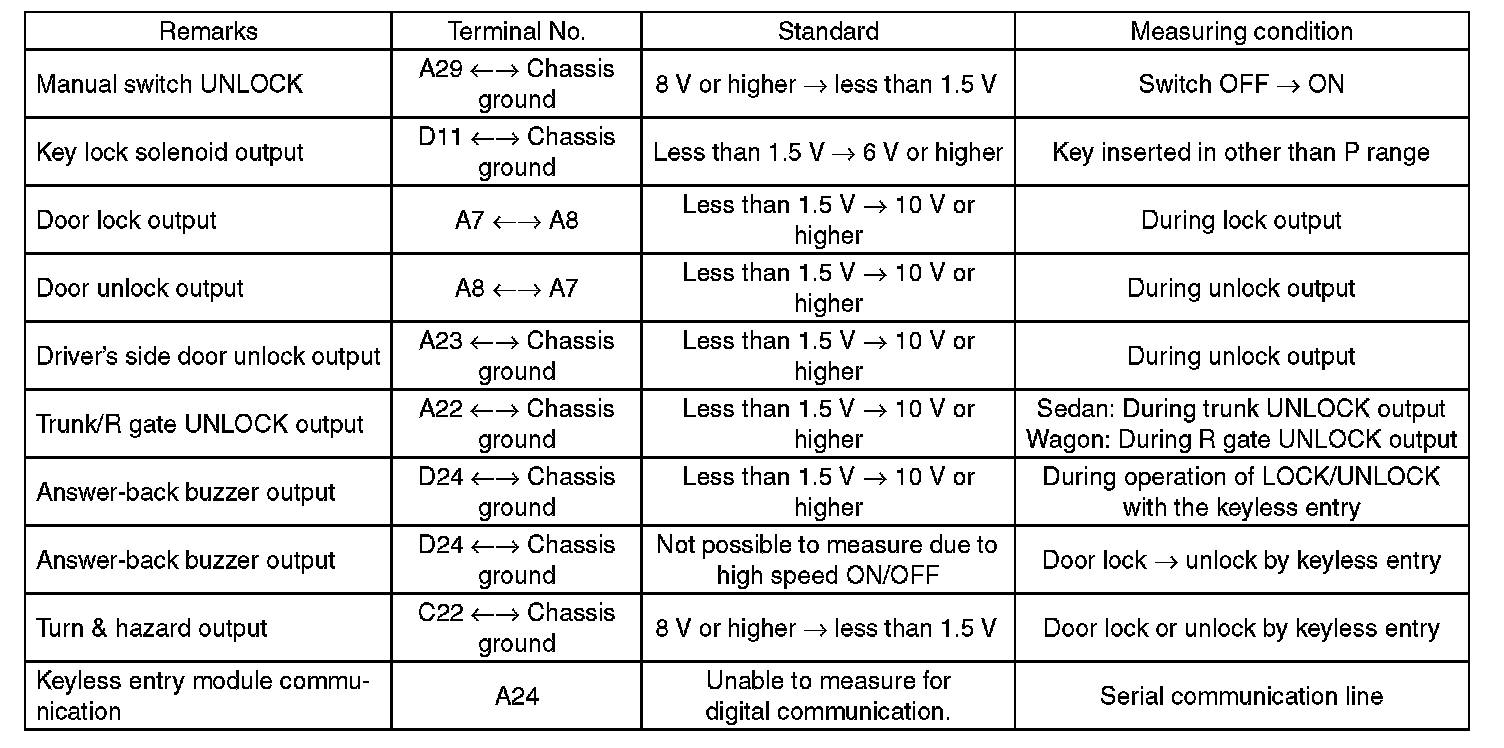

Body Integrated Unit (Part 1):



Body Integrated Unit (Part 2):
