Home >> Subaru >> 2008 >> Forester F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Seat Belt Systems

Seat Belt Systems

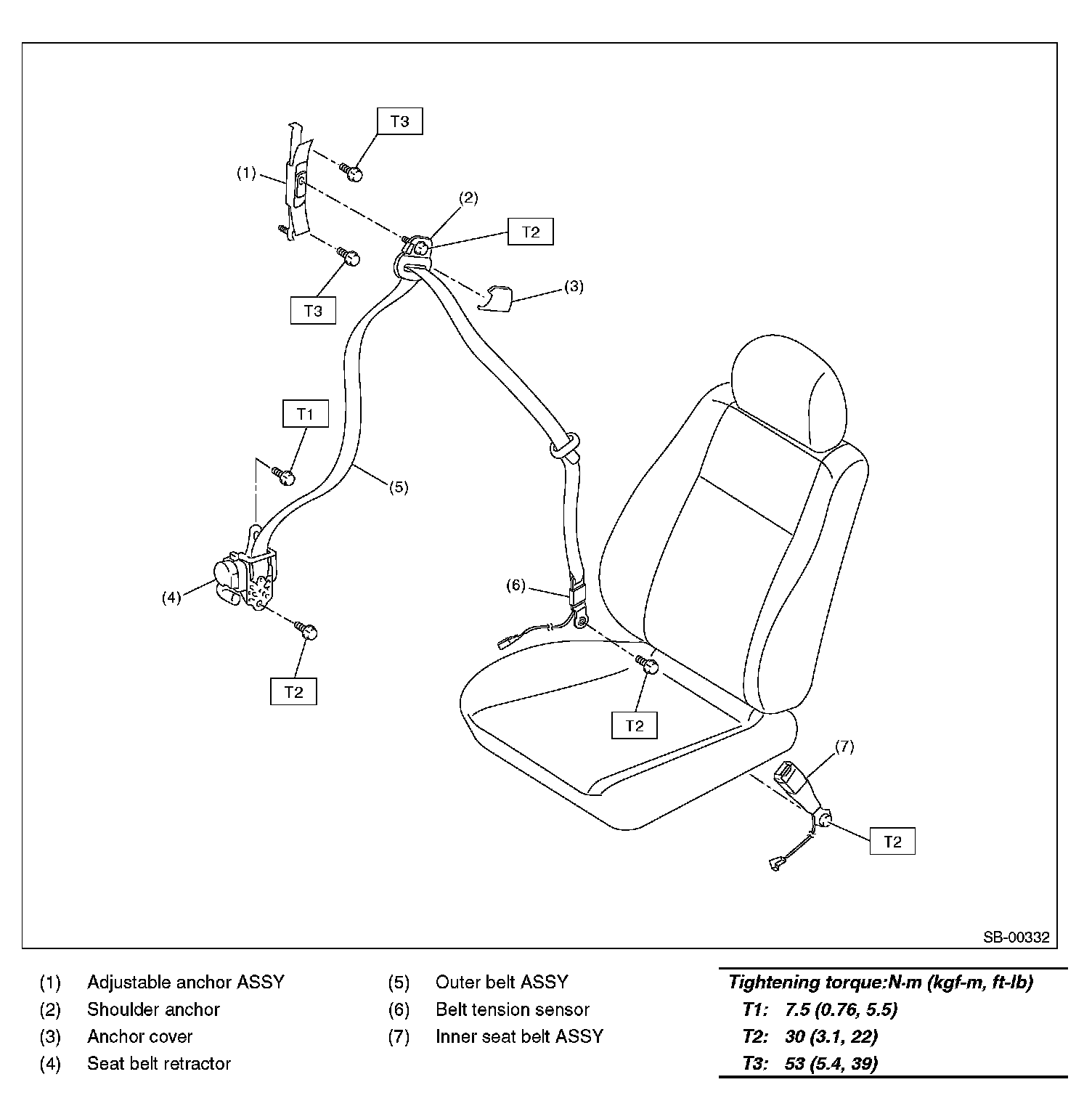

Front Seat Belt - Driver's Side:

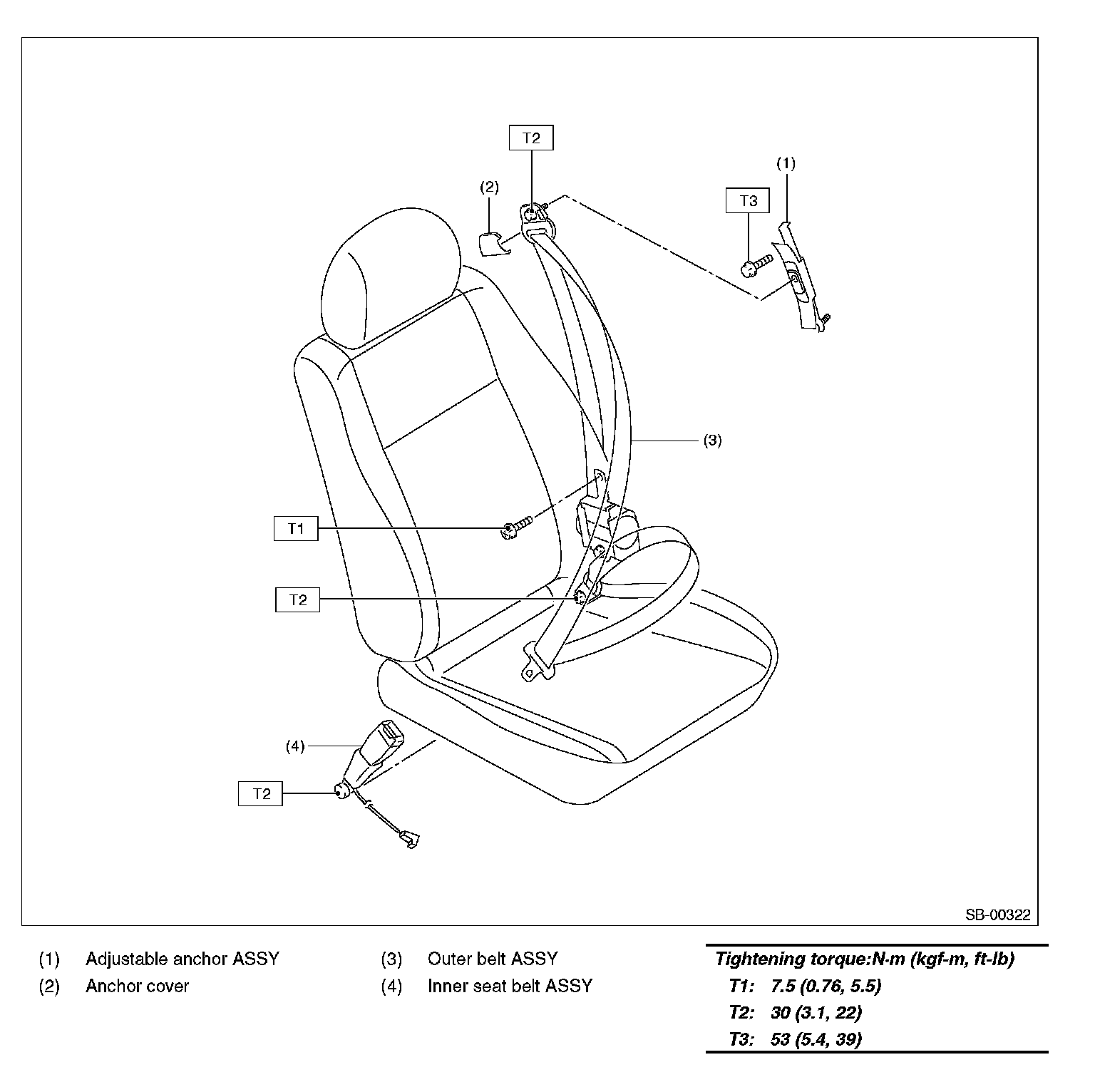

Front Seat Belt - Passenger's Side:

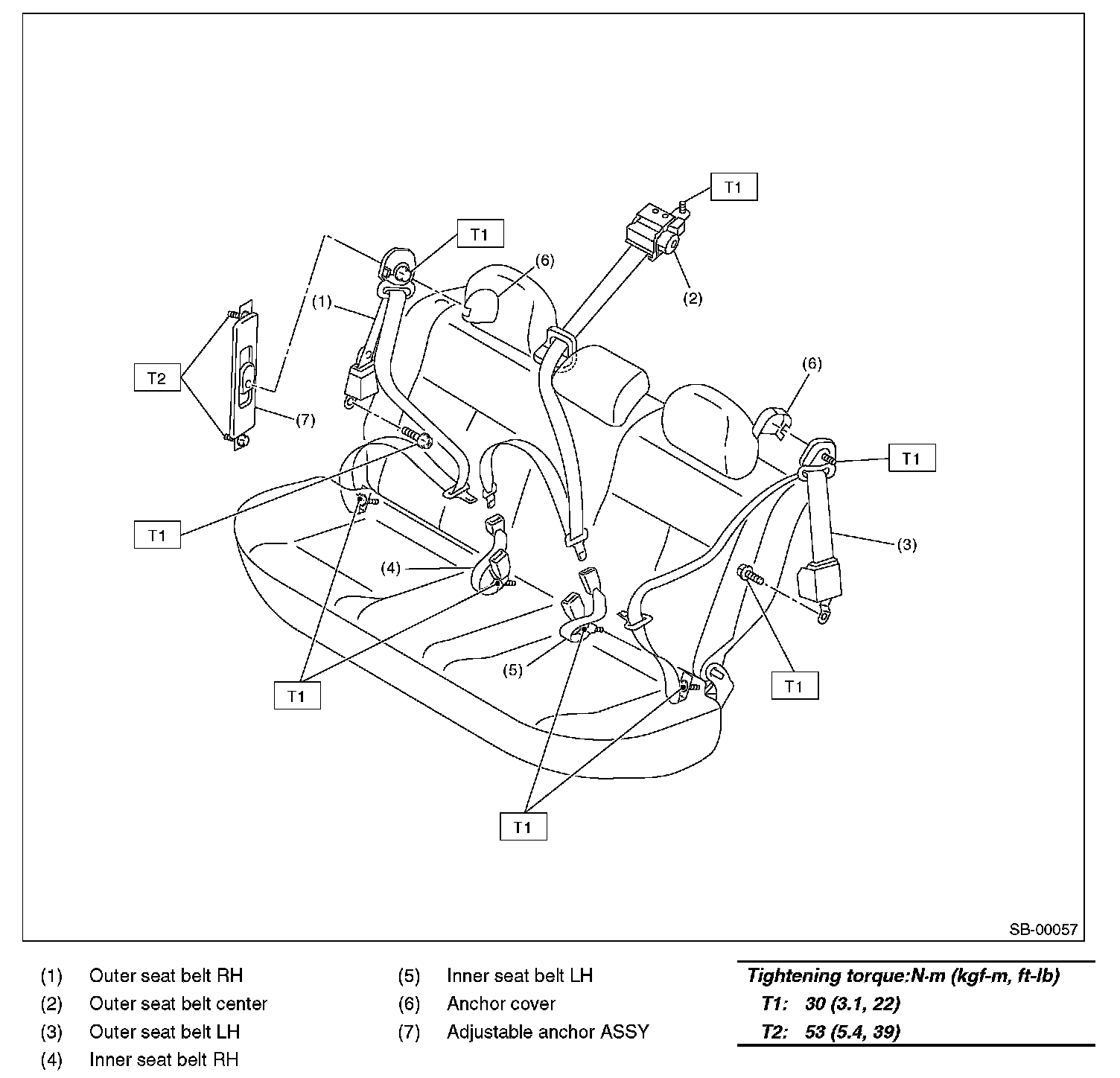

Rear Seat Belt:
