Heating and Air Conditioning

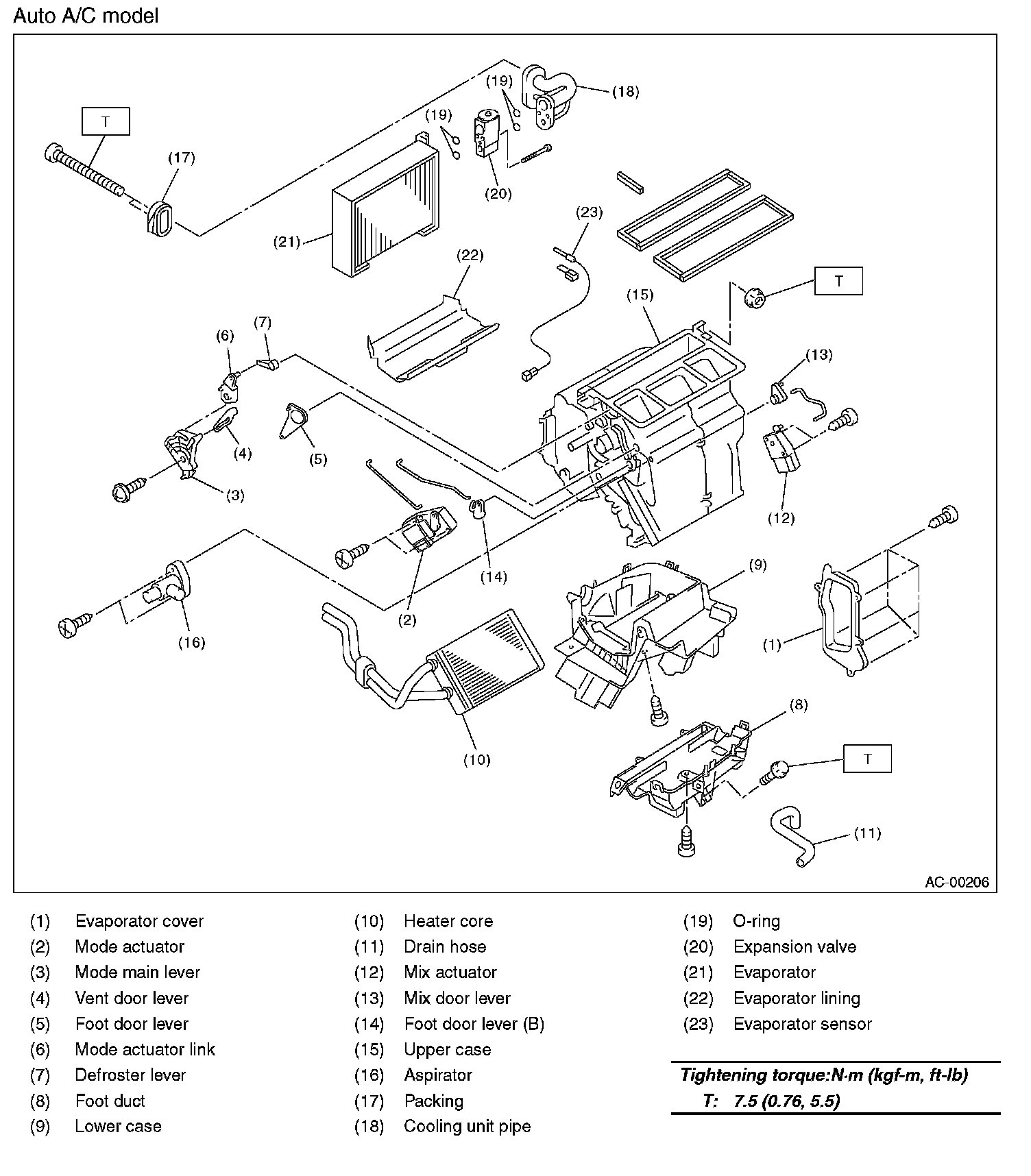

Heater Cooling Unit - Auto A/C Model:

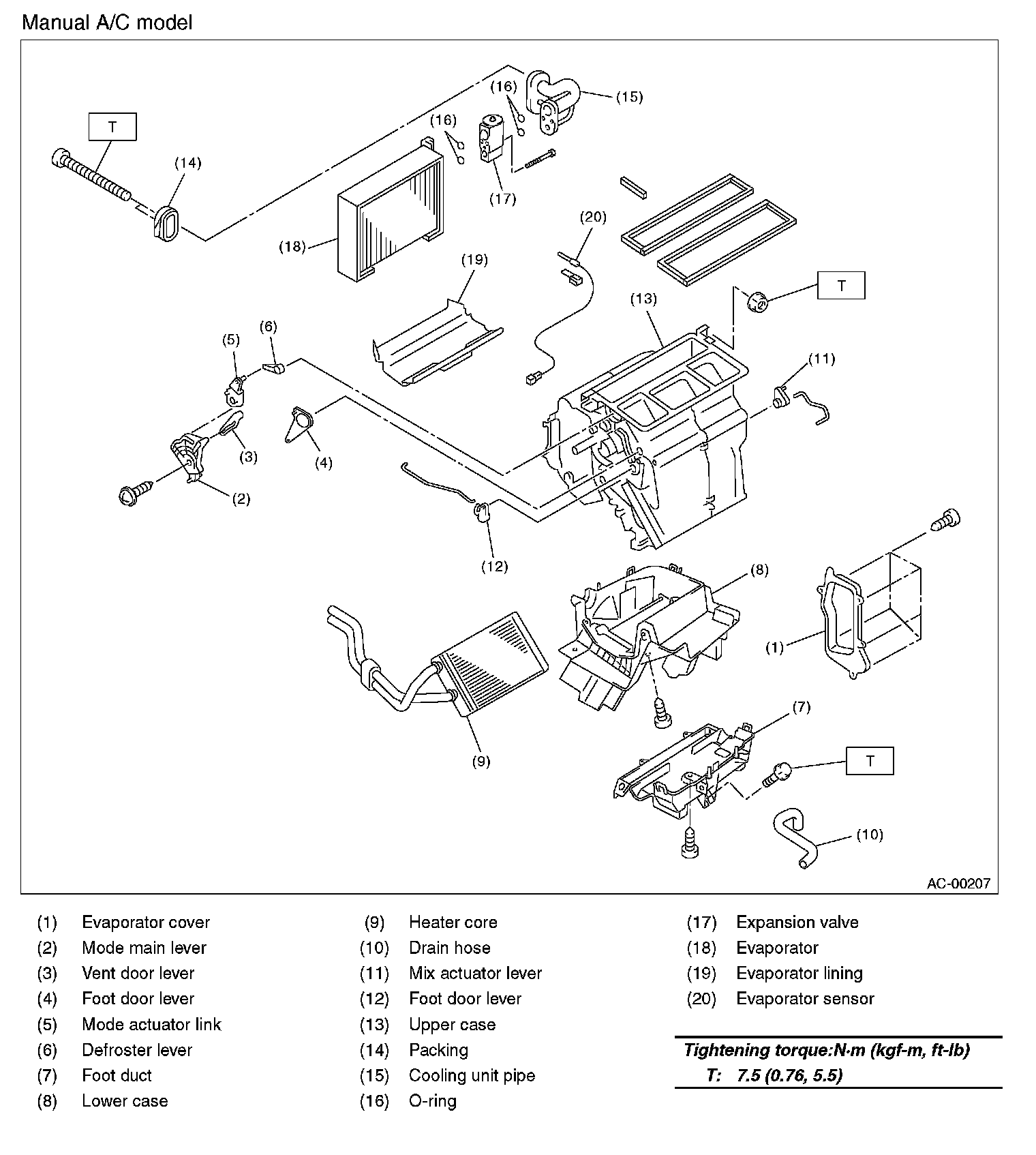

Heater Cooling Unit - Manual A/C Model:
