Starter Motor: Testing and Inspection

STARTER MOTOR CIRCUIT

CAUTION: After repairing or replacing the defective parts, perform the Clear Memory Mode and Inspection Mode.

Wiring Diagram:

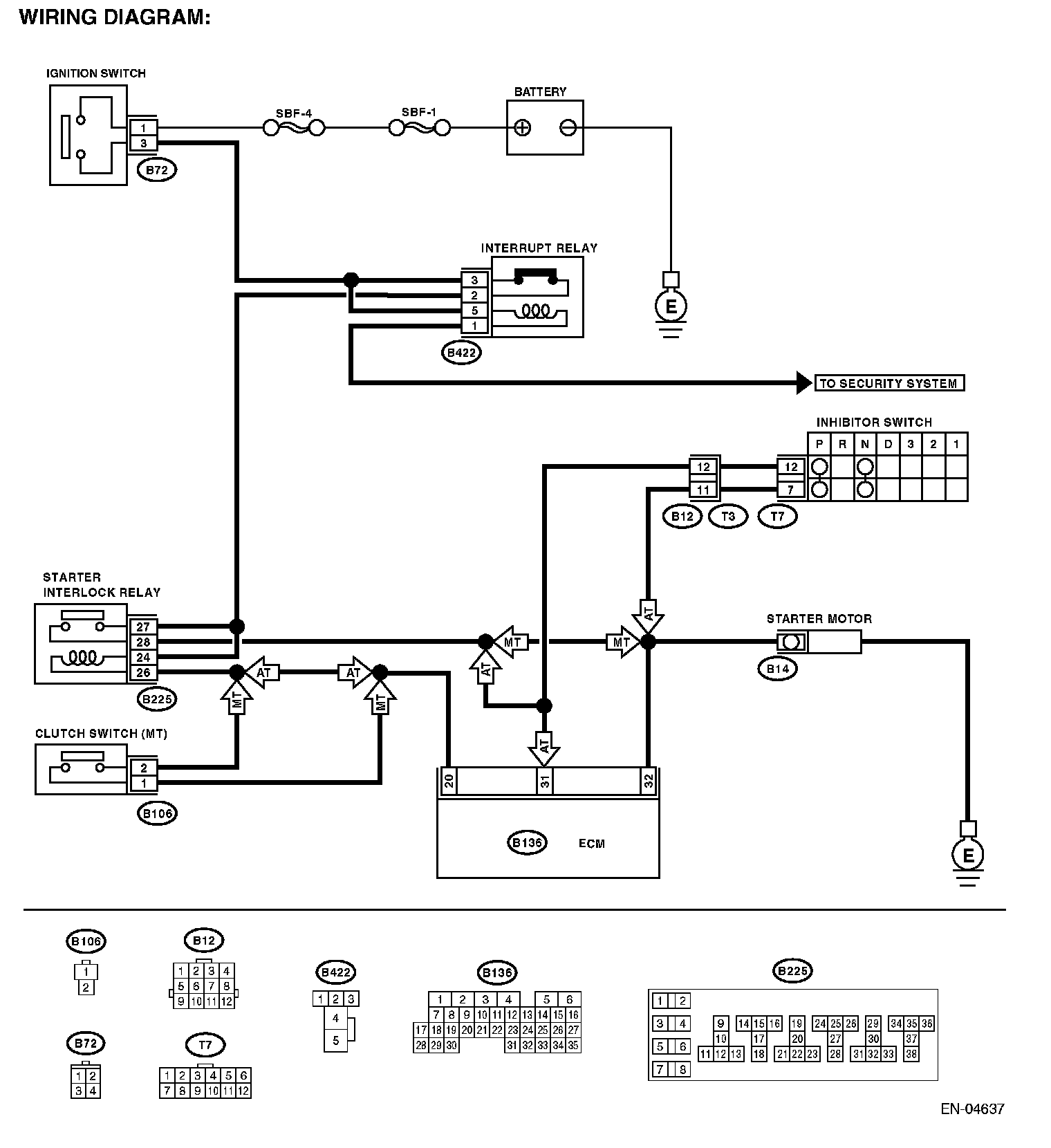

WIRING DIAGRAM

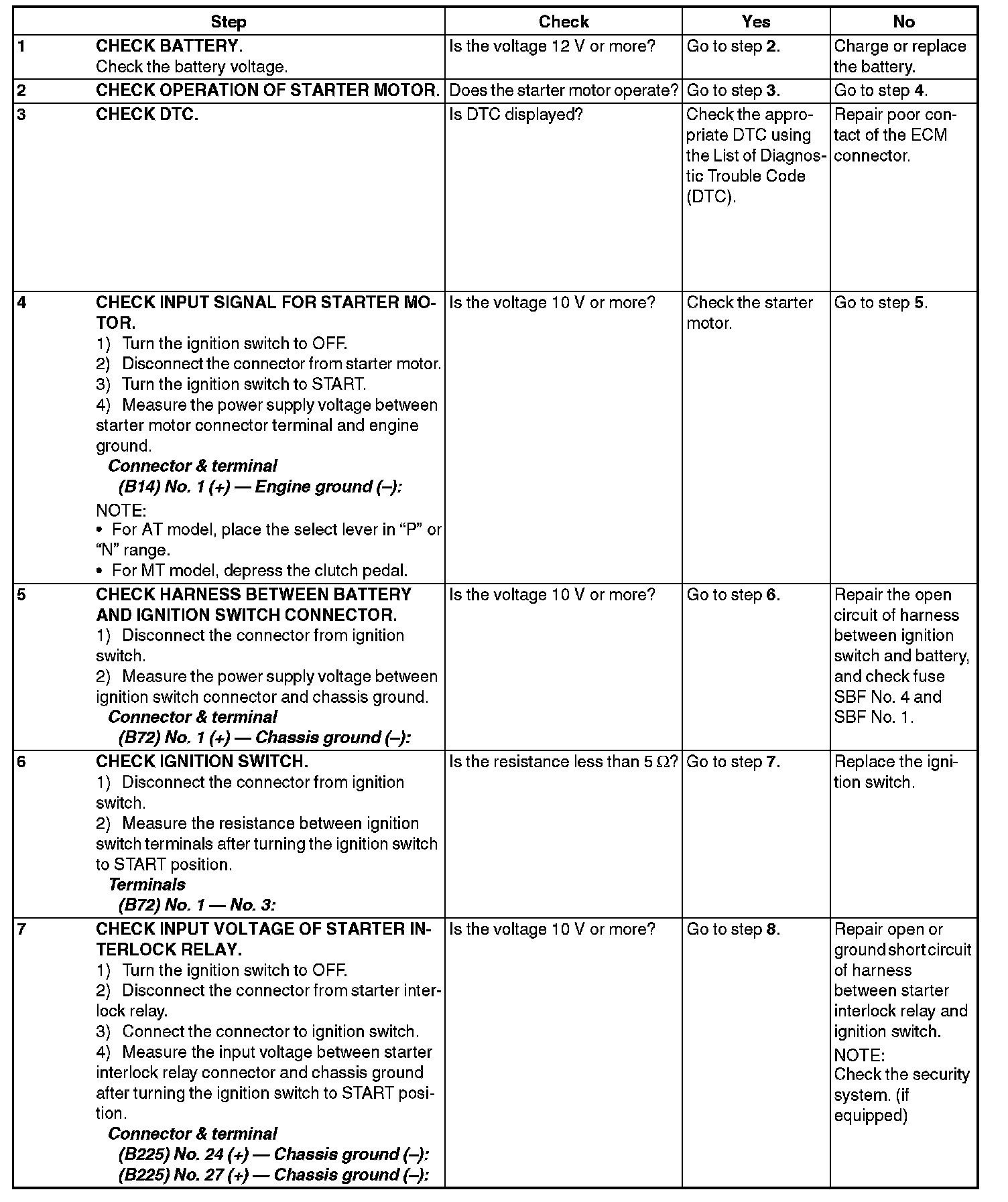

Step 1-7:

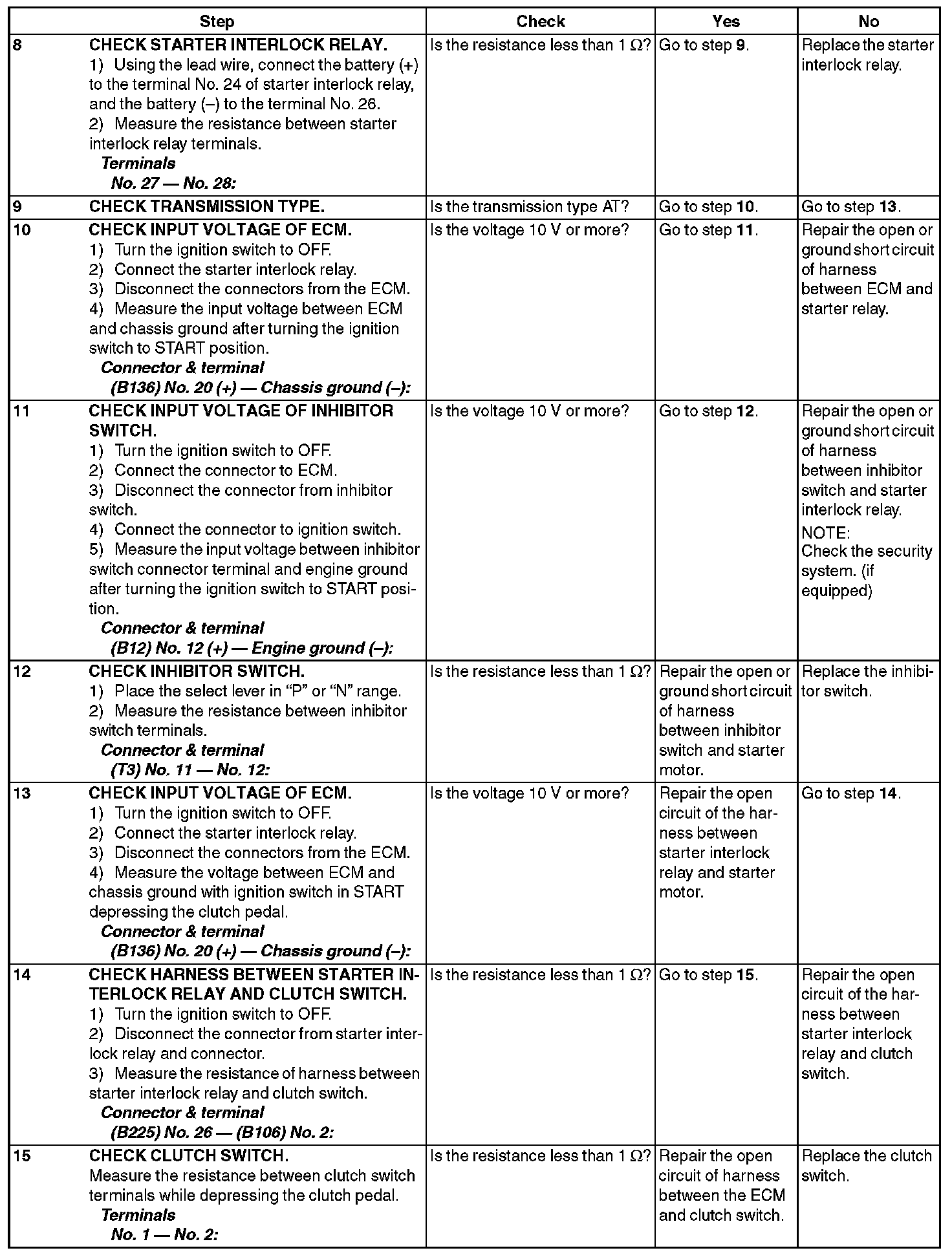

Step 8-15:
