Symptom Related Diagnostic Procedures
OIL TEMP Warning Light DisplayCHECK POWER SUPPLY AND GROUND LINE
WIRING DIAGRAM:

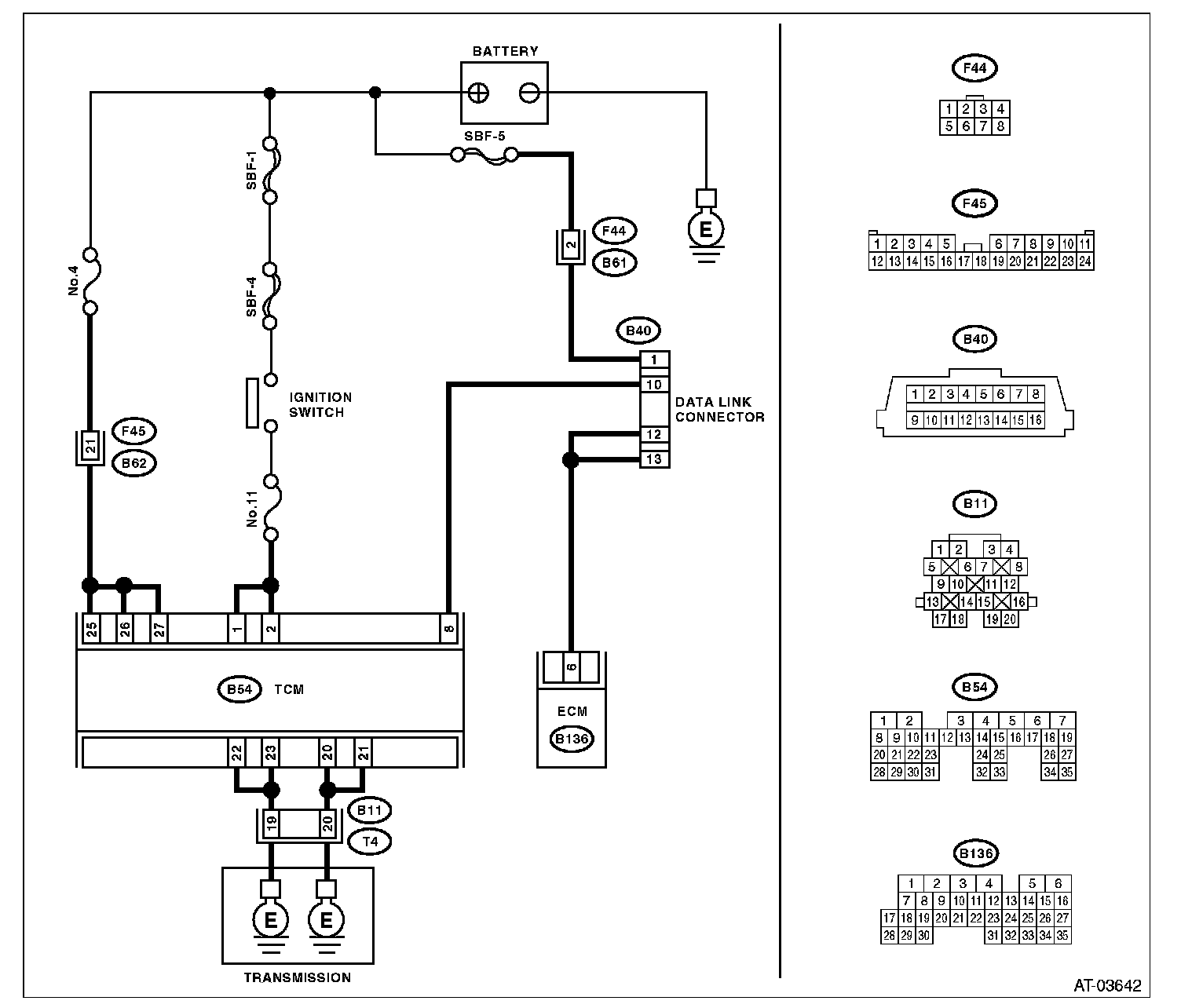

^ Non-turbo model
Non-turbo model:

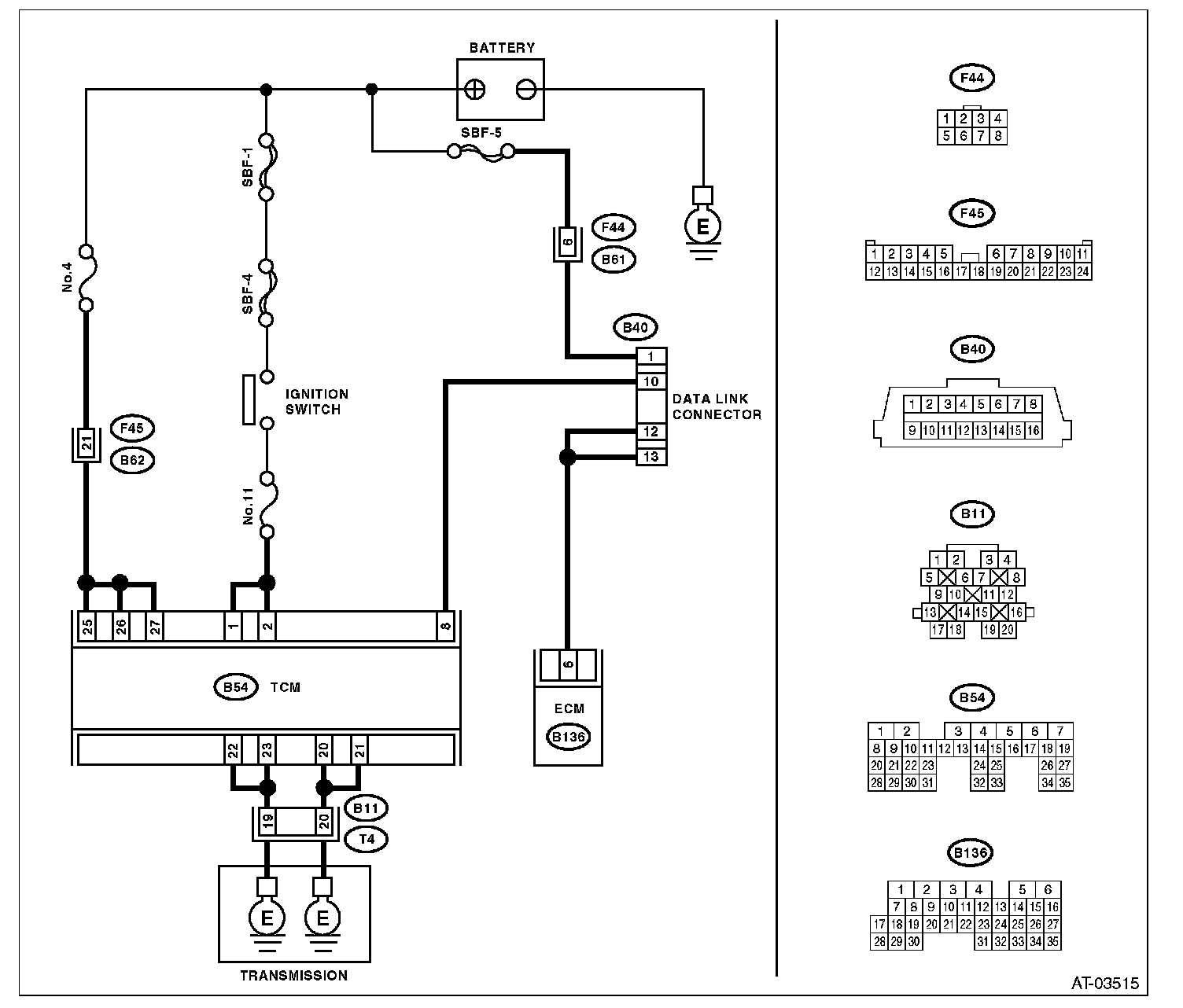

^ Turbo model
Turbo model:
Step 1 - Step 2:

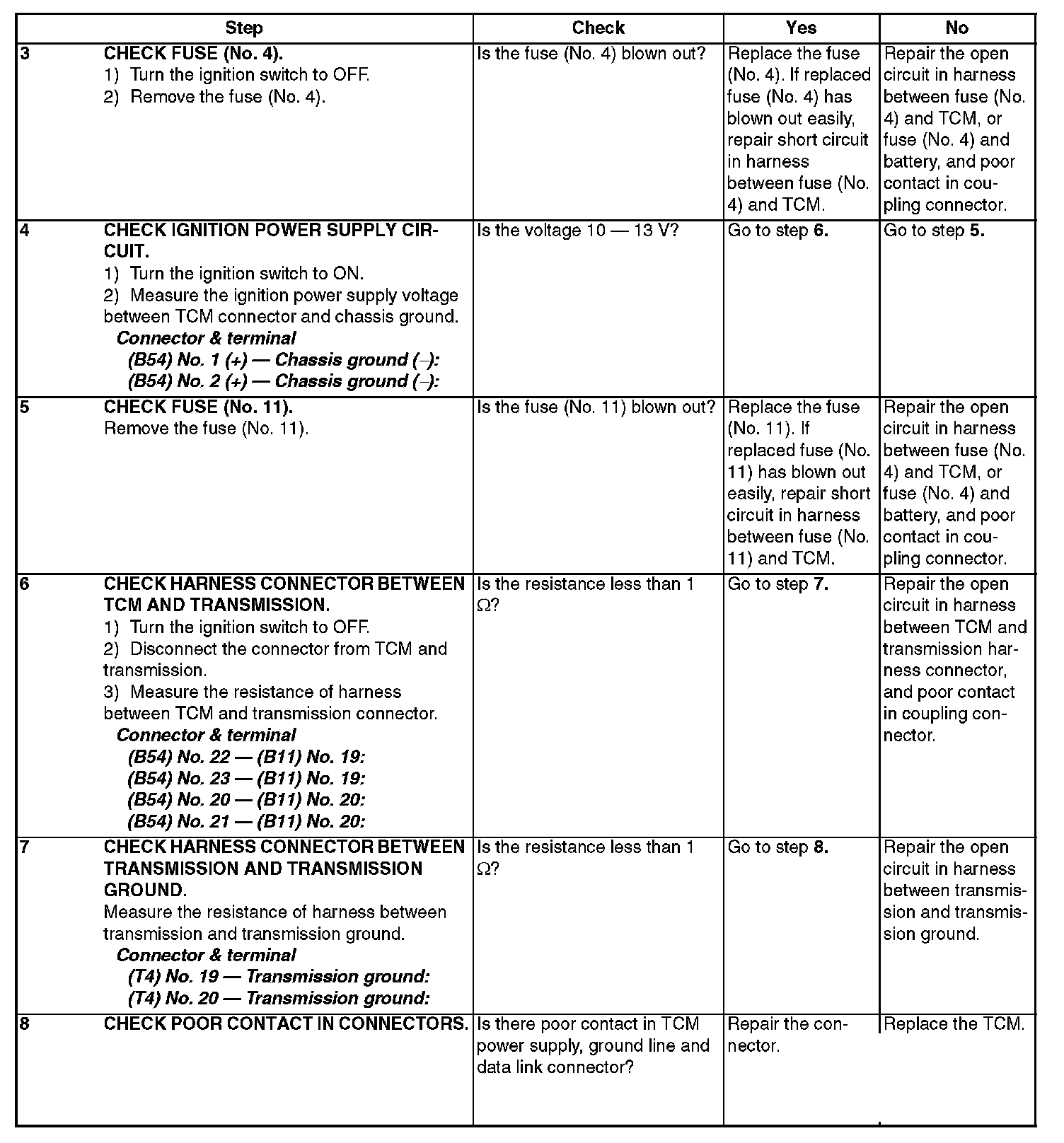

Step 3 - Step 8:
CHECK POWER SUPPLY AND GROUND LINE
WIRING DIAGRAM:
^ Non-turbo model
^ Turbo model
