Control Module Pinout Values

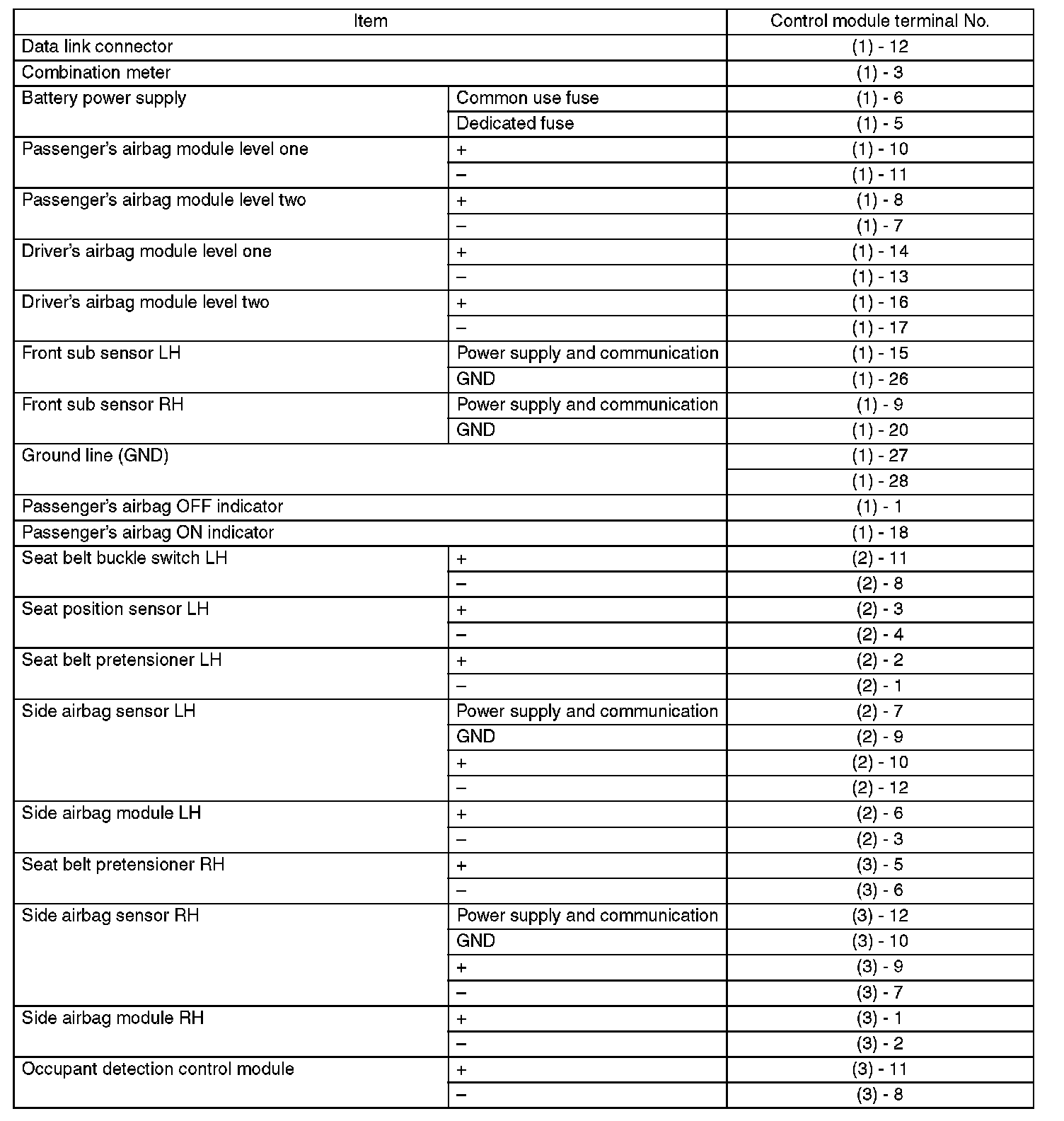

Electrical Specification (Part 1):



Electrical Specification (Part 2):
