Hydraulic Control Assembly - Antilock Brakes

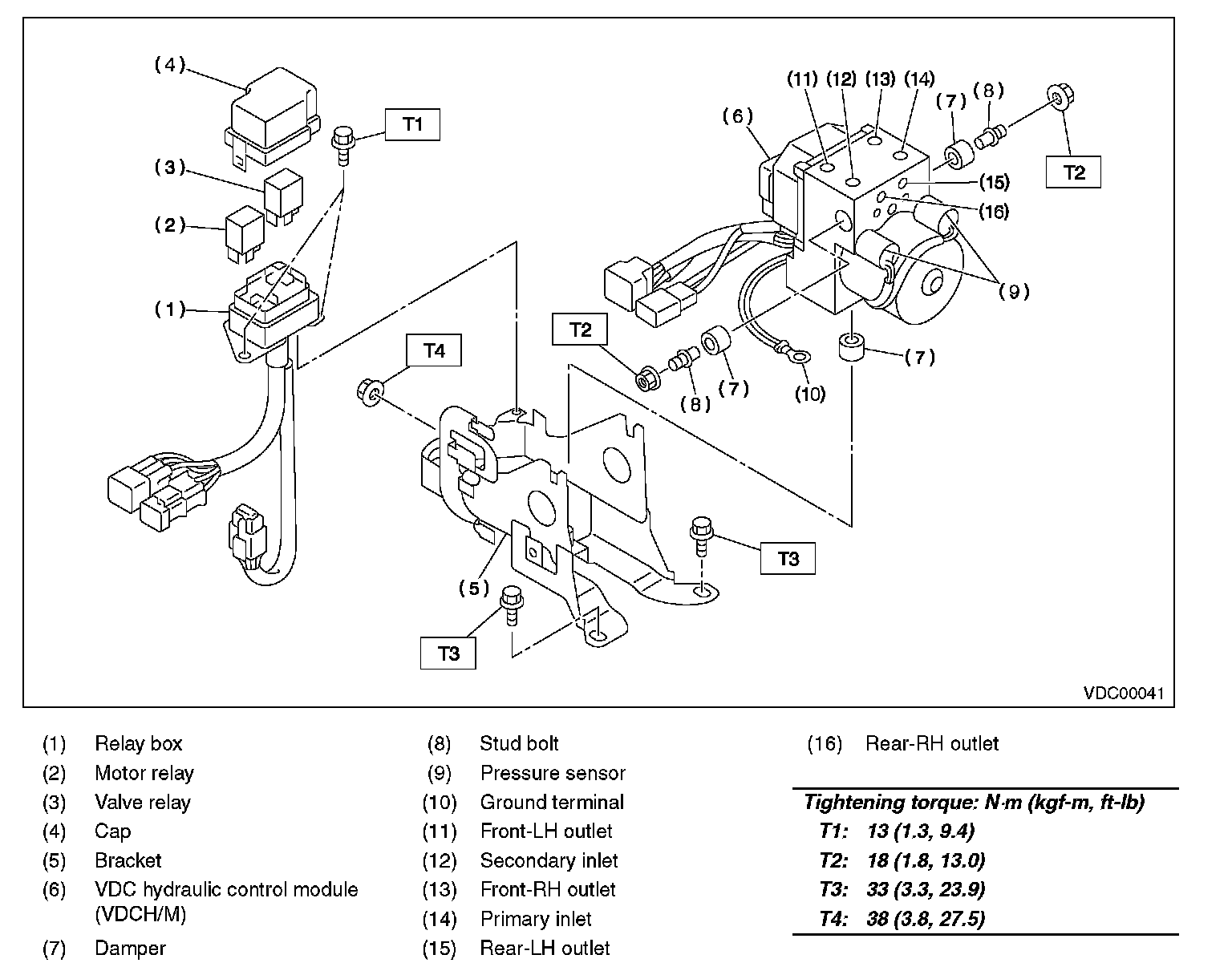

VDC HYDRAULIC CONTROL MODULE (VDCH/U)

CAUTION: Do not disassemble except valve relay and motor relay.
