System Specifications
Crankshaft PulleyCrankshaft Pulley 178 Nm (18.1 kgf-m, 131 ft. lbs.)
Chain Tensioner
Front Chain Cover

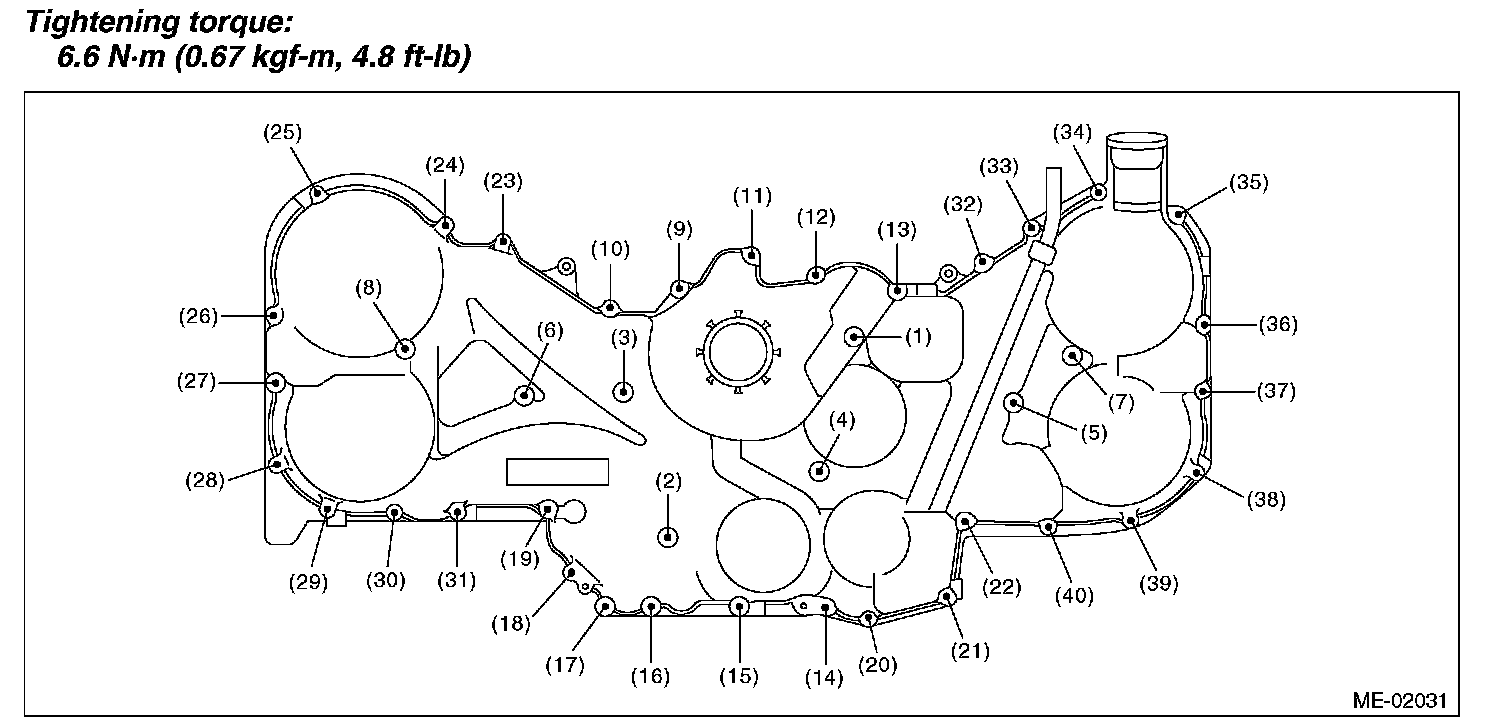

Tighten the bolts in the numerical order as shown in the figure.
Crankshaft Pulley 178 Nm (18.1 kgf-m, 131 ft. lbs.)
Chain Tensioner
Front Chain Cover
Tighten the bolts in the numerical order as shown in the figure.
