Home >> Subaru >> 2007 >> B9 Tribeca F6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Engine Lubrication

Engine Lubrication

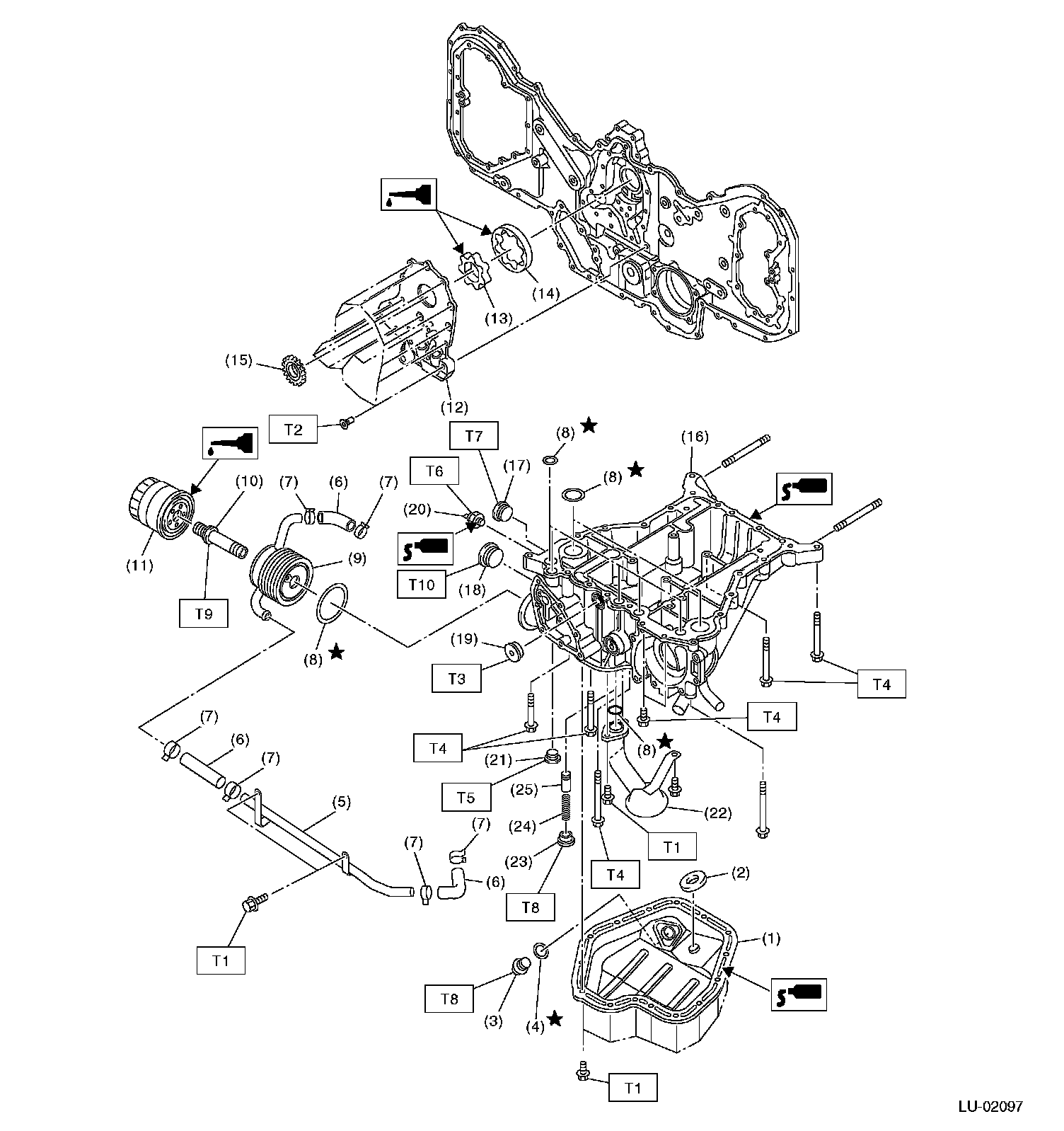

Component (part 1):



Component (part 2):
