Home >> Subaru >> 2007 >> B9 Tribeca F6-3.0L DOHC >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Exploded Views

Exploded Views

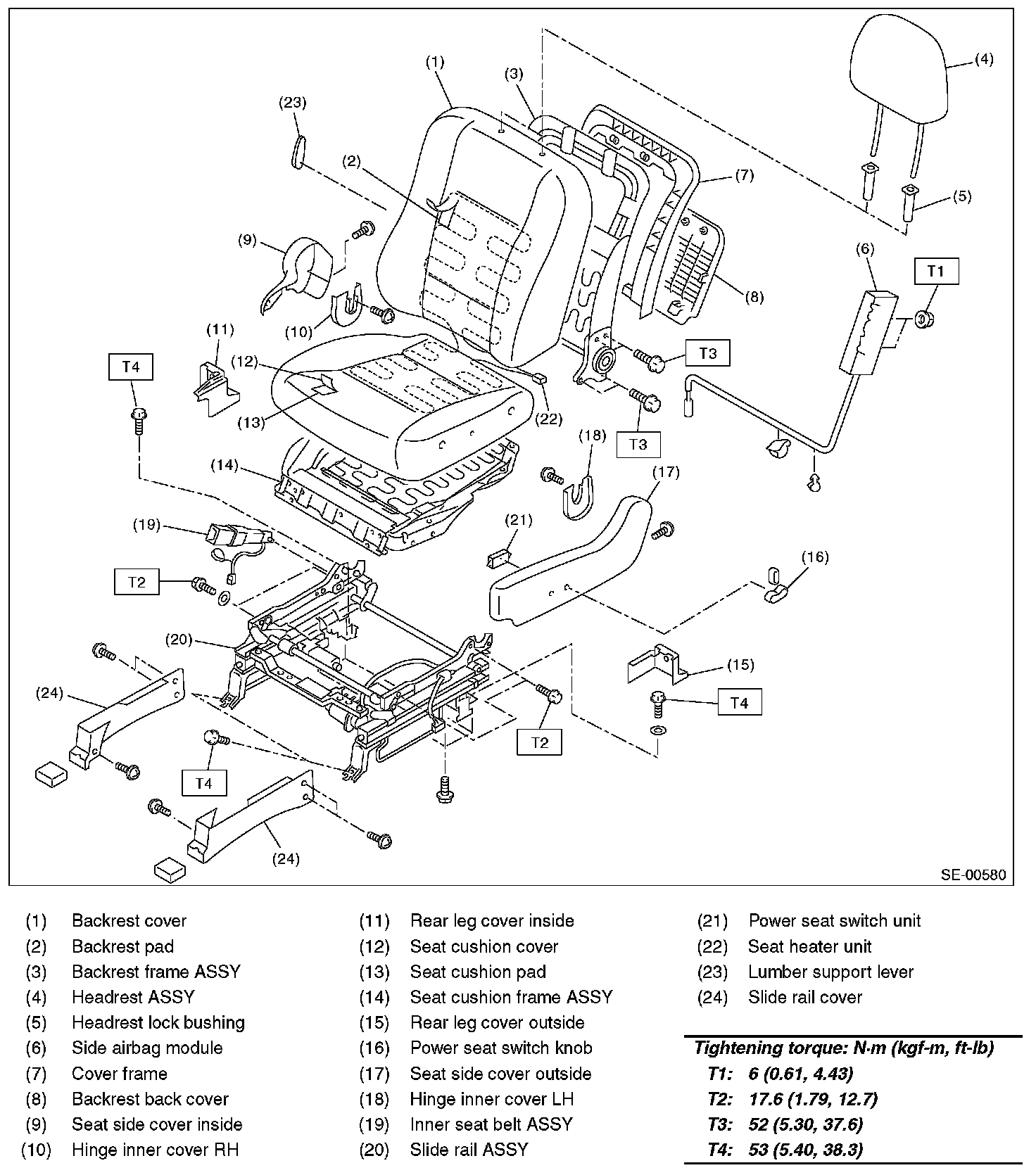

Front Seat (Driver's Seat):

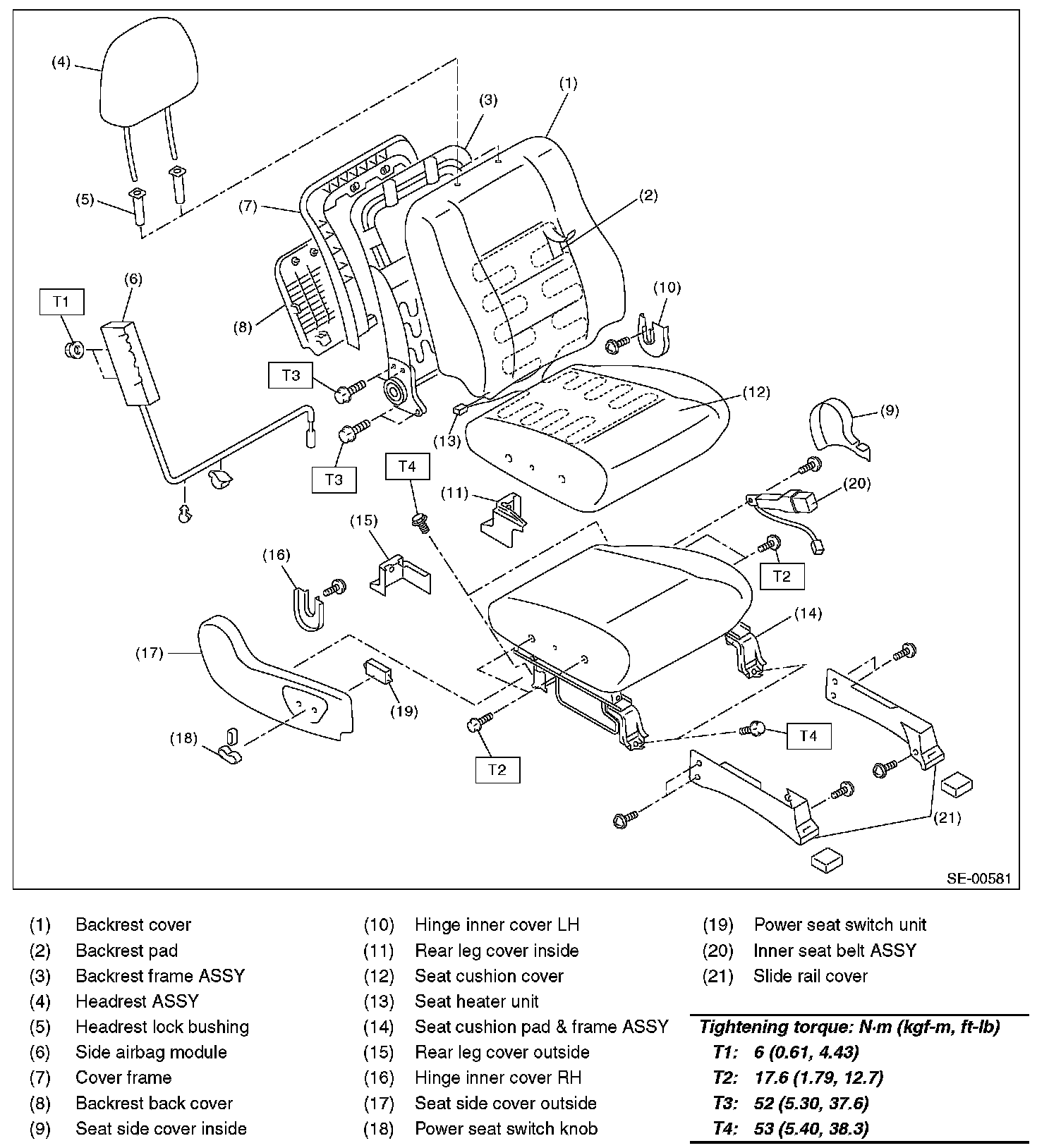

Front Seat (Passenger's Seat):

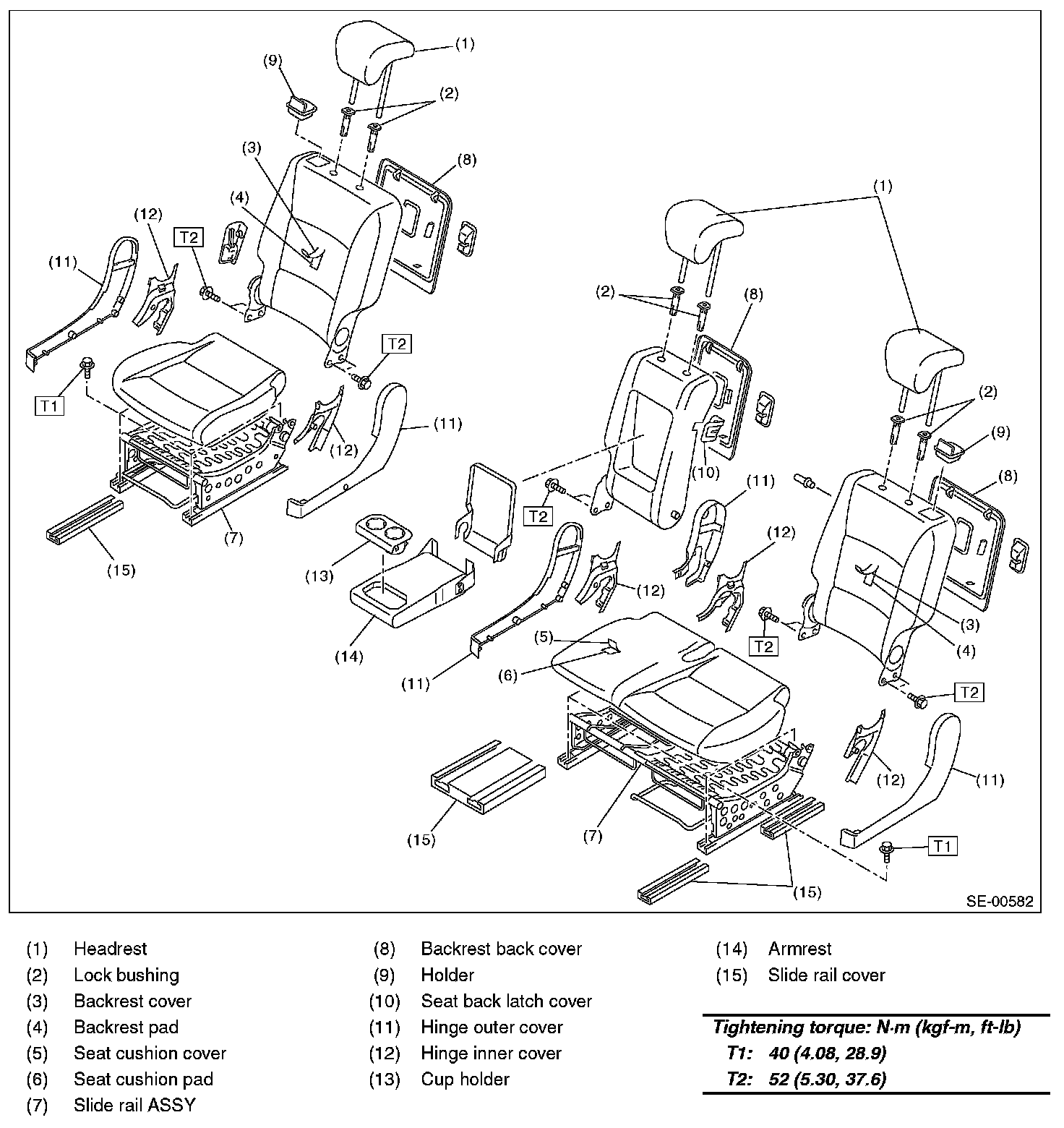

Second-Row Seats:

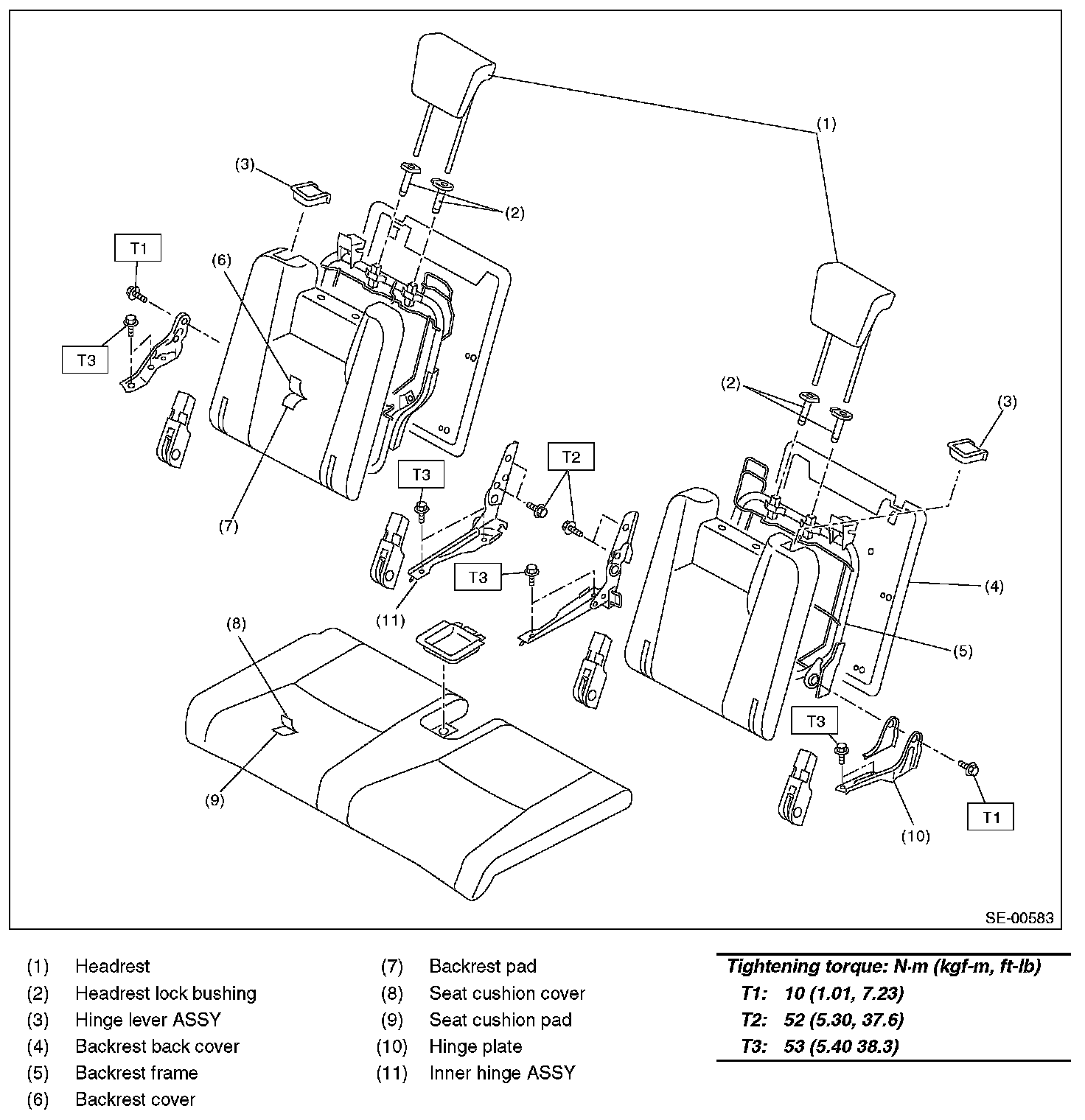

Third-Row Seats:
