Home >> Subaru >> 2006 >> Outback Sport F4-2.5L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Steering

Steering

General Description

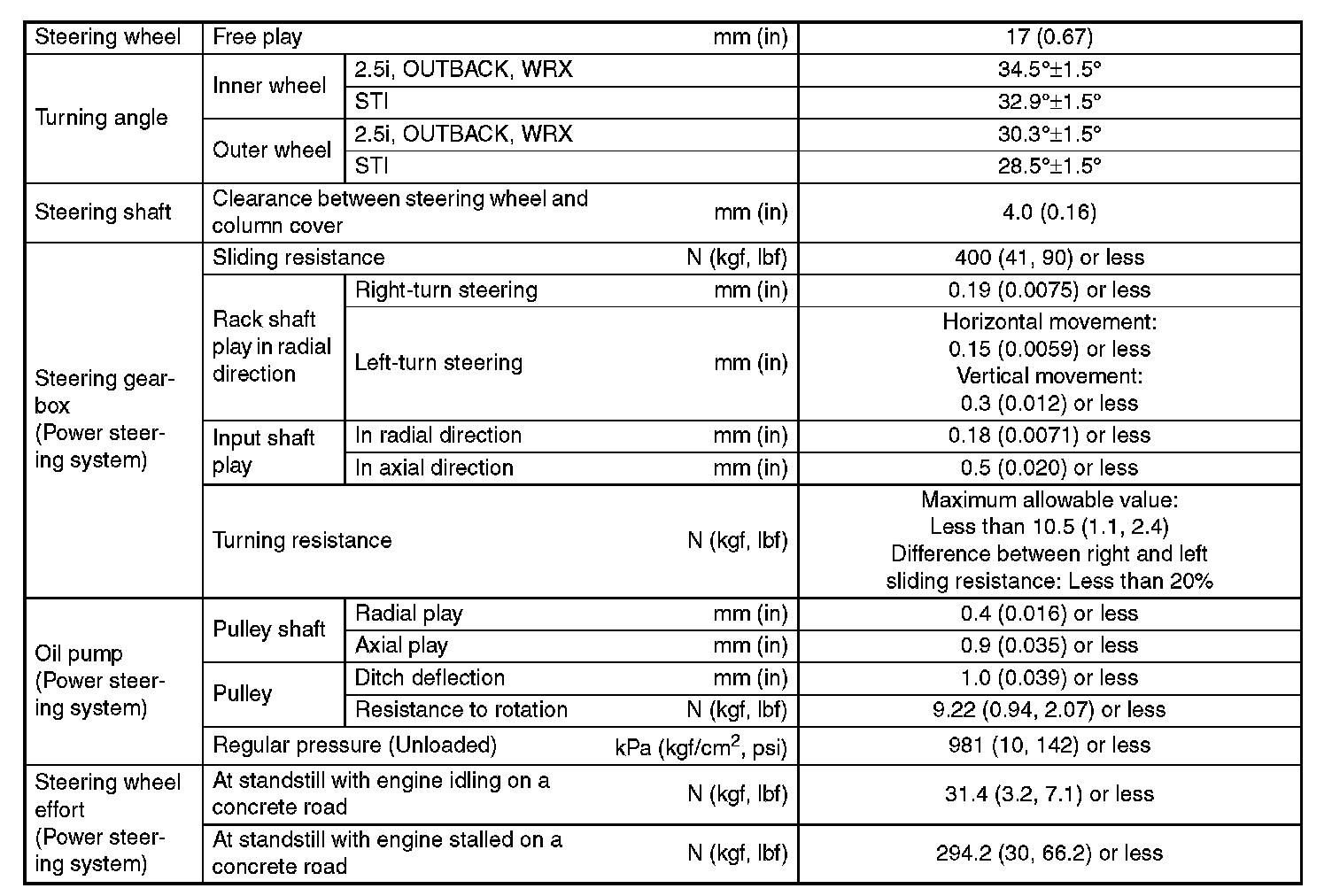

General Description 1:

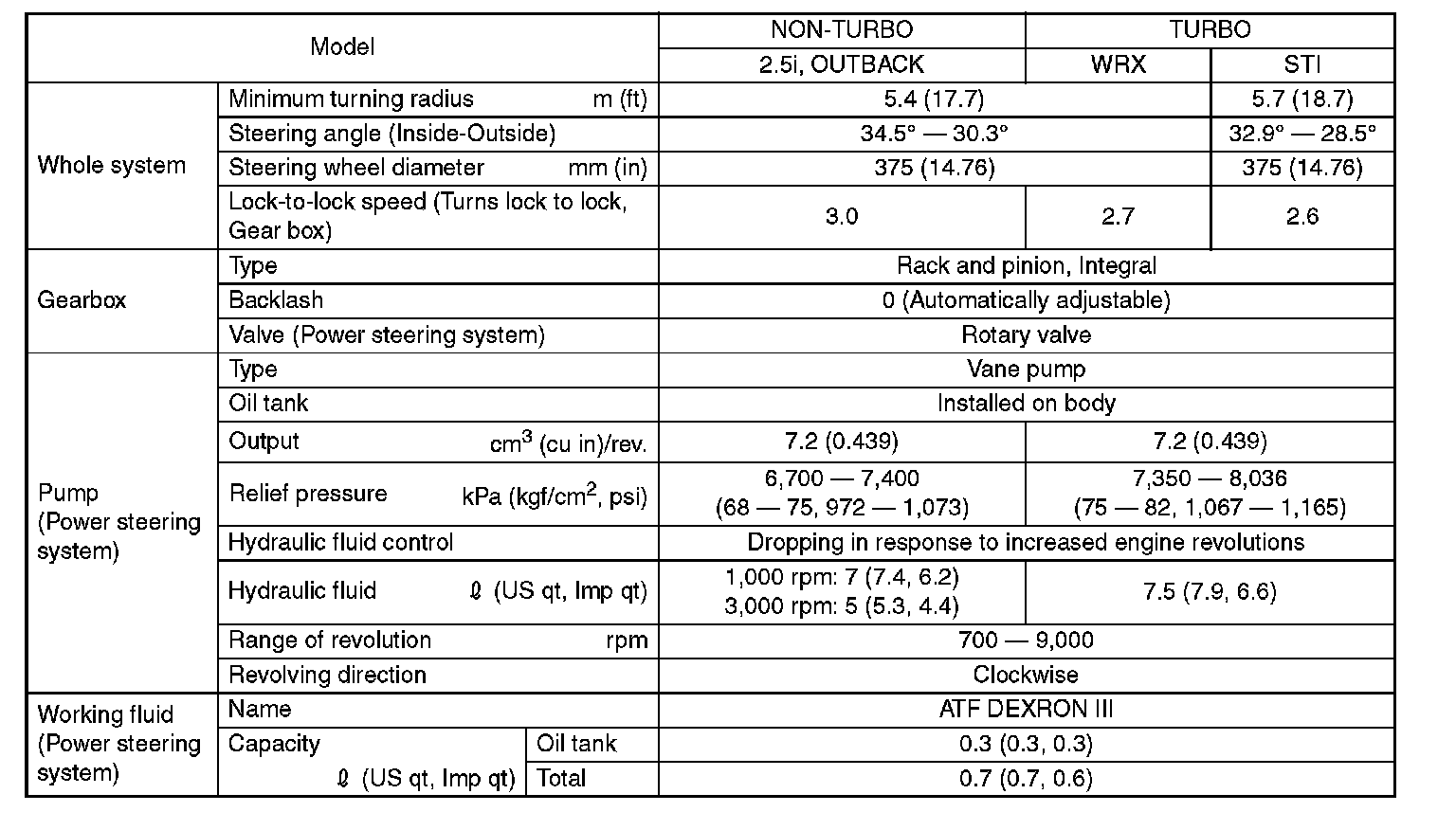

General Description 2:




General Description 3:
