Testing

STARTER MOTOR CIRCUIT

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode Reading and Clearing Diagnostic Trouble Codes

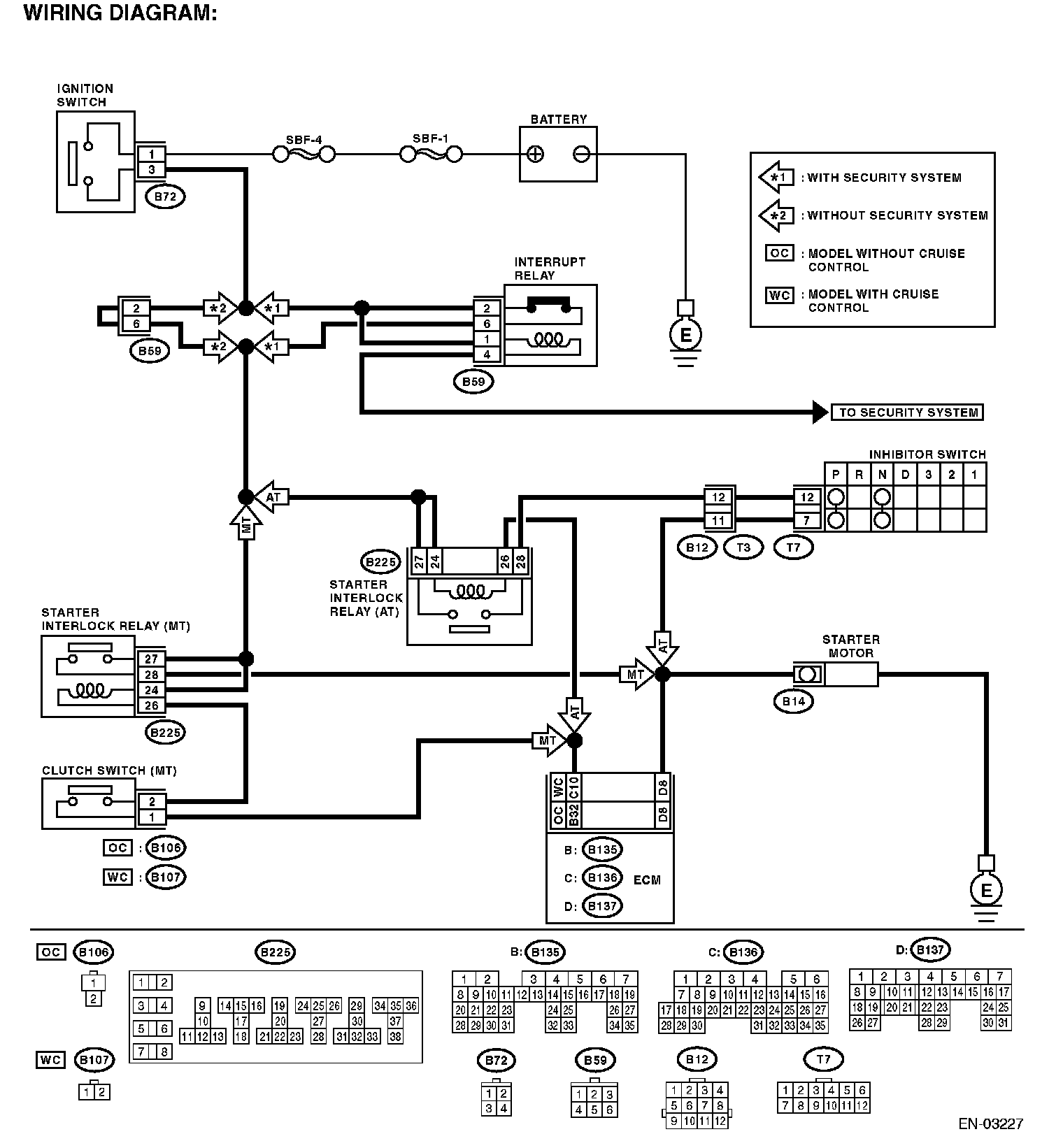

Wiring Diagram:

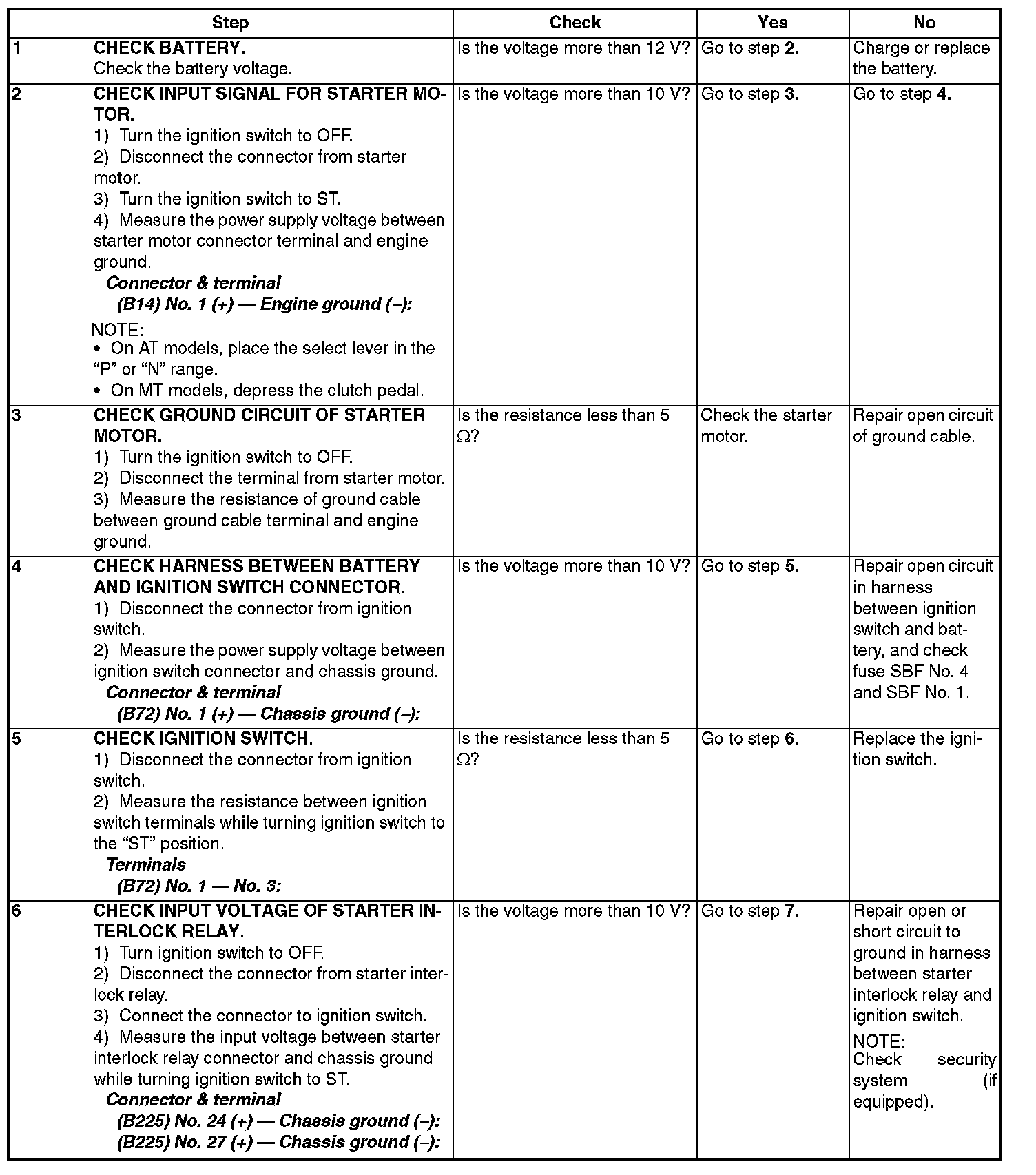

Step 1 - 6:

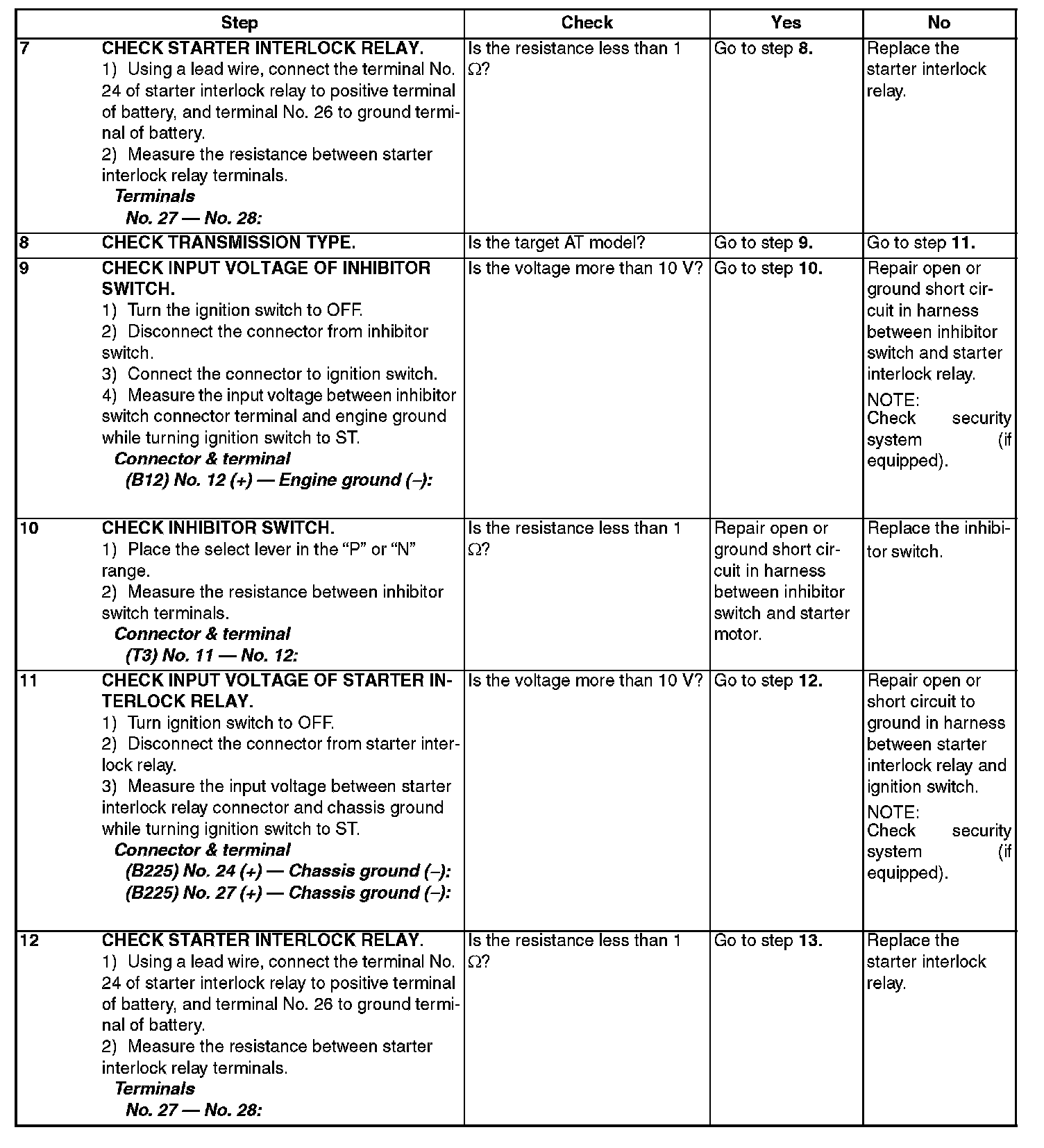

Step 7 - 12:

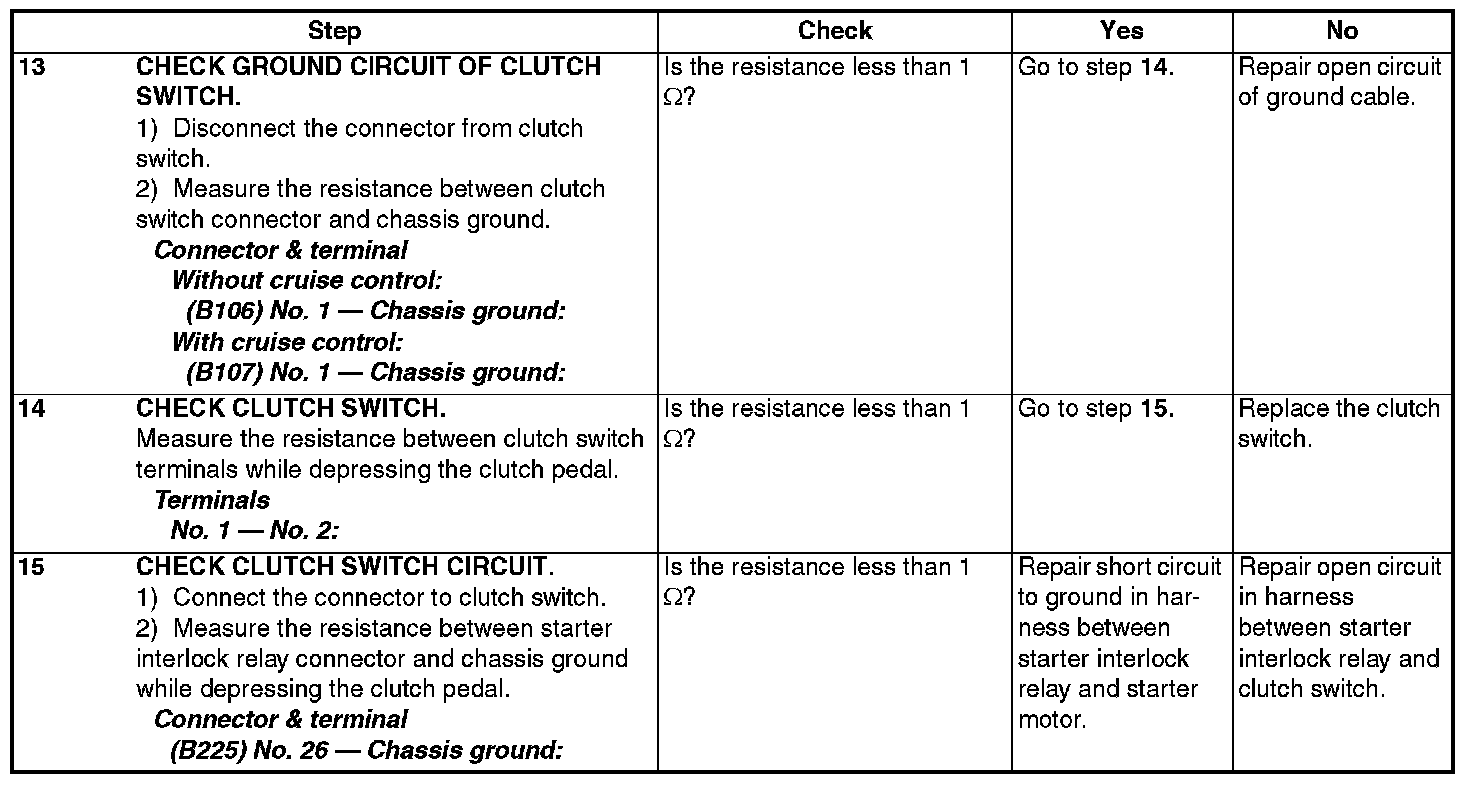

Step 13 - 15:
