Communication for Initializing Impossible

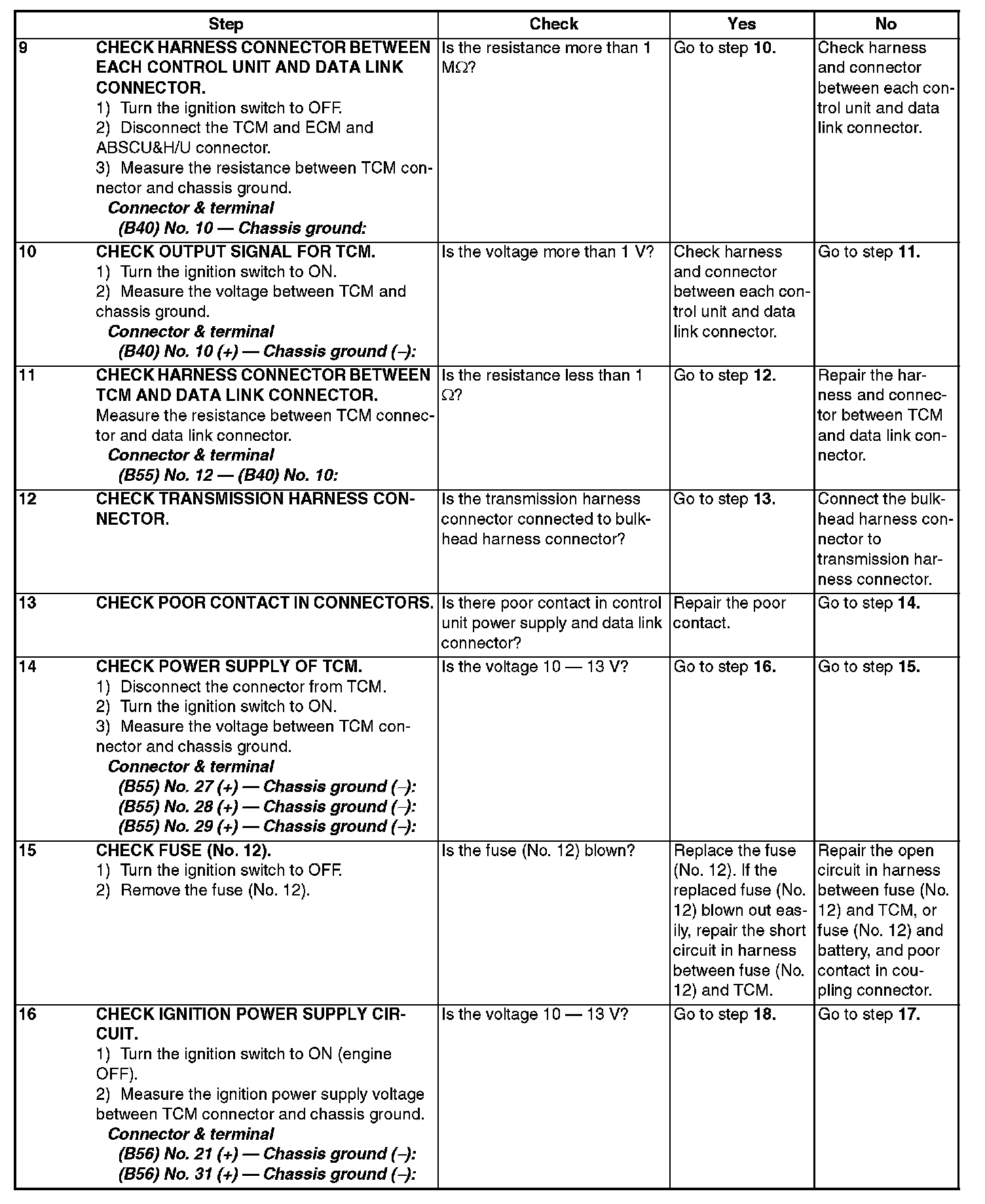

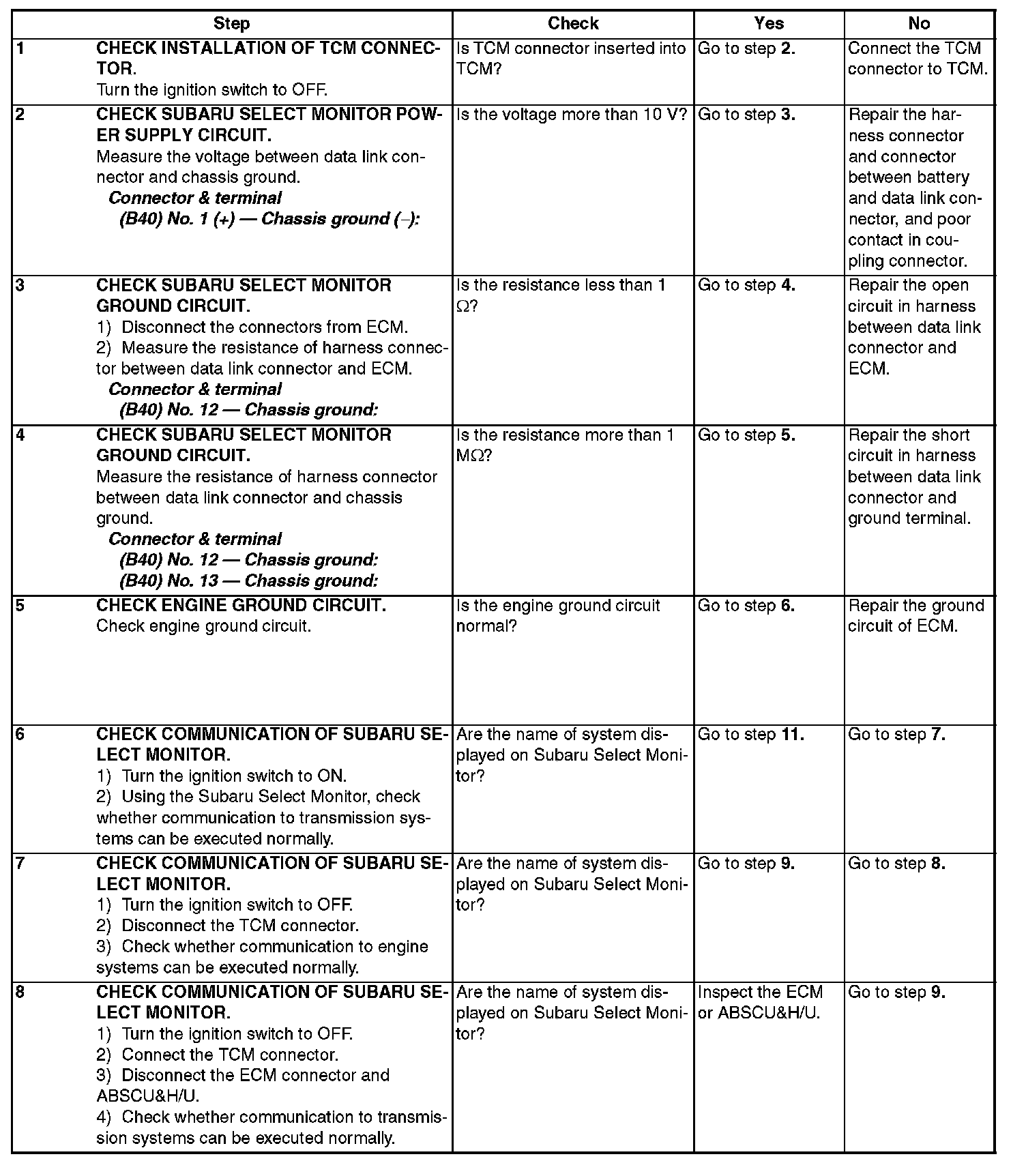

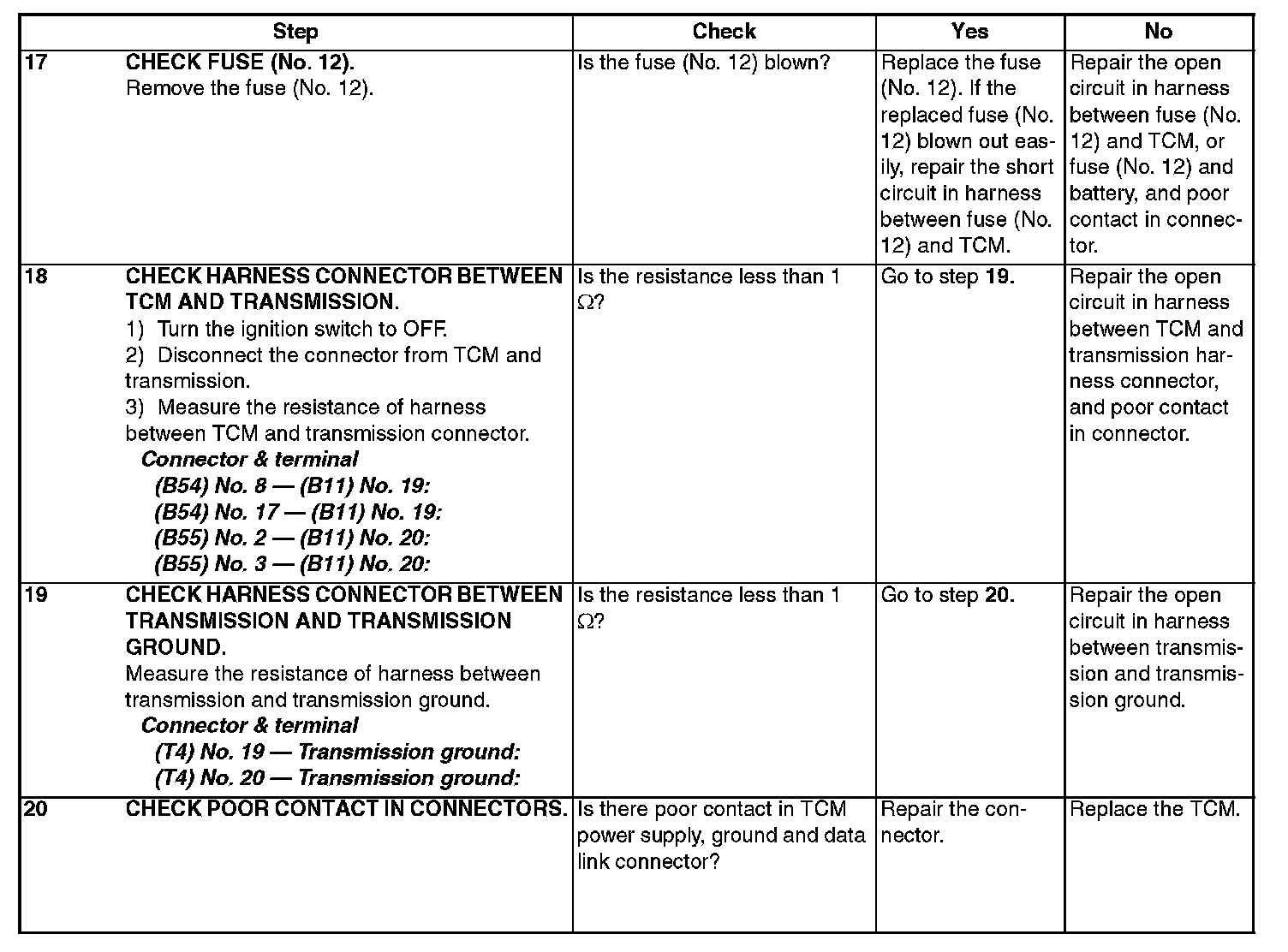

Diagnostic Procedure for Select Monitor Communication

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

DIAGNOSIS: Faulty harness connector

TROUBLE SYMPTOM: Subaru Select Monitor communication failure

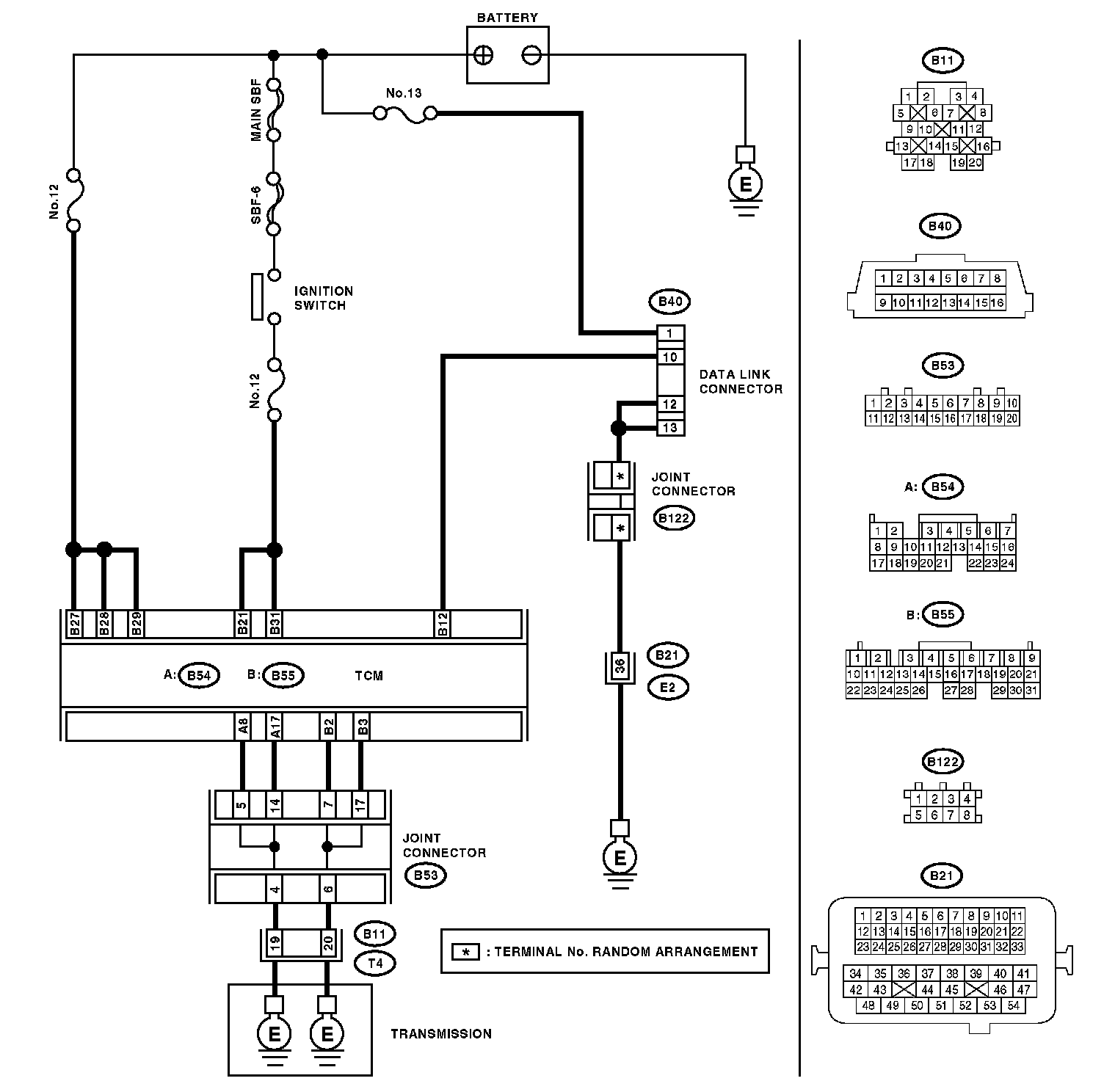

WIRING DIAGRAM
