Communication for Initializing Impossible

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

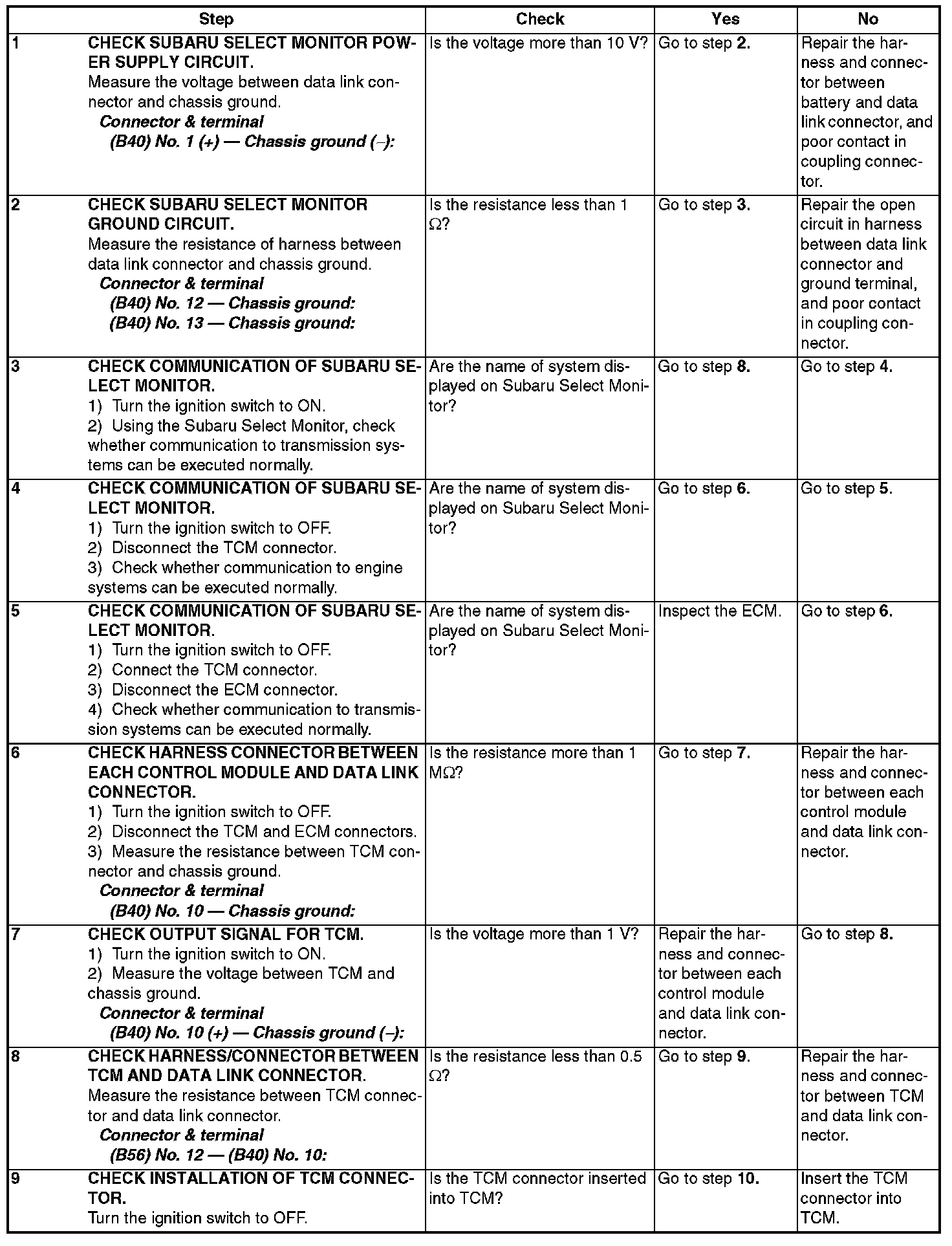

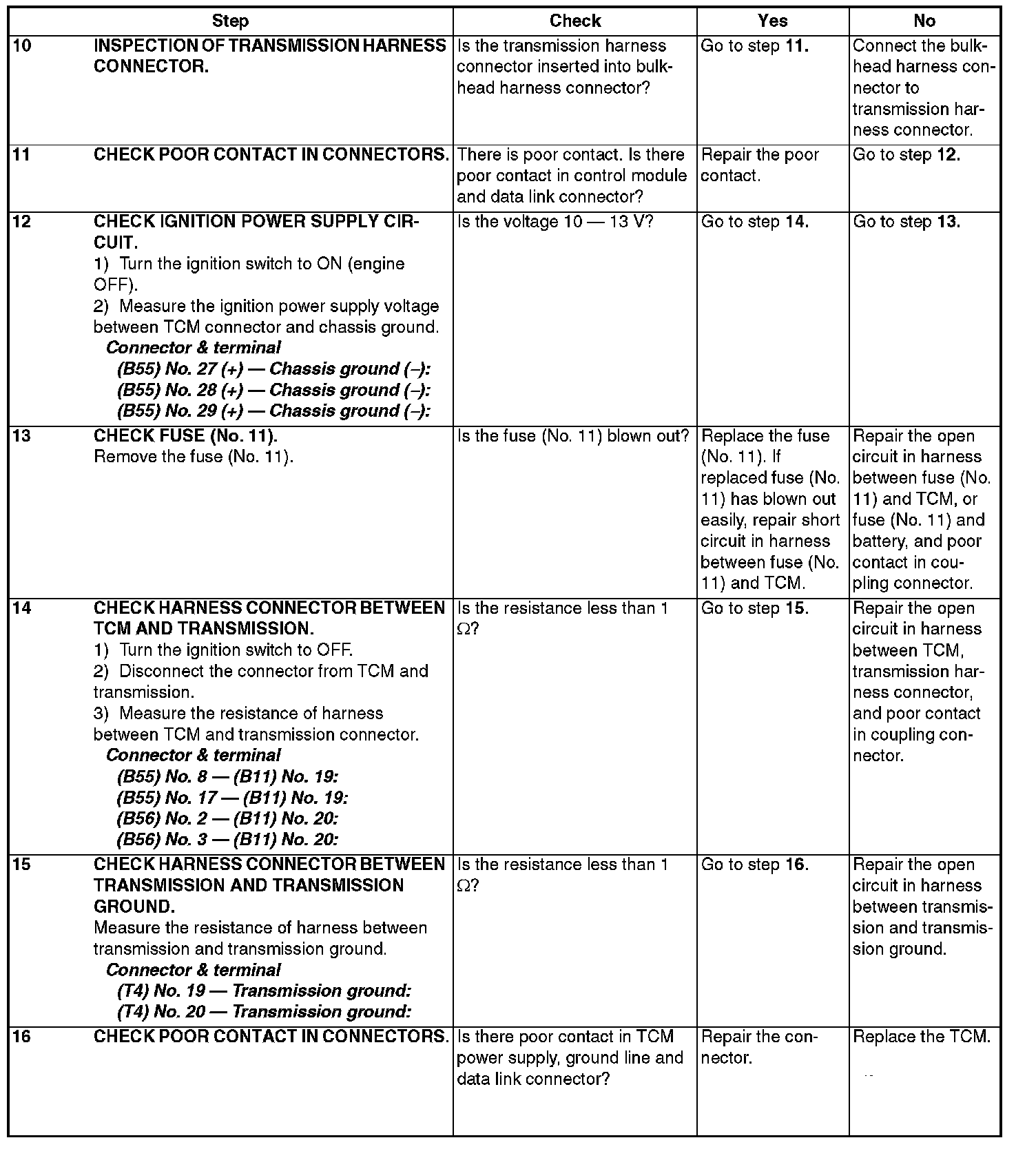

DIAGNOSIS: Faulty harness connector

TROUBLE SYMPTOM: Subaru Select Monitor communication failure

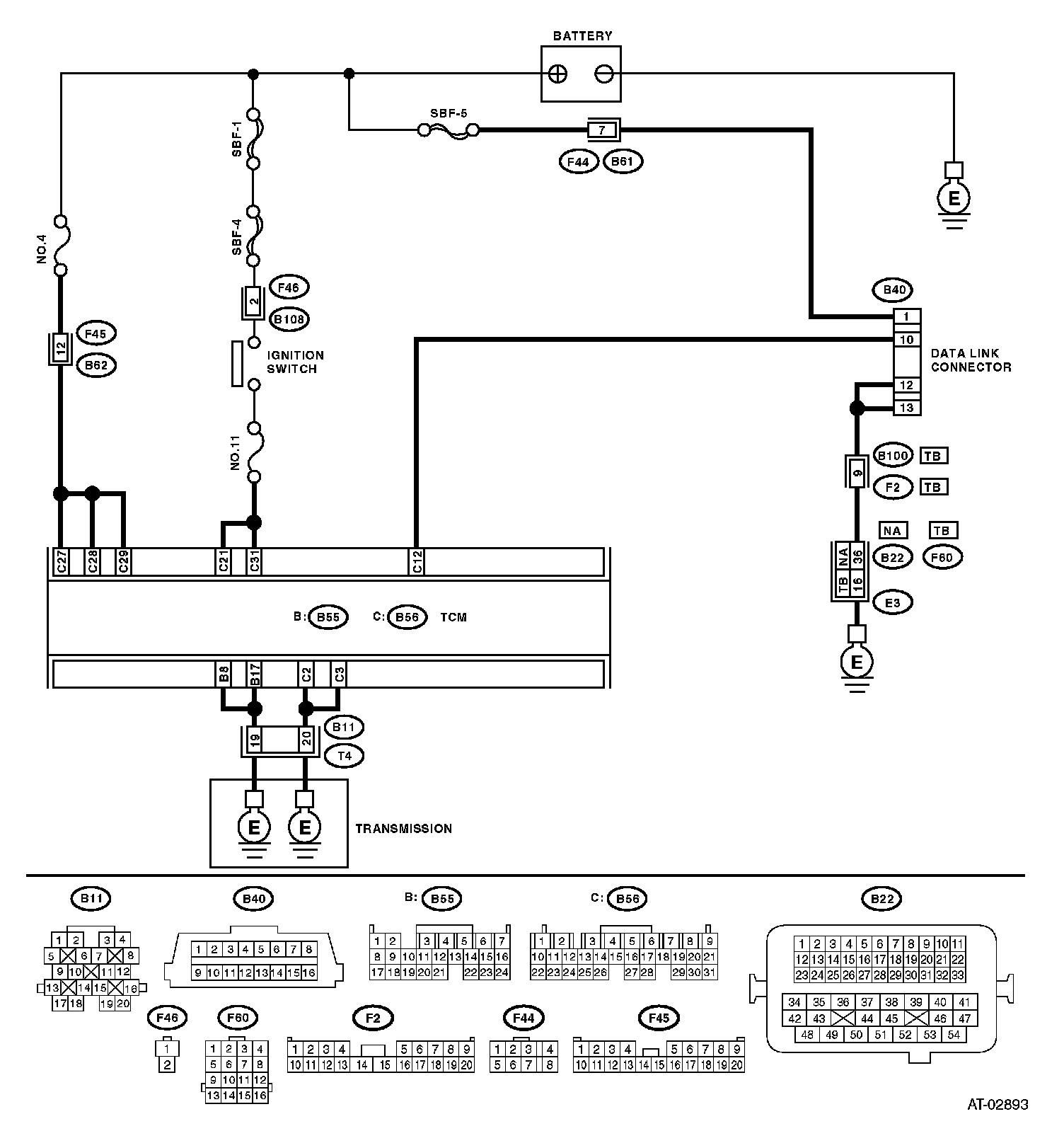

WIRING DIAGRAM
