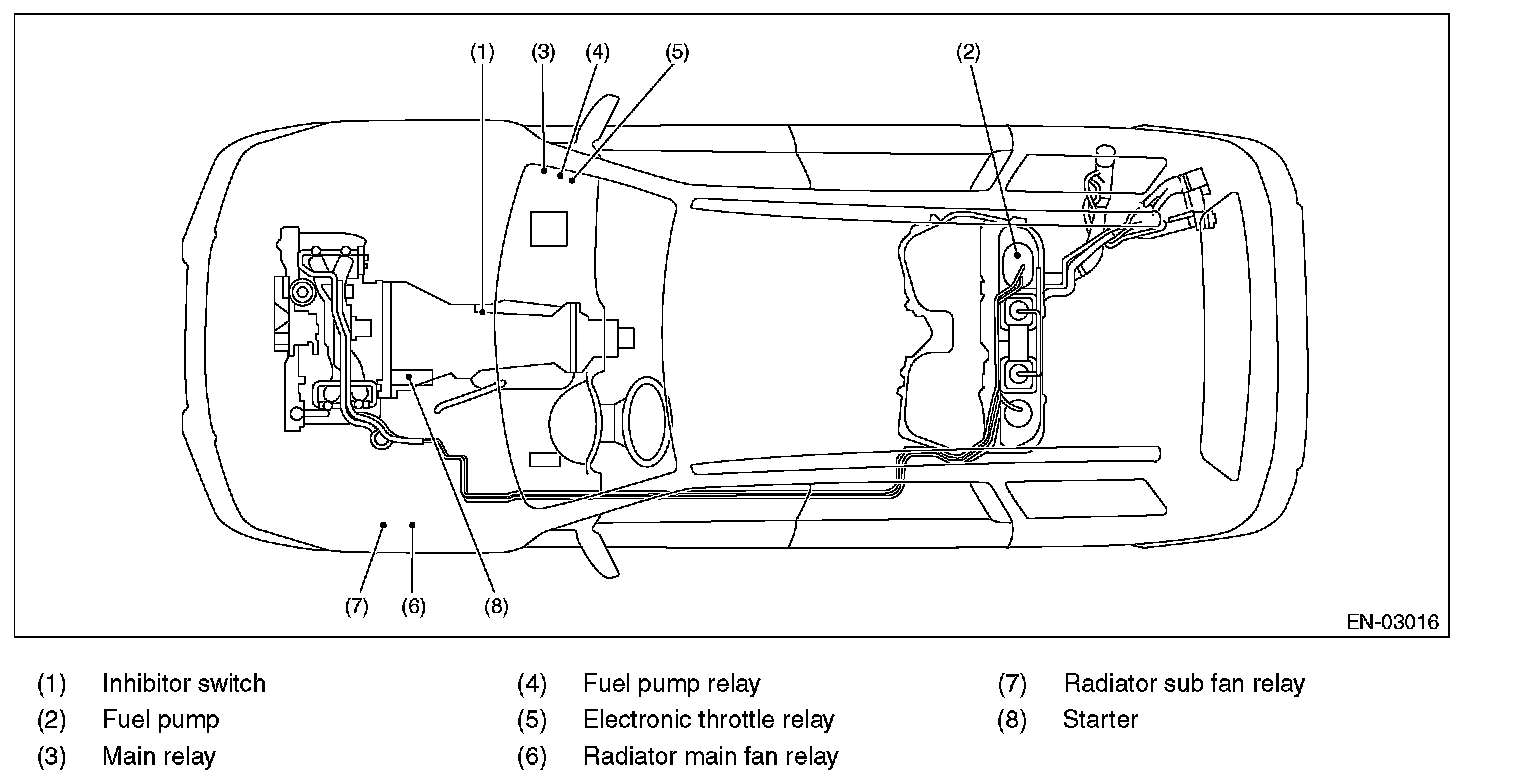

Computers and Control Systems: Locations

ENGINE

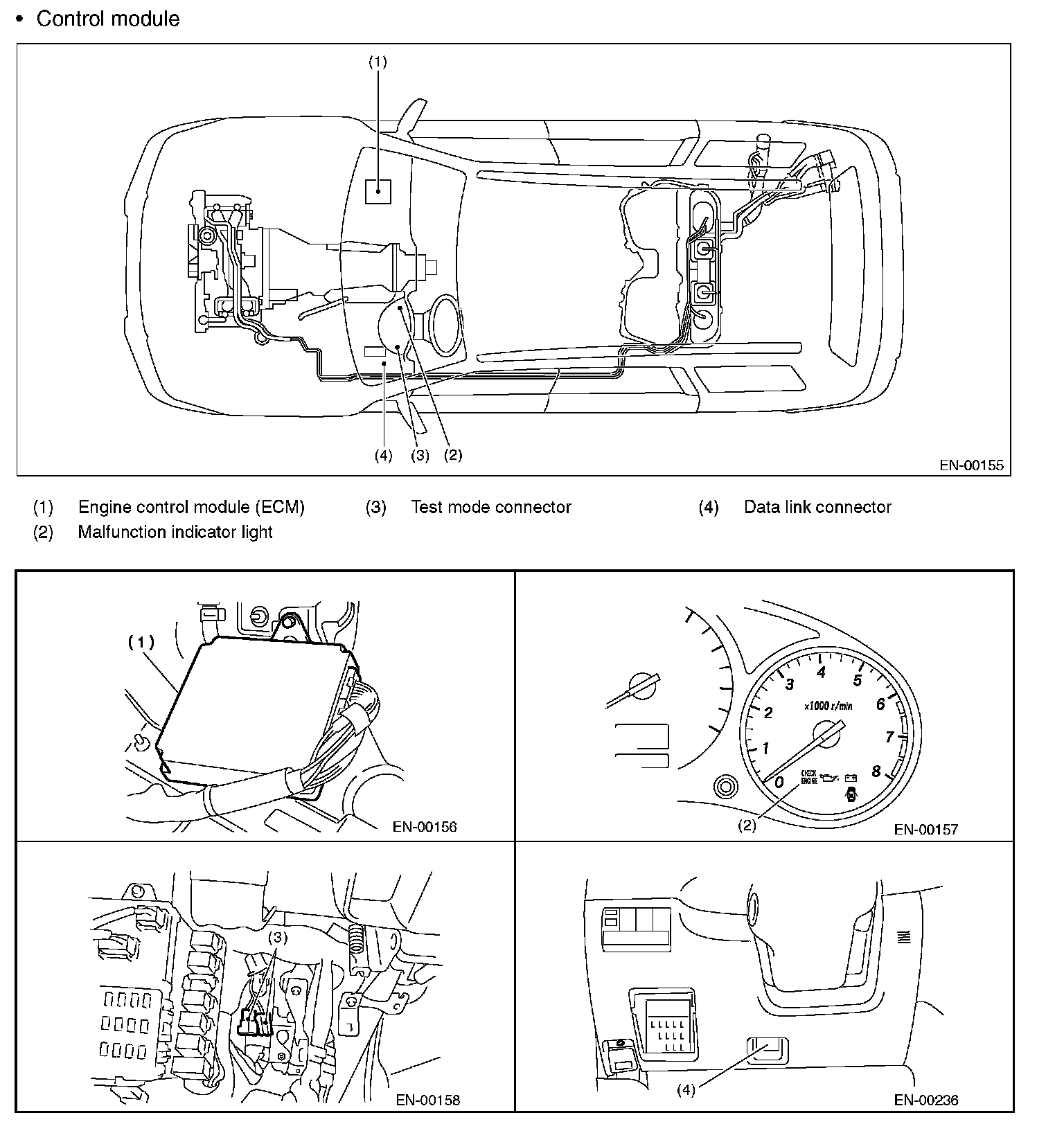

Control Module

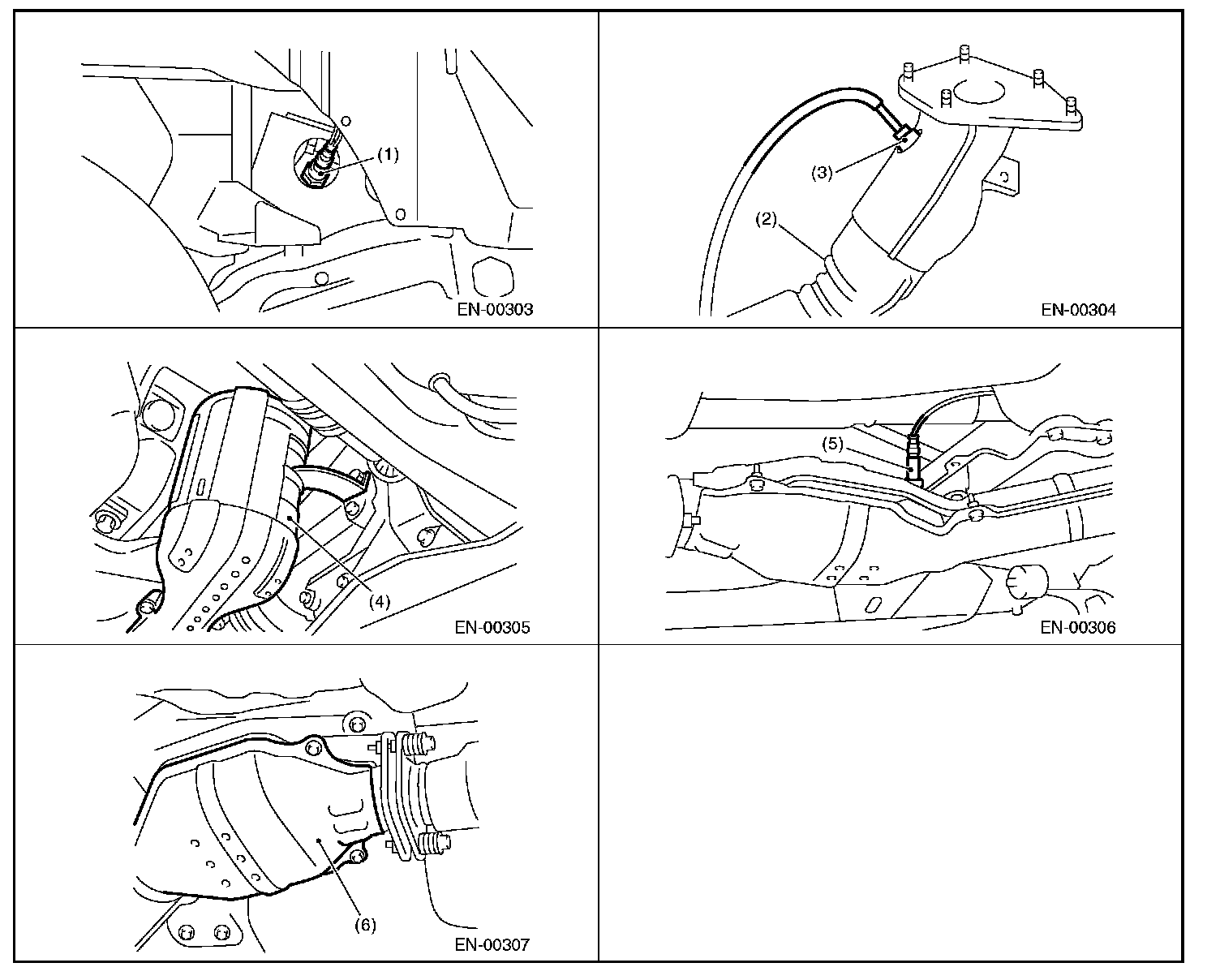

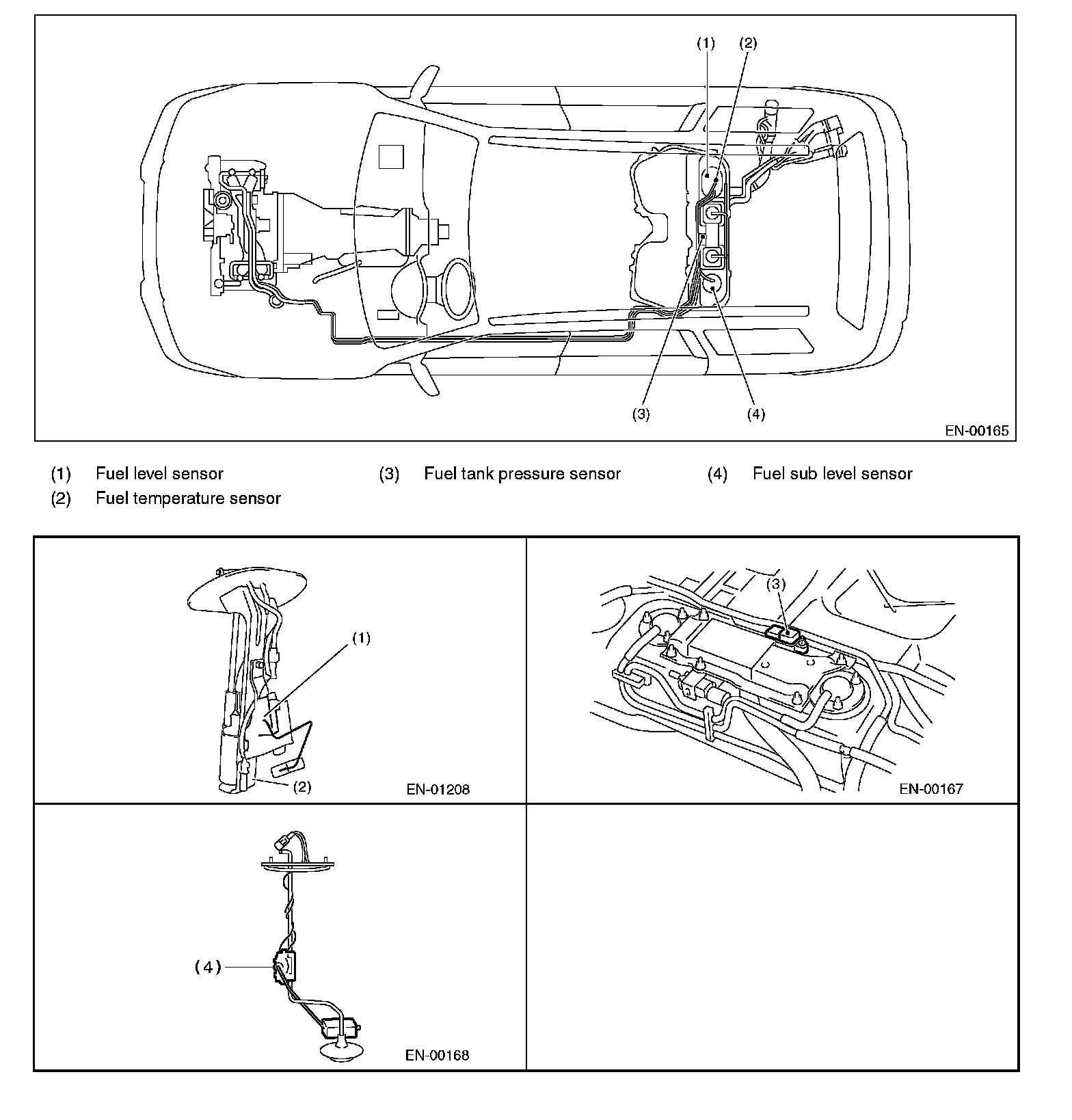

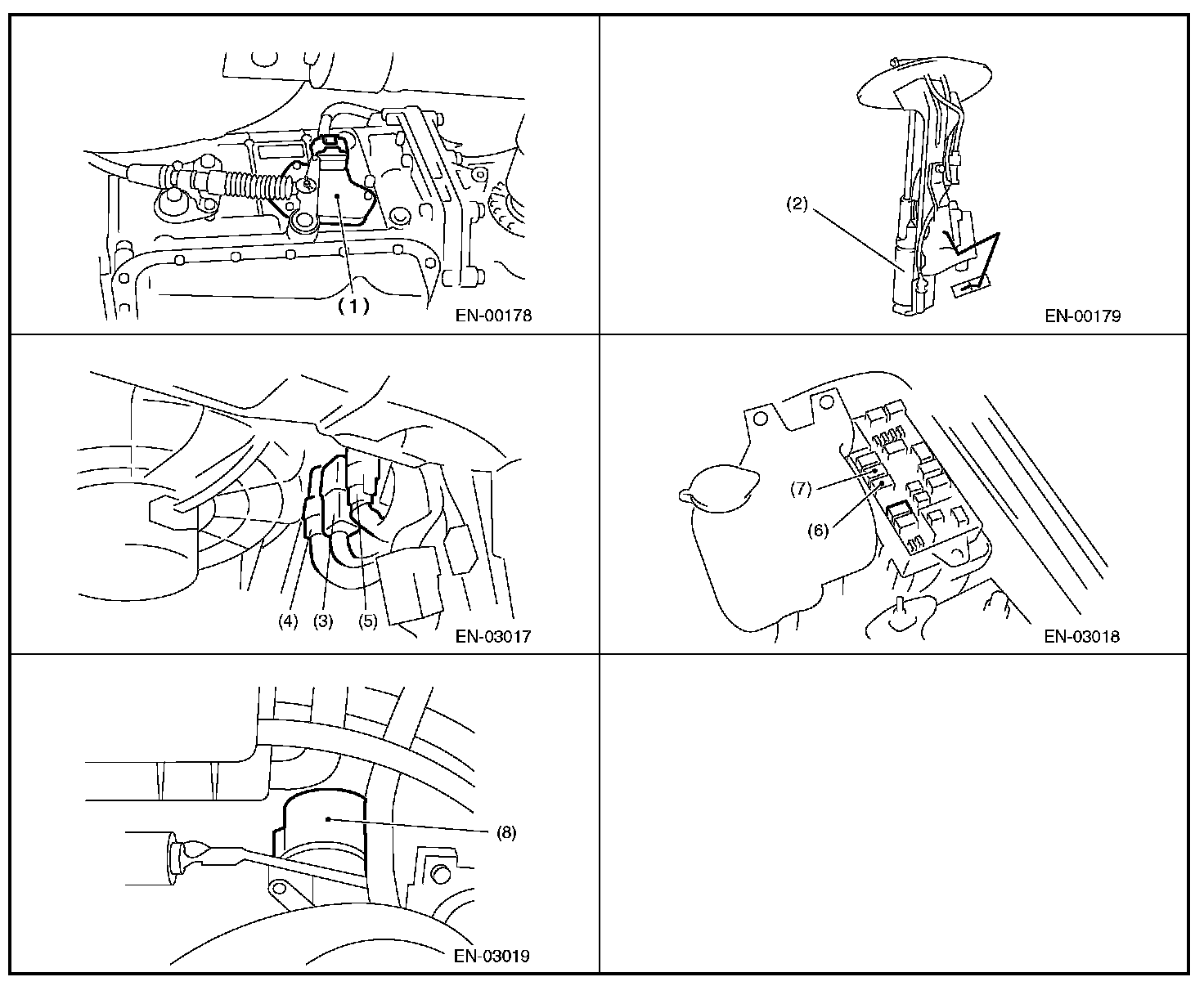

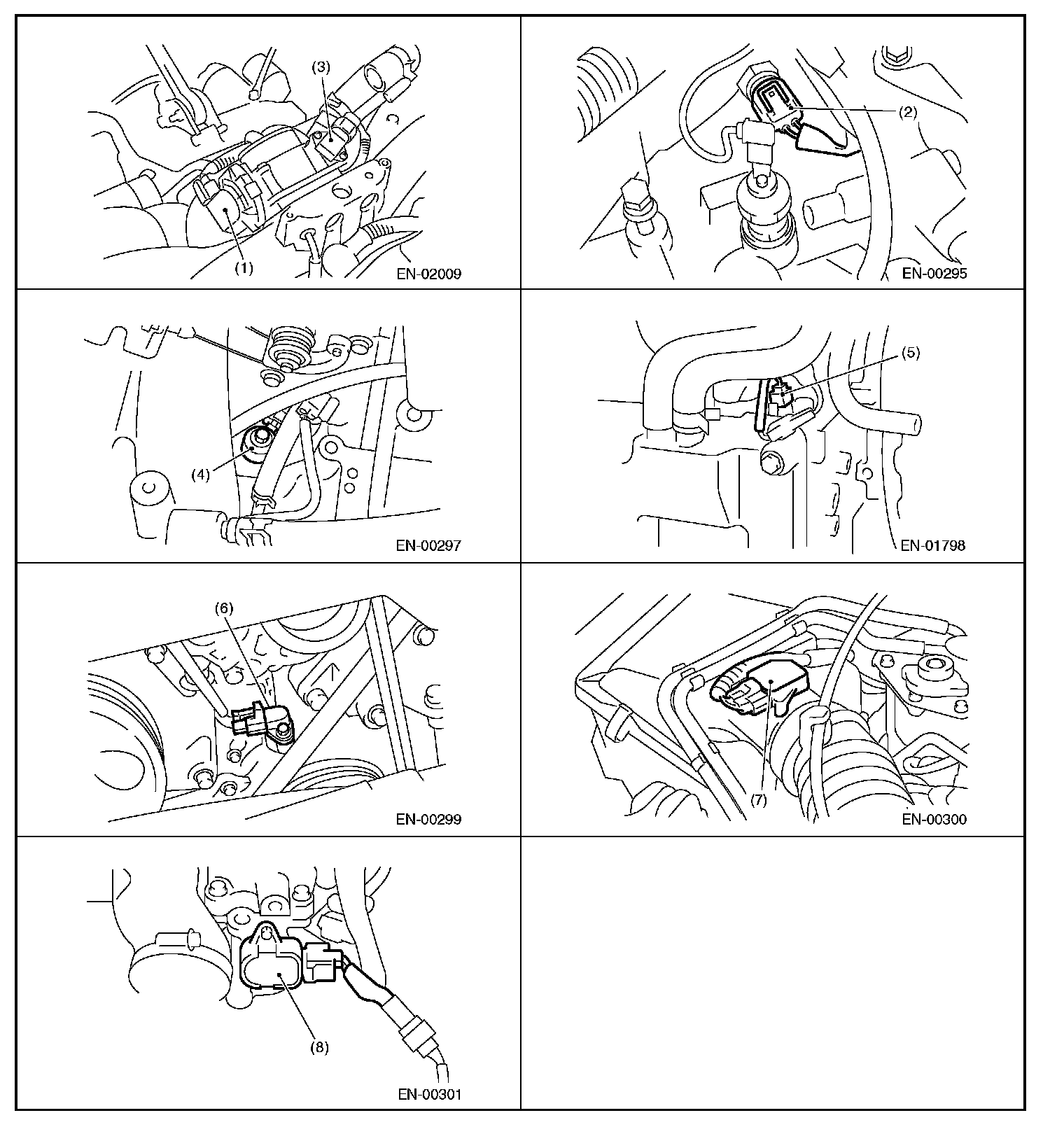

Sensor

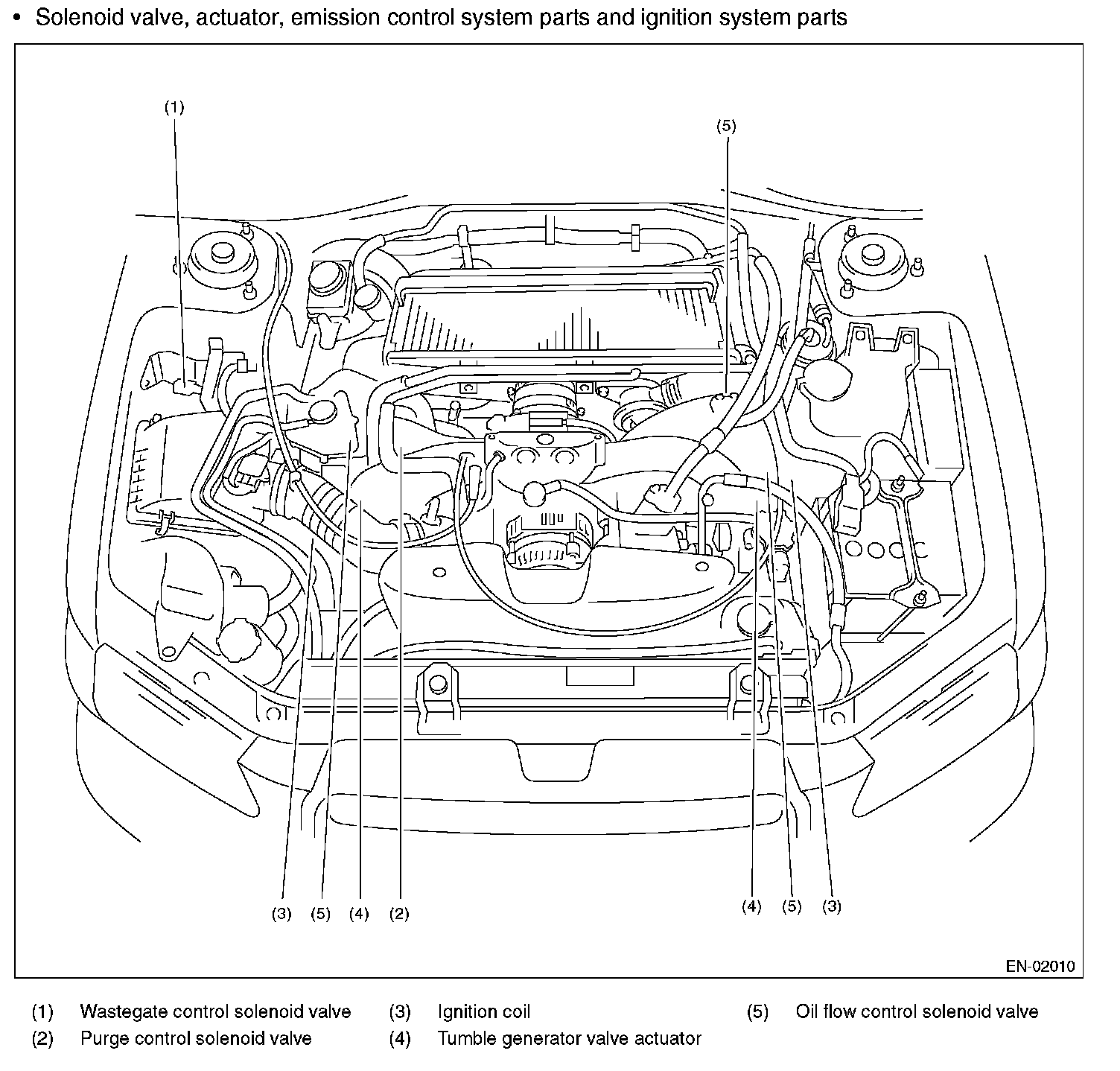

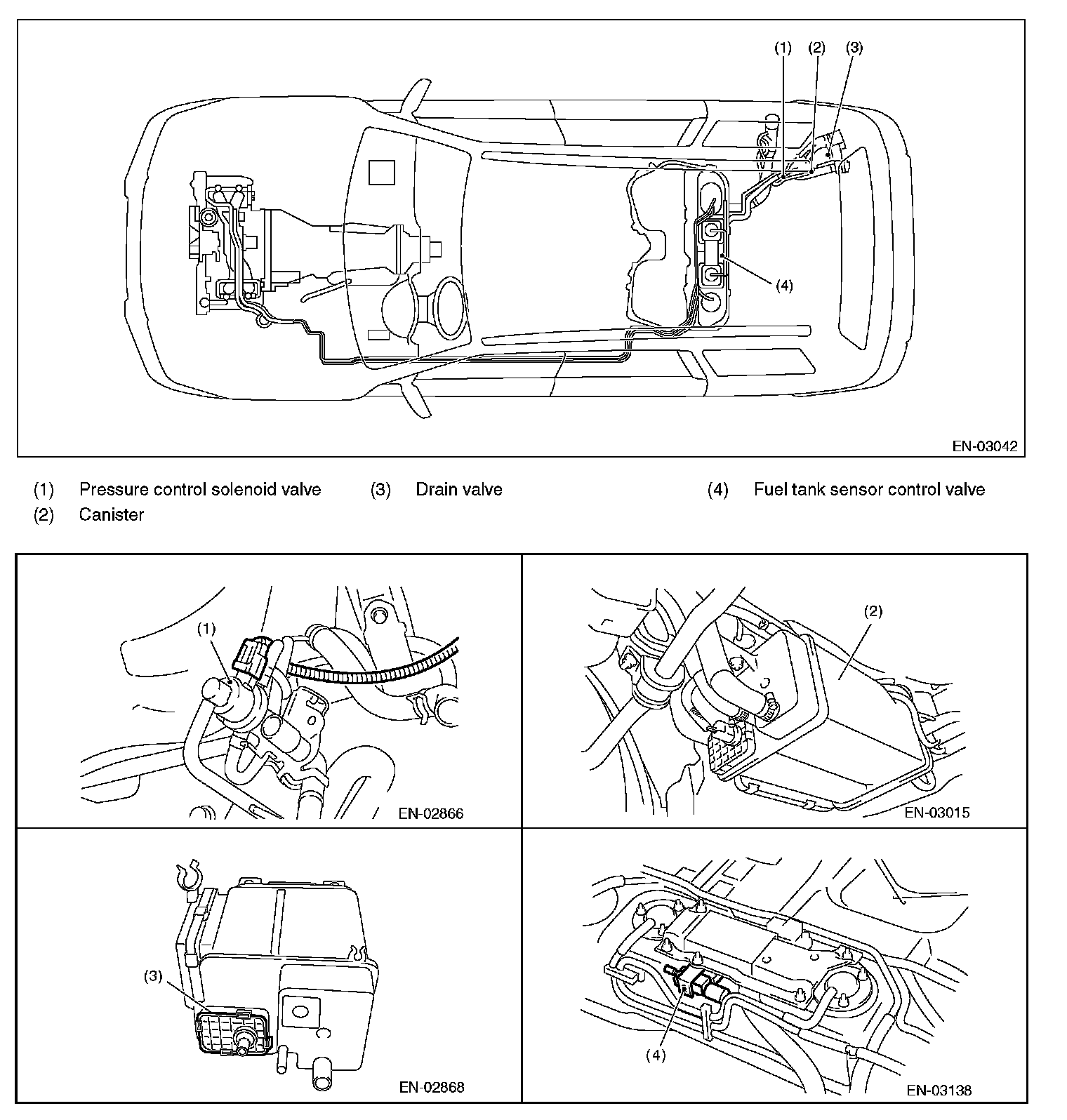

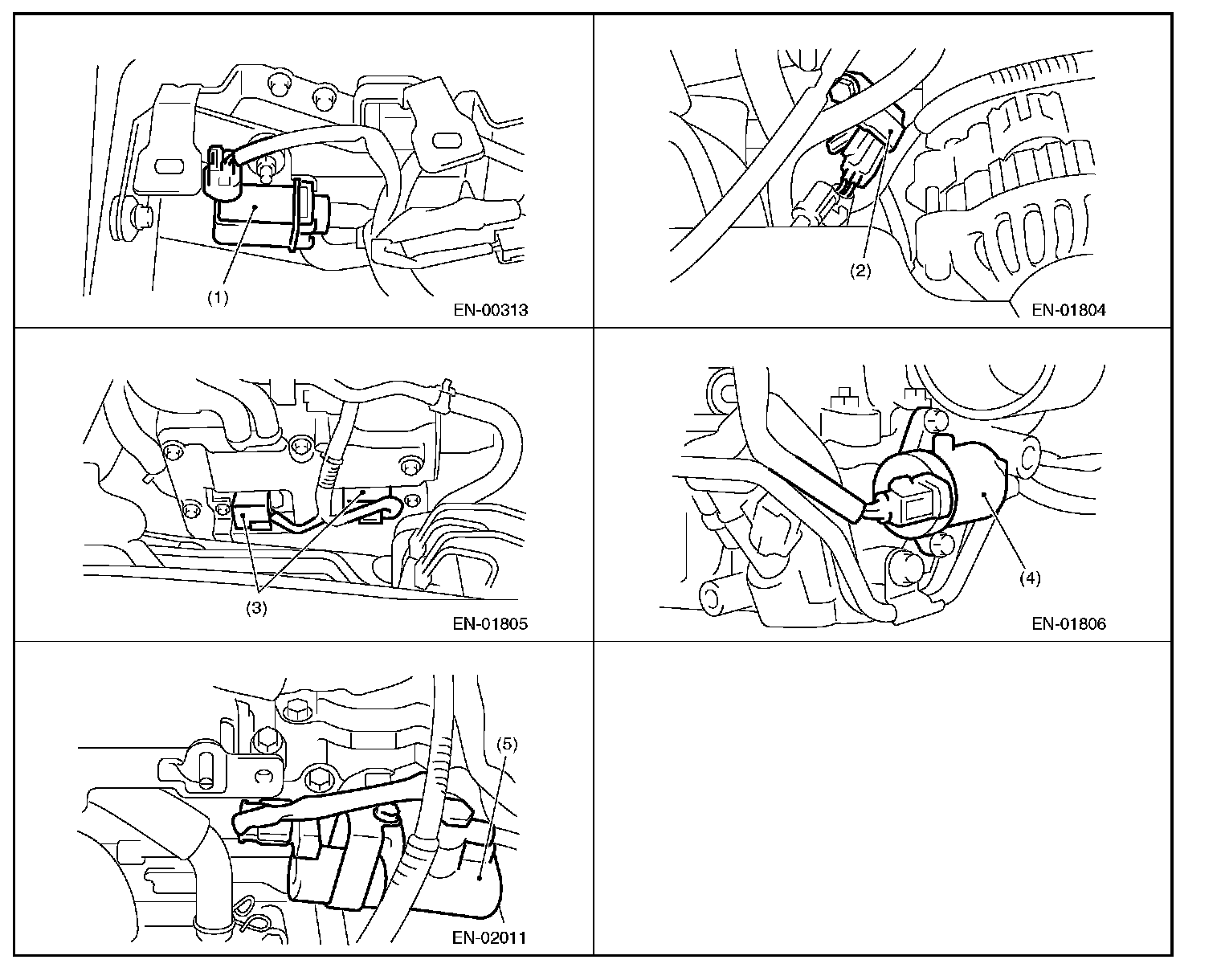

Solenoid valve, actuator, emission control system parts and ignition system parts
