Basic Diagnostic Procedure

Basic Diagnostic Procedure

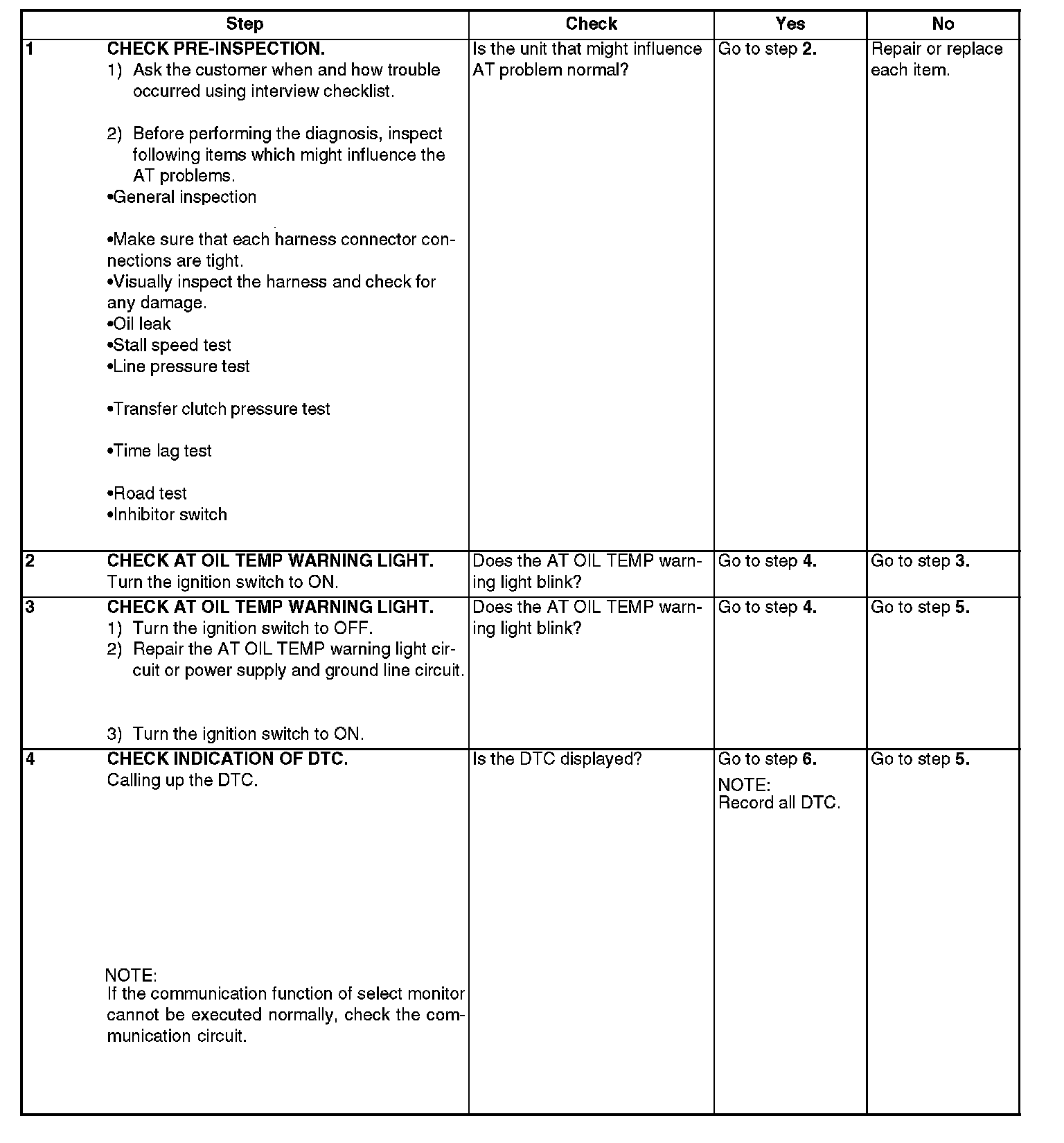

Steps 1 - 4:

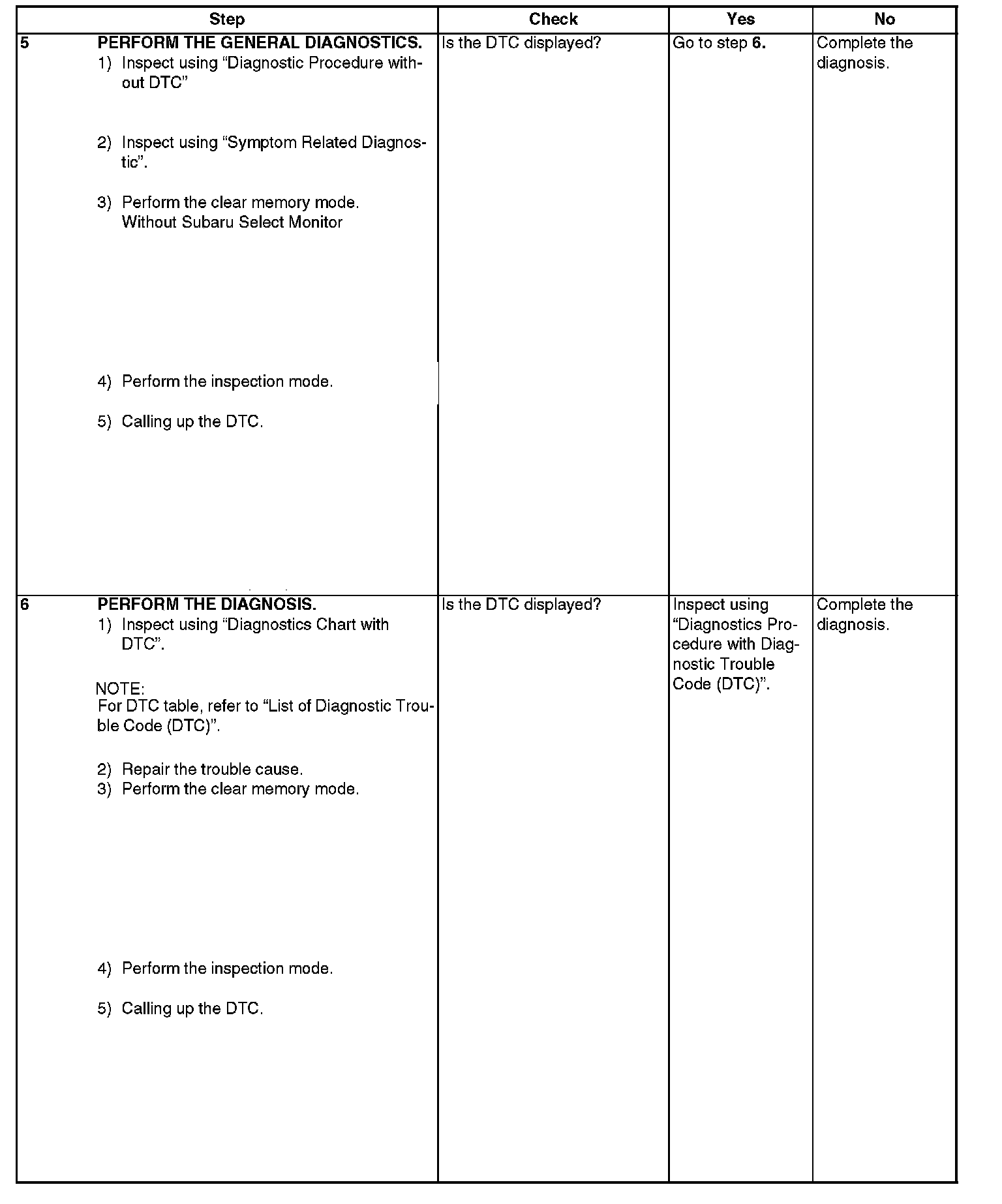

Steps 5:





PROCEDURE

NOTE: This is specified for H4SO model.
