Subaru
>>
2005
>>
Baja F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
R1-R195
R1-R195
Rear Wiring Harness

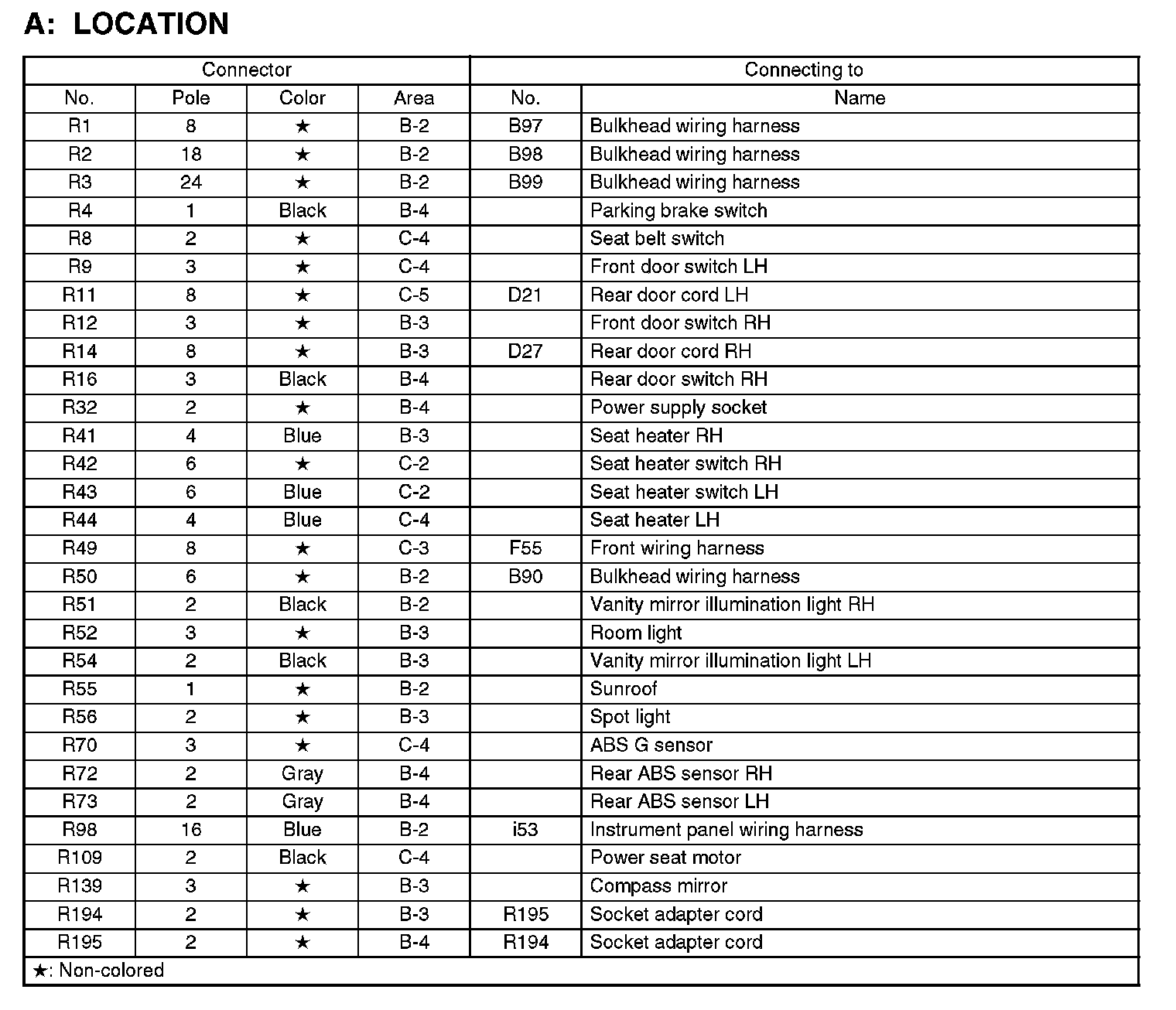

R1-R195:

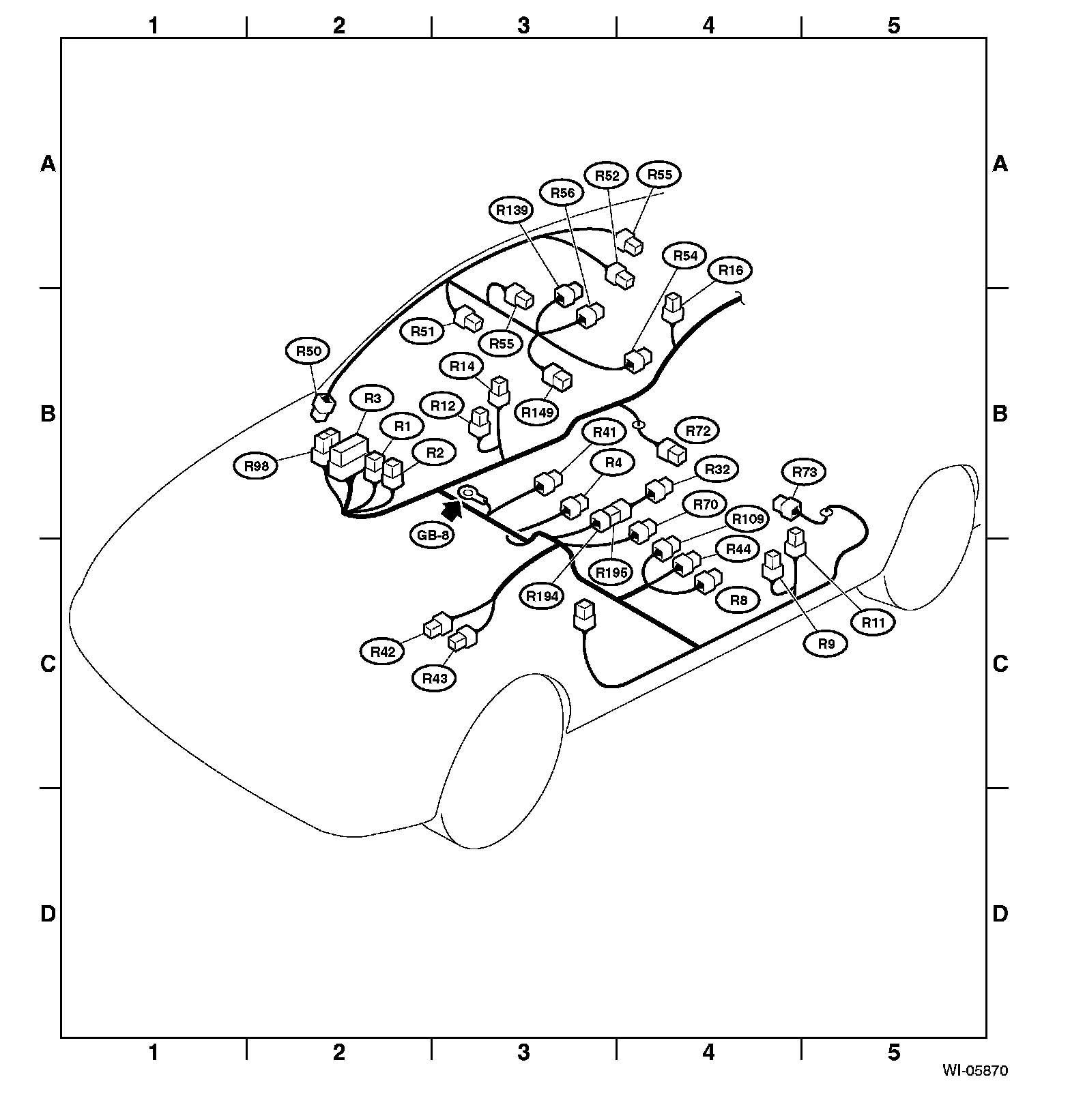

Area View:
