Home >> Subaru >> 2005 >> Baja F4-2.5L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

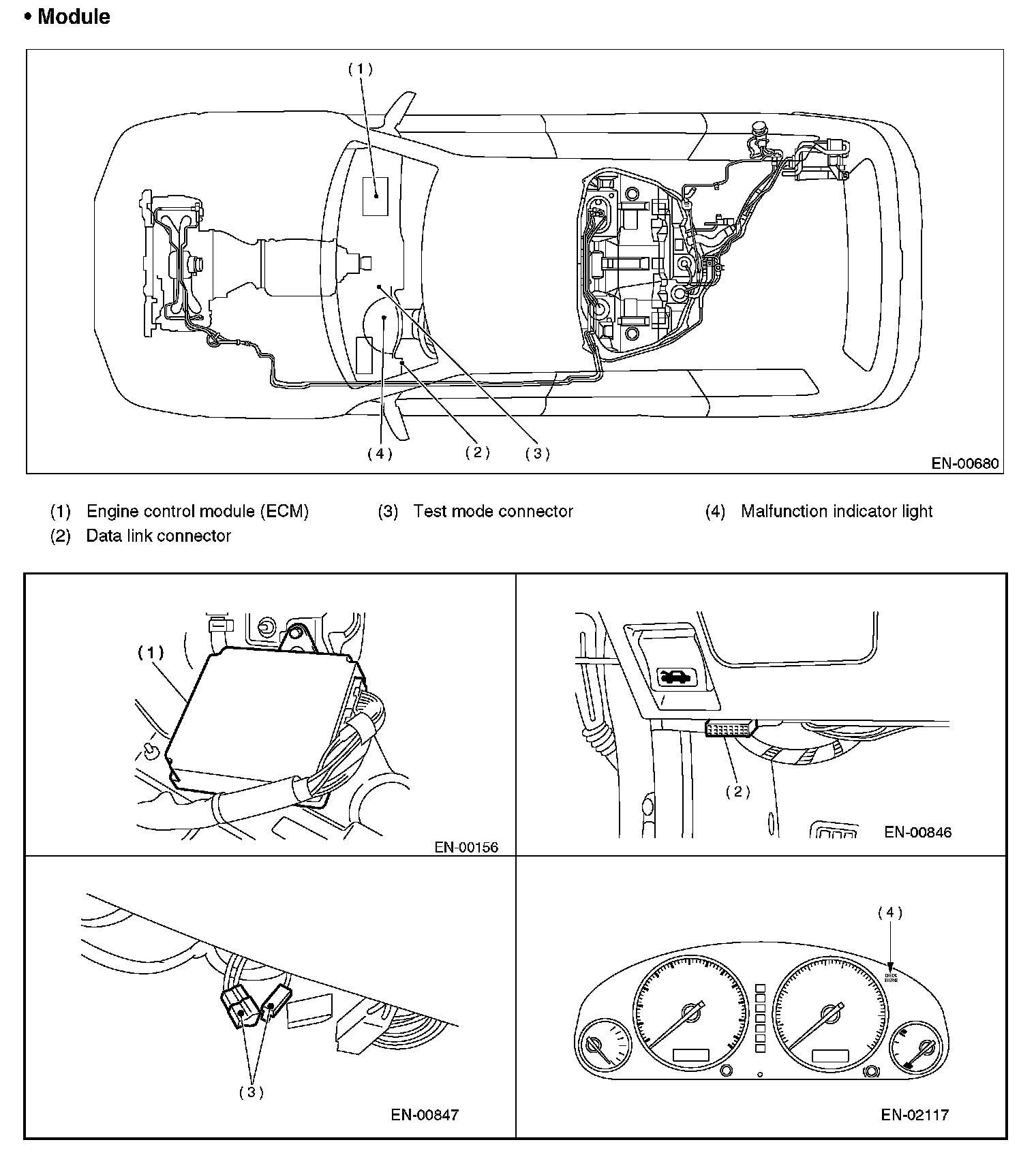

Module

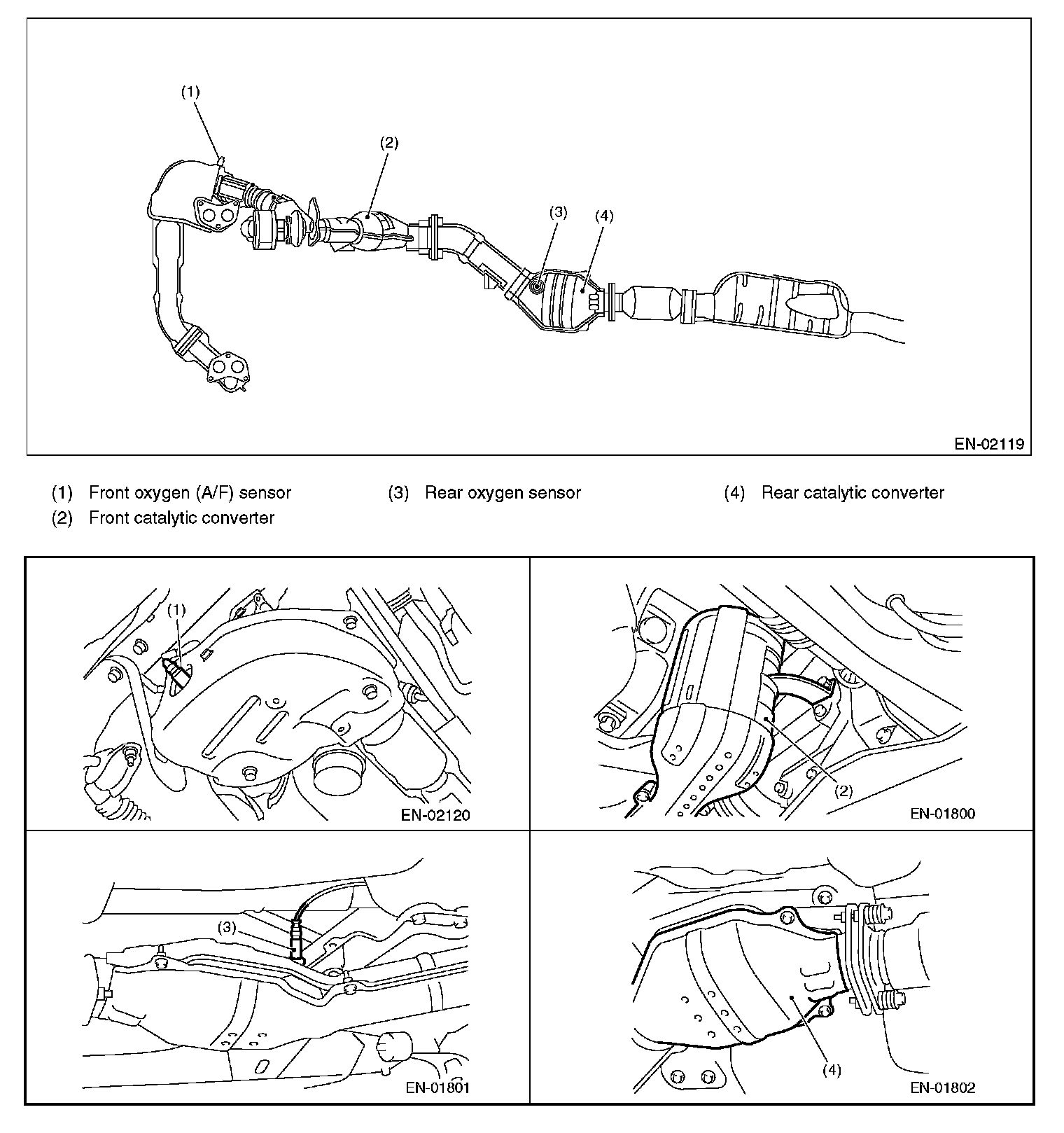

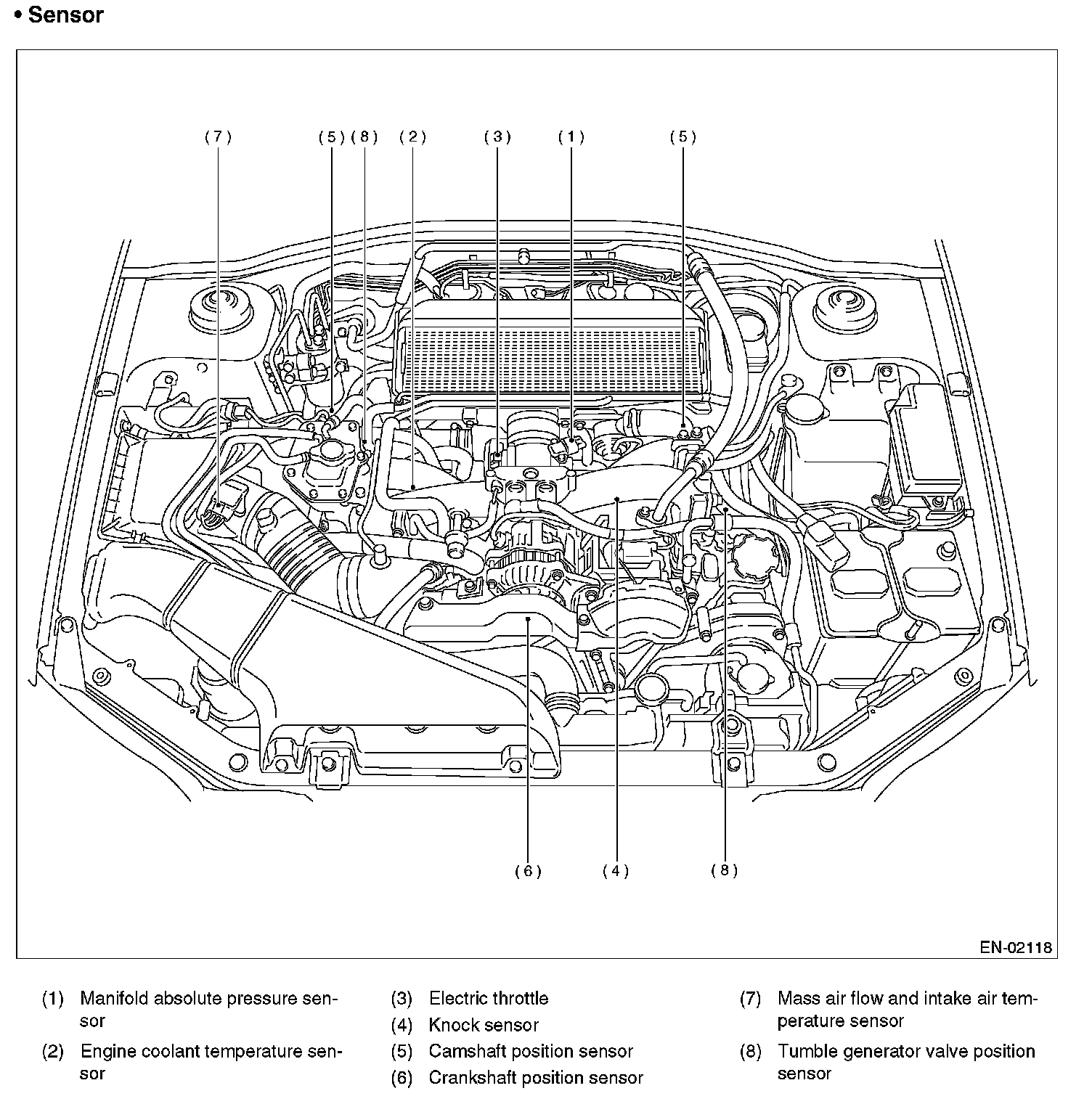

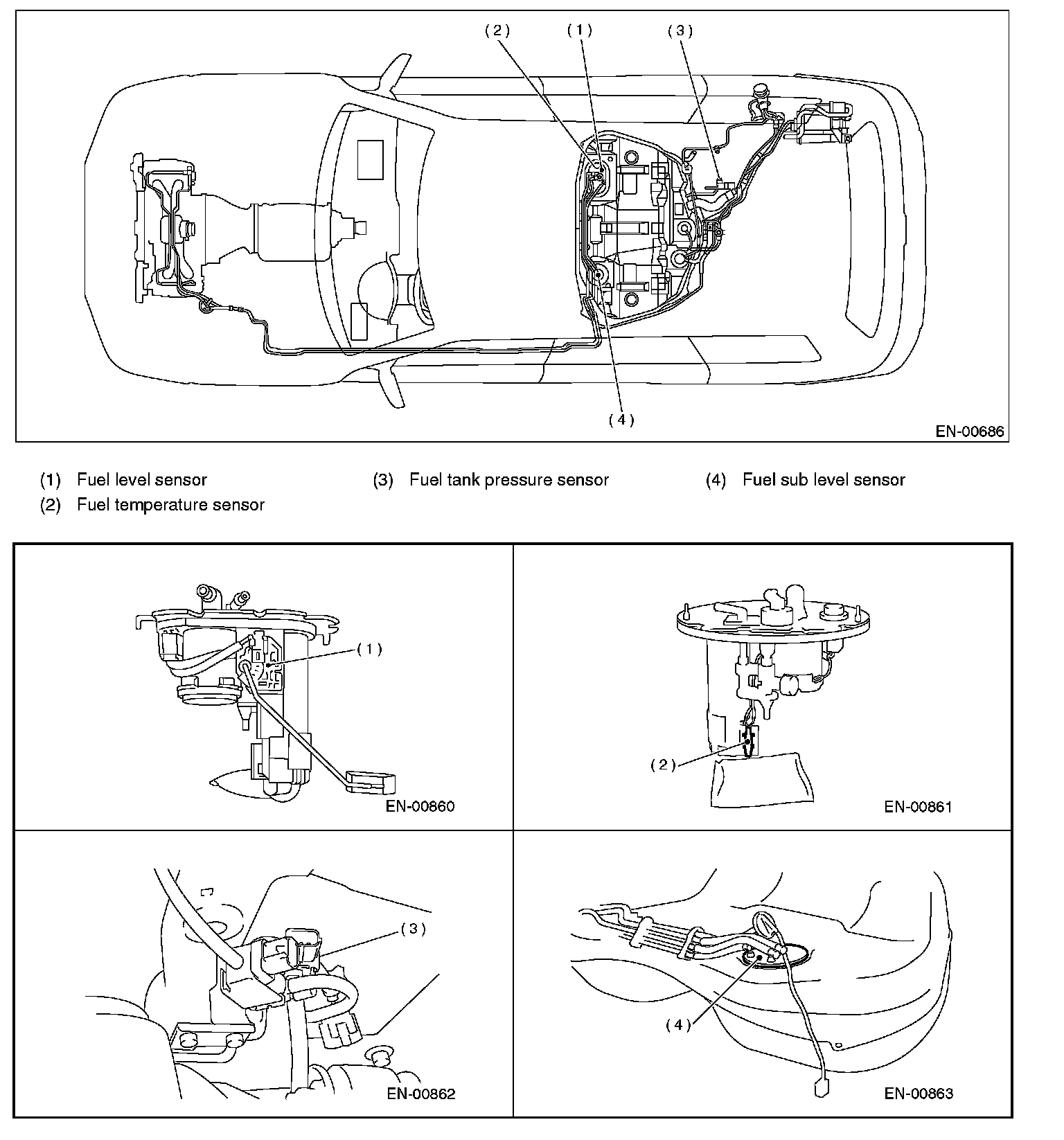

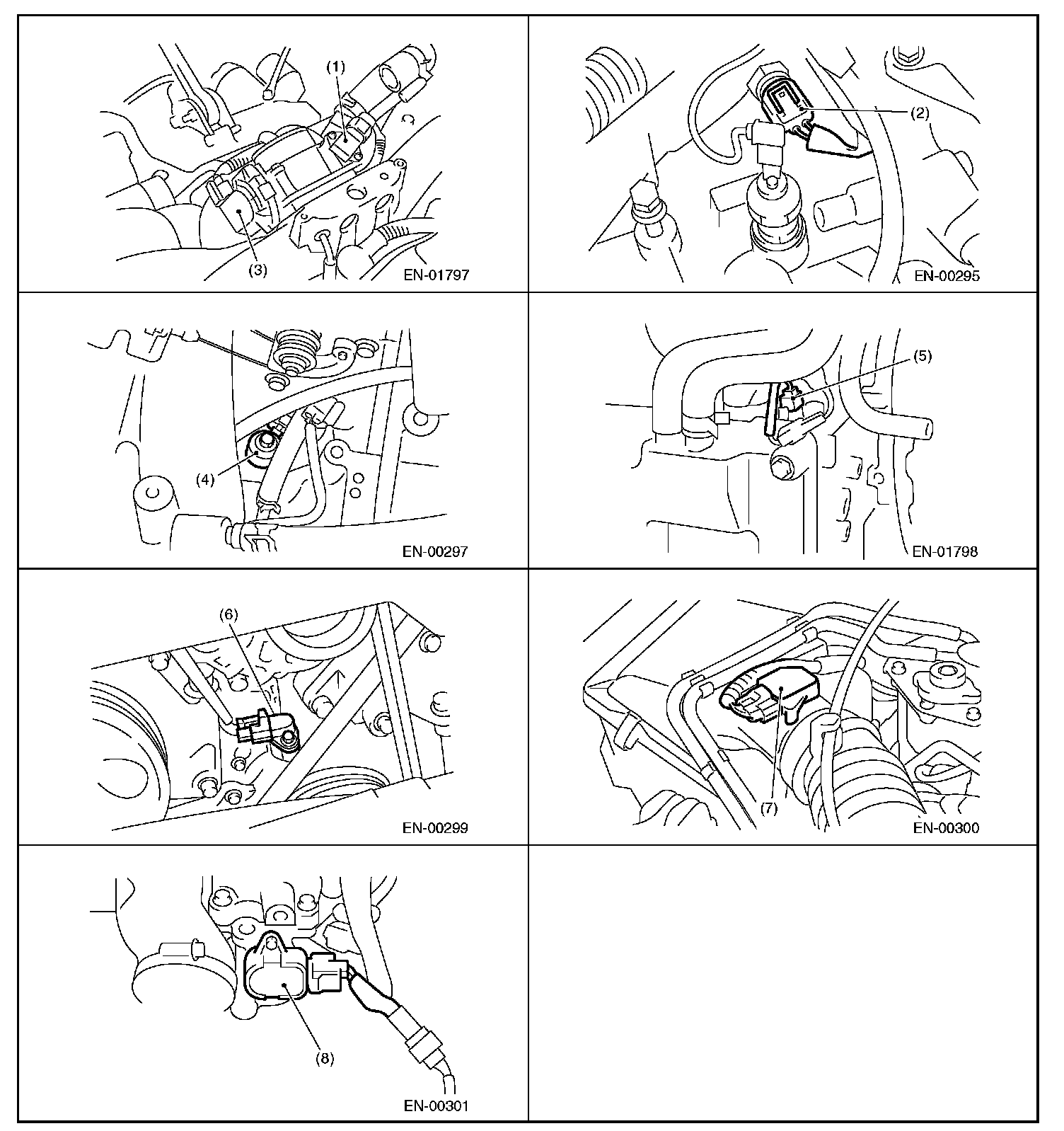

Sensor

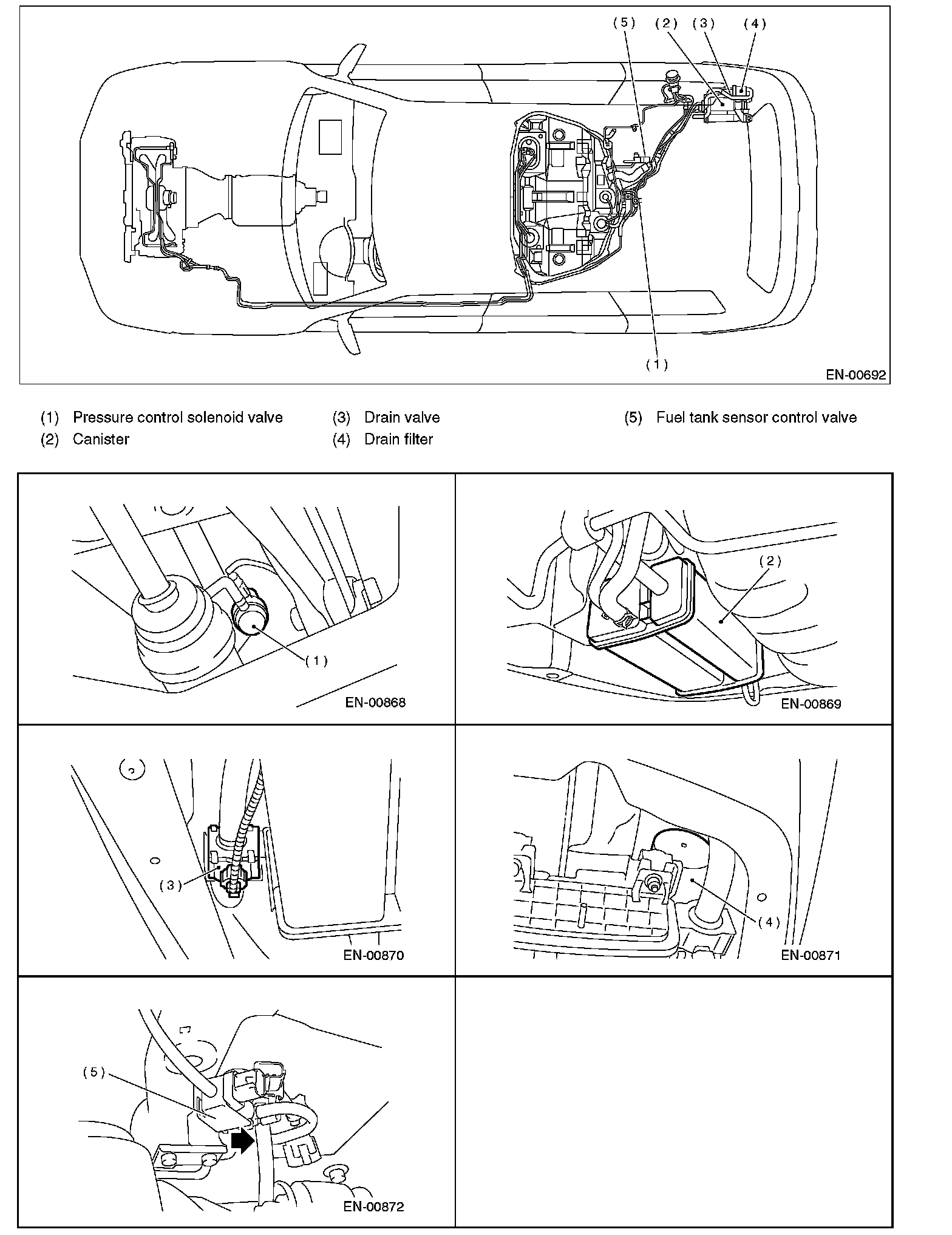

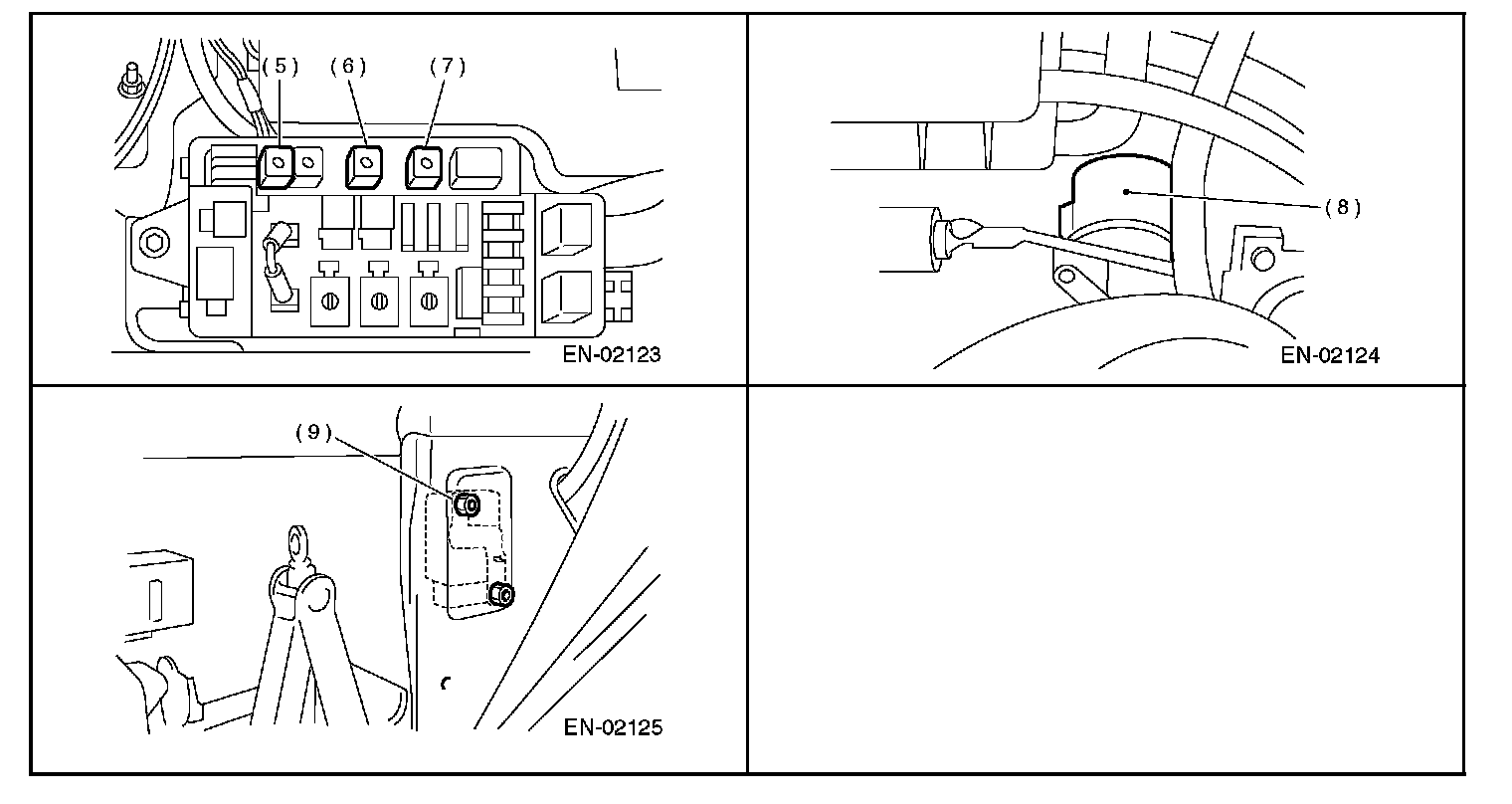

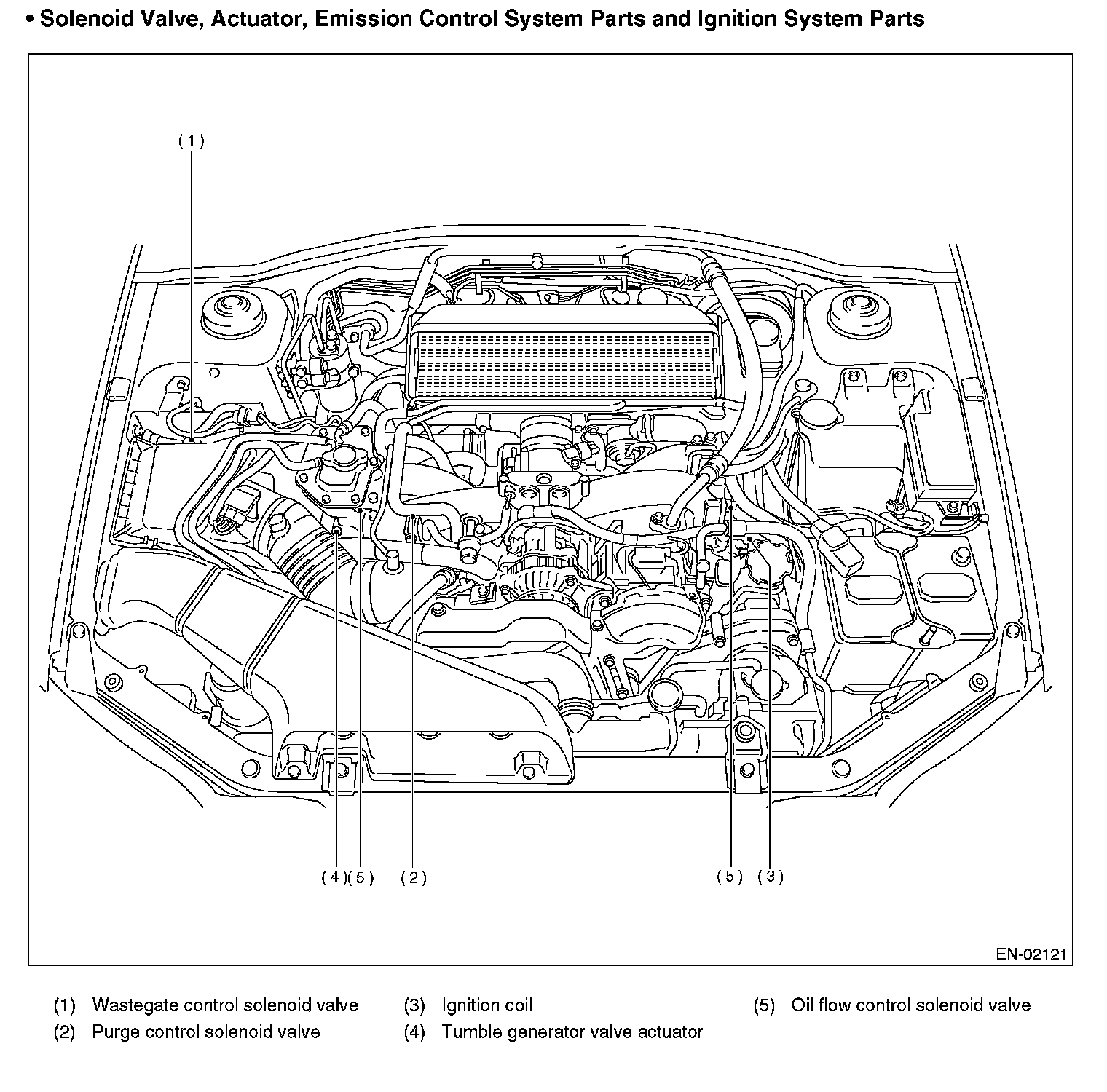

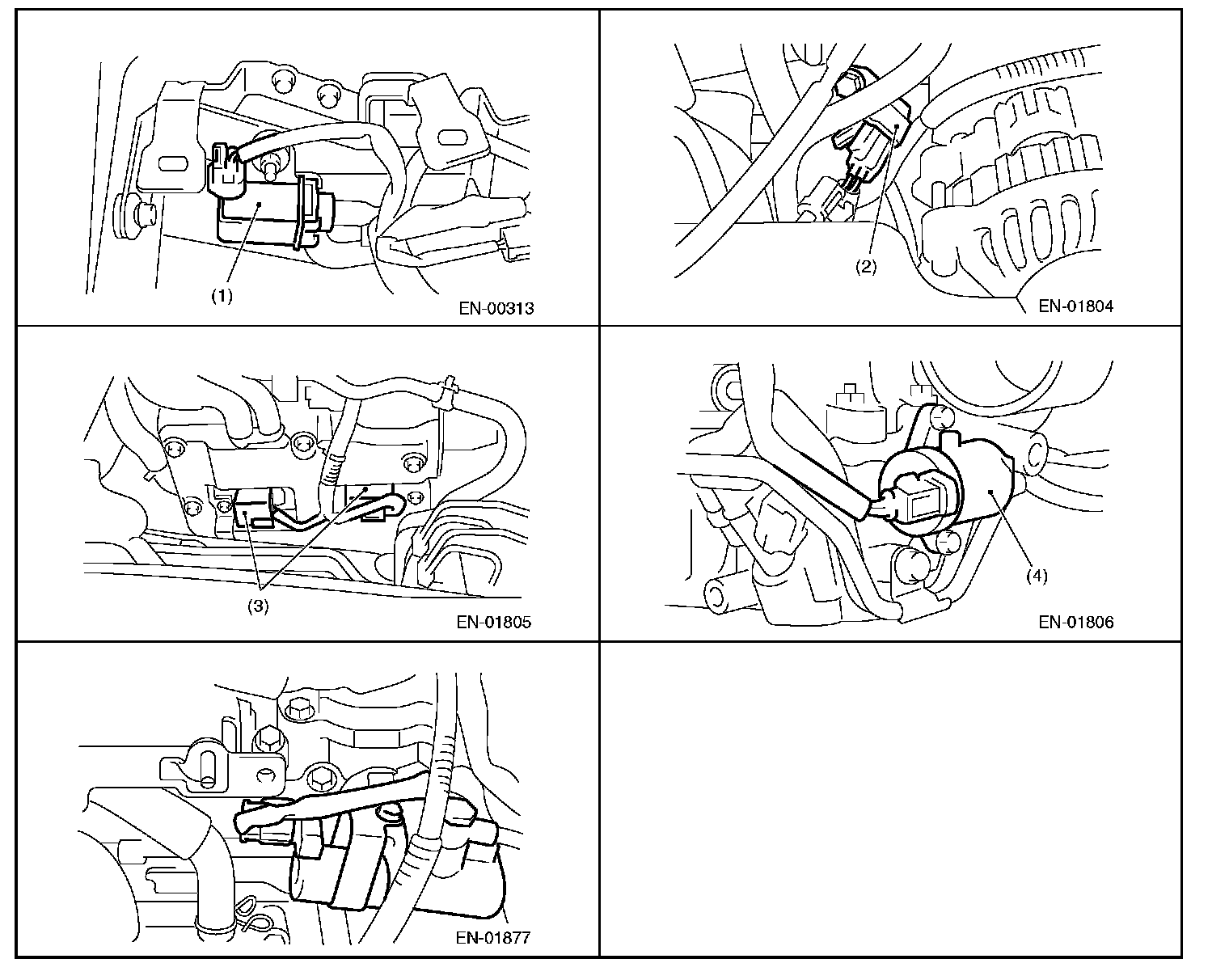

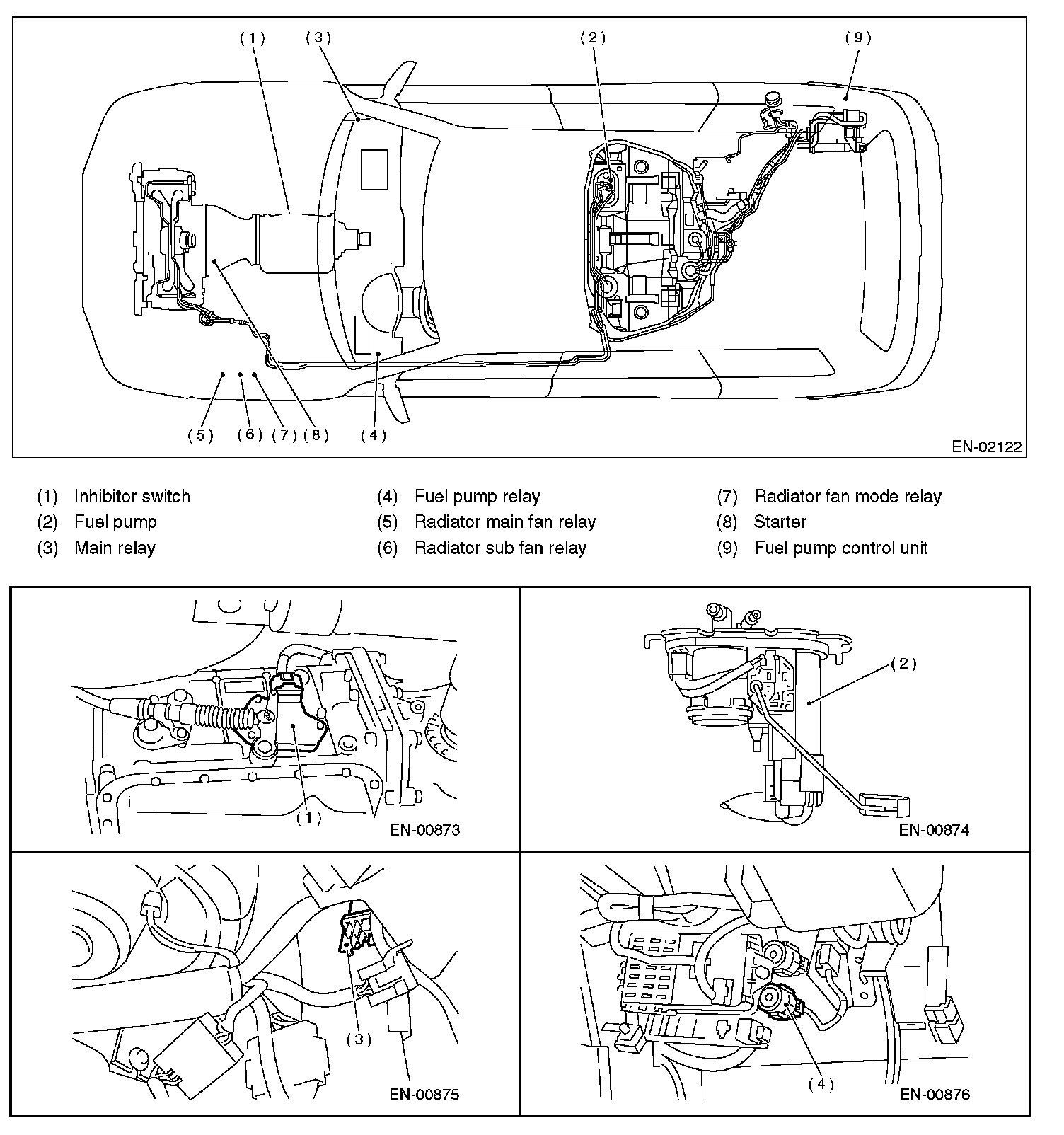

Solenoid Valve, Actuator, Emission Control System Parts and Ignition System Parts
