Starter Motor Circuit

STARTER MOTOR CIRCUIT

CAUTION: After repair or replacement of malfunctioning parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.

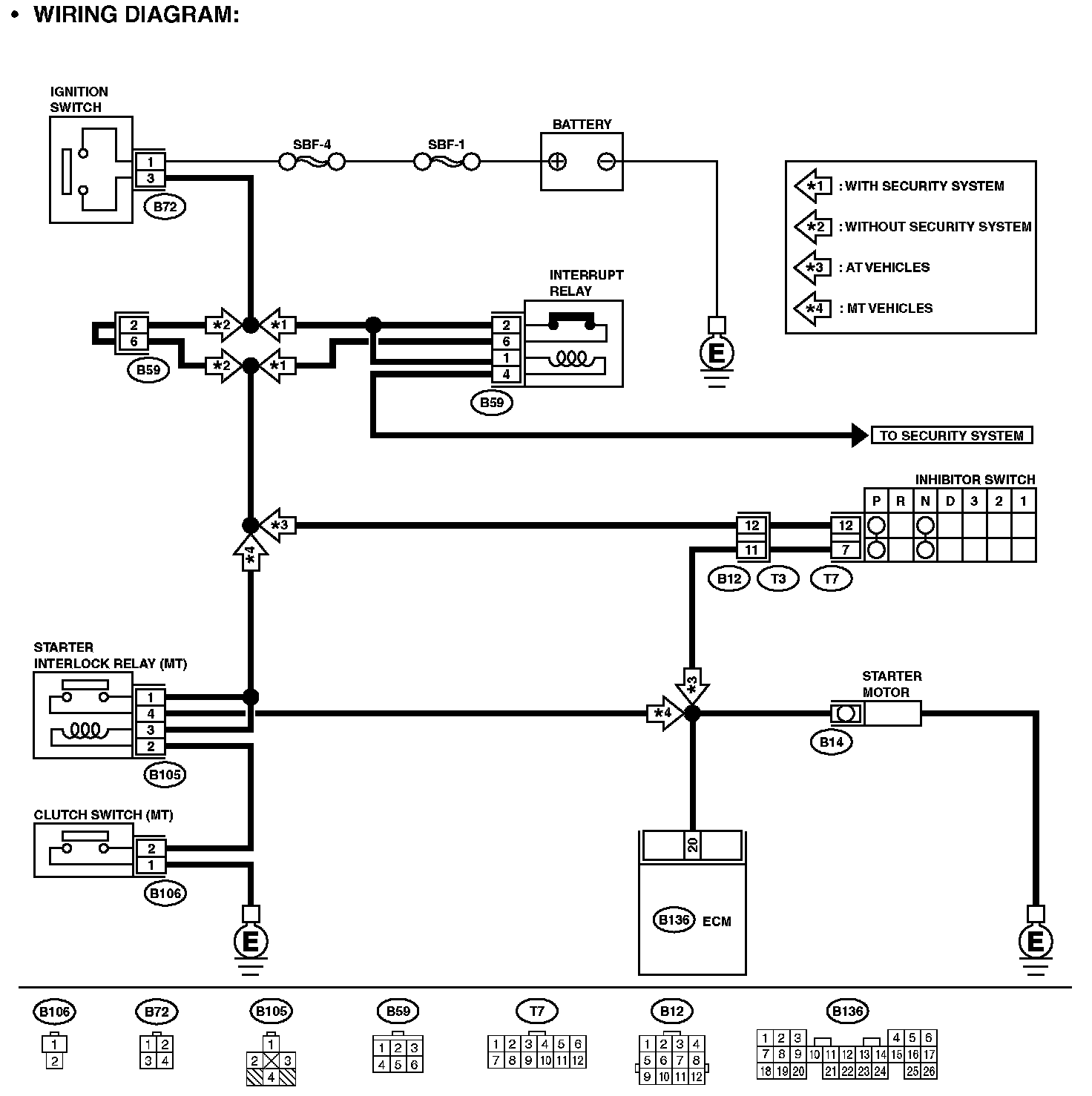

Wiring Diagram:

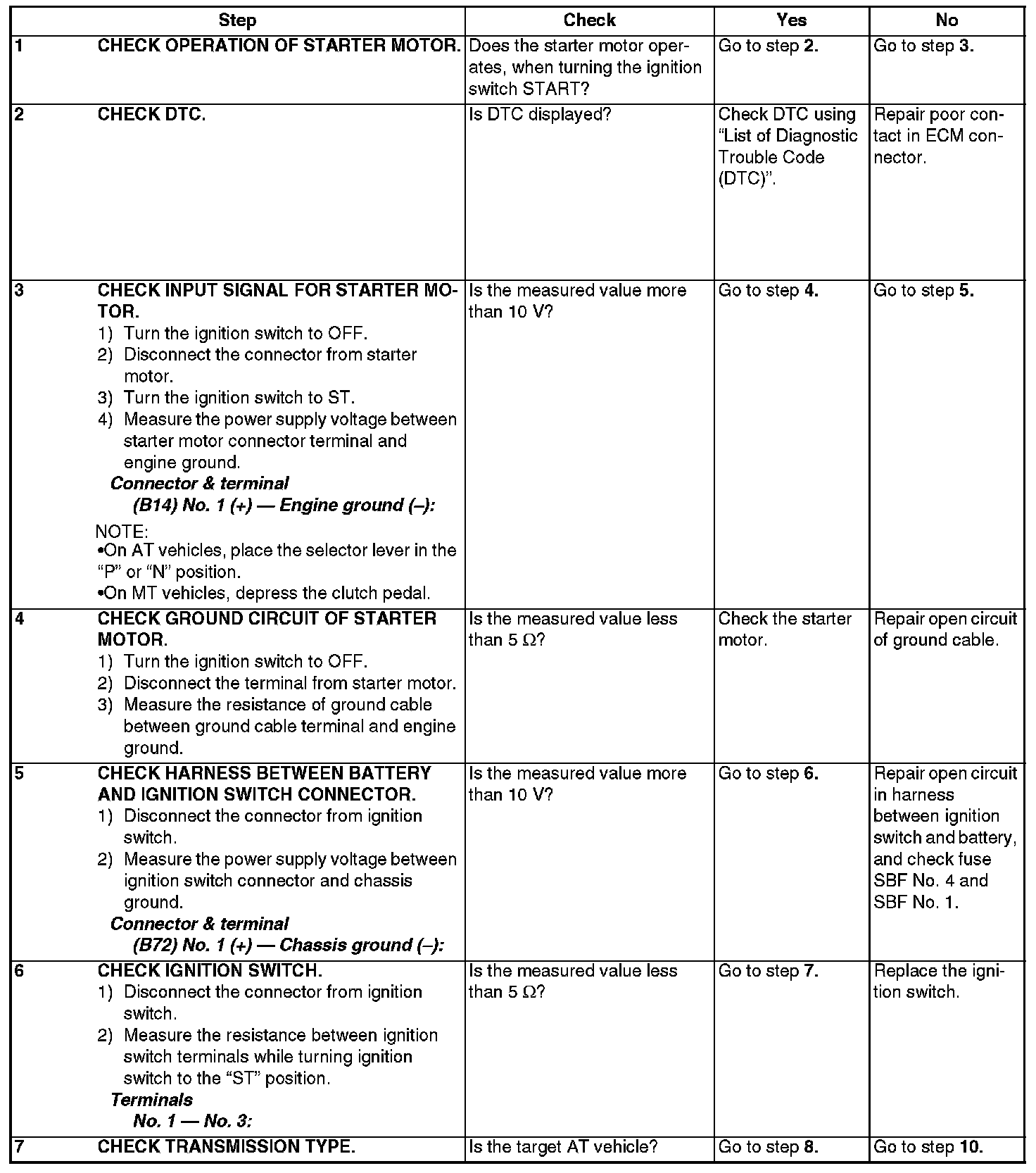

Step 1 - 7:

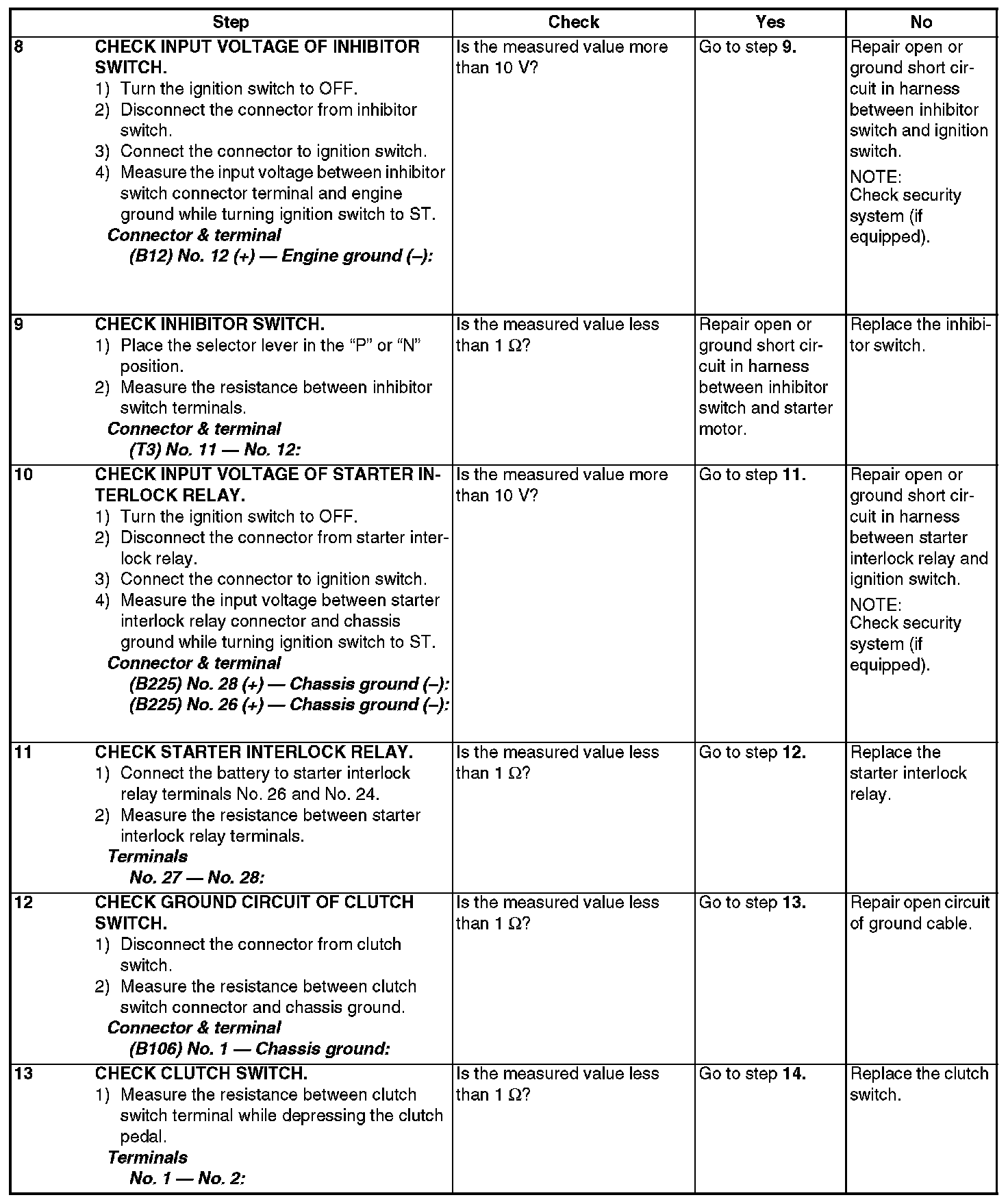

Step 8 - 13:

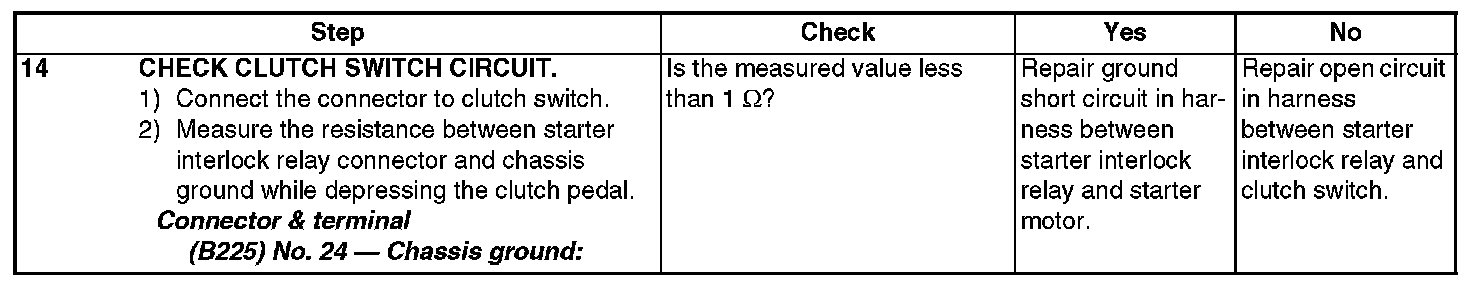

Step 14:
