Control Module: Testing and Inspection

Electrical Specification:

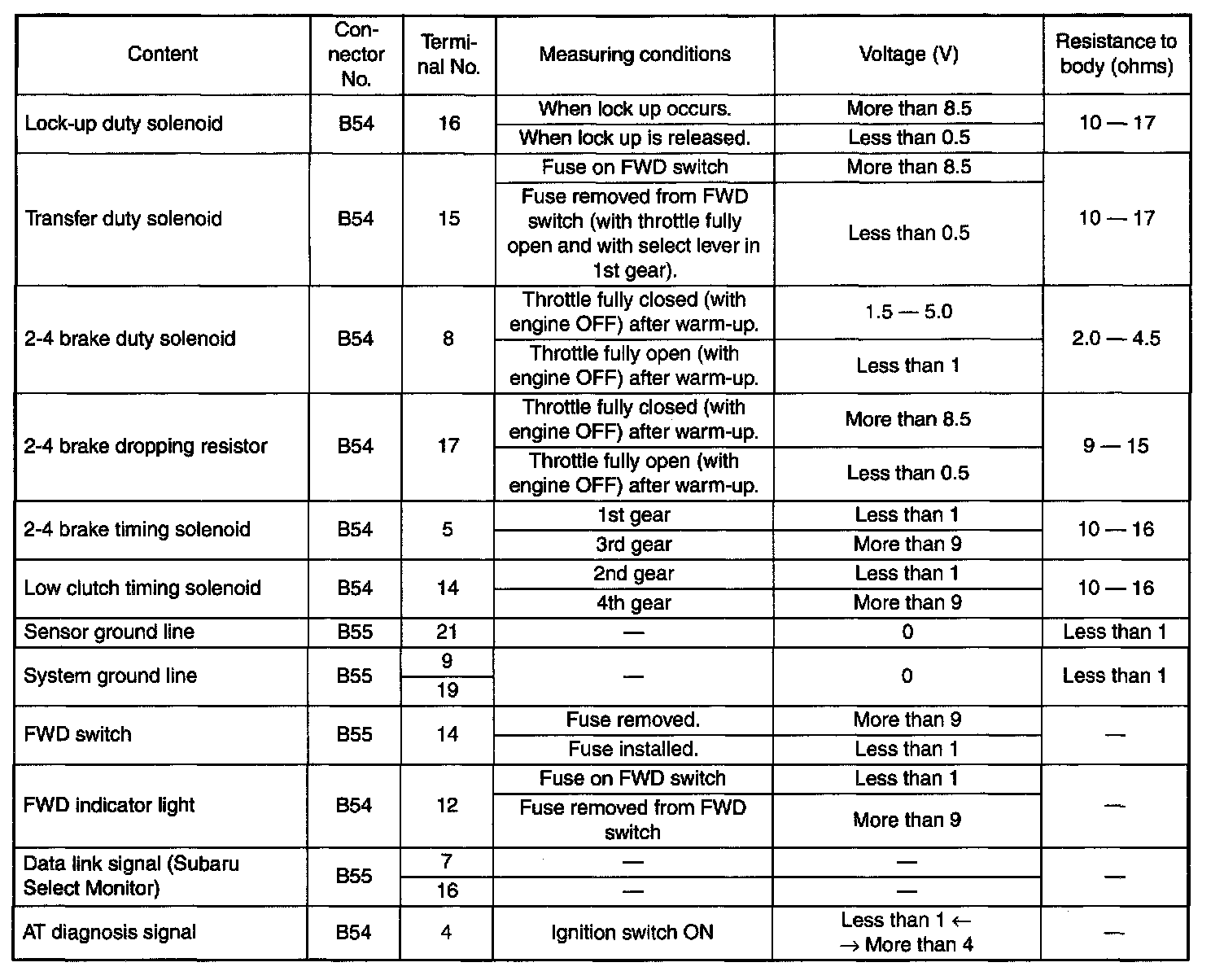

Electrical Specification Pinouts Part 1:

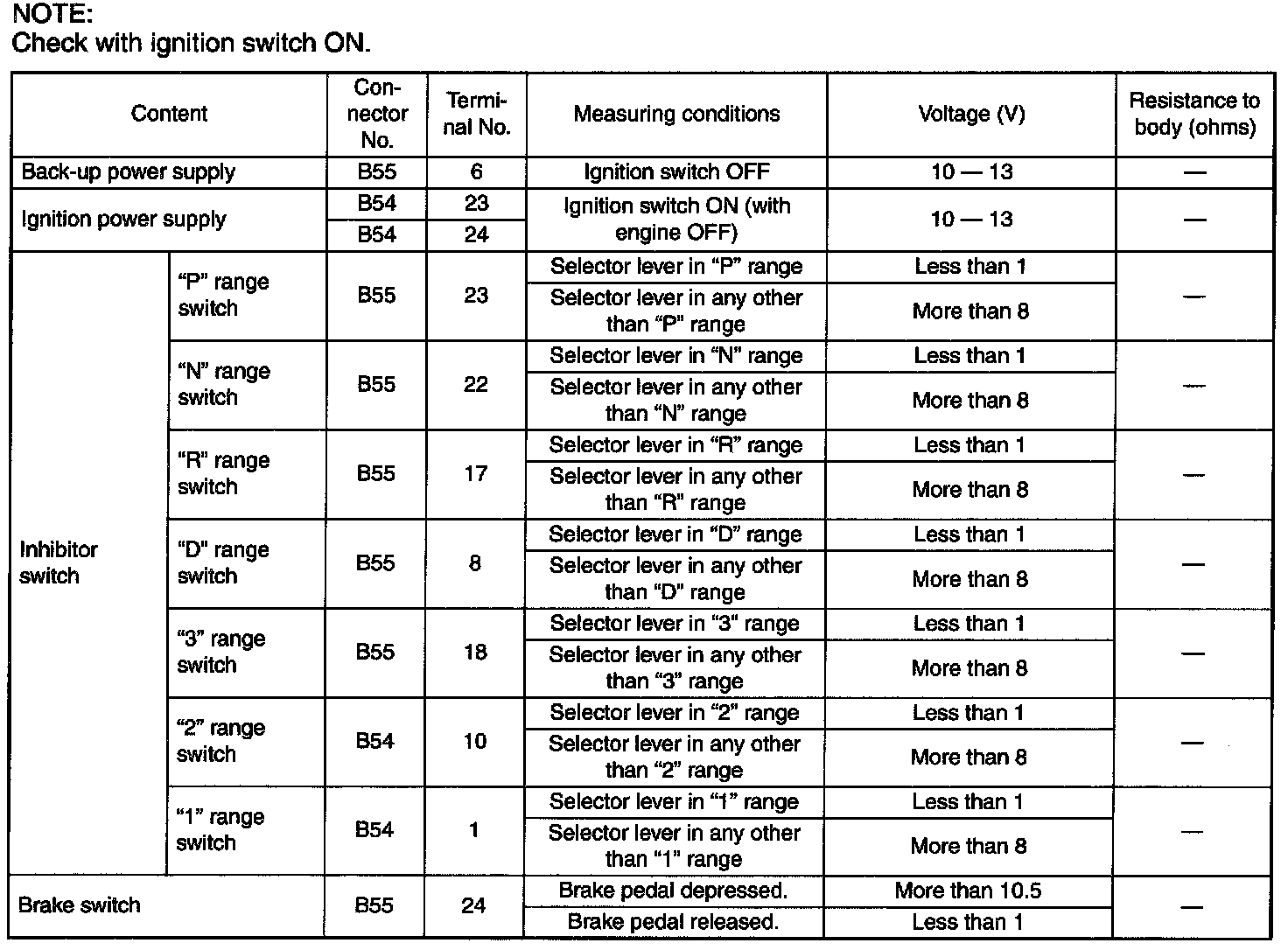

Electrical Specification Pinouts Part 2:

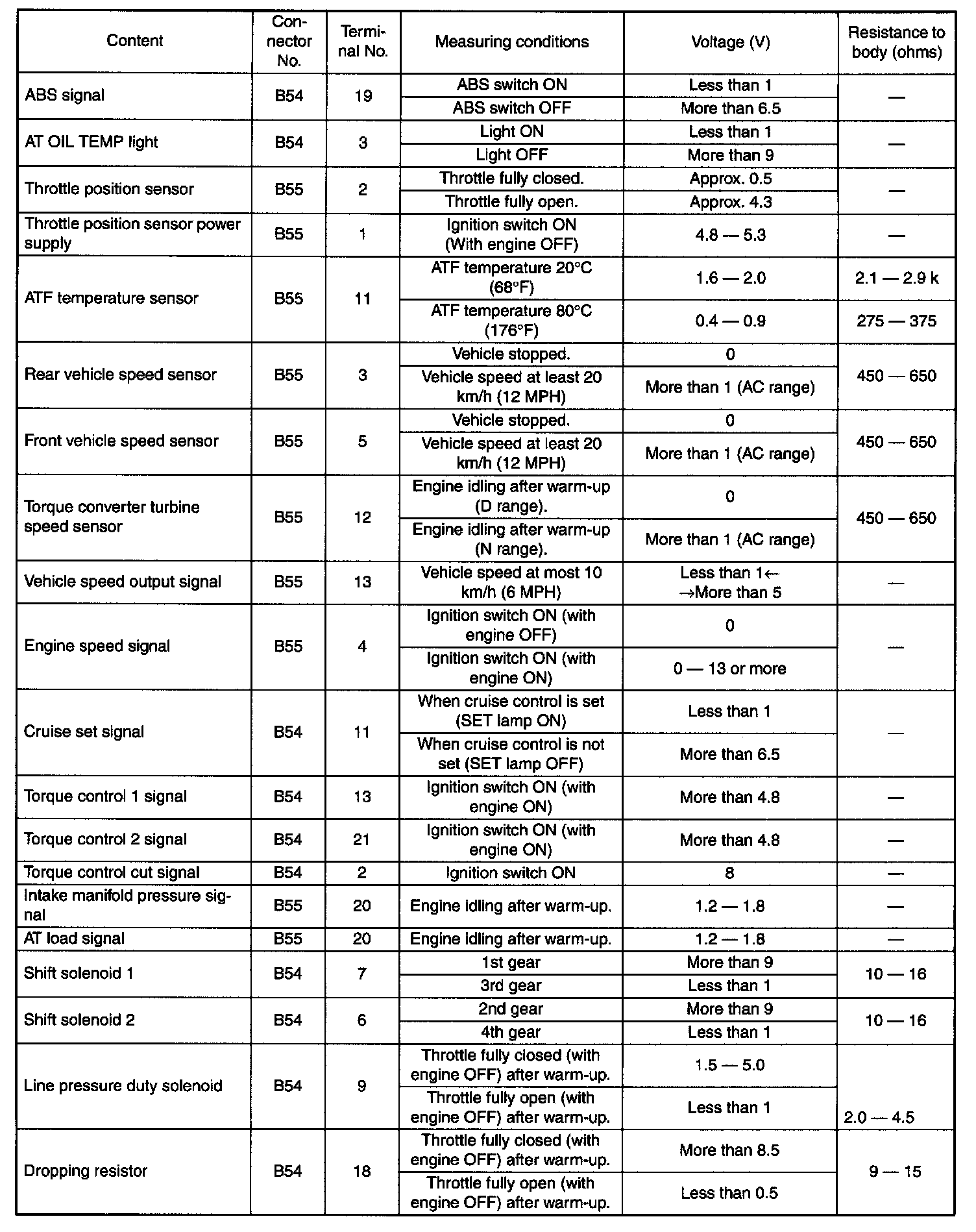

Electrical Specification Pinouts Part 3:
