Home >> Subaru >> 2002 >> Impreza Outback Sport AWD F4-2.5L SOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Heating and Air Conditioning >> System Specifications

System Specifications

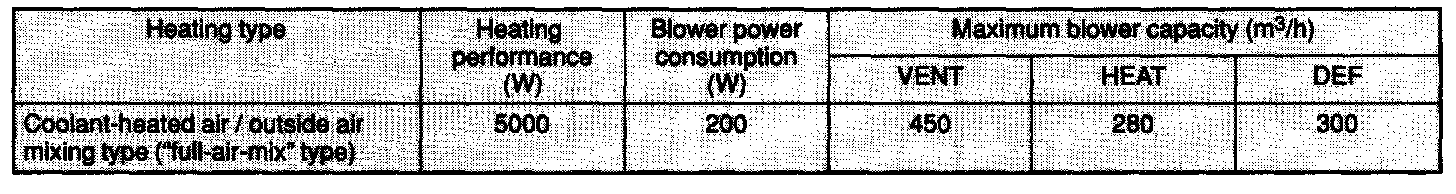

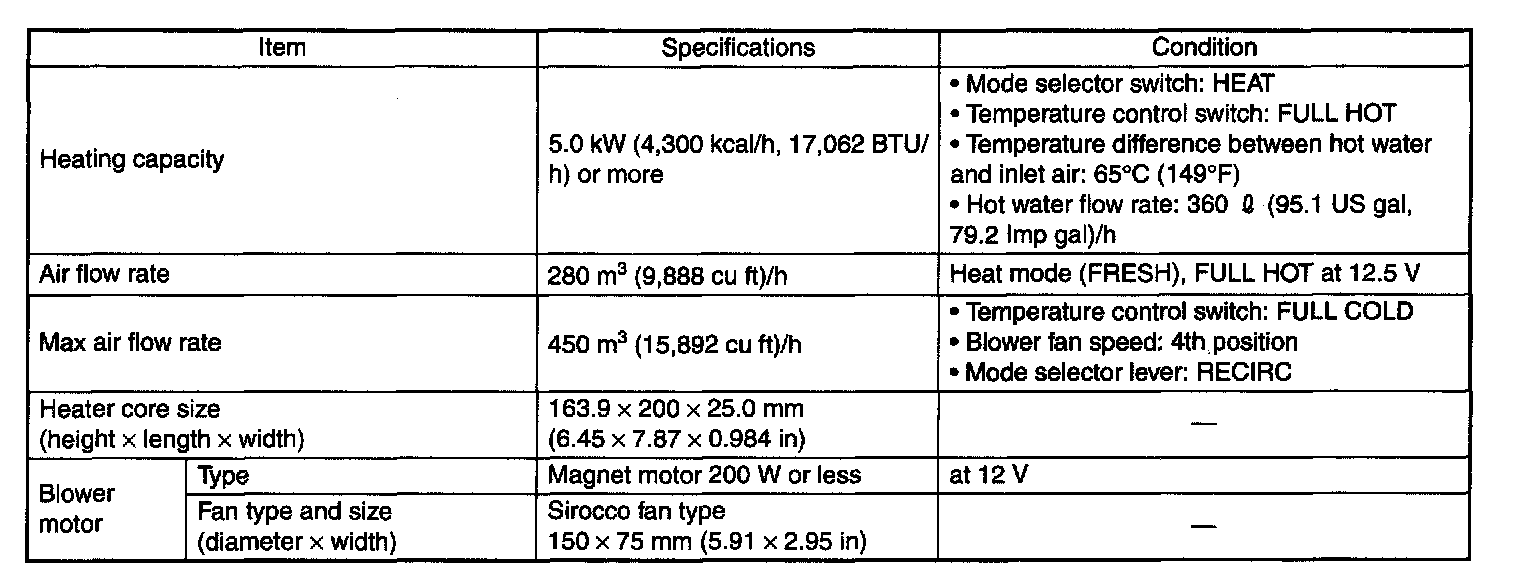

1. Heater System:

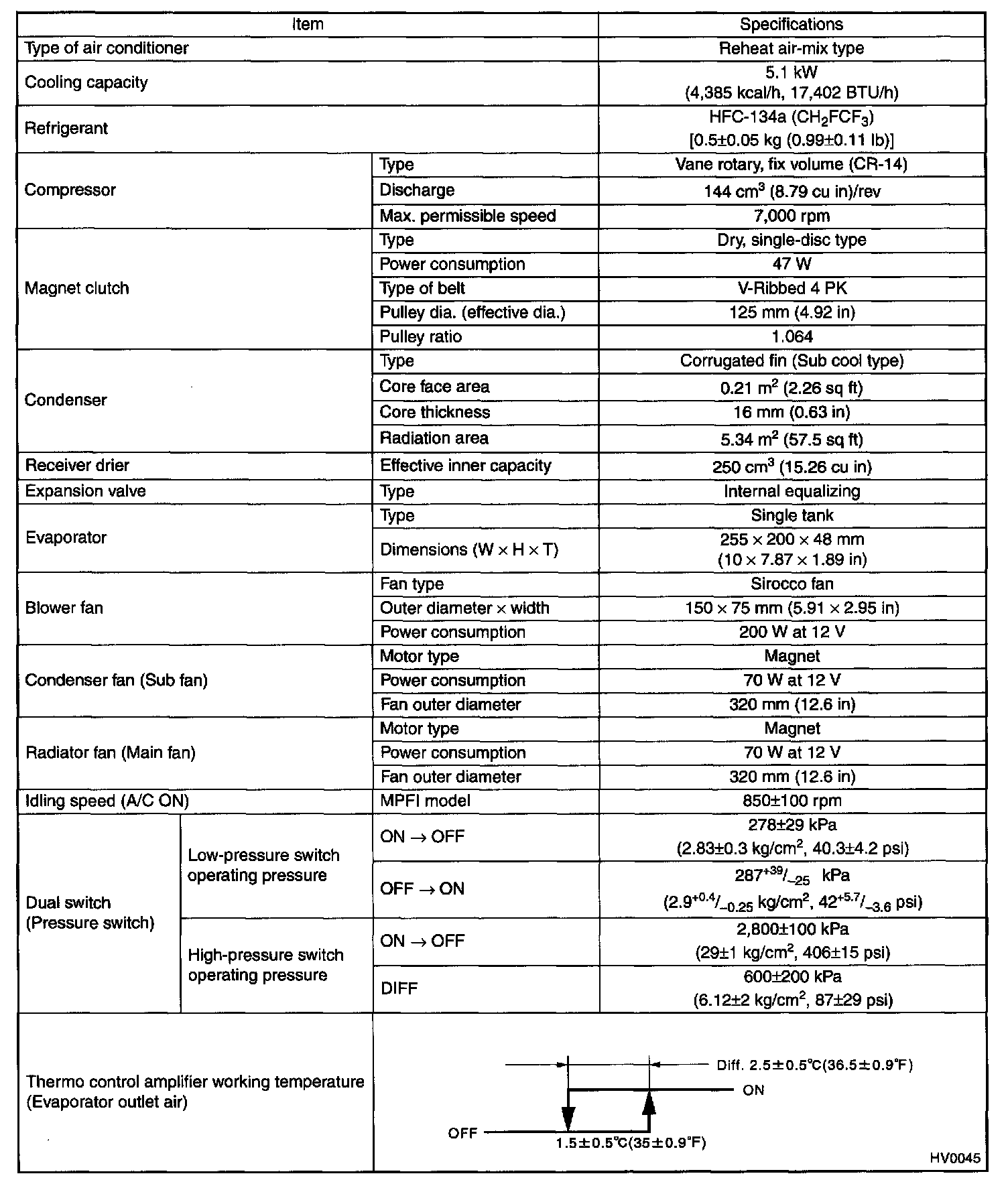

2. A/C System:
