Home >> Subaru >> 2002 >> Forester L F4-2.5L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Specifications

Transmission Control Systems: Specifications

CONTROL SYSTEMS





A: SPECIFICATIONS

B: COMPONENT

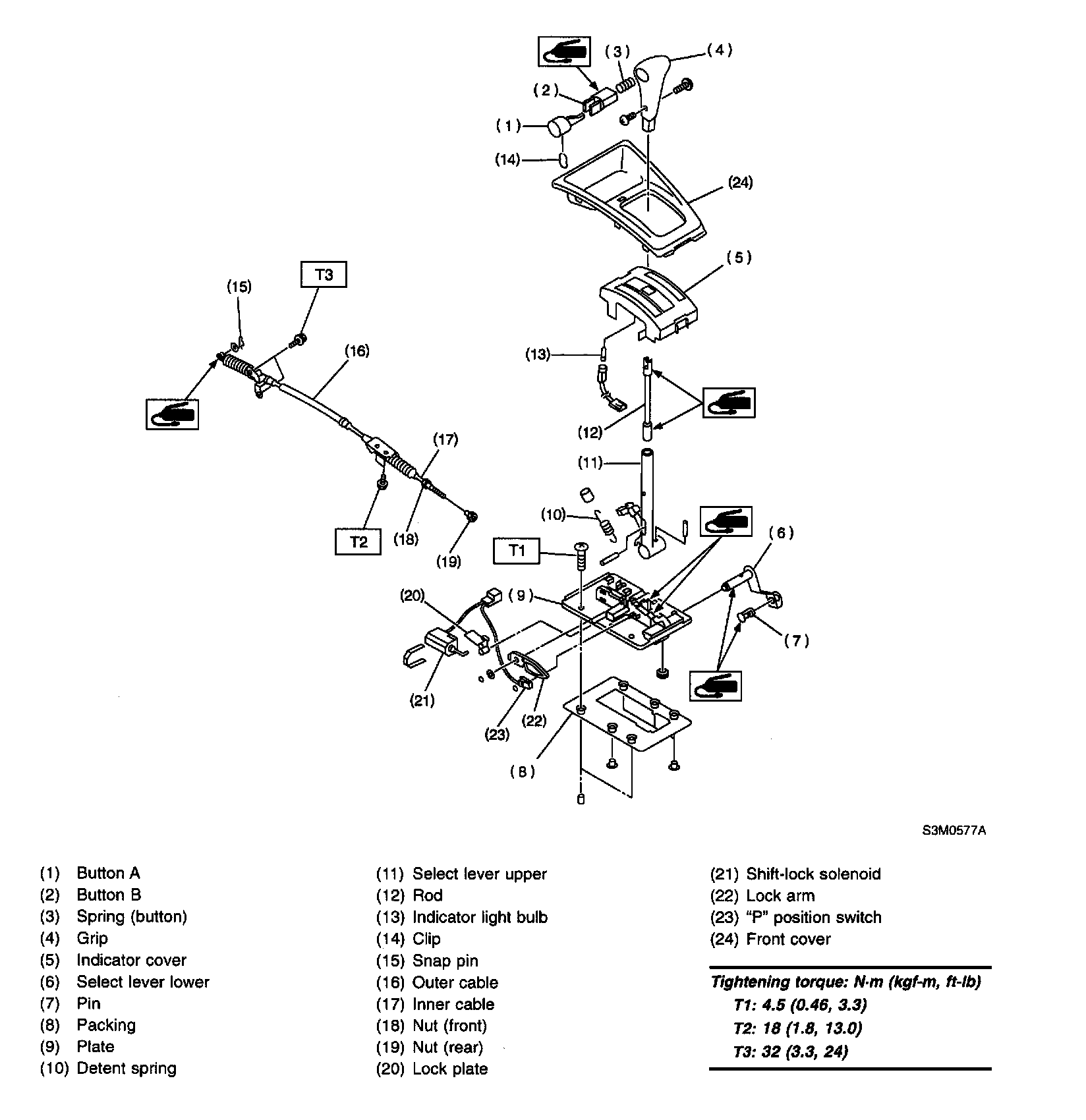

1. AT SELECT LEVER

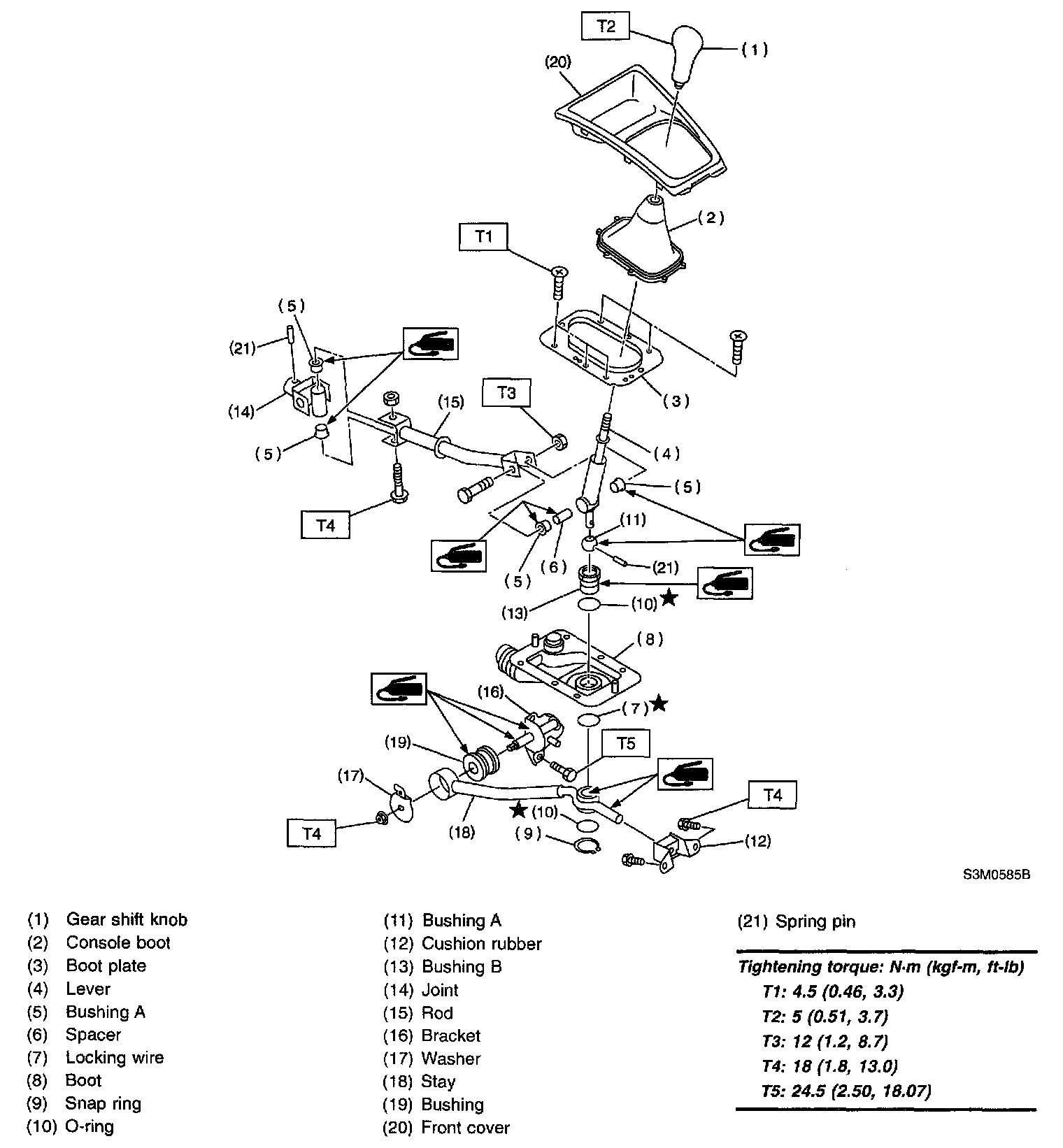

2. MT GEAR SHIFT LEVER
