Ignition Control Module: Locations

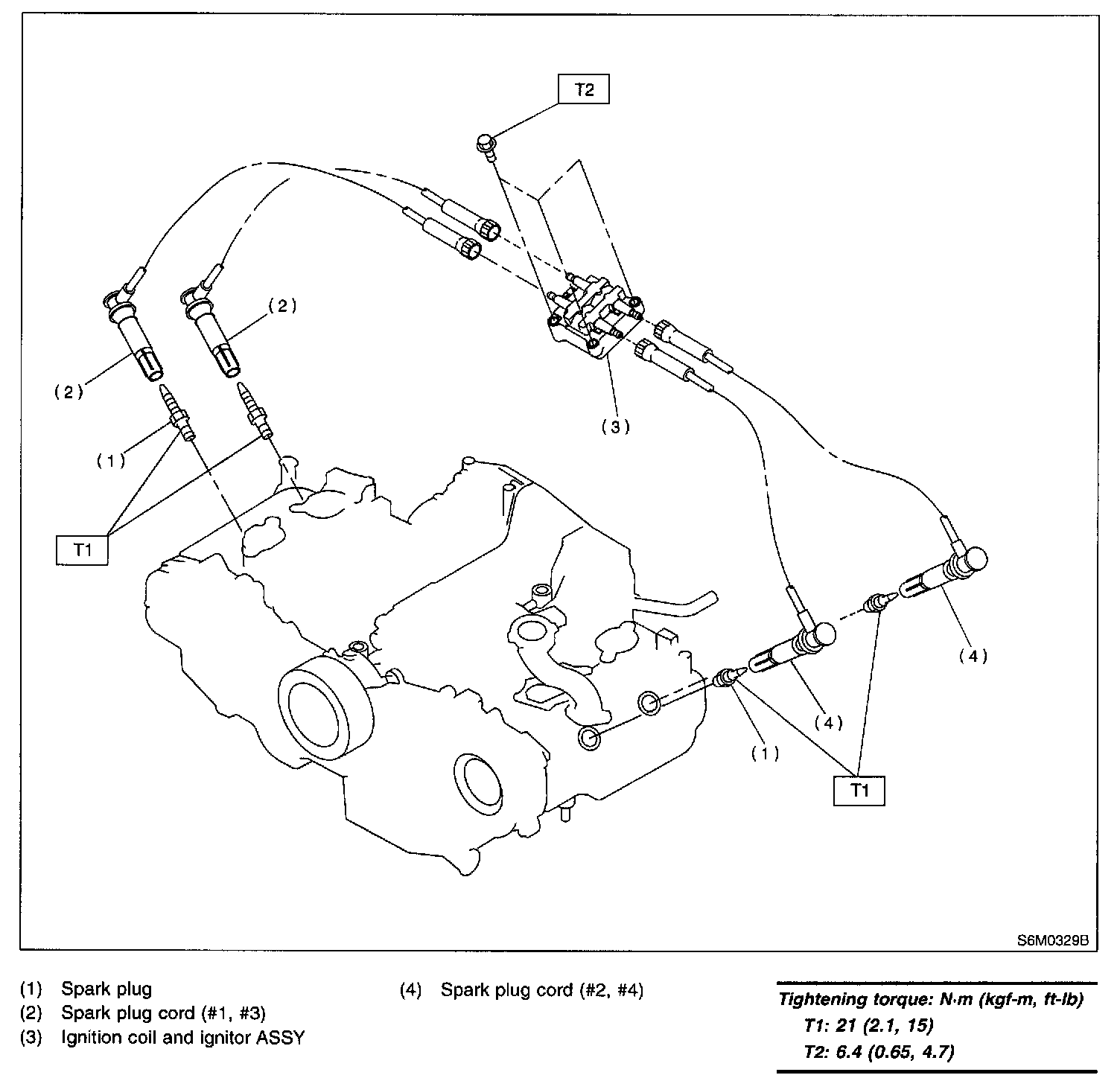

Plugs, Ignition Wires, Ignition Coil And Igniter:

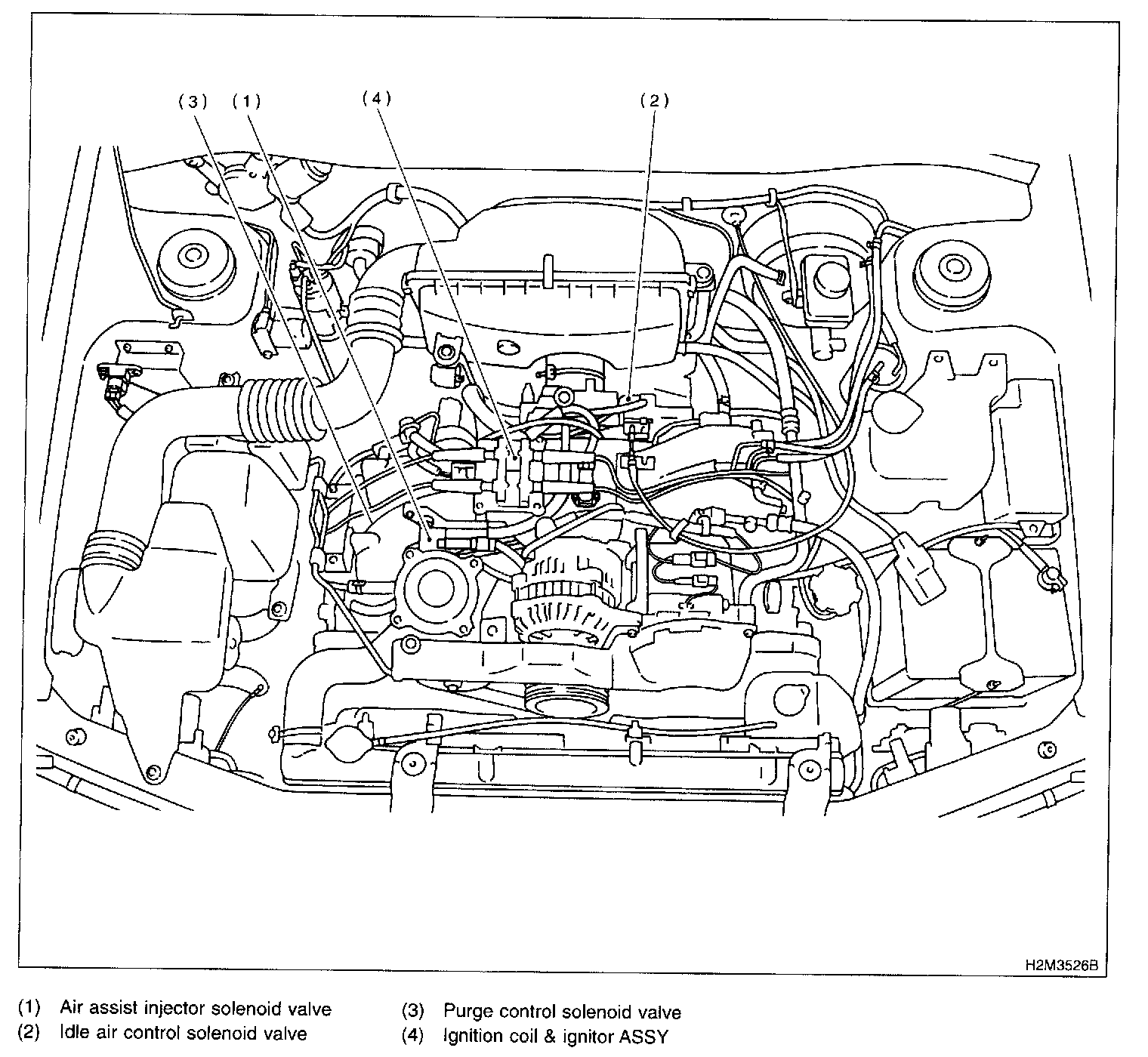

Ignition Coil And Ignitor ASSY:
