Emission Control Systems: Locations
Schematic Diagrams Part 1:
Schematic Diagrams Part 2:

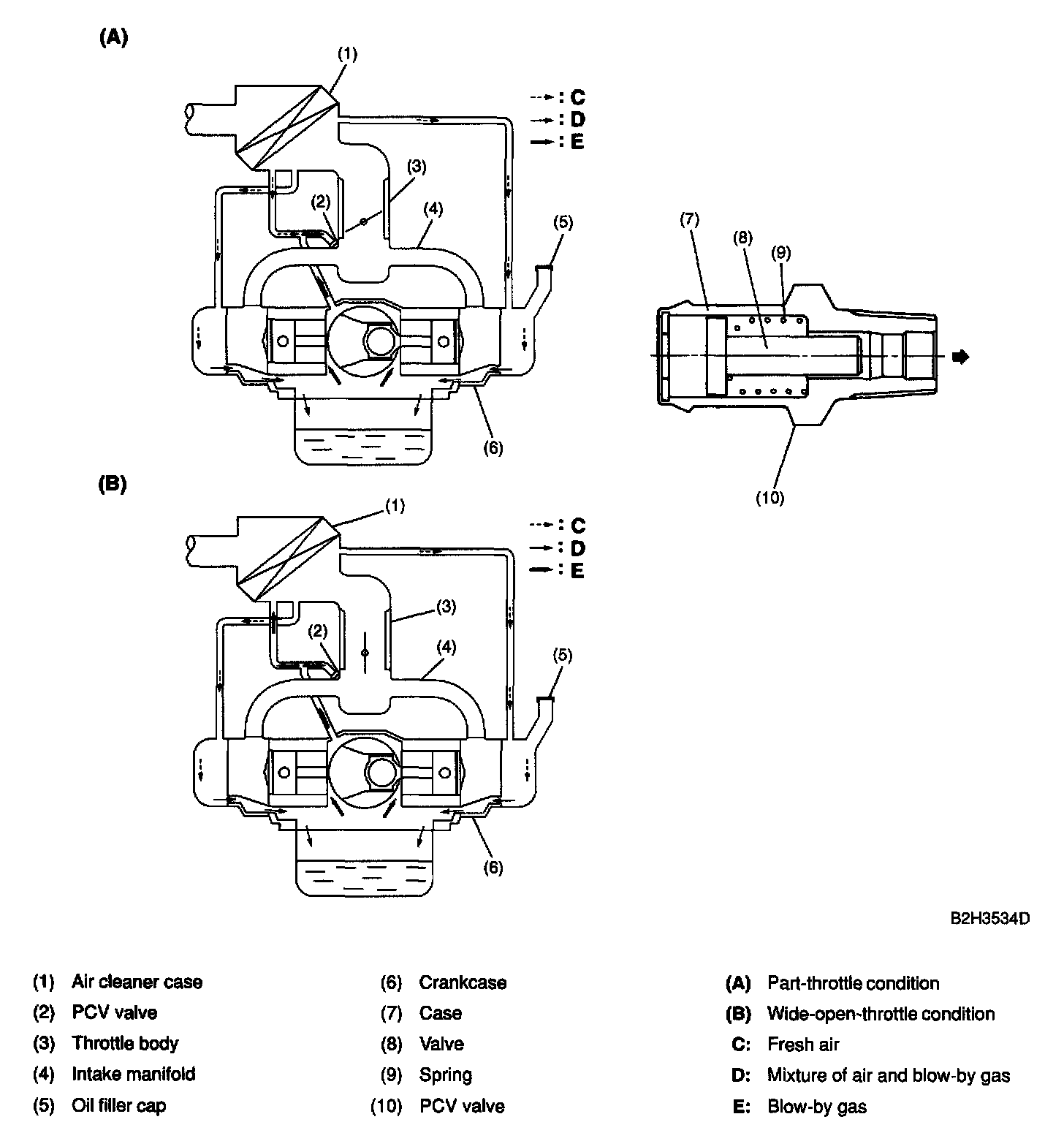

Crankcase Emission Control System:

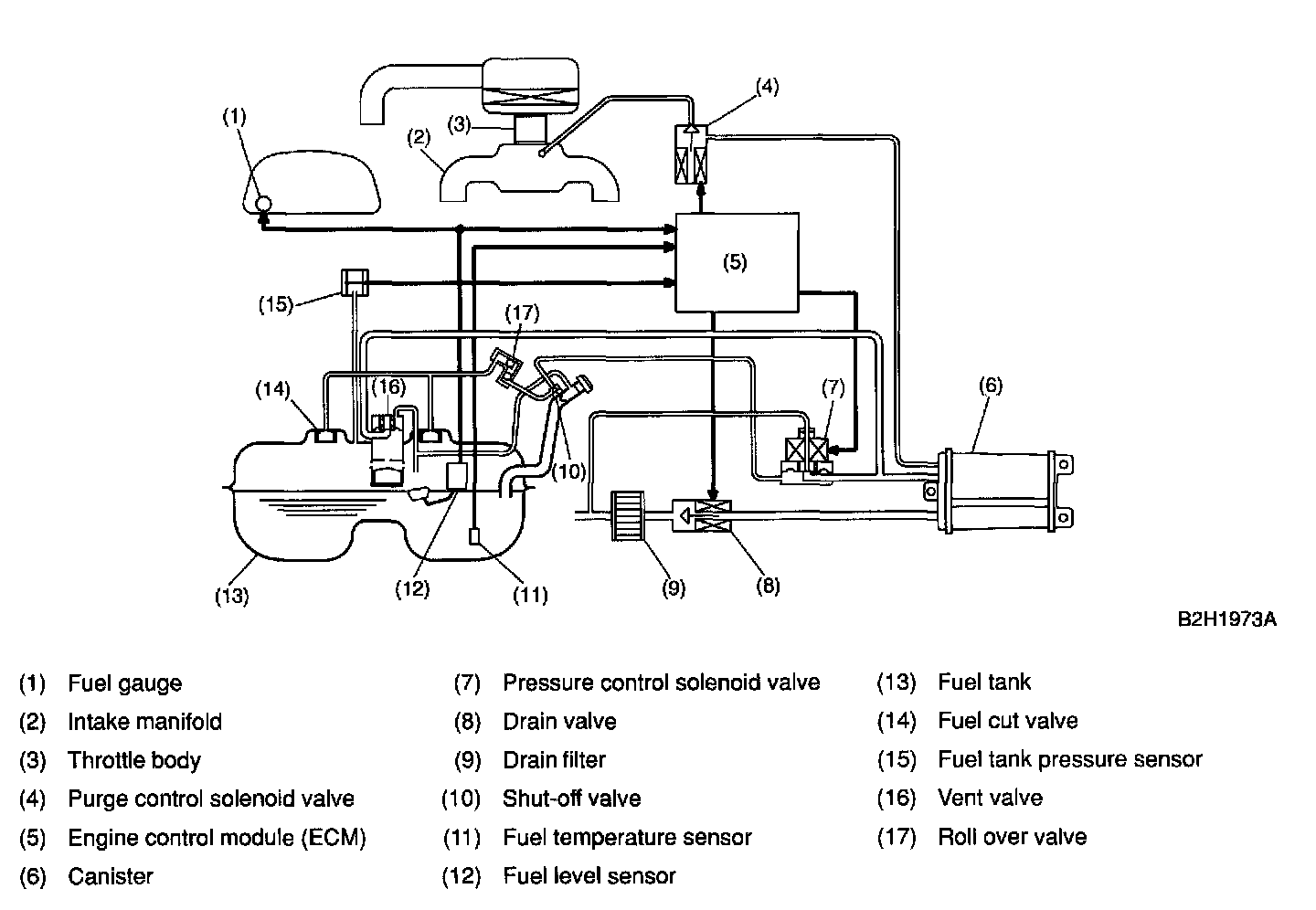

Evaporative Emission Control System:
