Home >> Subaru >> 2002 >> Forester L F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering

Steering

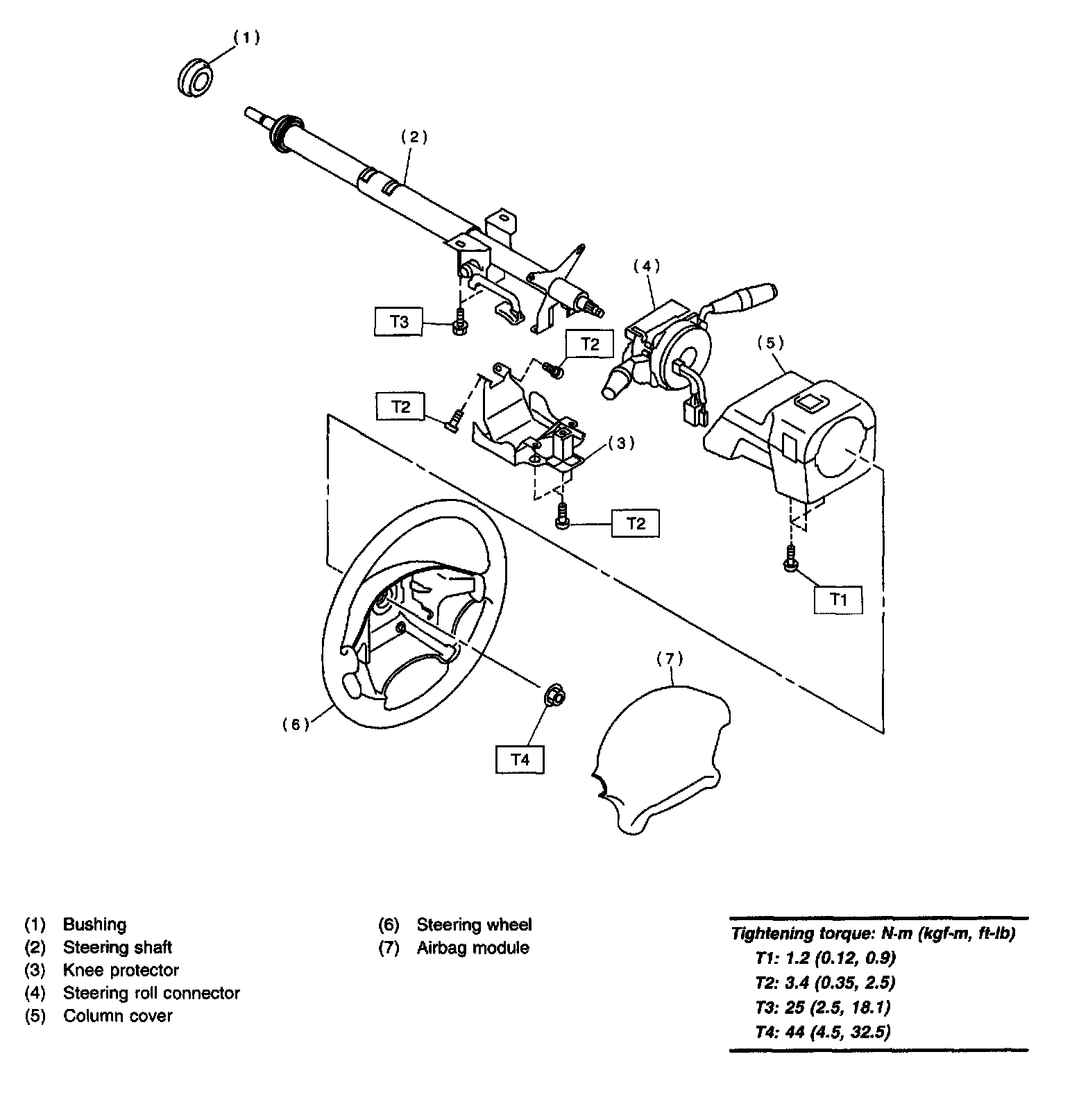

1. STEERING WHEEL AND COLUMN

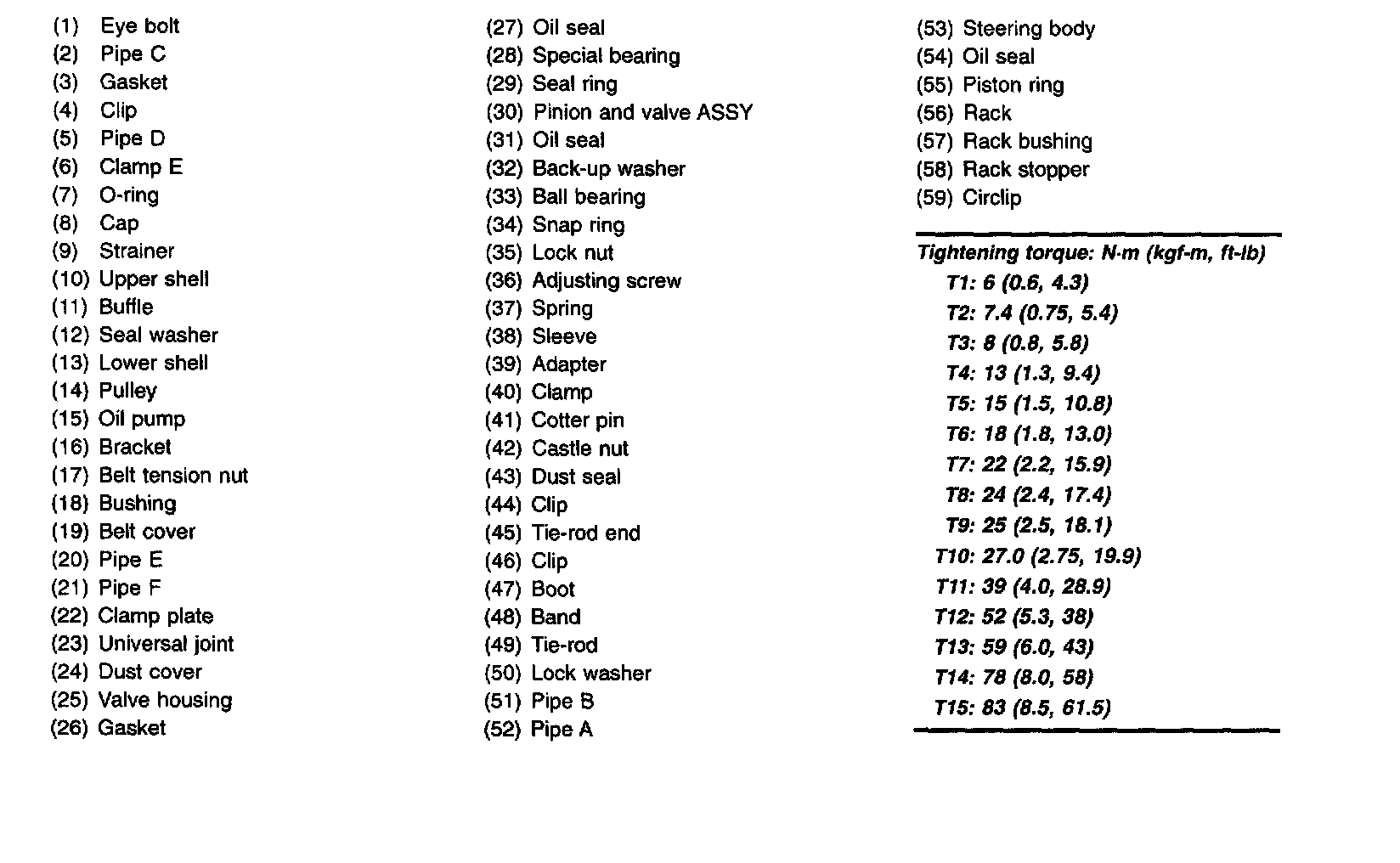

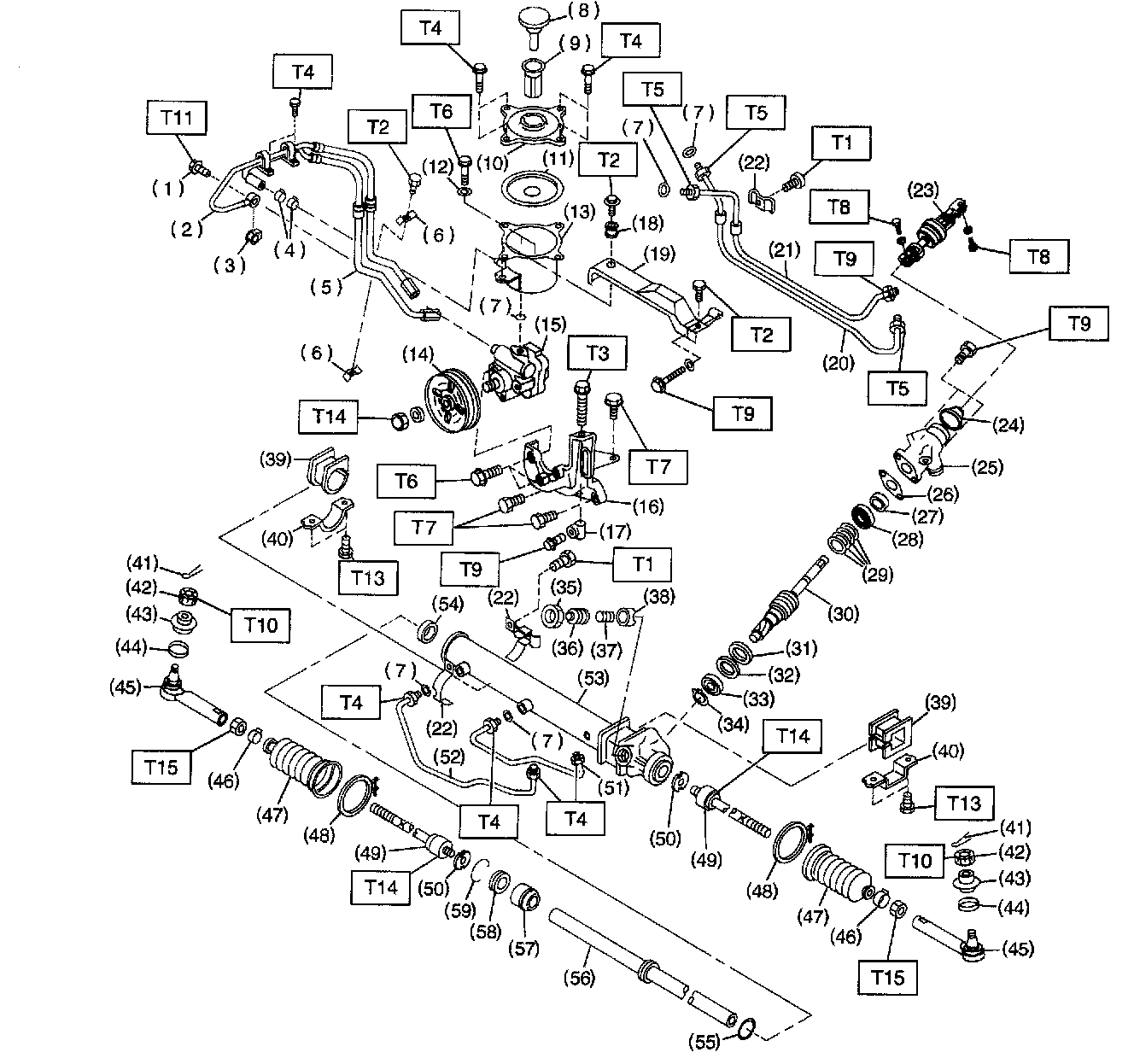

2. POWER ASSISTED SYSTEM





1 of 2





2 of 2
