Home >> Subaru >> 2002 >> Forester L F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly

Differential Assembly

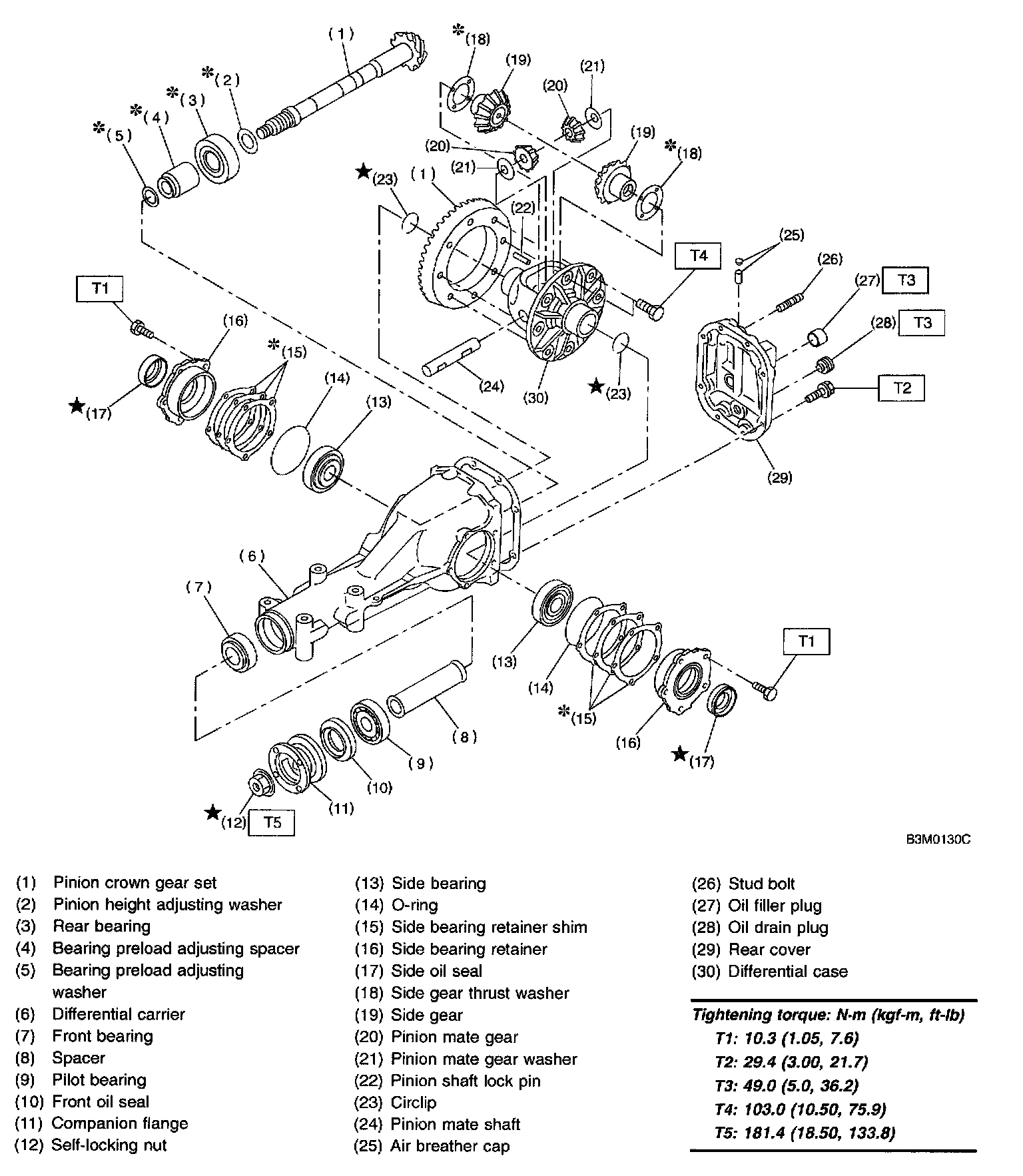

1. REAR DIFFERENTIAL WITHOUT LSD

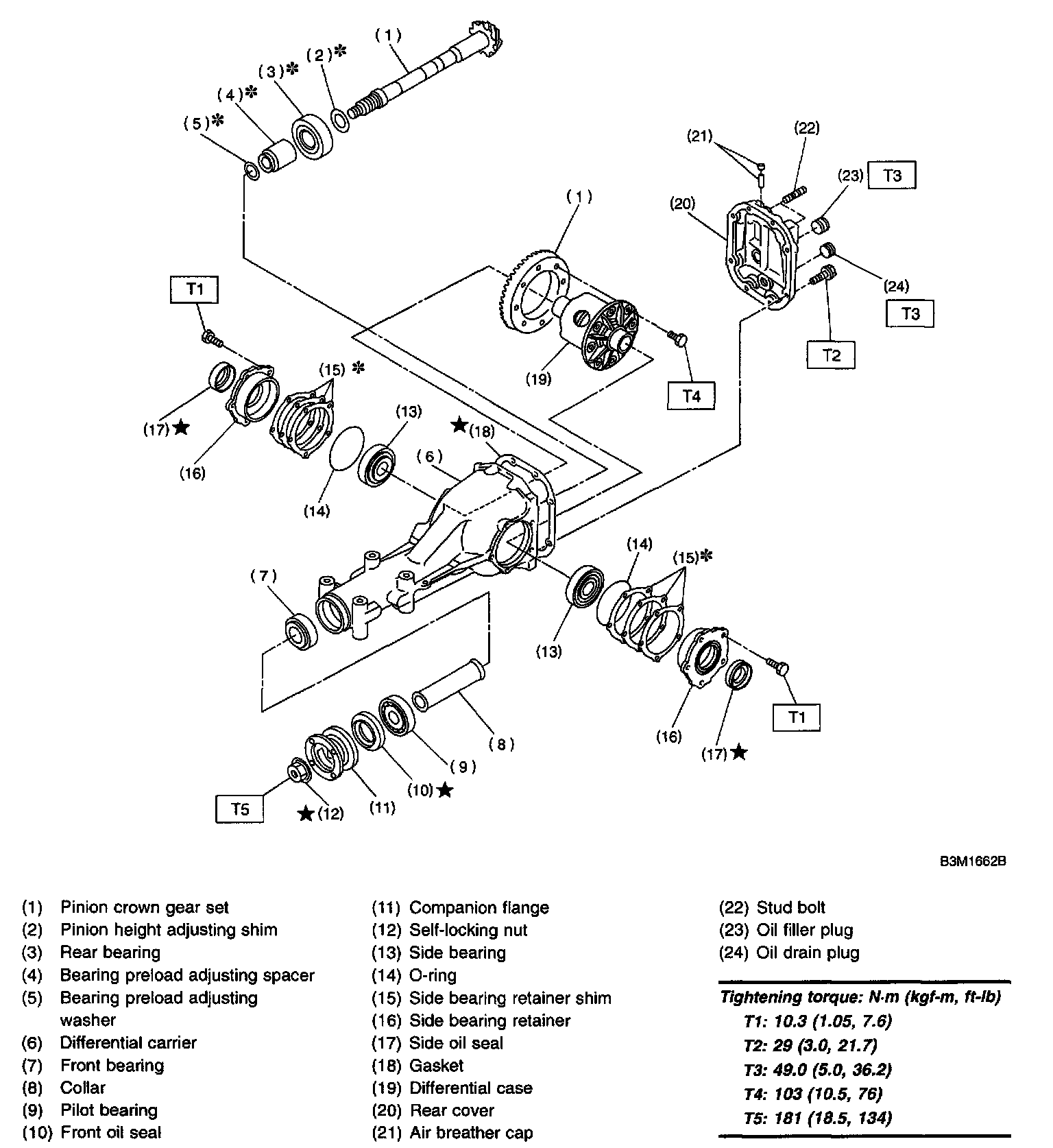

2. REAR DIFFERENTIAL WITH LSD

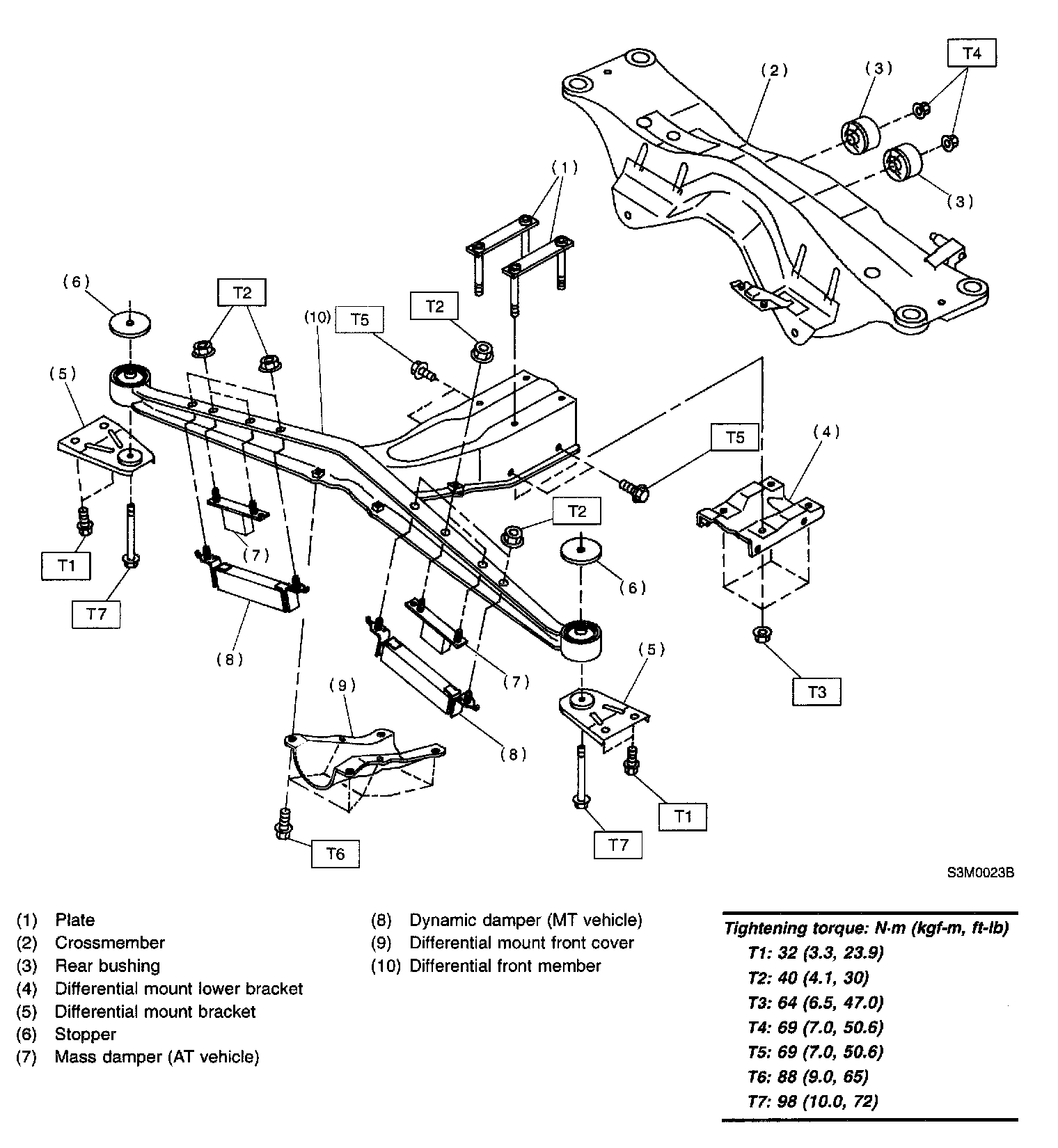

3. REAR DIFFERENTIAL MOUNTING SYSTEM
