Computers and Control Systems: Locations

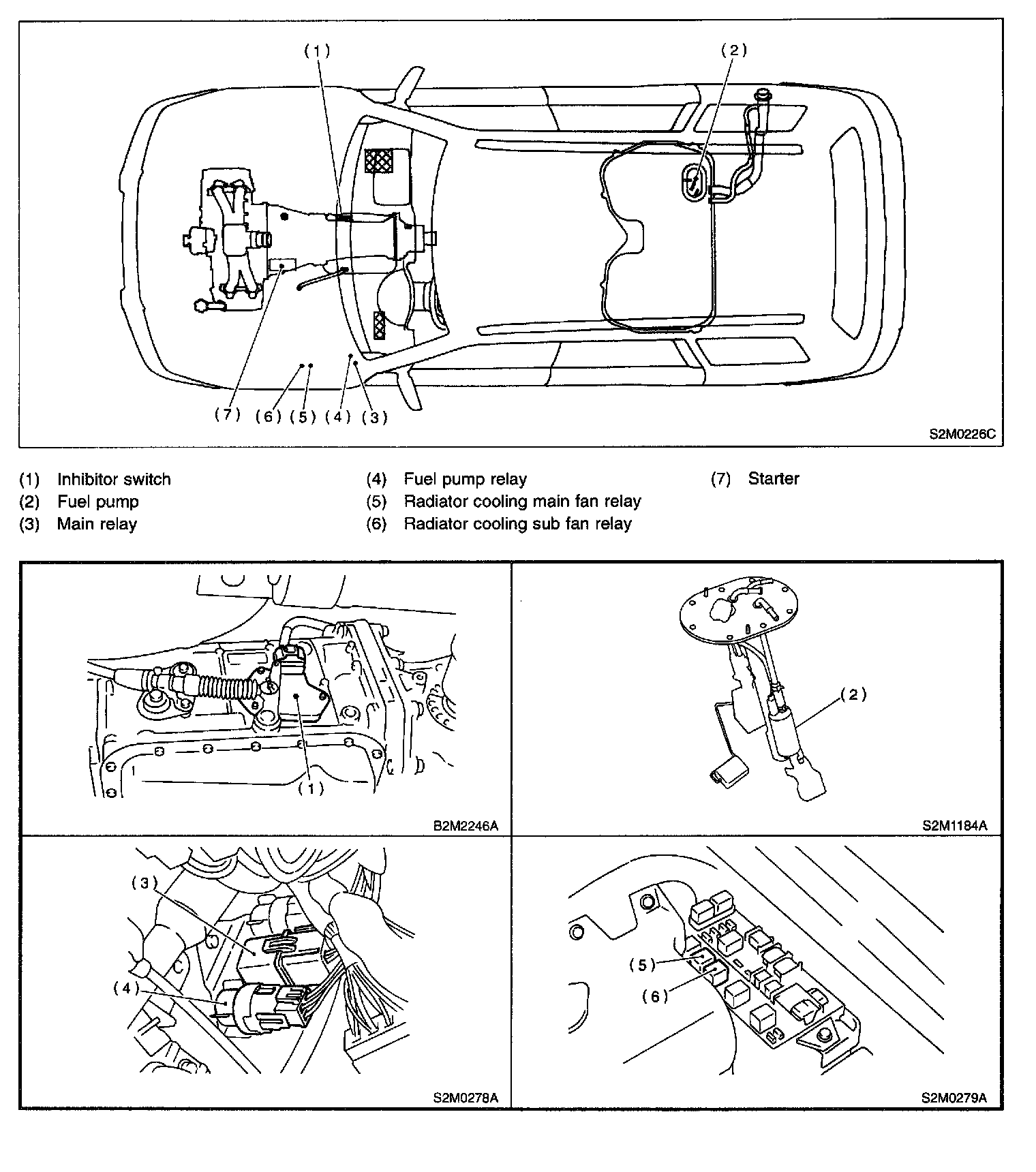

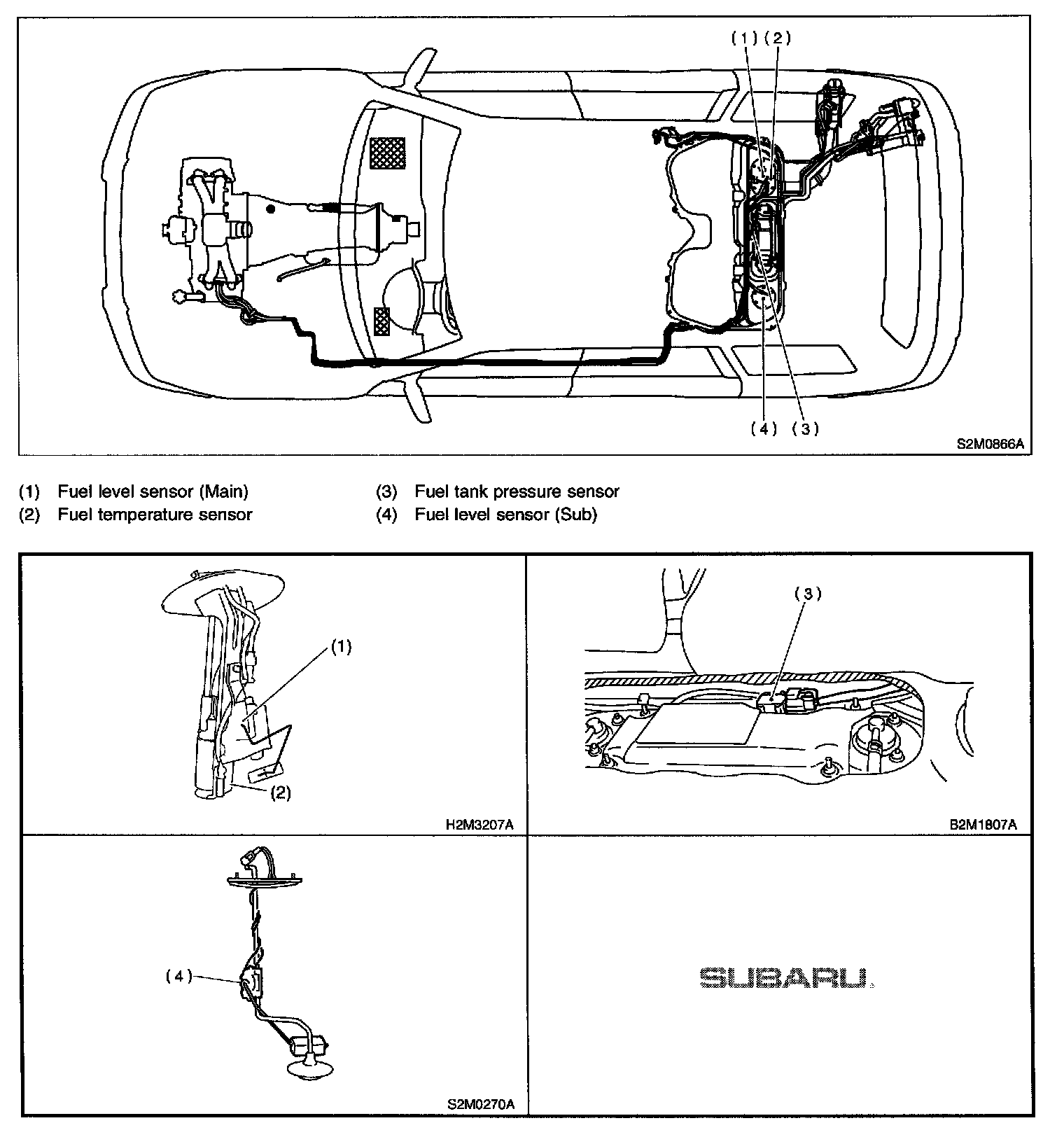

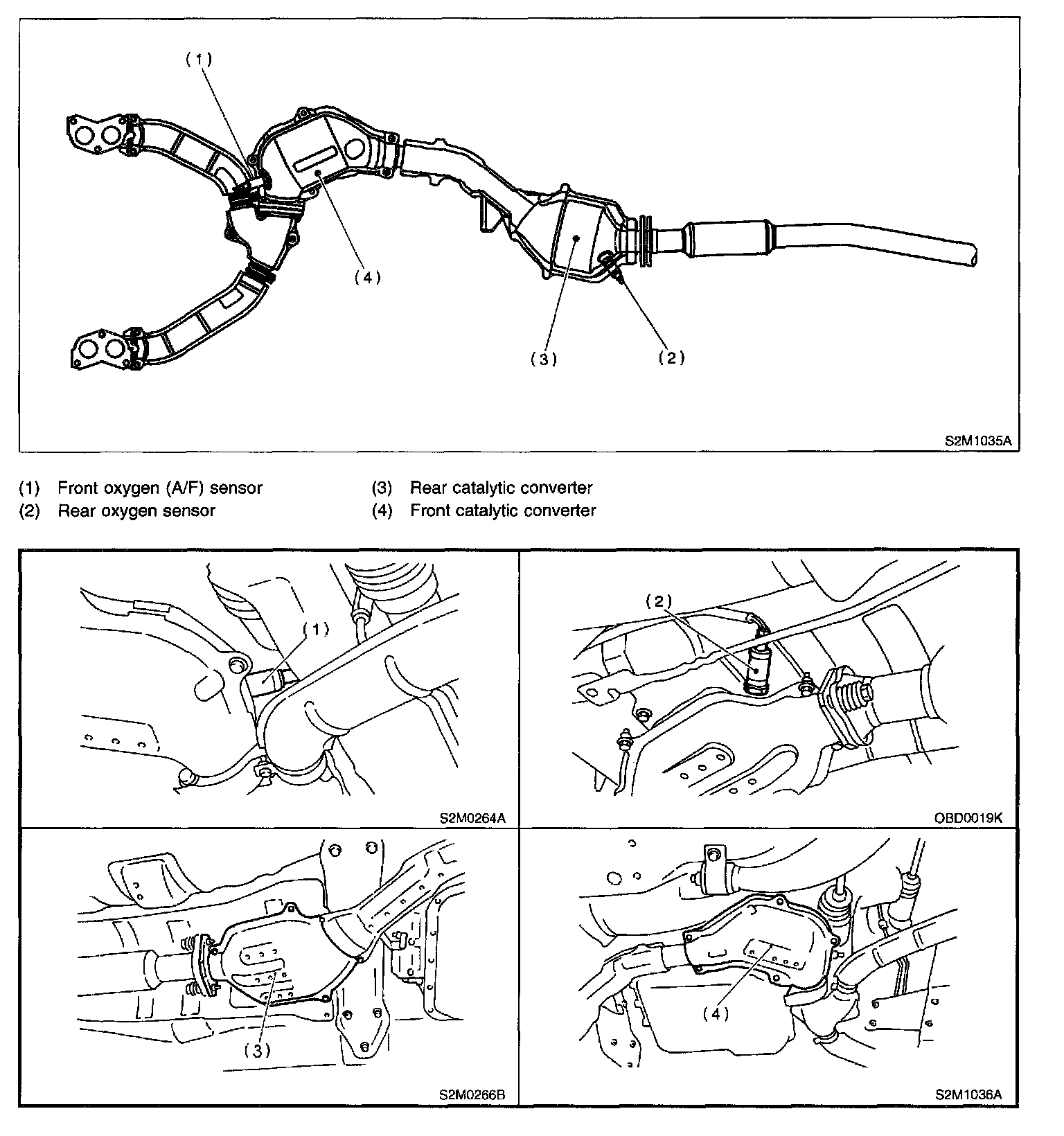

ELECTRICAL COMPONENT LOCATION

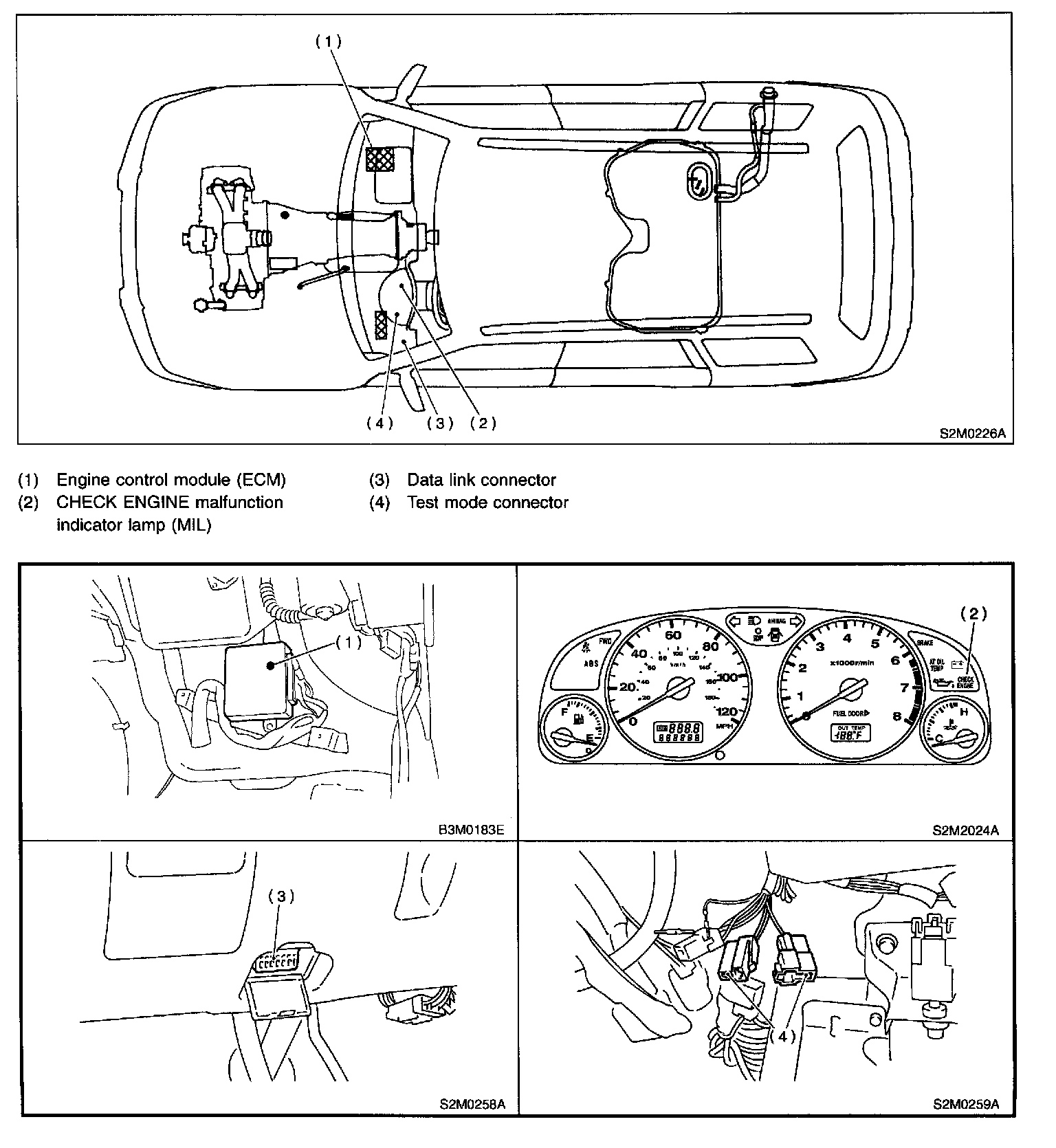

MODULE




Part 2:

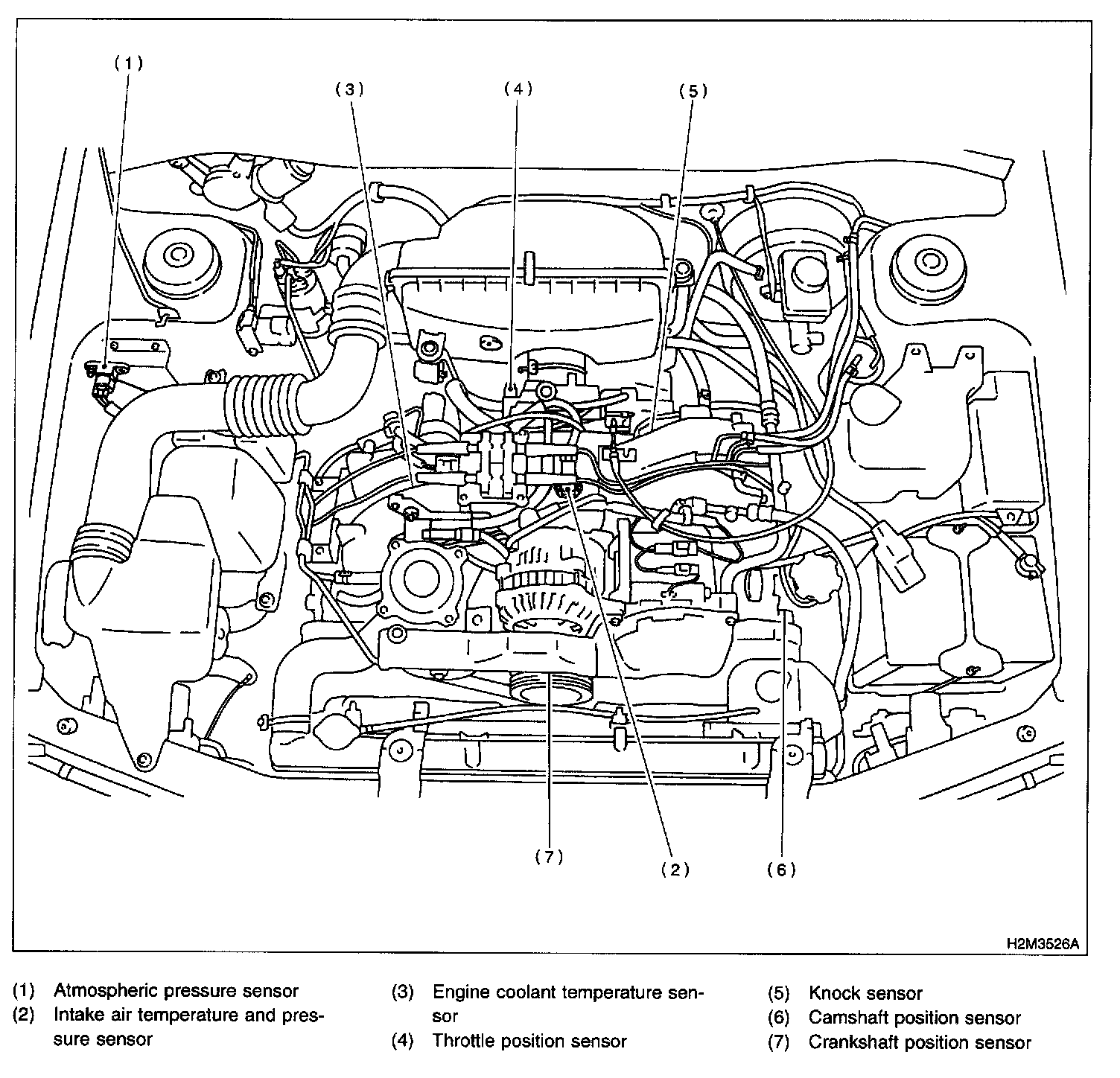

ENGINE SENSOR

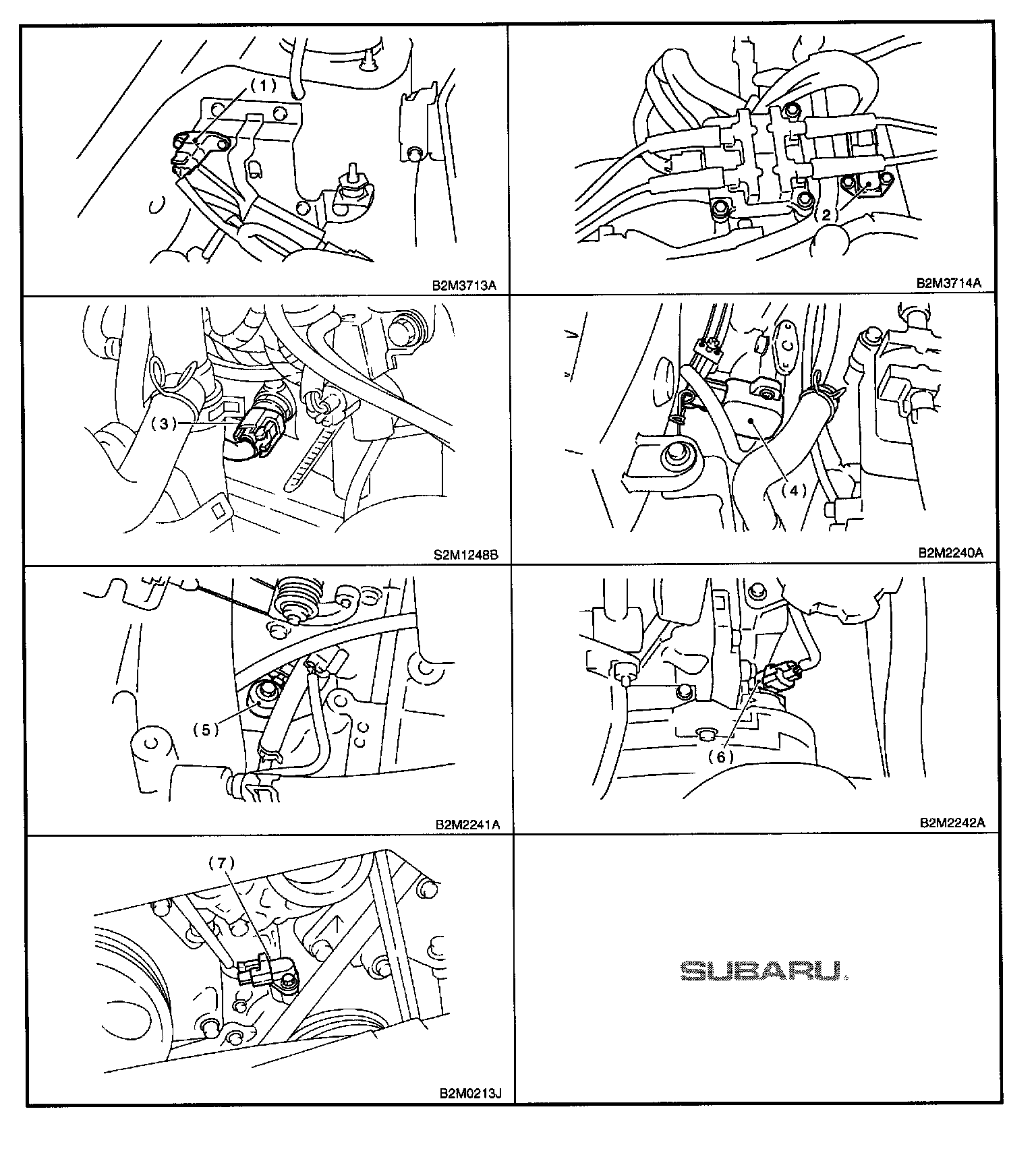

Part 2:







Part 1:

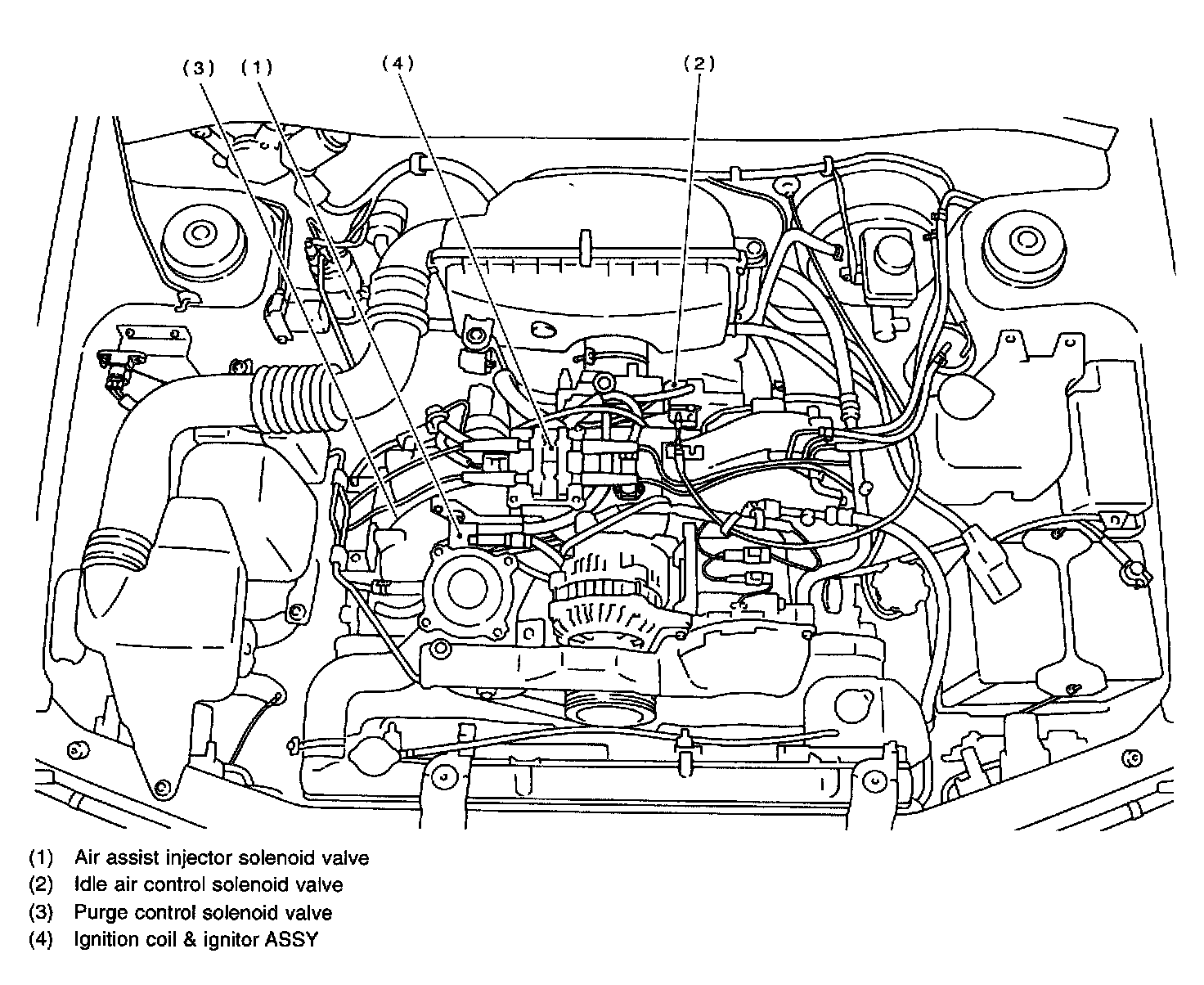

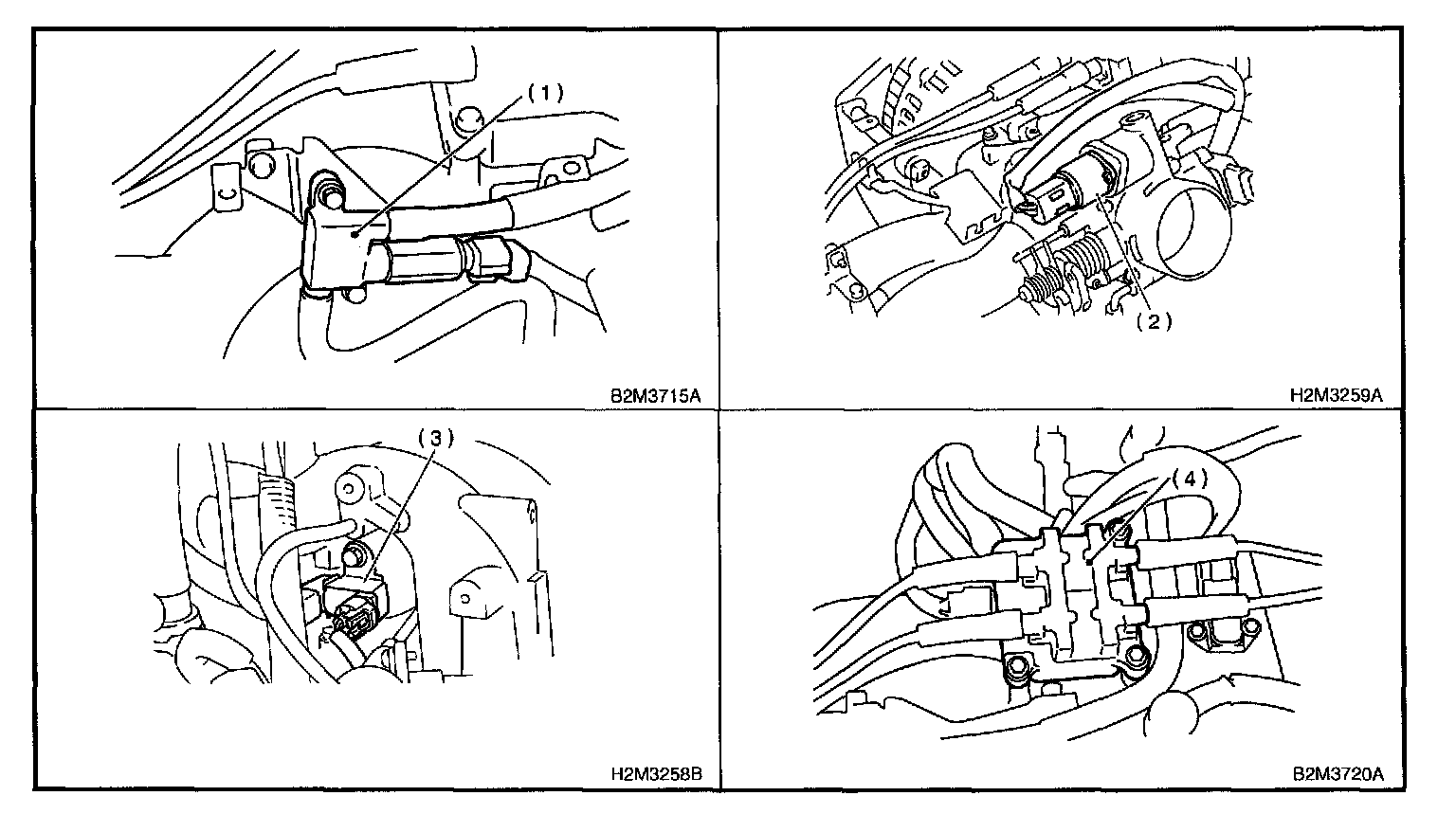

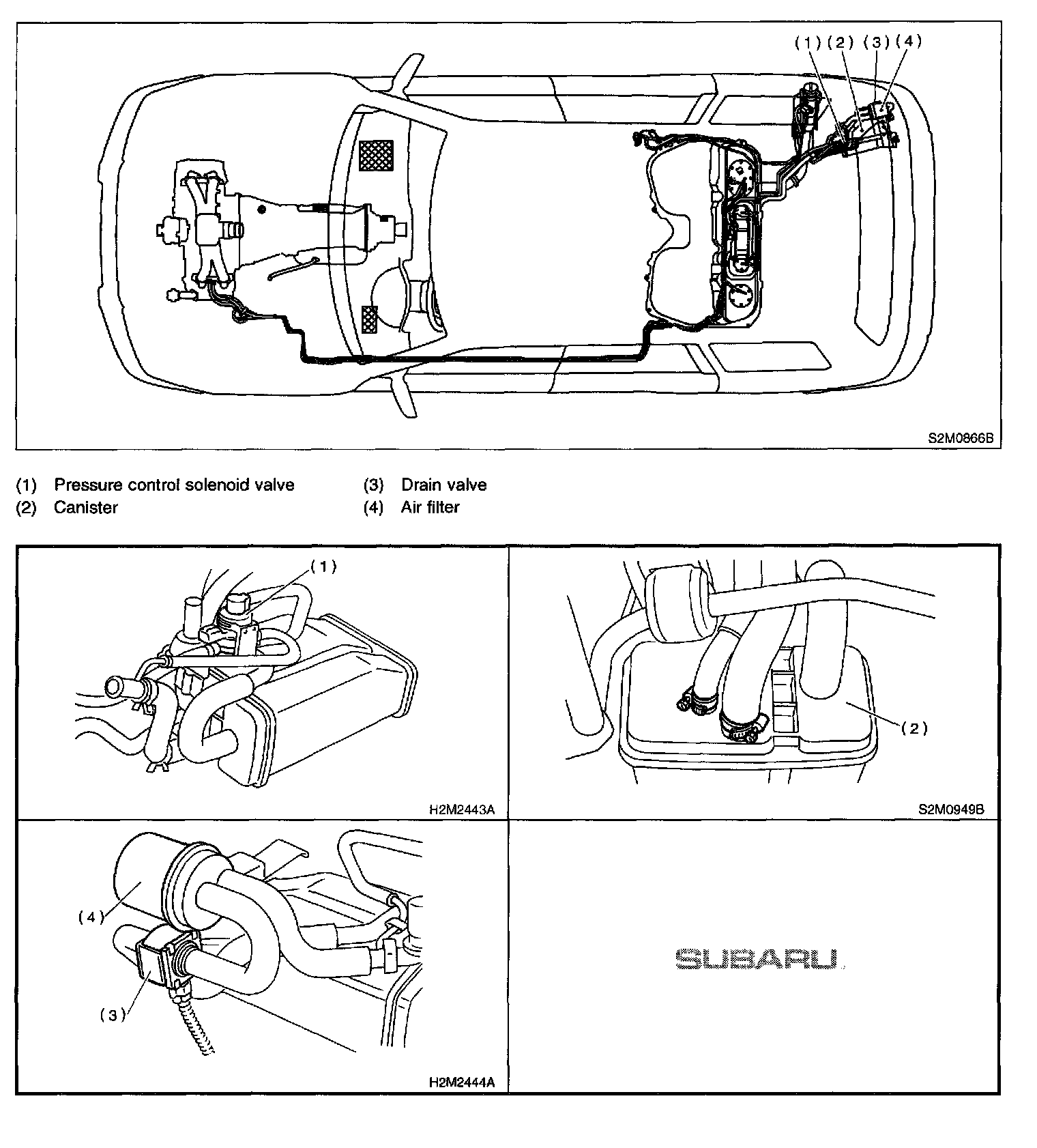

SOLENOID VALVE, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
