Multiple Junction Connector: Locations

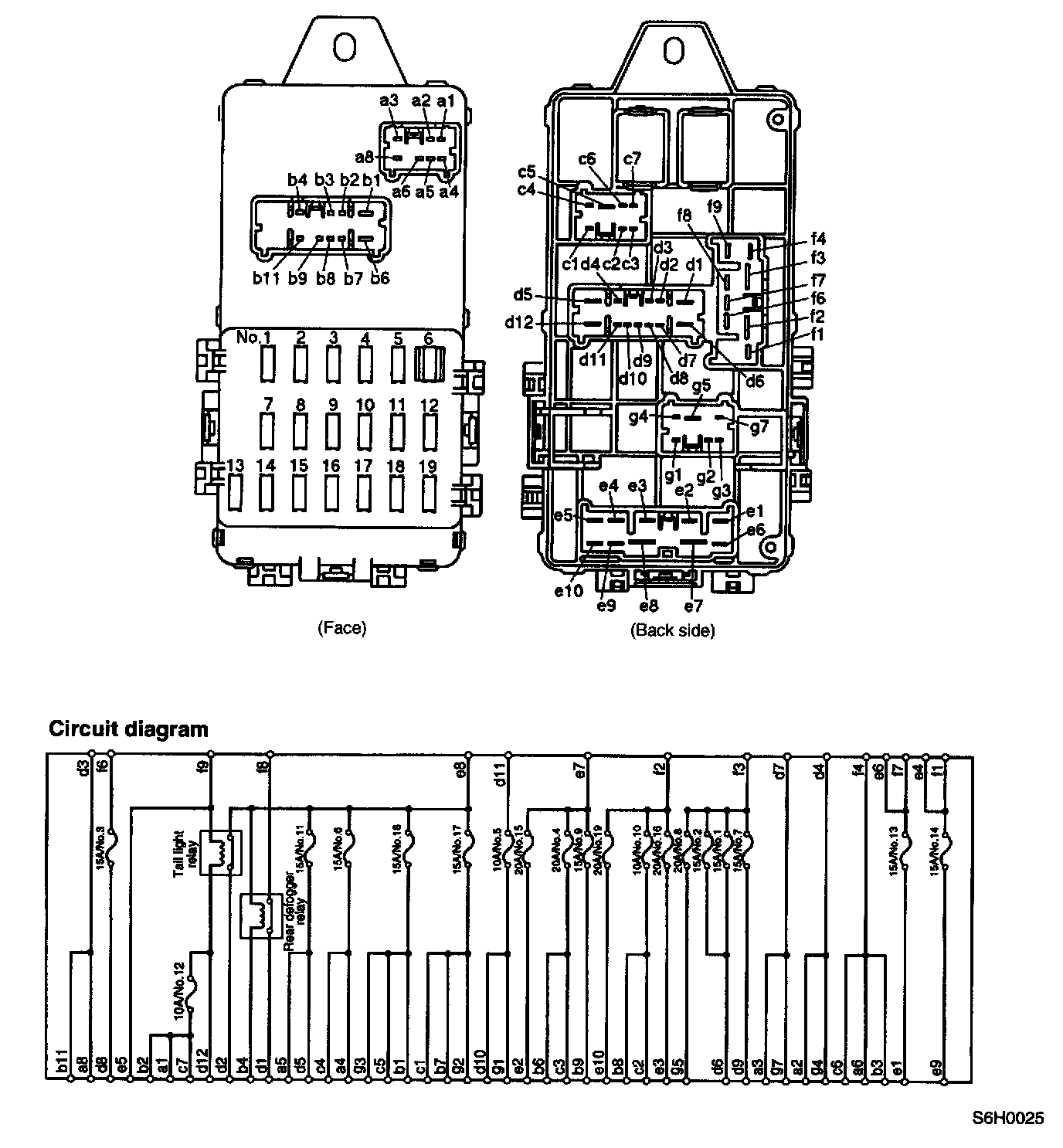

Joint Box
The joint box is installed under the instrument panel on driver's side.
The fuses are installed in the joint box.
