Home >> Subaru >> 2001 >> Forester L F4-2.5L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Testing and Inspection

Compressor HVAC: Testing and Inspection

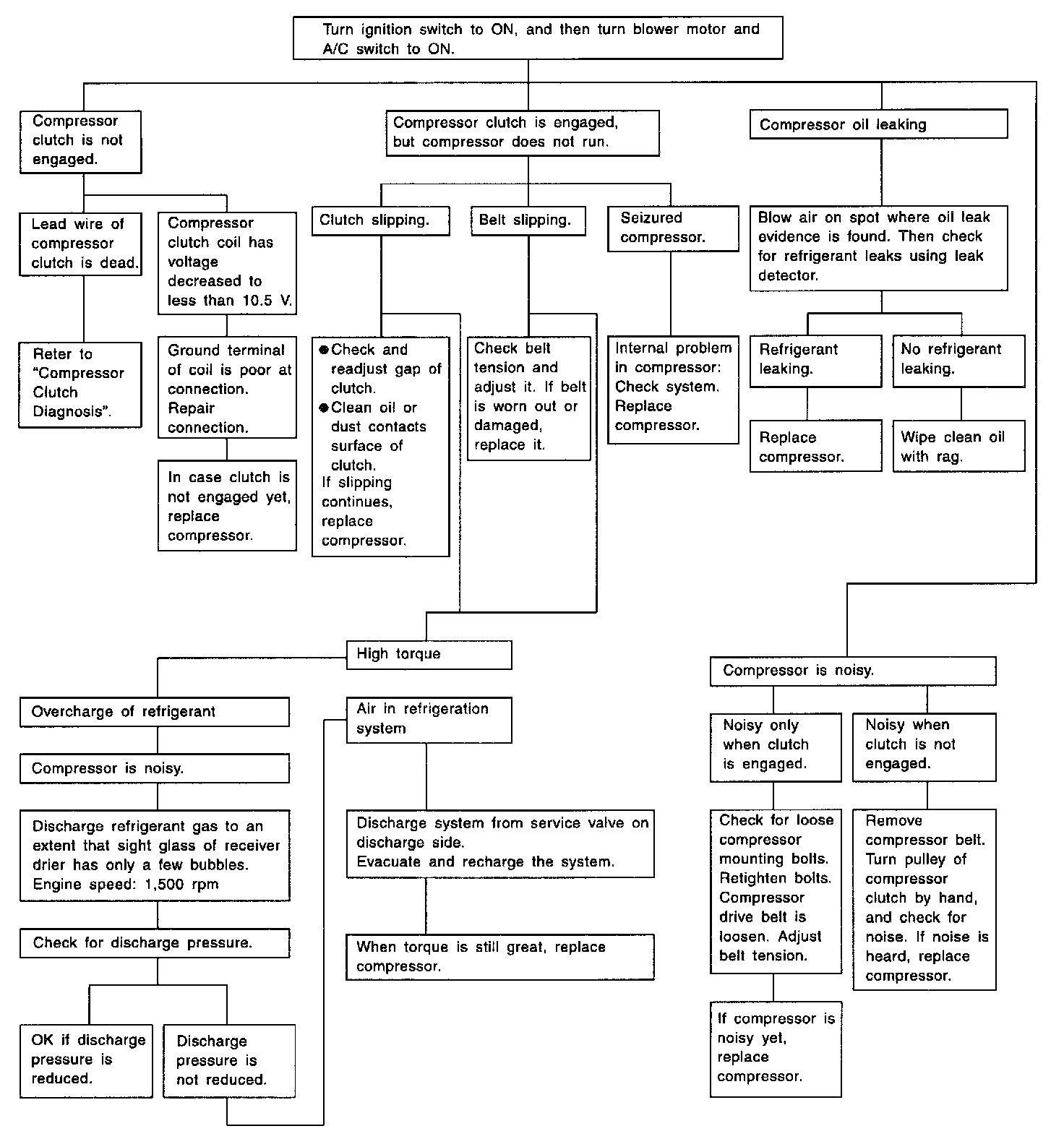

Compressor Diagnosis:

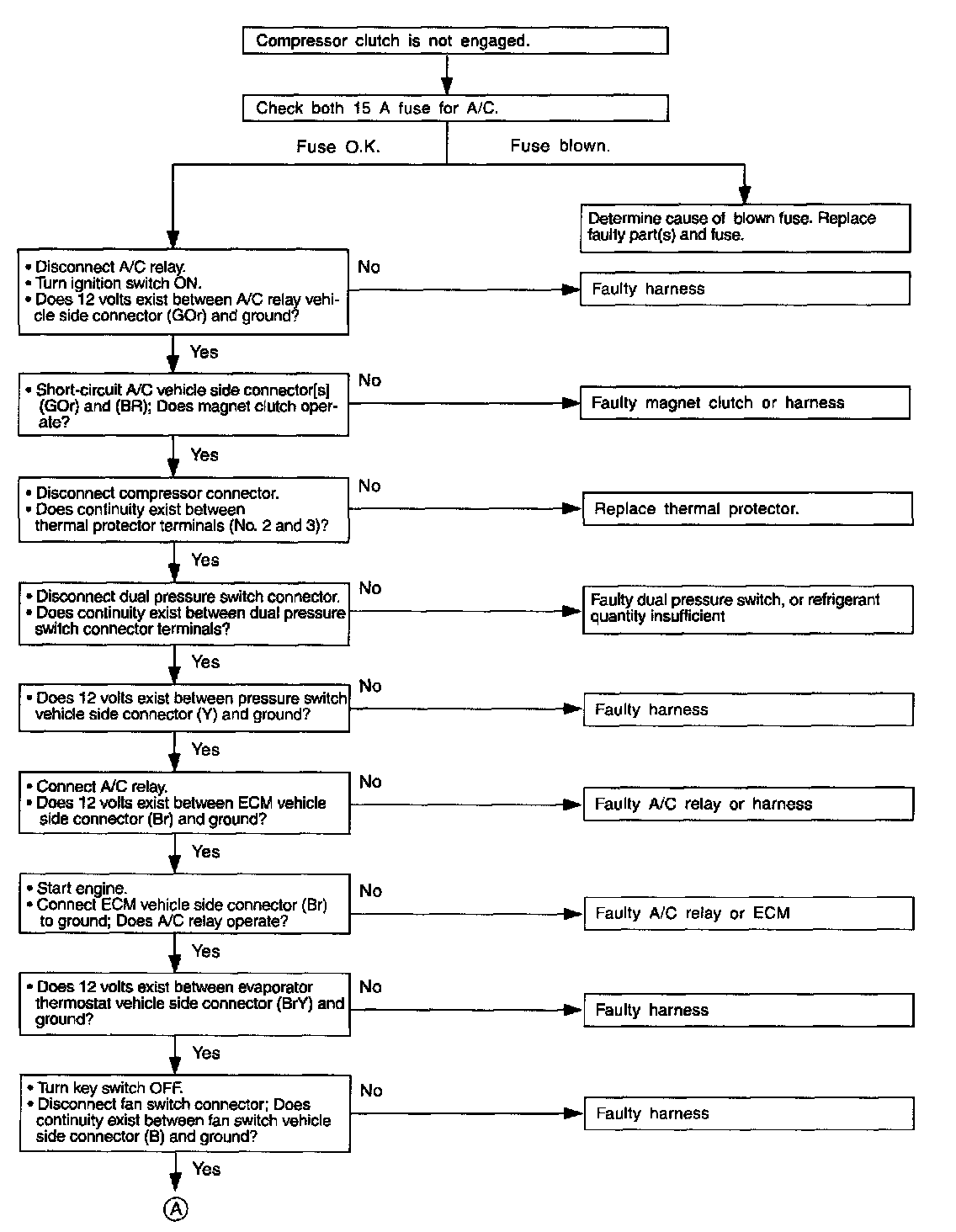

Compressor Clutch Diagnosis Part 1:

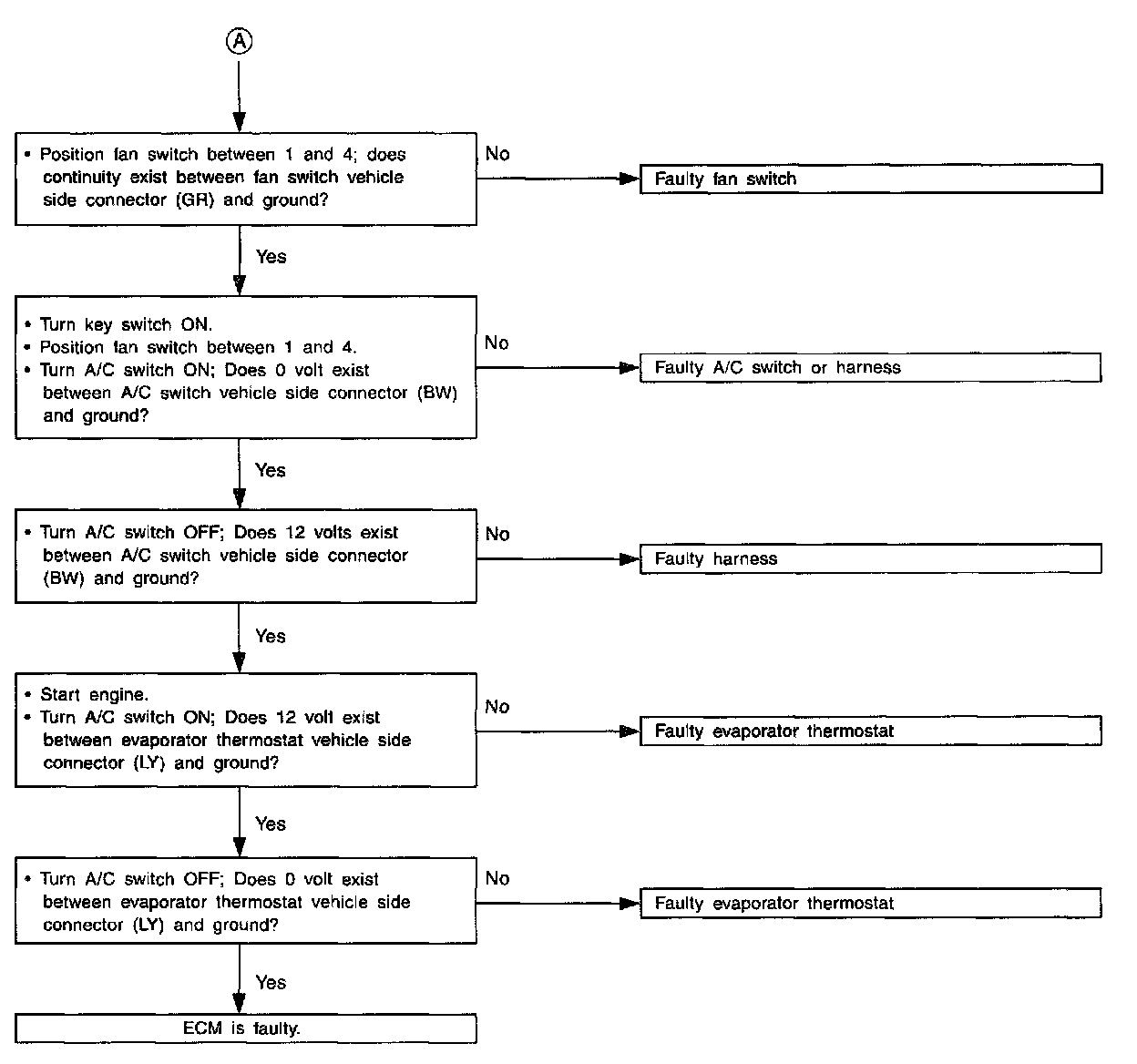

Compressor Clutch Diagnosis Part 2:
