Scan Tool Testing and Procedures

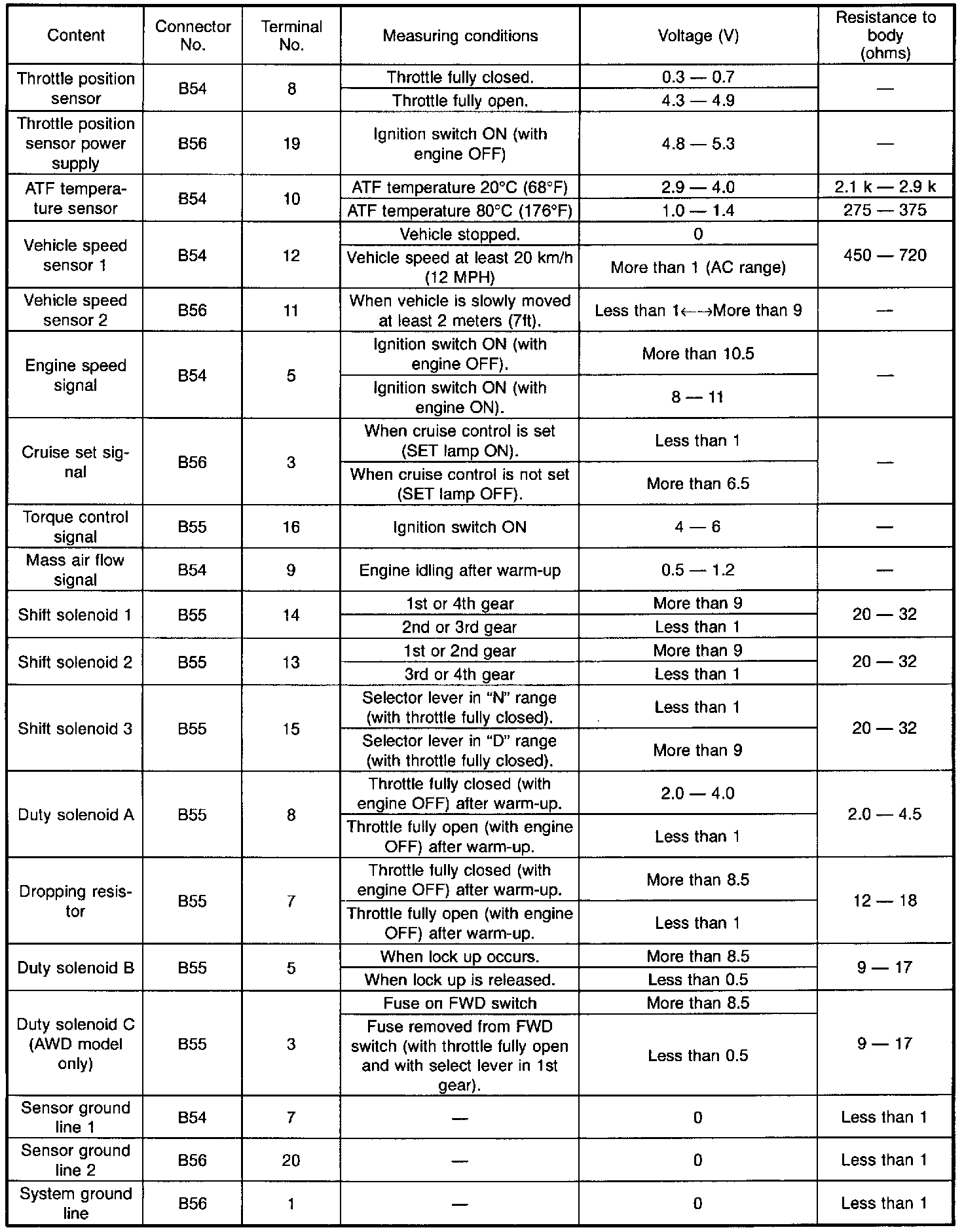

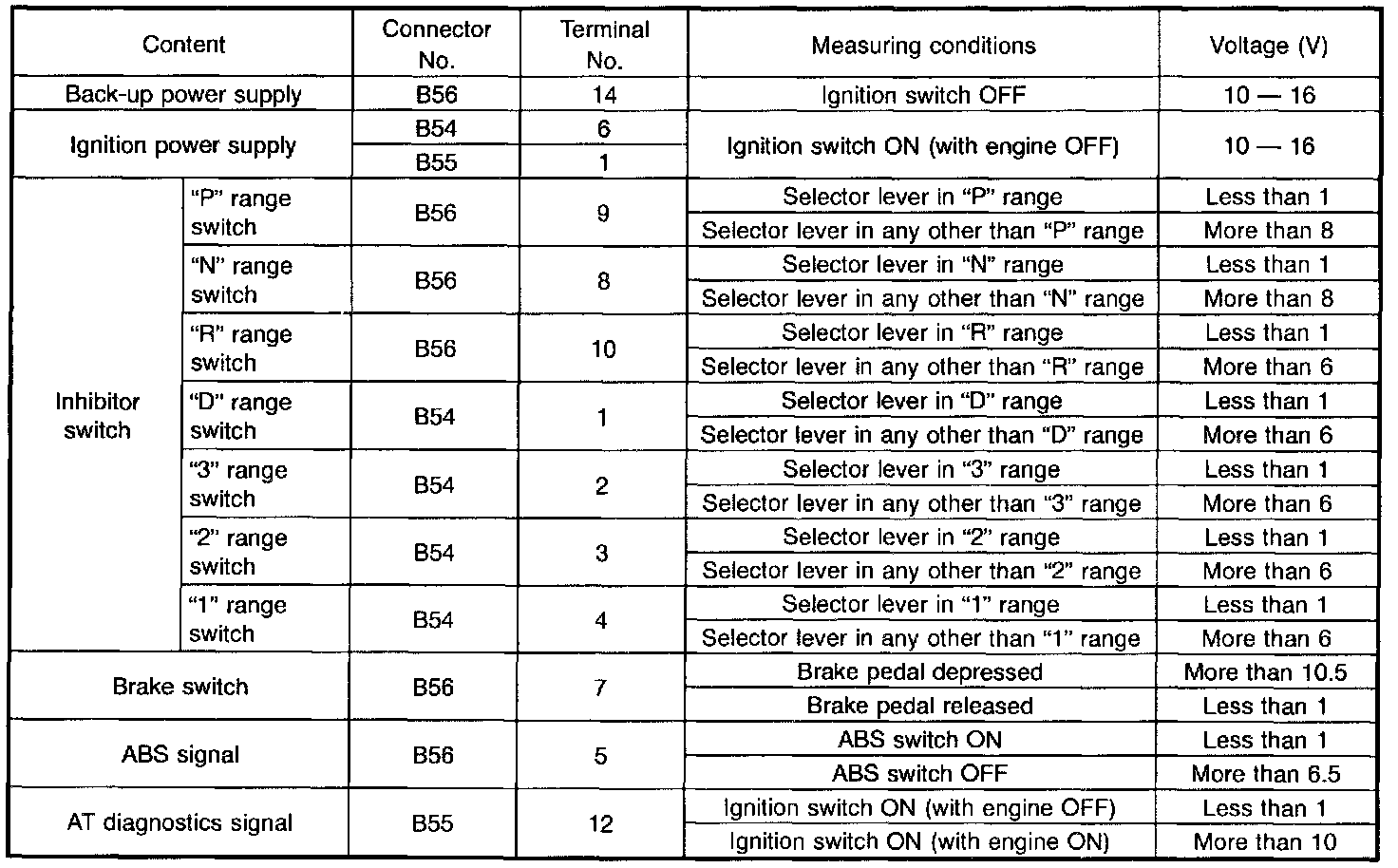

TRANSMISSION CONTROL MODULE (TCM) I/O SIGNAL














NOTE: Check with ignition switch ON.
