Specifications
>>
Mechanical Specifications
>>
Differential Assembly
>>
Differential Technical Data
>>
AWD System
AWD System

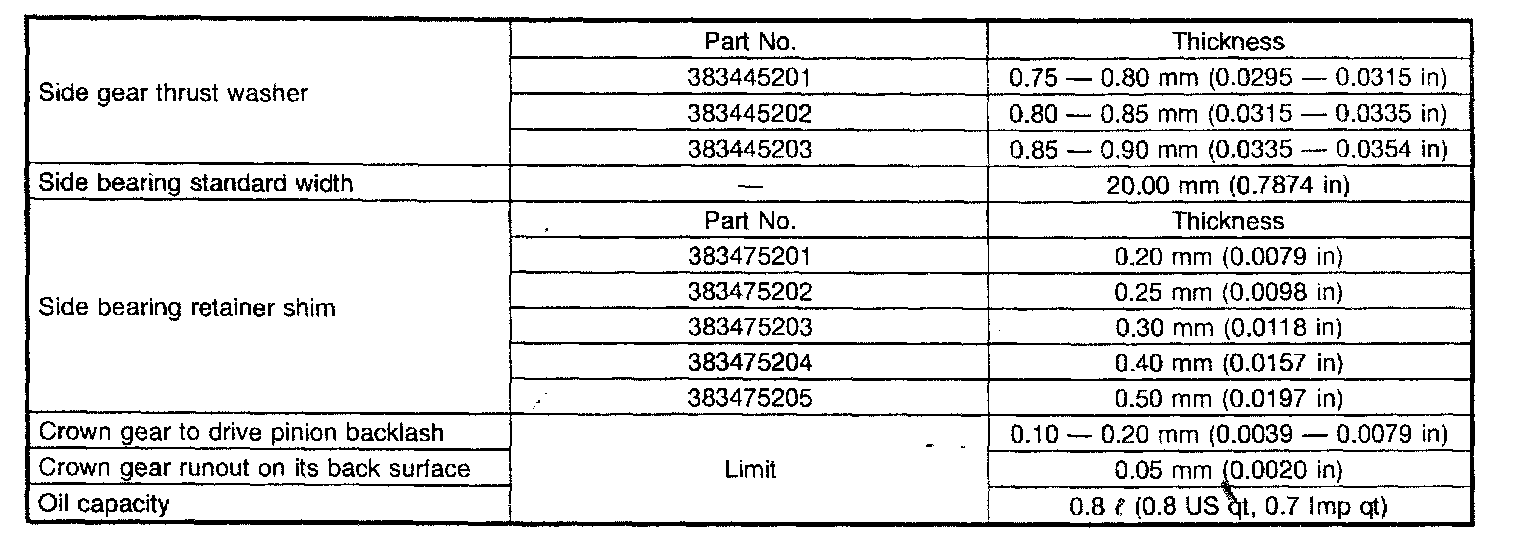

Rear Differential Service Data (Adjusting Parts):

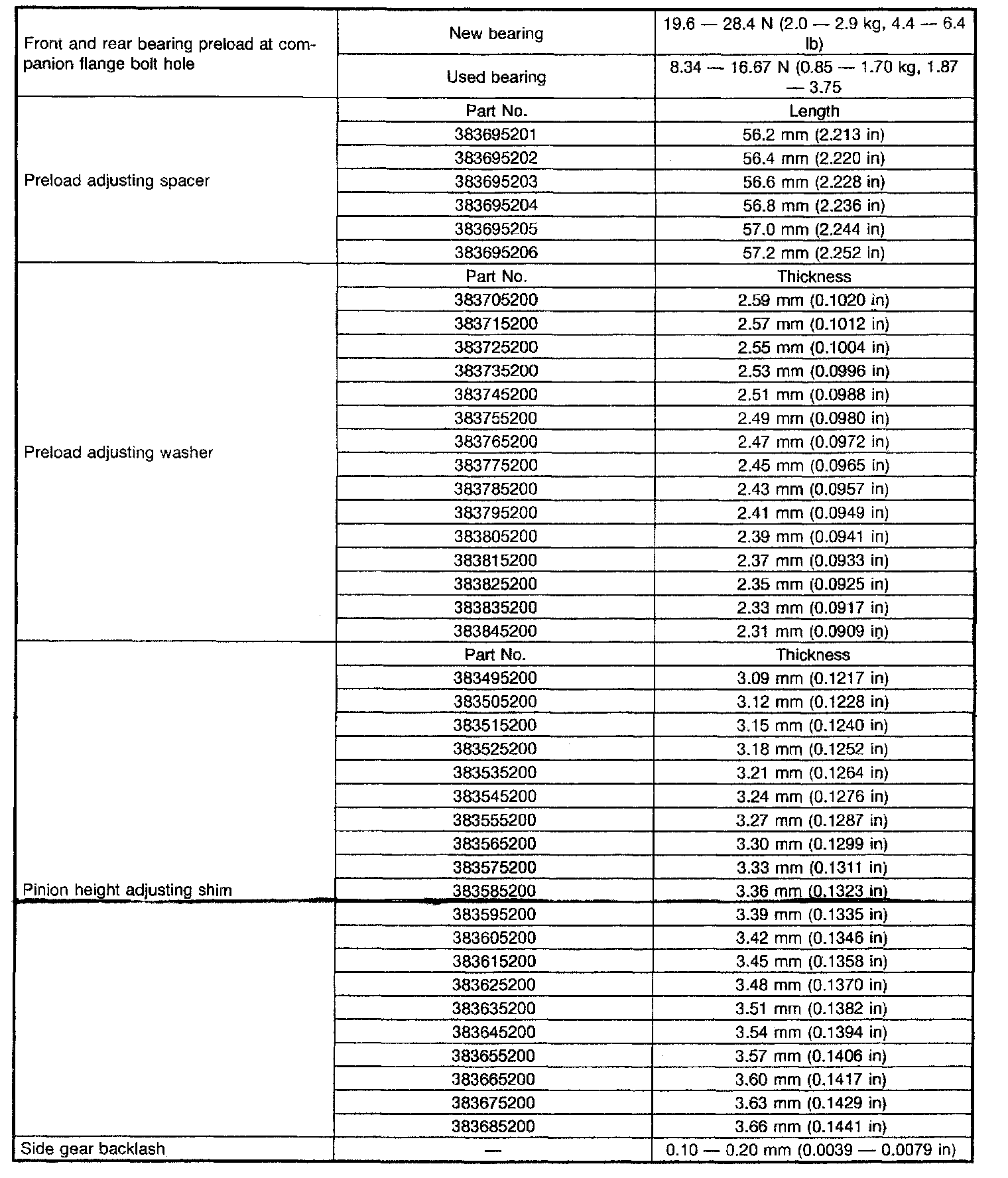

Rear Differential Service Data Thickness:
