Home >> Subaru >> 1998 >> Forester AWD F4-2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Locations

Ignition System: Locations

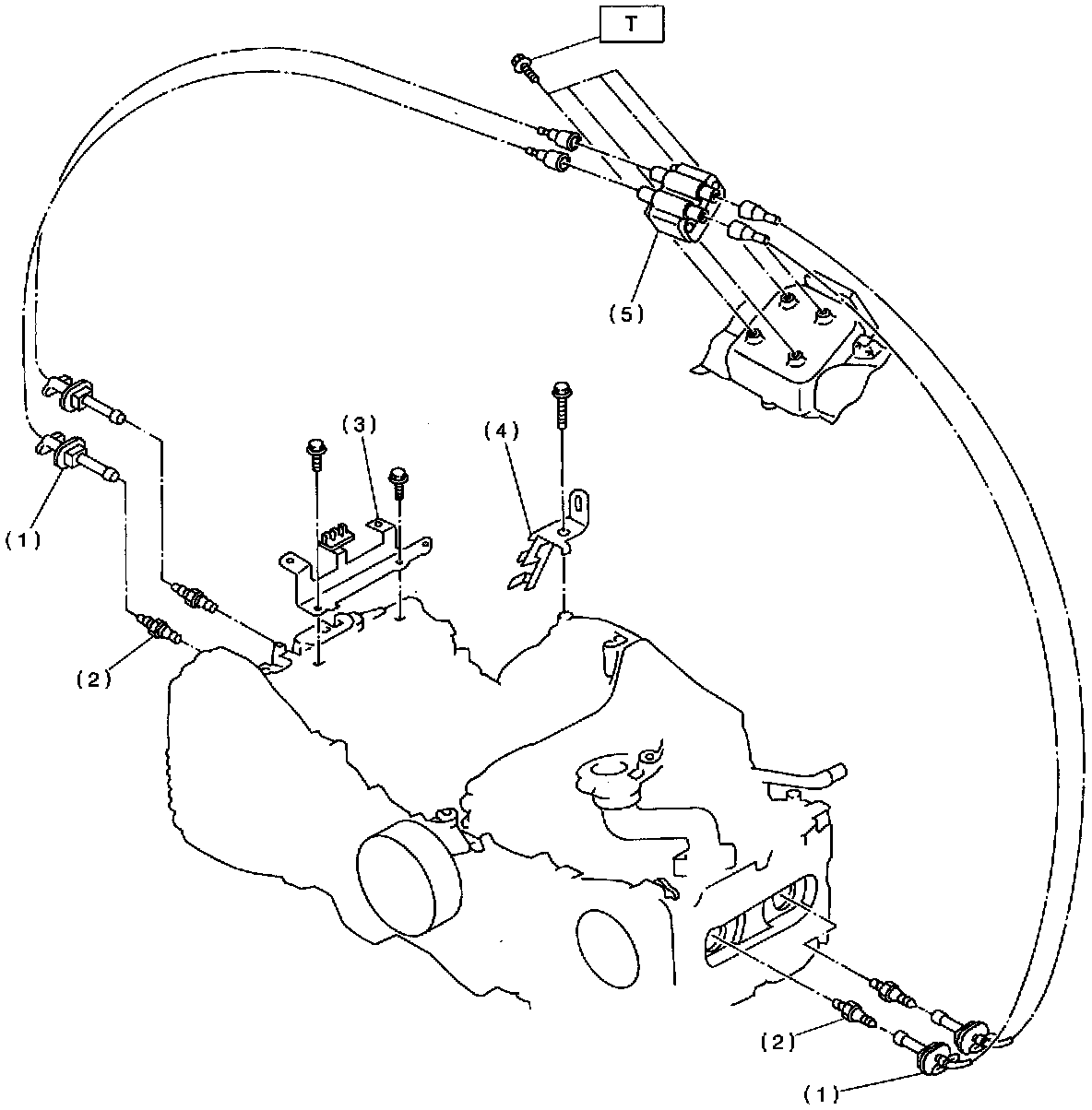

IGNITION SYSTEM
(1) Spark plug cord
(2) Spark plug
(3) Spark plug cord guide
(4) Engine harness guide
(5) Ignition coil
