Home
>>
Subaru
>>
1998
>>
Forester AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
General Diagnostics Table
General Diagnostics Table

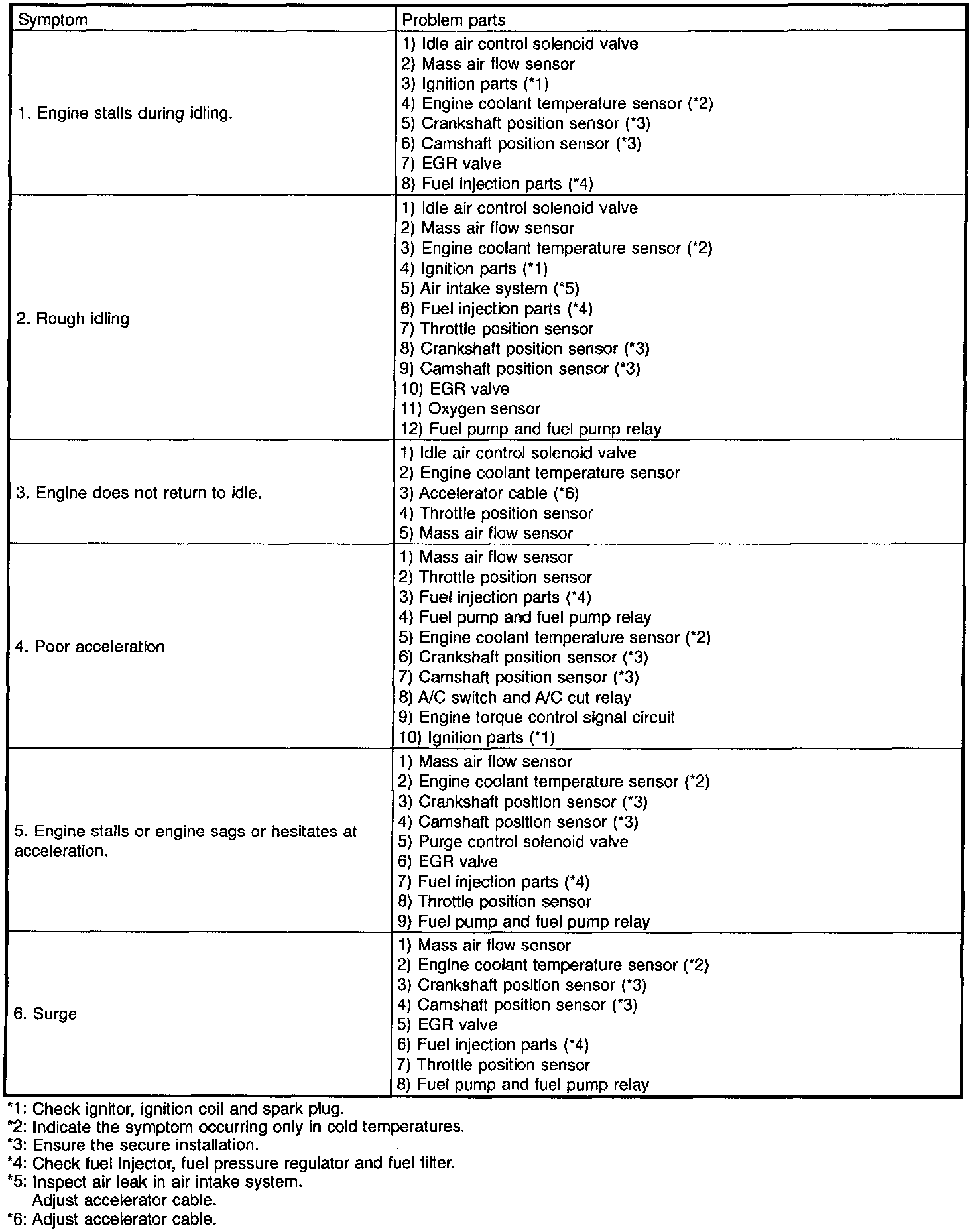

GENERAL DIAGNOSTICS TABLE WITH NON-CONFORMITY SYMPTOM FOR ENGINE
NOTE:
Malfunction of parts other than those listed is also possible.
