Forester AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
Heating and Air Conditioning
Air Conditioning System

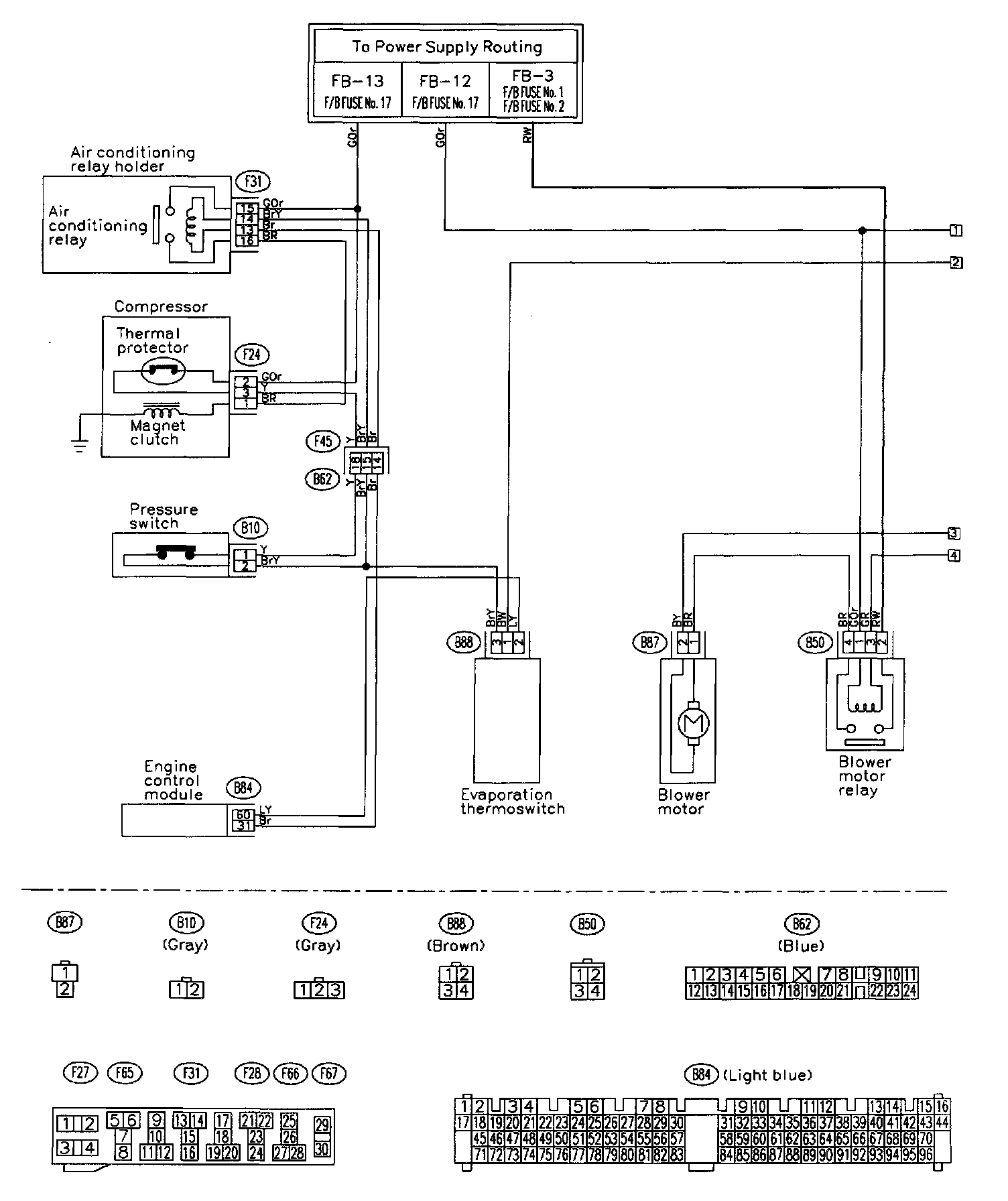

Air Conditioning System Part 1:

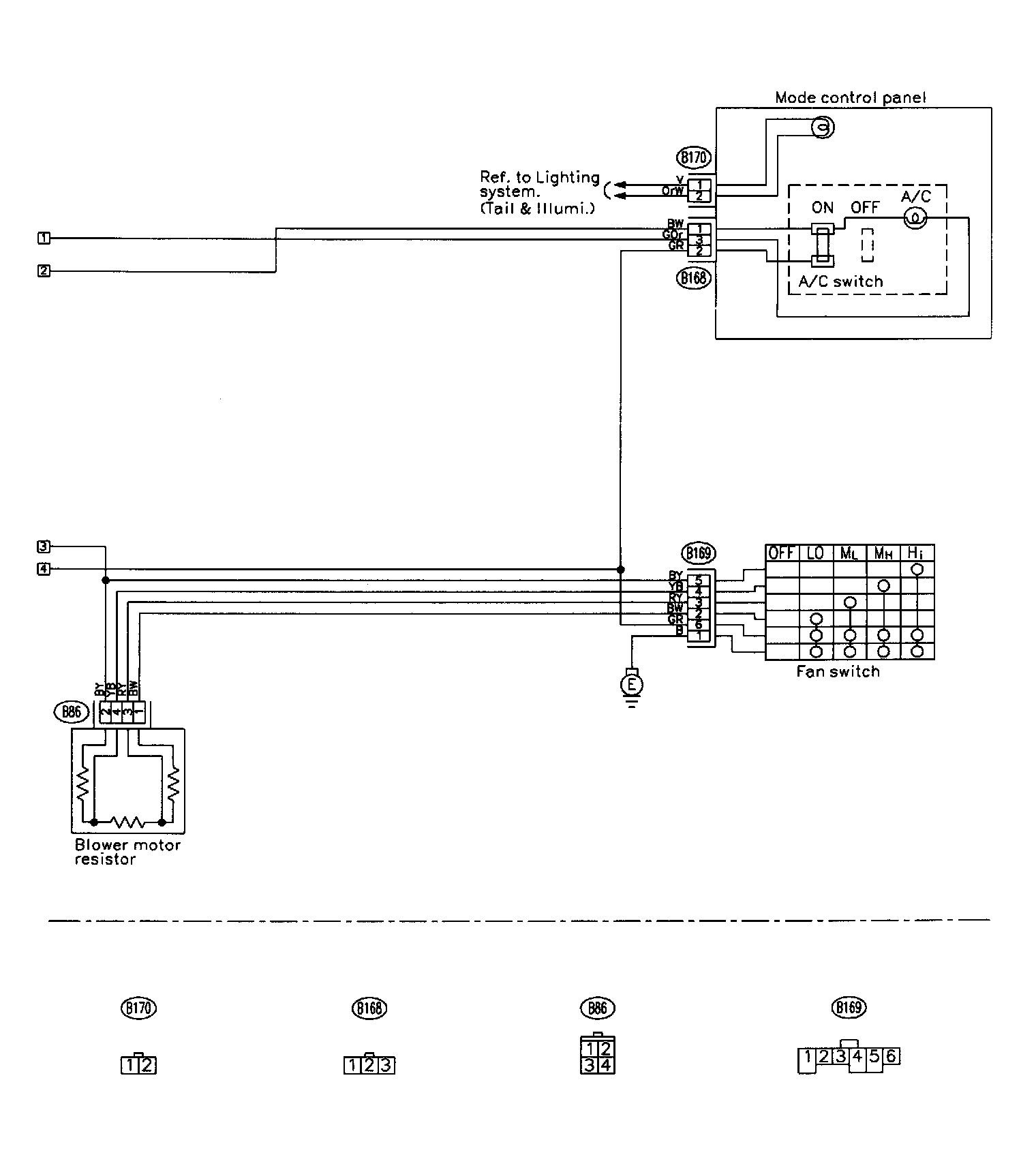

Air Conditioning System Part 2:
Circuit Diagrams
