Impreza Sedan AWD F4-1820cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Cooling System
>>
System Specifications
>>
Torque Specifications
Torque Specifications
TORQUE SPECIFICATIONS
Water Pump:
Water Pump
Coolant Pipe:
Coolant Pipe

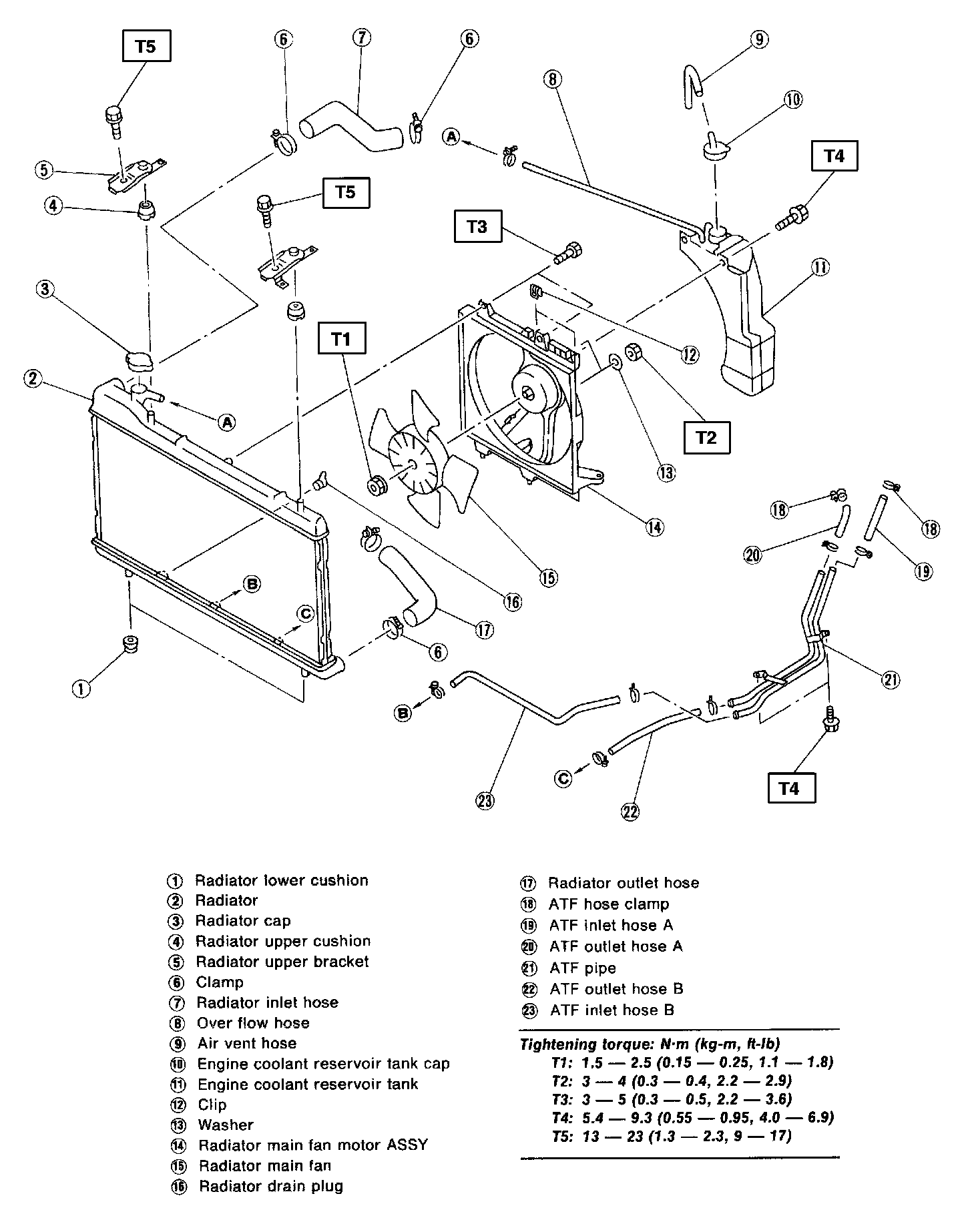

Radiator And Fan:
Radiator and Radiator Fan
