Home >> Subaru >> 1990 >> XT-6 2WD L6-2.7L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations

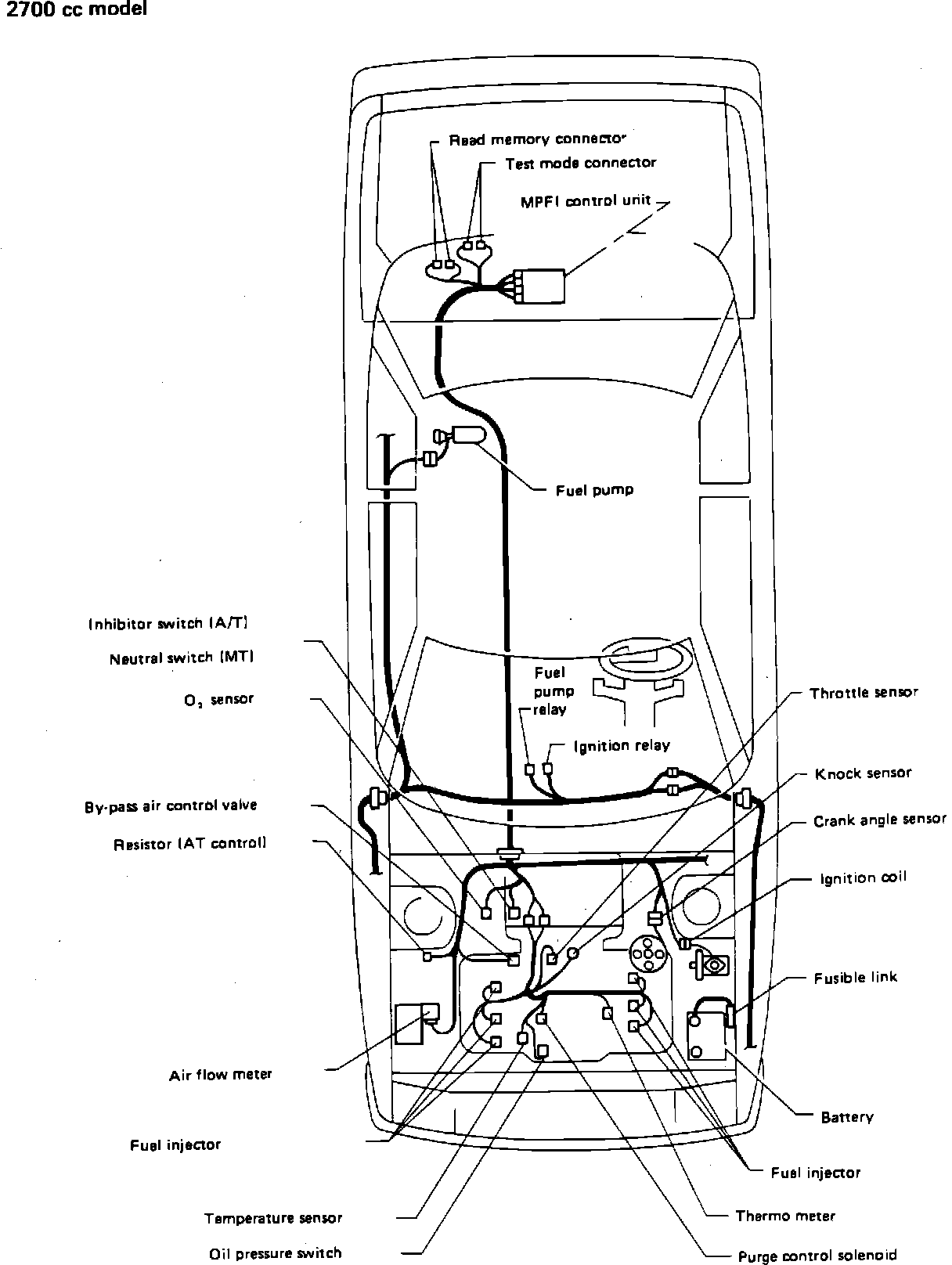

Transmission Control Systems: Locations

Fuel Injection Electrical Components.:




Attached To RH Strut Tower

Applicable to: 2700 Engines
